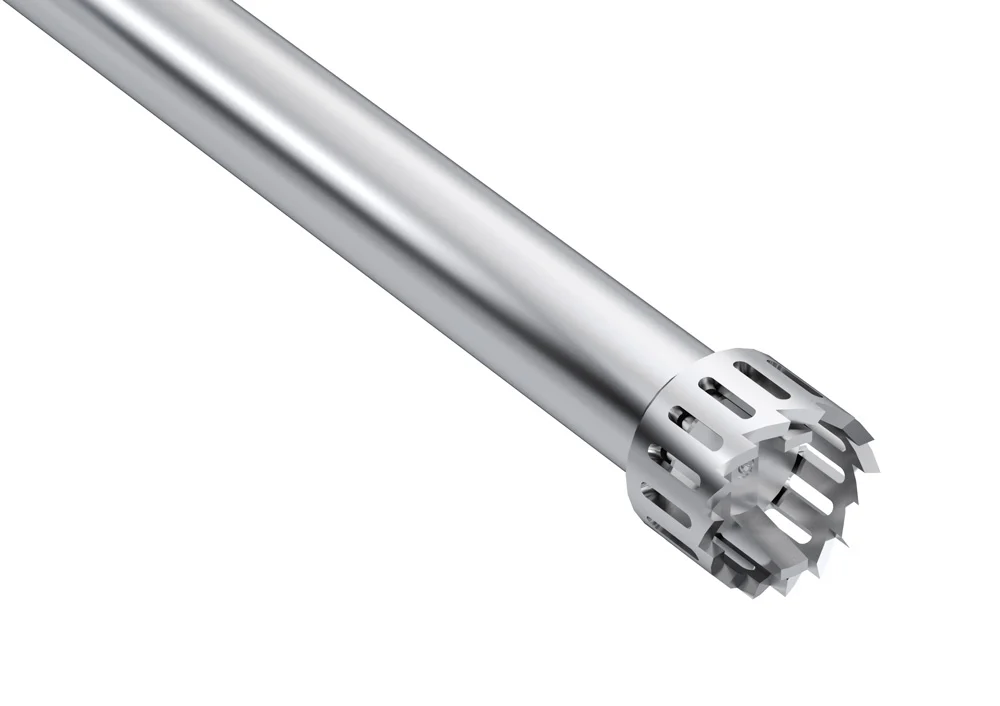

IKA S 25 KD - 25 G - ST dispersing tool, sawtooth, Ø25 mm, #0020002974
€1,679.25
% Regular price: €2,239.00 (25% saved)
Available, delivery time: 3-4 weeks
Accessories and spare parts are available on request!
Product information "IKA S 25 KD - 25 G - ST dispersing tool, sawtooth, Ø25 mm, #0020002974"
S 25 KD - 25 G ST Dispersion tool
Dispersion tool for the T 25 digital and T 25 easy clean digital/control dispersers
Bearing type and seal type: Ball bearing with PTFE seal and FFKM O-ring
Materials in contact with the product: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. operating temperature [°C]: 150
Installation length [mm]: 194
Stator/rotor diameter [mm]: 25/20
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 40–185
Recommended working range [ml]: 50–2,000
Technical data:
Processable volume (H₂O) 0.05 – 2 l
Stator diameter 25 mm
Rotor diameter 20 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 25,000 rpm
Maximum circumferential speed 26.2 m/s
Immersion depth 40–185 mm
Installation length 194 mm
Materials in contact with the product AISI 316L / PTFE / FFPM
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 150 °C
Sterilisability all methods except hot air
Vacuum 100 mbar
Final particle size of suspensions 15–50 µm
Final particle size of emulsions 1–10 µm
FDA compliance yes
Weight 0.4 kg
