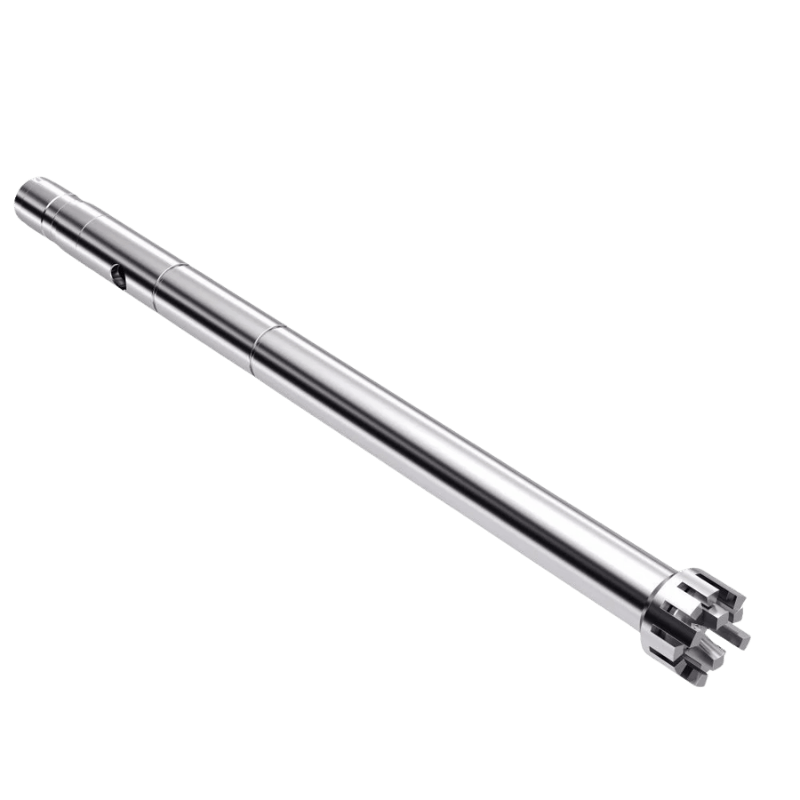

IKA S 25 KD - LR - 25 G dispersing tool (for laboratory reactors), 0025007321

The IKA S 25 KD - LR - 25 G is a specialised dispersing tool designed primarily for use in IKA laboratory reactors (LR series). The distinctive feature of this tool lies in its geometric design: it has an extended shaft (267 mm installation length), which allows for deeper immersion into reactor vessels. This is crucial for ensuring efficient homogenisation even at low liquid levels or with small sample volumes, without the reactor needing to be filled to the brim.

KD design for vacuum and cleaning

The abbreviation “KD” stands for a special sealing and bearing design that allows operation under vacuum down to 100 mbar. This makes the tool ideal for processes where air ingress must be avoided or which take place under reduced pressure (e.g. degassing during dispersion). At the same time, the KD design enables tool-free disassembly: the rotor can be easily removed, which considerably simplifies cleaning and sterilisation (wet chemical or autoclave) and prevents cross-contamination.

Material quality and FDA compliance

All parts in contact with the product are manufactured from high-quality materials: stainless steel (AISI 316L), PTFE and FFPM. This combination not only ensures high chemical resistance (pH 2–13) and suitability for use with solvents, but also meets the strict requirements of the FDA. This makes the tool ideally suited for applications in pharmaceutical and food development, where the highest levels of purity are required.

Technical details

• Processing volume (H₂O): 0.05 – 2.0 l
• Stator diameter: 25 mm
• Rotor diameter: 17 mm
• Gap width: 0.5 mm
• Installation length: 267 mm
• Immersion depth: 40–220 mm
• Final fineness (suspensions): 15–50 µm
• Final fineness (emulsions): 1–10 µm
• Max. operating temperature: 150 °C
• Vacuum resistance: up to 100 mbar
• Materials (in contact with the product): AISI 316L, PTFE, FFPM
• Max. peripheral speed: 22.2 m/s
• Compatibility: T 25 digital, T 25 easy clean (digital/control)

Scope of supply

• IKA S 25 KD - LR - 25 G dispersing tool

Customised requirements & procurement service

Do you require the even finer “F” version for emulsions, or the shorter standard version without the “LR” extension? We stock the full range of IKA dispersing accessories and can advise you on compatibility with your existing reactor systems.
