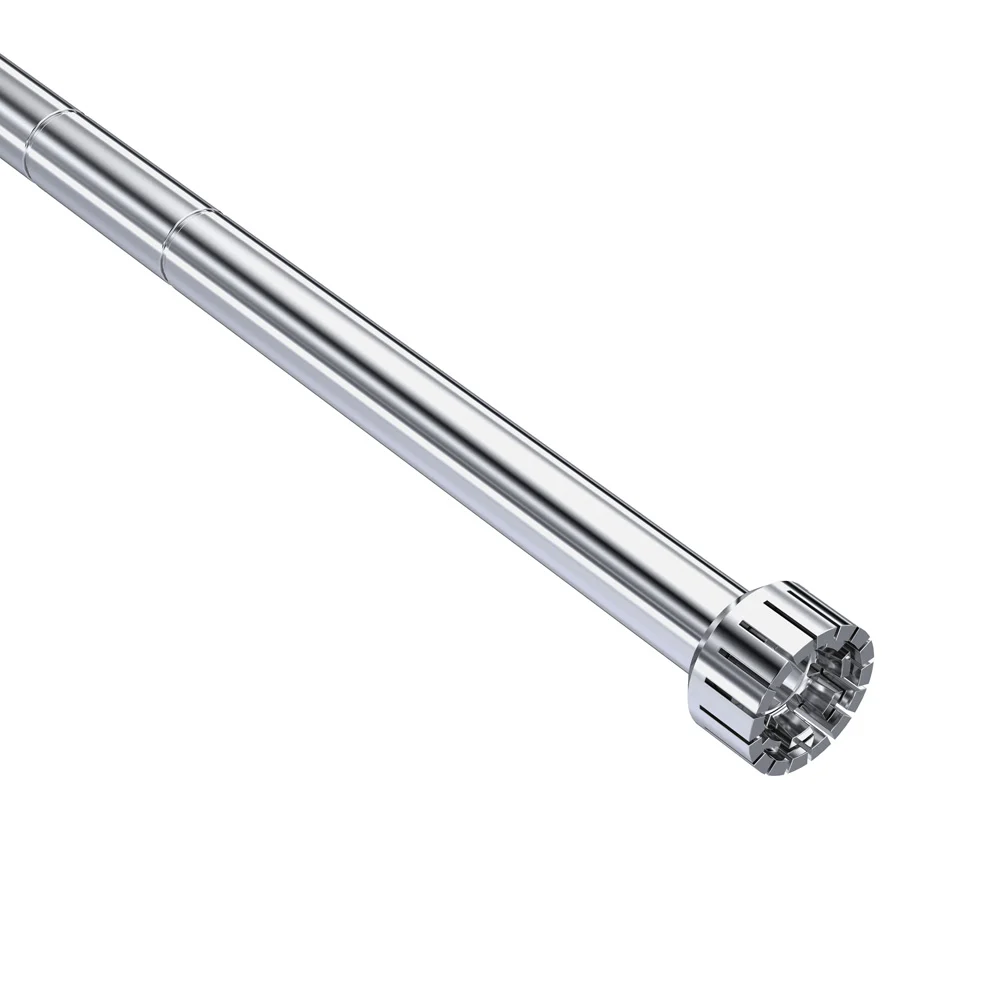

IKA S 25 KD - LR - 30 F dispersing tool, Ø30 mm, #0020127970

S 25 KD - LR - 30 F
The S 25 KD - LR - 30 F dispersing tool has been specially developed for use with the 5-litre LR-5.ST laboratory reactor. The F-tool produces extremely fine emulsions of up to 1 micron, but requires relatively low viscosities to achieve such fine emulsions. It is slightly longer than the standard dispersing tools, which allows for deeper immersion of the tool into the reactors and the processing of even smaller minimum sample volumes. Furthermore, this tool can be used under vacuum conditions of up to 100 mbar.

The new design simplifies the dismantling of the tool for cleaning and maintenance purposes.
Compatible with: T 25 digital, T 25 easy clean digital, T 25 easy clean control.

Technical data:
Processable volume (H₂O) 0.1 – 5 l
Stator diameter 30 mm
Rotor diameter 23 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible rotational speed 25,000 rpm
Maximum circumferential speed 30.1 m/s
Immersion depth 40–220 mm
Installation length 267 mm
Materials in contact with the product AISI 316L / PTFE / FFPM
pH range 2–13
Suitable for solvents yes
Maximum temperature measurement range 150 °C
Sterilisability all methods except hot air
Vacuum 100 mbar
Final particle size of suspensions 5–25 µm
Final particle size of emulsions 1–5 µm
FDA compliance yes
