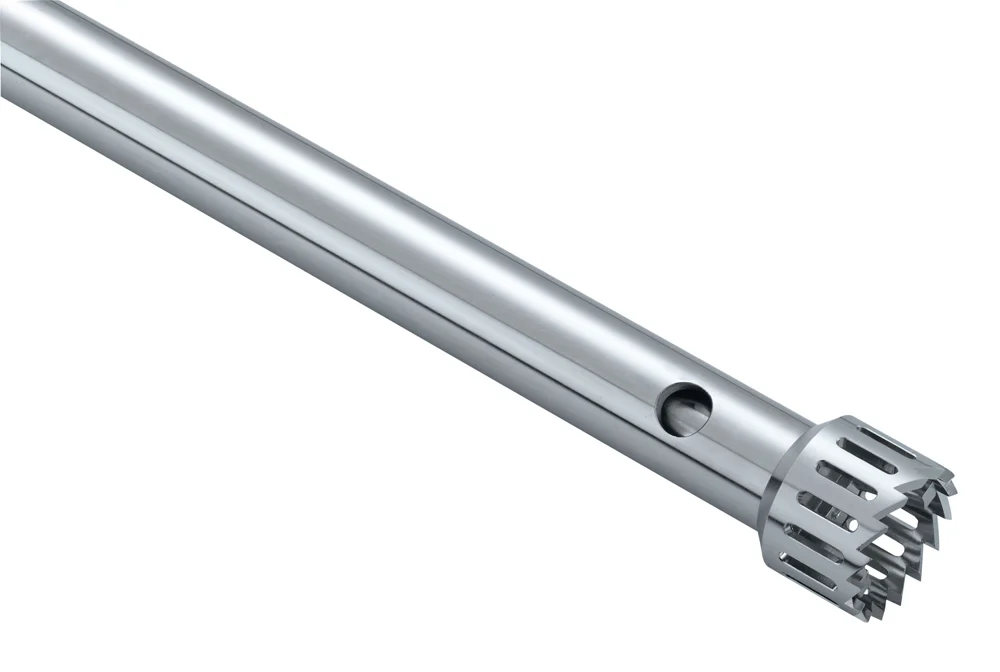

IKA S 25 N - 25 G - ST dispersing tool, sawtooth, Ø25 mm, #0004447500
€1,500.80
% Regular price: €1,876.00 (20% saved)
Accessories and spare parts are available on request!
Product information "IKA S 25 N - 25 G - ST dispersing tool, sawtooth, Ø25 mm, #0004447500"
S 25 N - 25 G - ST Dispersion Tool
Dispersion tool for the T 25 digital
drive. ST tools are used
for the homogenisation of fibrous samples in volumes of 50–2000 ml
. Stator diameter: 25 mm
. Immersion depth: 40–165 mm
Shaft mounted in a PTFE split-ring bearing; suitable for solvents; sterilisable; short-term operating temperature up to 180°C.
Technical data:
Processable volume (H₂O) 0.05–2 l
Stator diameter 25 mm
Rotor diameter 20 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 25,000 rpm
Maximum circumferential speed 26.2 m/s
Immersion depth 40–165 mm
Installation length 194 mm
Materials in contact with the product PTFE, AISI 316L
pH range 2–13
Suitable for solvents yes
Suitable for abrasive substances yes
Maximum operating temperature 180 °C
Sterilisability all methods
Final particle size for suspensions 15–50 µm
Final particle size for emulsions 1–10 µm
Weight 0.4138 kg
