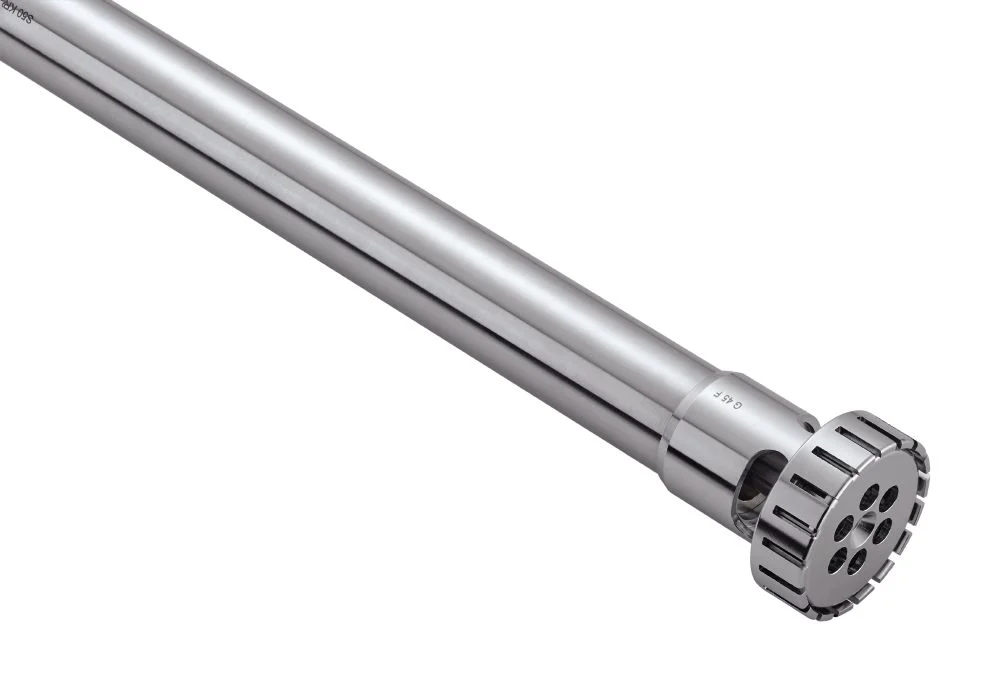

IKA S 50 KD - G 45 F mixing tool, Ø45 mm, #0010000631
€4,340.00
% Regular price: €5,425.00 (20% saved)
Accessories and spare parts are available on request!
Product information "IKA S 50 KD - G 45 F mixing tool, Ø45 mm, #0010000631"
S 50 KD - G45F Dispersing tool
Dispersing tool for the T 50 digital disperser
Bearing type and seal type: Ball bearing with PTFE seal and FFKM O-ring
Material in contact with the product: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. operating temperature [°C]: 150
Installation length [mm]: 300
Stator/rotor diameter [mm]: 45/40
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 70–260
Recommended working range [ml]: 250–10,000
Technical data:
Processable volume (H₂O) 0.25 – 10 l
Stator diameter 45 mm
Rotor diameter 40 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 10,000 rpm
Maximum circumferential speed 20.9 m/s
Immersion depth 70–260 mm
Installation length 300 mm
Materials in contact with the product FFPM, PTFE, AISI 316L
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 150 °C
Sterilisability autoclavable
Vacuum 100 mbar
Final particle size of suspensions 10–30 µm
Final particle size of emulsions 1–10 µm
Weight 0.658 kg
