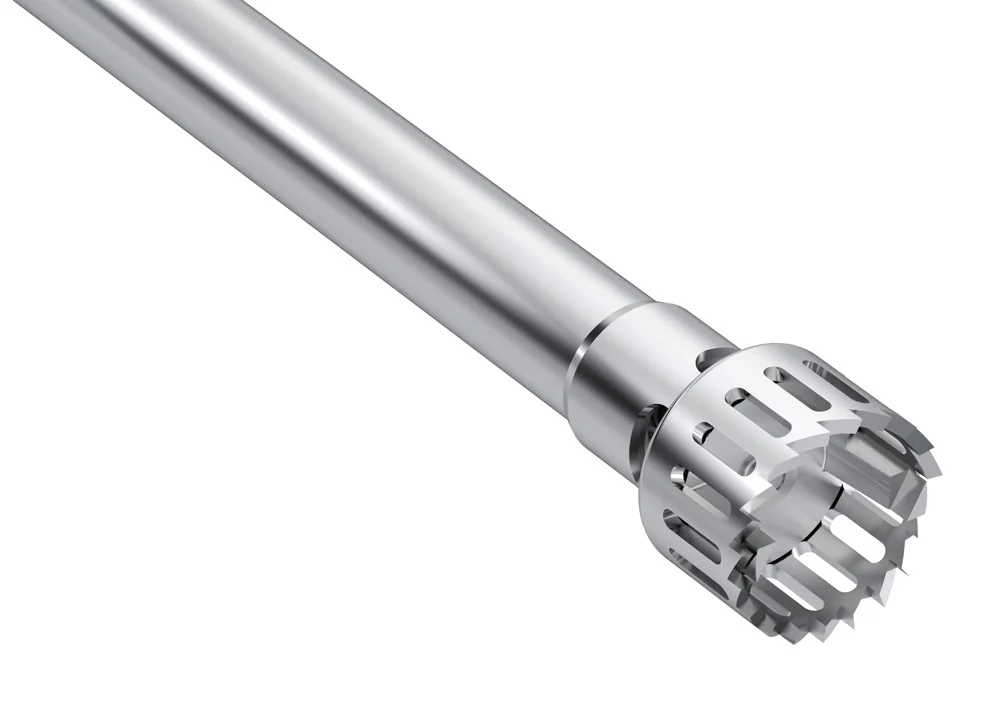

IKA S 50 KD - G 45 G - ST dispersing tool, sawtooth, Ø45 mm, #0010000632
€3,649.50
% Regular price: €4,866.00 (25% saved)
Available, delivery time: 3-4 weeks
Accessories and spare parts are available on request!
Product information "IKA S 50 KD - G 45 G - ST dispersing tool, sawtooth, Ø45 mm, #0010000632"
S 50 KD - G45G ST Dispersion tool
Dispersion tool for the T 50 digital disperser
Bearing type and seal type: Ball bearing with PTFE seal and FFKM O-ring
Material in contact with the product: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. operating temperature [°C]: 150
Installation length [mm]: 300
Stator/rotor diameter [mm]: 45/38
Gap width [mm]: 0.5
Recommended immersion depth [mm]: 70–260
Recommended working range [ml]: 500–20,000
Technical data:
Processable volume (H₂O) 0.5 – 20 l
Stator diameter 45 mm
Rotor diameter 38 mm
Gap width between stator and rotor 0.5 mm
Maximum permissible speed 10,000 rpm
Maximum circumferential speed 19.9 m/s
Immersion depth 70–260 mm
Installation length 300 mm
Materials in contact with the product FFPM, PTFE, AISI 316L
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 150 °C
Sterilisability autoclavable
Vacuum 100 mbar
Final particle size of suspensions 40–100 µm
Final particle size of emulsions 10–30 µm
Weight 0.71 kg
