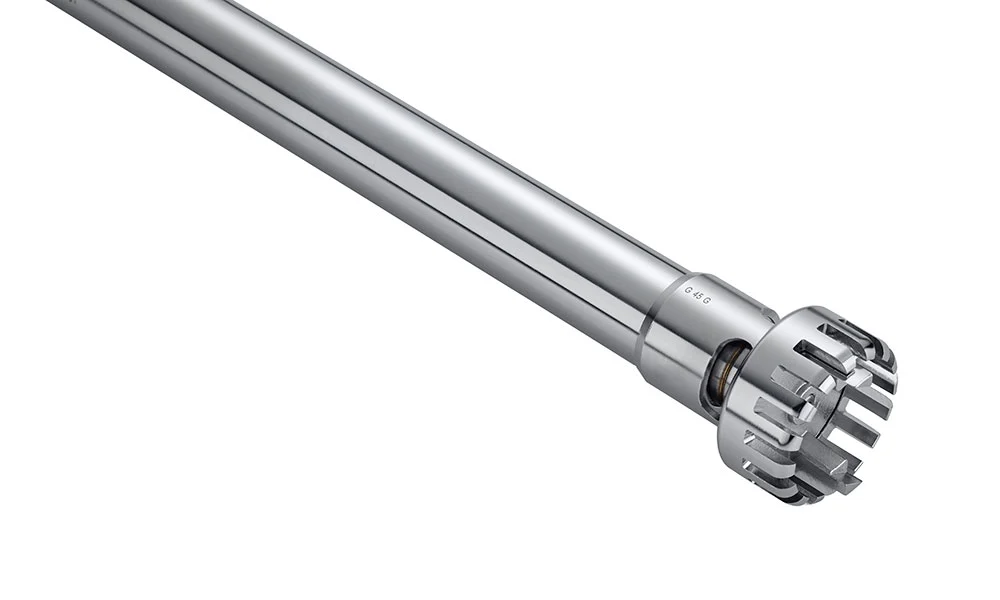

IKA S 50 KG - HH - G 45 G mixing tool, Ø45 mm, #0008003200
€4,113.75
% Regular price: €5,485.00 (25% saved)
Available, delivery time: 3-4 weeks
Accessories and spare parts are available on request!
Product information "IKA S 50 KG - HH - G 45 G mixing tool, Ø45 mm, #0008003200"
S 50 KG - HH - G 45 G Dispersion tool
Dispersion tool for T 50 digital
drive. Ball-bearing-mounted shaft, single-acting mechanical seal made of carbide/carbide. Suitable for use under vacuum. Solvent-resistant. Sterilisable; short-term operating temperature up to 180°C.
Immersion depth: 70–260 mm
Stator diameter: 45 mm
Working range: 0.5–20 litres
Technical data:
Processable volume (H₂O) 0.5–20 l
Stator diameter 45 mm
Rotor diameter 36 mm
Maximum peripheral speed 18.8 m/s
Immersion depth 70–260 mm
Installation length 300 mm
Materials in contact with the product FFPM / WC / AISI 316L
pH range 2–13
Suitable for solvents yes
Operating temperature (max.) 150 °C
Sterilisability wet – chemical
Vacuum 1 mbar
Pressure (max.) 6 bar
Final particle size (suspensions) 40–100 µm
Final particle size (emulsions) 10–30 µm
Weight 0.552 kg
