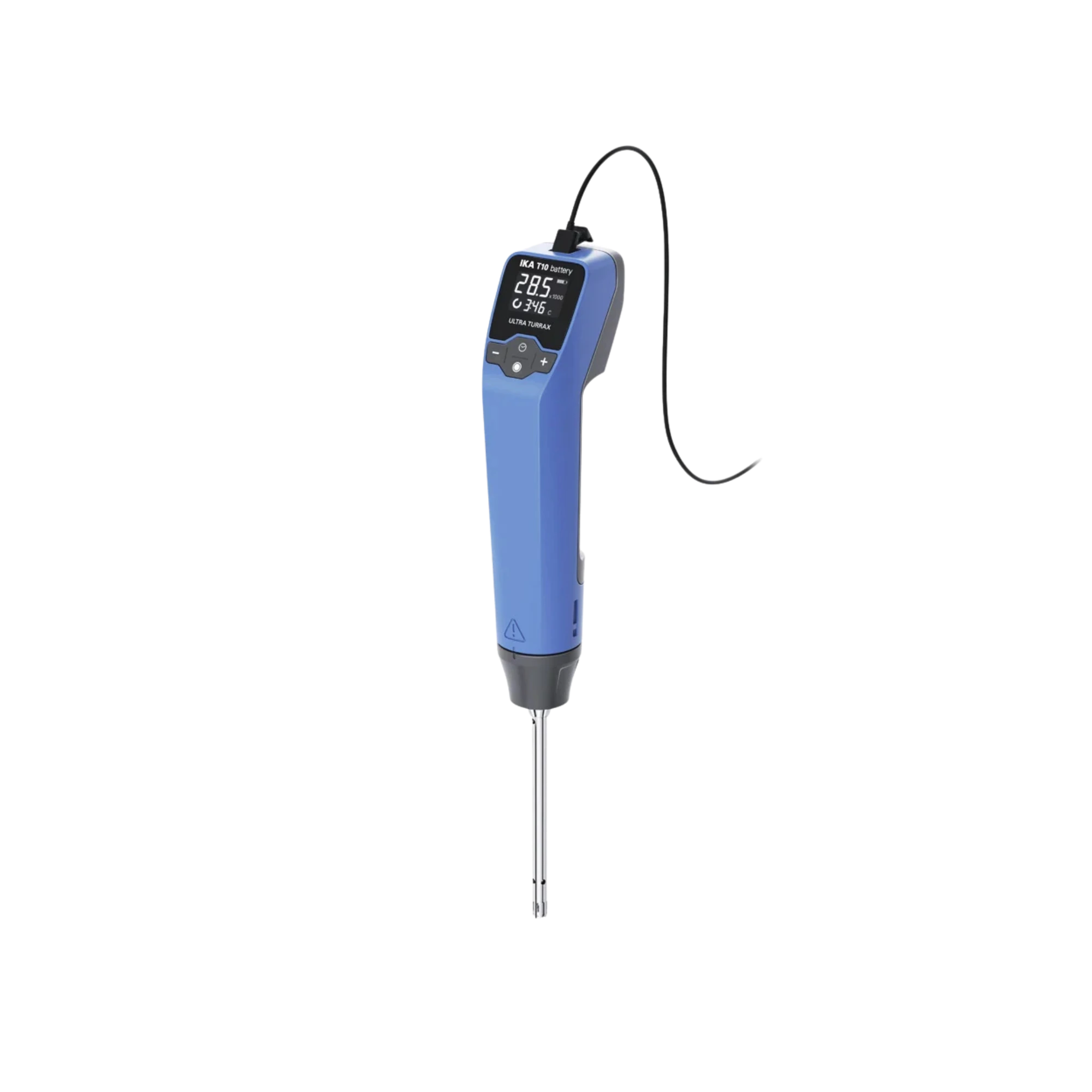

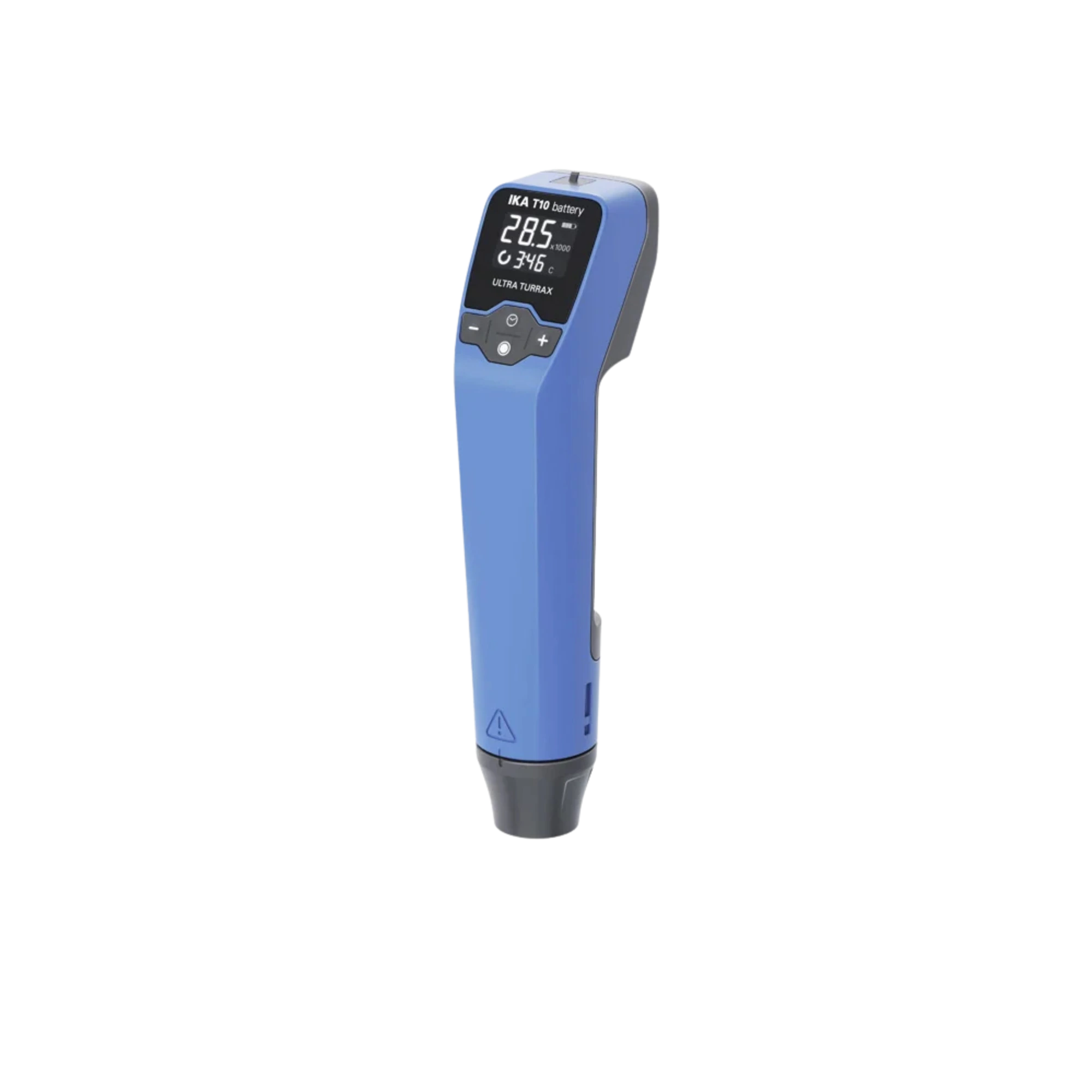

IKA T 10 battery-powered disperser ULTRA-TURRAX ®, 0.5 – 100 ml, 0020103418

The IKA T 10 battery ULTRA-TURRAX ® (MPN 0020103418) is the first battery-powered, fully cordless disperser from IKA. This highly optimised mechatronic liquid-handling system has been specially developed for processing very small sample volumes ranging from 0.5 ml to 100 ml (based on water). Thanks to its ultra-compact, portable design, the system does not require a fixed power supply during operation. This makes the homogeniser ideal for mobile on-site sampling, point-of-care diagnostics or as a flexible tissue homogeniser for the gentle disruption of complex biological cell structures directly in microcentrifuge tubes.

Numerical precision and gentle intermittent operation

The process control of the T 10 battery allows for stepless and highly precise adjustment of the rotational speed across a wide range from 8,000 to 30,000 revolutions per minute. All transient operating parameters can be read off and controlled with numerical precision via the integrated, high-resolution TFT display. To guarantee highly reproducible validation series, the system features integrated timer and counter functions. The mechatronic design is optimised for controlled intermittent operation (10 minutes of continuous operation followed by a 5-minute cooling phase), which effectively prevents the brushless DC motor from overheating and ensures maximum service life.

Flexible power management and broad material compatibility

The integrated, rechargeable lithium-ion battery offers maximum independence in day-to-day laboratory work and can be charged via two flexible options: either directly via the future-proof USB-C interface or via an optional, stationary charging cradle. An extensive range of application-specific dispersing tools is available for the T 10 battery. Whether blunt-edged, serrated, made of stainless steel or sterile plastic versions – the system can be flexibly adapted to any chemical or biological requirement matrix.

Technical details

Drive & Performance Data

• Motor type: Brushless DC motor
• Motor power consumption: 30 watts
• Motor output: 25 watts
• Maximum device power consumption: 48 watts
• Standby power consumption: 0.1 watts

Process & volume data

• Processable volume (based on water), min.: 0.0005 litres (equivalent to 0.5 ml)
• Processable volume (based on water), max.: 0.1 litres (equivalent to 100 ml)
• Maximum viscosity: 200 mPas
• Process type: Batch process
• Operating time (ON phase): Maximum 10 minutes of continuous operation
• Operating time (OFF phase / cooling): 5-minute rest period

Speed & time control

• Minimum speed: 8,000 rpm (revolutions per minute)
• Maximum speed: 30,000 rpm (revolutions per minute)
• Speed adjustment: Continuously variable
• Speed deviation: 5 per cent
• Reversible rotation direction: No
• Timer: Yes, integrated with LCD display

Electronics, interfaces & geometry

• Parameter and speed display: Digital via a high-contrast display (TFT / LED)
• Digital interface: USB-C
• DC voltage: 15 V=
• Current consumption: 3,000 mA
• Dimensions (width x depth x height): 53 x 70 x 239 mm
• Net weight: 0.5 kg (500 grams)

Environmental data & resilience

• Protection class according to DIN EN 60529: IP 42
• Noise level (without dispersing tool): 65 dB(A)
• Integrated temperature display: No
• Permissible ambient temperature: +5 to +40 degrees Celsius
• Permissible relative humidity: Up to 80 per cent

Contents of delivery

• 1 x IKA T 10 battery ULTRA-TURRAX ® cordless disperser (MPN: 0020103418)
• 1 x Integrated lithium-ion battery
• 1 x USB-C charging cable
• 1 x Detailed operating instructions / safety guide

Note: The dispersing tool is not included as standard and must be ordered separately.

Customised requirements & accessories

A suitable dispersing tool is essential for the operational commissioning of the battery-powered disperser. Our B2B range includes the original IKA system components:

• Stainless steel dispersing tools: S 10 N - 5 G (MPN 0003304000), S 10 N - 8 G (MPN 0003305500) and S 10 N - 10 G (MPN 0003370100) for aggressive media and standard applications.
• Sterile, single-use plastic tools: S 10 D - 7 G - KS - 65 (MPN 0020002076) and S 10 D - 7 G - KS - 110 (MPN 0020002075) to completely prevent cross-contamination.

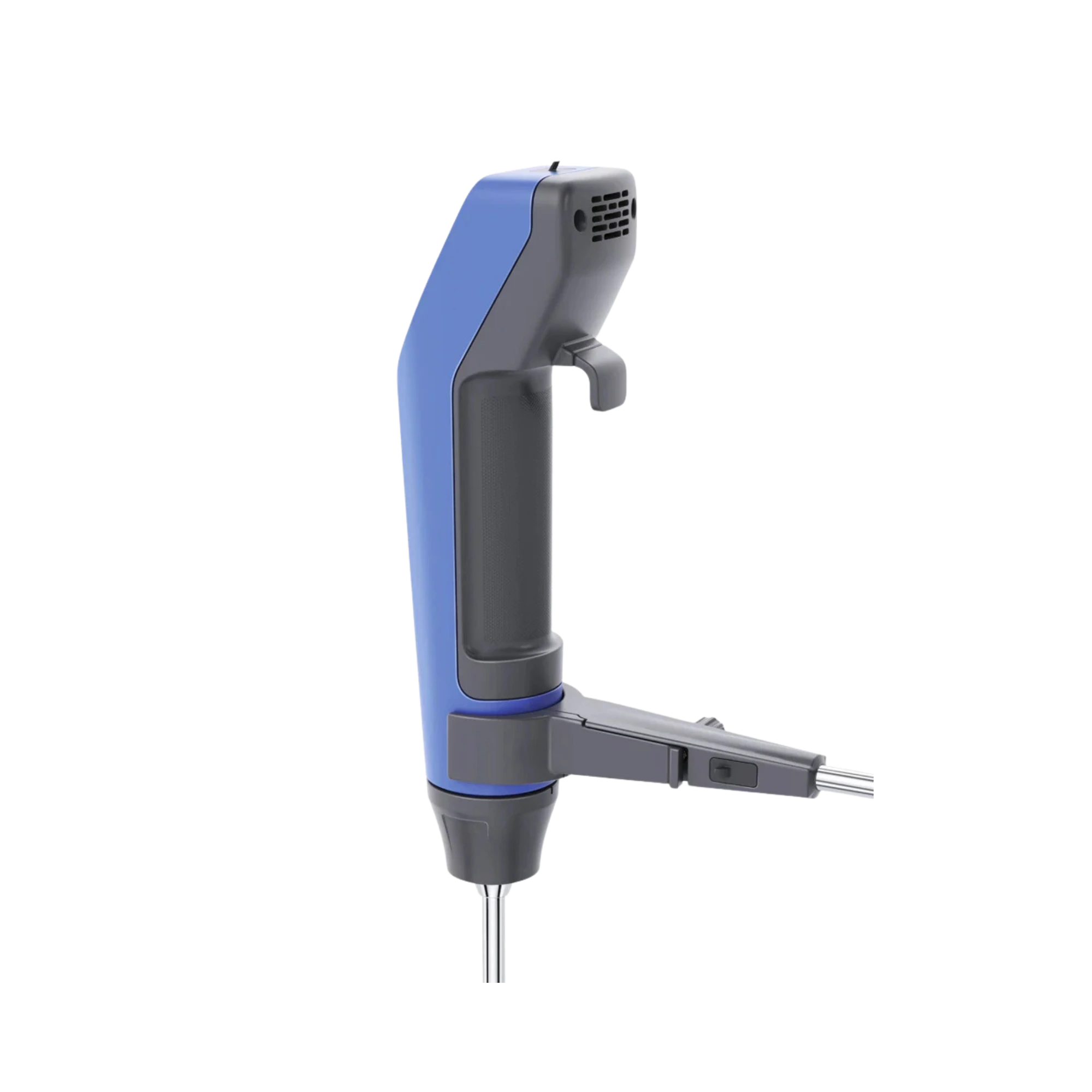

• Stand accessories: H 44 cross-sleeve (MPN 0002437700) and R 104 stand clamp (MPN 0003386000) for secure, stationary mounting at the workplace. Please use our technical support at lt-laborhandel.de/service for an application-specific configuration.
