IKA T 18 Brushless Digital Solution, Disperser Set, Brushless, Timer, 0010015148

Innovation for the highest purity requirements: The IKA T 18 brushless digital solution

The IKA T 18 brushless digital Solution (MPN 0010015148) represents the pinnacle of technological development in the T 18 series. This high-end dispersion package has been specially designed for laboratory environments where standard solutions reach their limits. Whilst conventional dispersers perform excellently in routine analysis, sensitive sectors such as pharmaceutical research, the semiconductor industry or food technology often require more: absolute particle-free ambient air, minimised noise levels and maximum reliability. This is precisely where the T 18 brushless digital comes into its own. As part of the “Solution” package, you receive not only the advanced drive system, but also a fully equipped workstation including a high-quality dispersing tool and a professional stand system.

The revolution in drive technology: brushless DC technology

The heart of this device sets it fundamentally apart from traditional laboratory homogenisers. Instead of a conventional carbon-brush motor, it utilises a modern, wear-free brushless DC motor. This technology offers you three key advantages in day-to-day laboratory work:

1. Contamination-free operation: In traditional motors, the friction of the carbon brushes produces fine carbon dust, which enters the laboratory air via the ventilation slots. In cleanrooms or when working with open samples that must not be contaminated under any circumstances, this is a deal-breaker. The T 18 brushless operates completely friction-free, thereby guaranteeing a clean atmosphere directly around your sample.
2. Maintenance-free: Where there are no brushes to wear down, there is nothing to replace. The motor is designed for an extremely long service life, which eliminates downtime for servicing and reduces operating costs in the long term.
3. Whisper-quiet operation: The background noise in large laboratories is often a nuisance. The brushless drive runs significantly smoother and quieter than comparable standard motors, enabling concentrated work even over extended periods.

Smart functions for reproducible processes

In addition to the innovative motor, the T 18 brushless digital offers a range of smart functions that enhance your process reliability. An integrated timer allows you to preset dispersion times precisely. This is essential for validated procedures (SOPs) where each sample must be processed for exactly the same duration. The easy-to-read LED display shows speed and time at a glance. For the connected Laboratory 4.0, the unit features a USB interface. Connect the disperser to your PC to control it remotely via the labworldsoft laboratory software ®. This allows you to run speed profiles (e.g. a slow ramp-up for pre-homogenisation, followed by full speed for emulsification) and document all parameters comprehensively – a must in certified laboratories.

Plenty of power for a wide range of applications

Despite its smooth operation, the T 18 brushless digital is a powerhouse. With a speed range of 3,000 to 25,000 min⁻¹, it covers all applications from gentle mixing to high-energy emulsification. The intelligent control electronics ensure that the set speed is maintained even when the viscosity of the sample changes (e.g. when a cream thickens). The working range extends from 1 ml to 1,500 ml (based on water), meaning the device covers the vast majority of typical laboratory vessels.

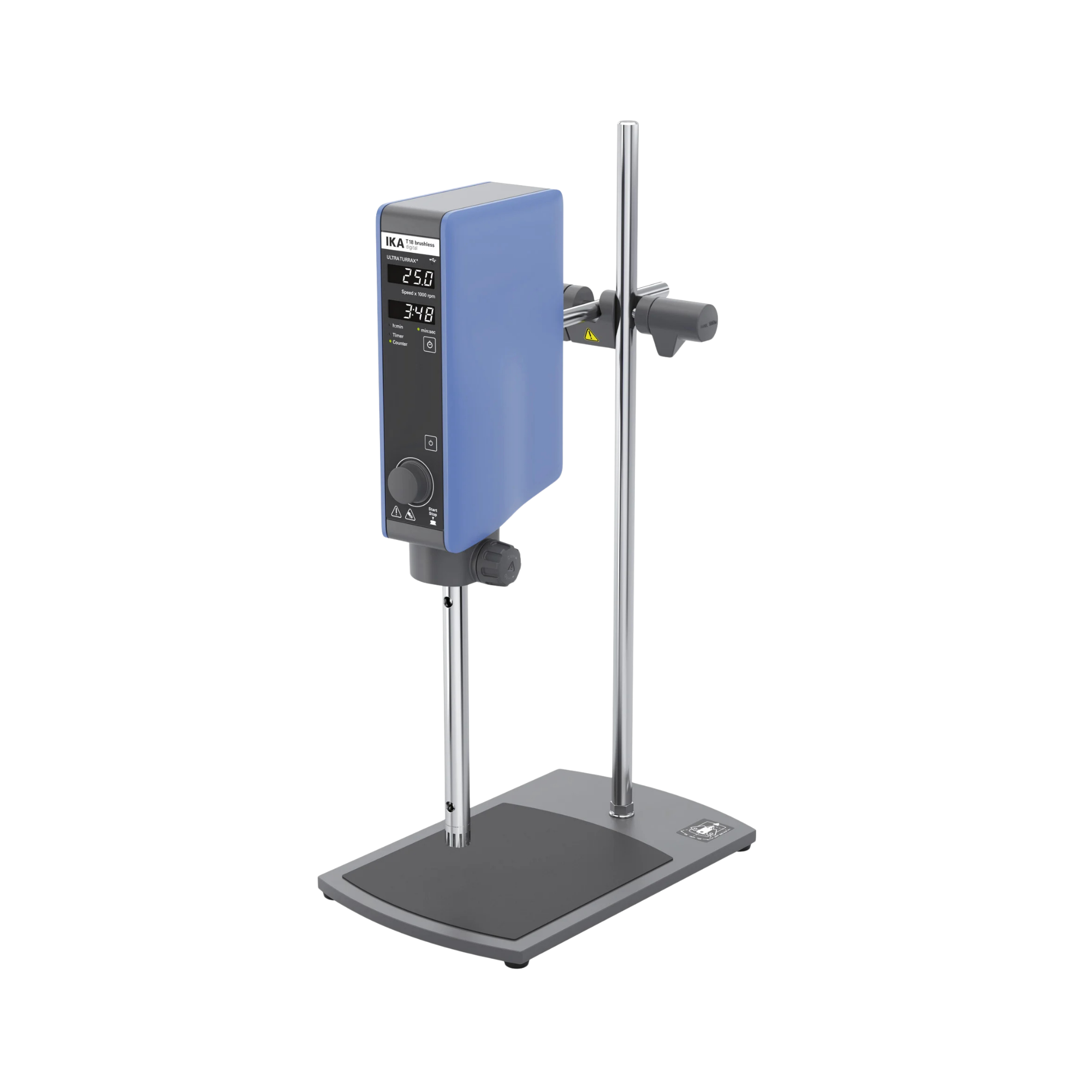

Ready to go straight away: the Solution package

IKA supplies this model as a “Solution” package so that you don’t waste time on configuration. The set includes:

• The T 18 brushless digital drive.
• The S 18 N – 19 G dispersing tool: This is the universal standard tool made from high-quality stainless steel (AISI 316L), suitable for most media and easy to clean and sterilise.
• The stand system: A solid plate stand (R 1826), together with a cross-sleeve and clamp, ensures a vibration-free and secure base, even at maximum speed.

Technical data

• Volume range (H₂O): 1 – 1,500 ml
• Max. viscosity: 5,000 mPas
• Speed range: 3,000 – 25,000 rpm
• Speed control: Continuously variable (electronically stabilised)
• Motor type: Brushless DC motor
• Noise level: Very quiet (brushless technology)
• Timer function: Yes
• Interface: USB
• Display: Digital LED
• Extension rod: 13 mm diameter / 160 mm length
• Dimensions (W x H x D): 87 x 271 x 106 mm
• Weight (drive unit): 2.5 kg
• Protection rating: IP 20

Contents

• 1 x IKA T 18 brushless digital (drive unit)
• 1 x S 18 N - 19 G dispersing tool
• 1 x R 1826 plate stand
• 1 x Cross-shaped coupling R 182
• 1 x universal clamp
• 1 x power supply unit (wide-range voltage)
• 1 x USB cable
• 1 x User manual

Customised requirements & accessories

Do you require specialised tools for vacuum operation or disposable plastic tools for PCR analyses? The drive is fully compatible with the entire IKA S 18 tool range. Our team of experts will be happy to assist you in expanding your system. Please contact our procurement service.
