IKA T 18 mini digital ULTRA-TURRAX disperser, 1 to 1,500 ml, 3,000 to 25,000 rpm, 0025005828
€1,147.50
% Manufacturer's RRP: €1,530.00 25% below manufacturer's RRP
- Compact drive unit, 66 x 186 x 100 mm, 1.8 kg
- Brushless motor, 210 W input / 160 W output power
- Processing volume 0.001 to 1.5 l, viscosity up to 2,000 mPas
- Infinitely variable speed: 3,000 to 25,000 rpm
- USB-C interface for remote control via labworldsoft
- 3-year IKA warranty upon registration within 90 days of purchase

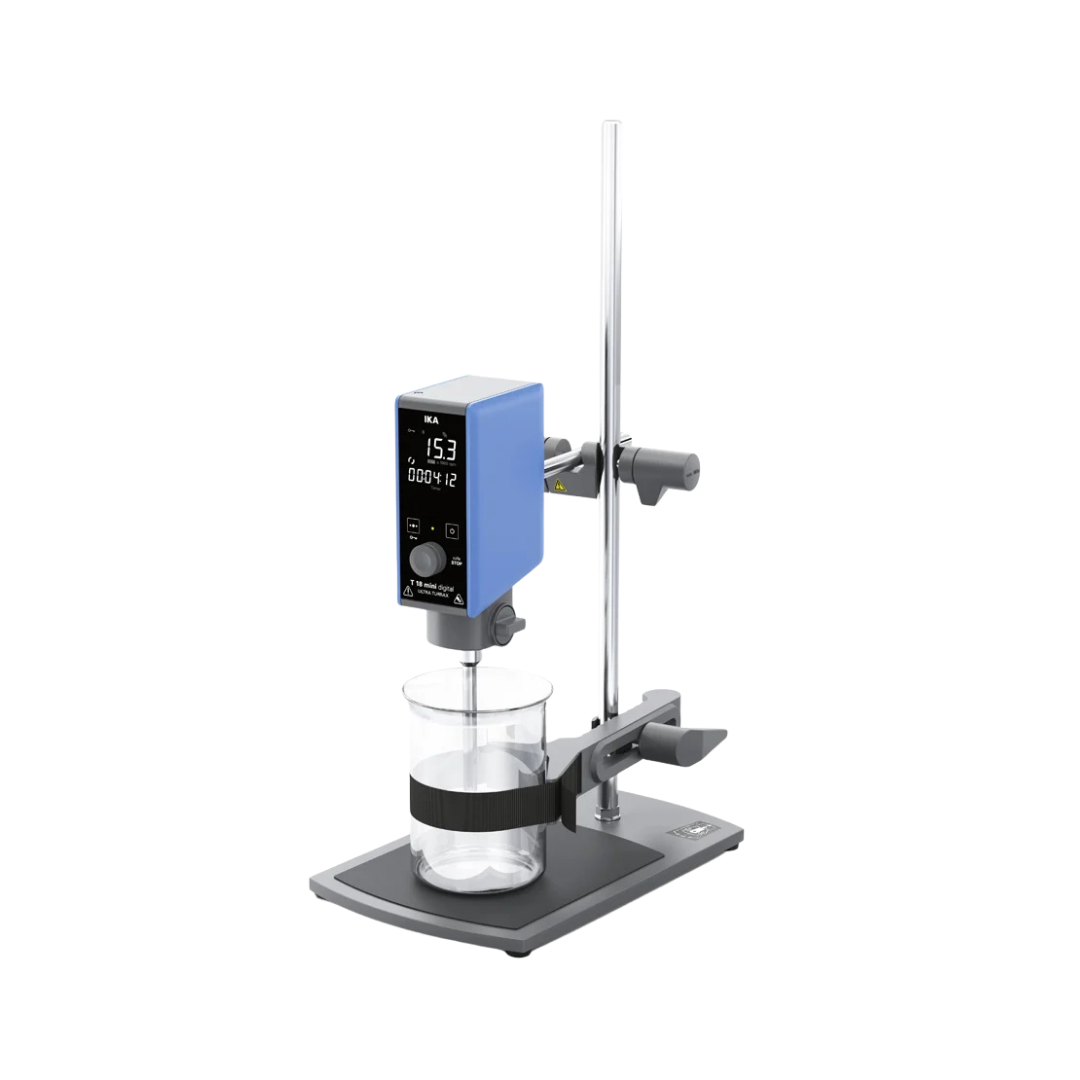

Contents: T 18 mini digital drive unit. The mixing tool, stand, cross-shaped sleeve and beaker shown in the illustrations are not included.
Product information "IKA T 18 mini digital ULTRA-TURRAX disperser, 1 to 1,500 ml, 3,000 to 25,000 rpm, 0025005828"
Not every application requires the full power of the larger T 18 units. For those who mainly homogenise low-viscosity samples and have limited bench space in their fume cupboard, the T 18 mini digital ULTRA-TURRAX offers a compact drive unit from the same series, which is noticeably lighter and smaller than its brushless counterpart.
Compact design, lower power rating
The drive unit measures 66 x 186 x 100 millimetres and weighs 1.8 kilograms, meaning it can be accommodated even in confined spaces. The motor draws 210 watts and delivers 160 watts; as with the larger model, the processable volume ranges from 0.001 to 1.5 litres (H₂O), with a maximum viscosity of 2,000 mPas. This makes the unit particularly suitable for low-viscosity samples; for more viscous samples, the more powerful T 18 brushless digital, with a maximum viscosity of 5,000 mPas, is the more appropriate choice.
Brushless motor with digital display
Like the larger models in the series, the T 18 mini digital operates with a brushless DC motor; the speed can be continuously adjusted between 3,000 and 25,000 revolutions per minute, with a tolerance of 3 per cent. The speed and timer are controlled via a digital display. The unit is powered by 100 to 240 volts at 50 or 60 hertz; a USB-C interface connects it to a computer for remote control and documentation using labworldsoft.
Tools from the S-18 series
A dispersing tool is not included with the T 18 mini digital and must be selected to suit the application, for example as a reusable stainless steel tool such as the S 18 N - 10 G or S 18 N - 19 G, or as a disposable plastic tool such as the S 18 D - 10 G - KS and S 18 D - 14 G - KS for switching between samples without the need for cleaning. For stationary operation, plate stands from the R-1825 series with R 182 cross-sleeve are available; for securing the instrument during operation, the RH 3 clamping holder is used.
Cost-effective alternative for routine tasks
Compared to the T 18 brushless digital, the T 18 mini digital offers slightly less power reserve but is nevertheless suitable for most routine tasks involving low-viscosity samples, such as in training or for recurring standard processes. Its compact dimensions and low weight of 1.8 kilograms make it easy to move between multiple workstations, without the need for a separate unit at each location.
Typical applications
- Homogenisation of low-viscosity samples in a limited footprint
- Simple emulsification and dispersion tasks in routine work and training
- Mobile use between multiple workstations thanks to its compact design
- Reproducible short runs with a timer
Selection guide: mini, brushless or with temperature measurement?
If the power of the T 18 mini digital is insufficient – for example, with higher viscosities or larger batches – the T 18 brushless digital, with 400 watts and a range of up to 5,000 mPas, is the more powerful alternative; it is also available as the T 18 brushless digital Solution, complete with tool and stand. For those who also need to monitor the sample temperature during dispersion, this function is available in the T-25 series, for example in the T 25 mini control ULTRA-TURRAX.
Technical details
| Motor power input / output | 210 W / 160 W |
| Processable volume (H₂O) | 0.001 to 1.5 l |
| Max. viscosity | 2,000 mPas |
| Speed range | 3,000 to 25,000 rpm, continuously variable (tolerance 3 %) |
| Speed display | Digital display |
| Motor type | brushless, direct current |
| Noise level without tools | 75 dB(A) |
| Extension arm diameter / extension arm length | 13 mm / 160 mm |
| Duty cycle | 100 % |
| Protection class | IP 30 in accordance with DIN EN 60529 |
| USB interface | USB-C |
| Power rating | 100 to 240 V, 50/60 Hz, 210 W (max. 250 W, standby 3 W), 48 V= / 4,500 mA |
| Dimensions (W x H x D) | 66 x 186 x 100 mm |
| Weight | 1.8 kg |
| Permissible ambient temperature / humidity | 5 to 40 °C / 80 % |
Contents
- T 18 mini digital ULTRA-TURRAX drive unit
According to the manufacturer, a mixing tool is expressly not included in the scope of delivery and must be selected separately from the S-18 series range of accessories.
Regulatory information
The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.
Warranty and procurement service
The IKA manufacturer’s warranty applies to the T 18 mini digital: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. LT Laborhandel’s procurement service can put together suitable dispersing tools and stands as required.
| Display type: | Digital |
|---|---|
| Max. speed: | 25,000 rpm |
| Power supply: | Mains operation |
| Supply form: | Single unit |
| Volume range: | 1 ml - 1500 ml |
