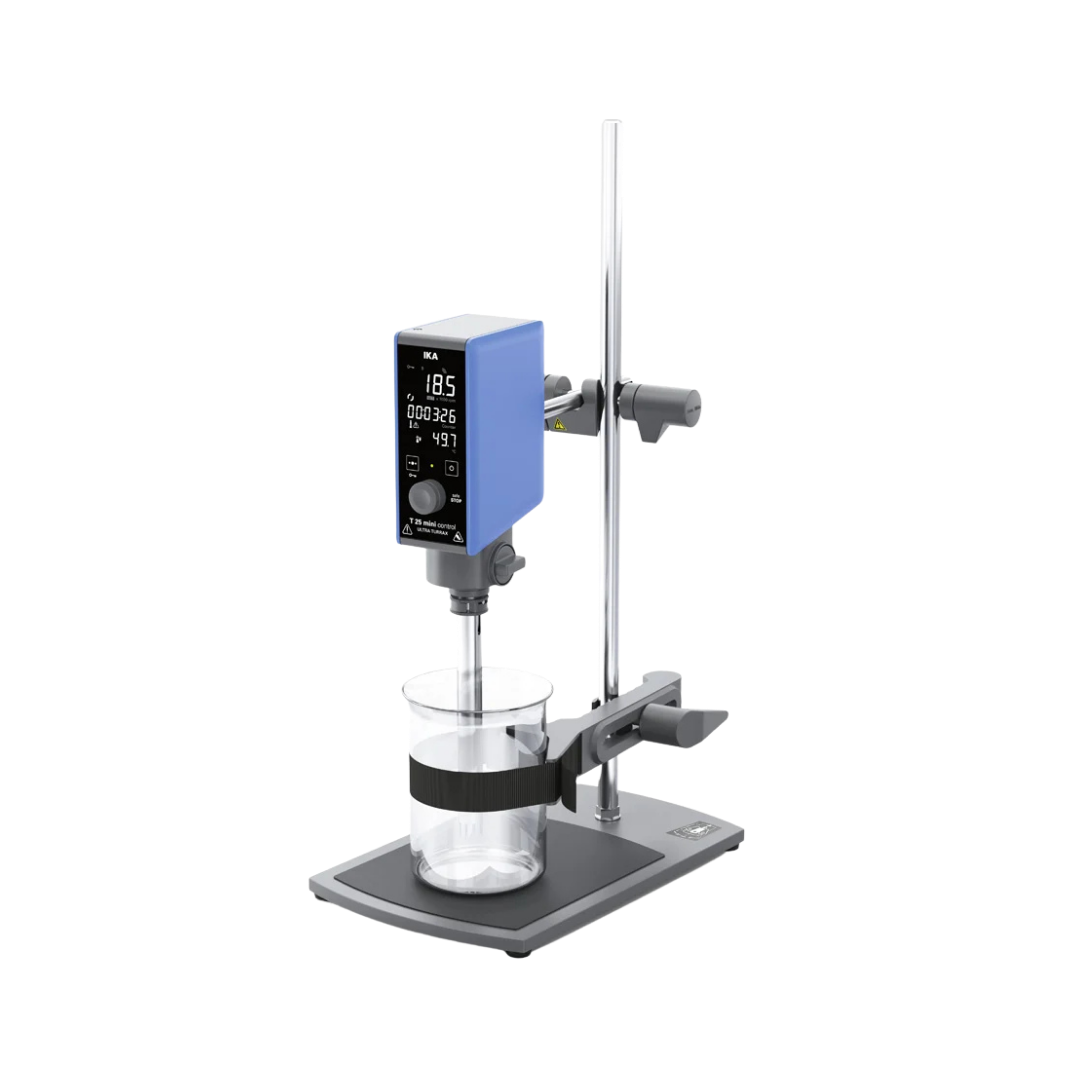

IKA T 25 mini control ULTRA-TURRAX disperser, 1 to 1,500 ml, 600 to 25,000 rpm, with temperature measurement, 0025006650

Some samples are sensitive to the heat generated by the motor during dispersion. The T 25 mini control ULTRA-TURRAX measures the sample temperature in real time via specialised dispersion tools and can also be integrated into a laboratory environment via Wi-Fi, Ethernet or RS232; it features a compact design in the same form factor as the T 18 mini digital.

Temperature monitoring protects heat-sensitive samples

Using suitable dispersing tools, the instrument measures the sample temperature within a range of 0 to 125 degrees Celsius, with a resolution of 0.1 Kelvin and a measurement accuracy of ±1 Kelvin. A safety temperature limit can be set to protect heat-sensitive samples from degradation – useful, for example, with protein solutions or other temperature-critical preparations.

Networking via Wi-Fi, Ethernet and RS232

In addition to the USB-C interface, the T 25 mini control also connects to higher-level laboratory systems via WPAN, Wi-Fi, Ethernet or RS232, enabling remote control and parameter documentation using labworldsoft. The speed range extends from 600 to 25,000 revolutions per minute, with a deviation of ±3 per cent above 3,000 rpm and a maximum deviation of ±100 rpm below this. The processable volume ranges from 0.001 to 1.5 litres (H₂O), with a maximum viscosity of 2,000 mPas.

Compact design, brushless motor

Measuring 66 x 186 x 100 millimetres and weighing 1.8 kilograms, the unit takes up little space on the fume cupboard. The brushless DC motor draws 210 watts and delivers 160 watts, with a noise level of 75 dB(A) when no tool is fitted. Speed, timer and temperature are shown on a digital display.

Tools with temperature sensor and remote control

The patented temperature sensor function works with the S-25-EC series dispersing tools featuring an integrated sensor, such as the S 25 EC - T - C - 18 G; all S-25 tools up to 18 millimetres in size are compatible with the drive. For operation without direct access to the unit, the IKA HUB and HUB-DS remote controls are also available; both can be ordered alongside the drive via LT Laborhandel’s procurement service.

Compatible dispersing tools

From simple stirring shafts to the high-speed dissolver shaft S 25 KV - 2802, the S-25 range covers a wide spectrum of tasks; all variants up to 18 millimetres in size are compatible with the T 25 mini control. The S 18/25-ET50 disposable tube is also available for cleaning between samples; for stationary operation, a plate stand from the R-1825 series with a suitable cross-sleeve is recommended.

Typical applications

• Dispersion of temperature-sensitive samples with real-time temperature monitoring
• Automated processes with connection to laboratory software via Wi-Fi, Ethernet or RS232
• Compact workstations with limited floor space in a fume cupboard
• Experimental series requiring documentation in regulated areas

Selection guide: with or without temperature measurement and networking?

If you do not require temperature monitoring or a network connection, the T 18 mini digital ULTRA-TURRAX – which is identical in design but more compact – offers better value for money. For larger volumes of up to 2 litres and higher motor power without temperature measurement, the T 25 digital ULTRA-TURRAX is suitable. If you want to get started straight away with the tool and stand, the T 25 mini control Solution is the right set for you.

Technical details

Contents

• T 25 mini control ULTRA-TURRAX drive unit

According to the manufacturer, a dispersing tool is expressly not included in the scope of delivery and must be selected separately, for example the S-25-EC tool with temperature measurement.

Regulatory information

The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and Procurement Service

The IKA manufacturer’s warranty applies to the T 25 mini control: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. LT Laborhandel’s procurement service can put together suitable dispersing tools, stands and the IKA HUB remote control as required.
