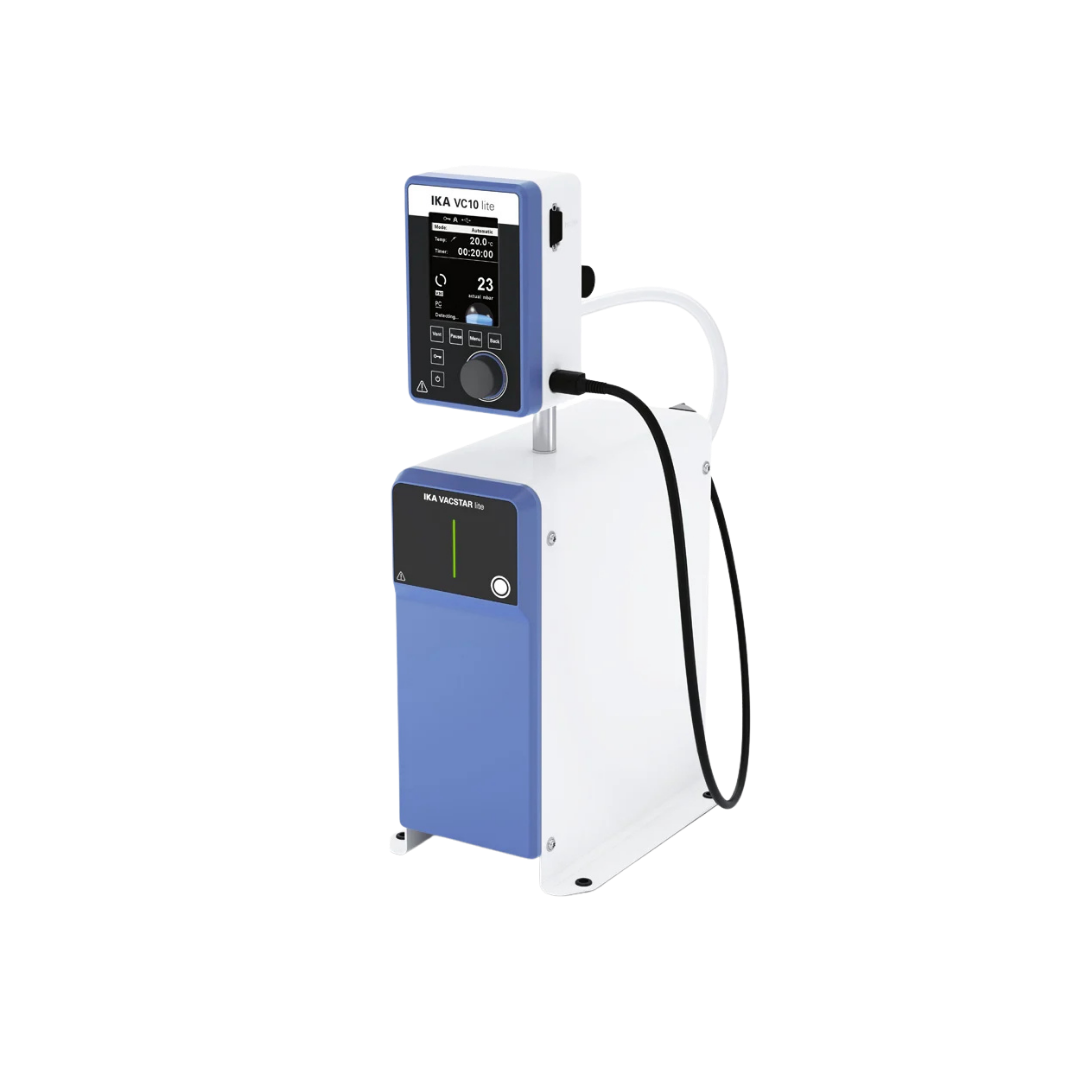

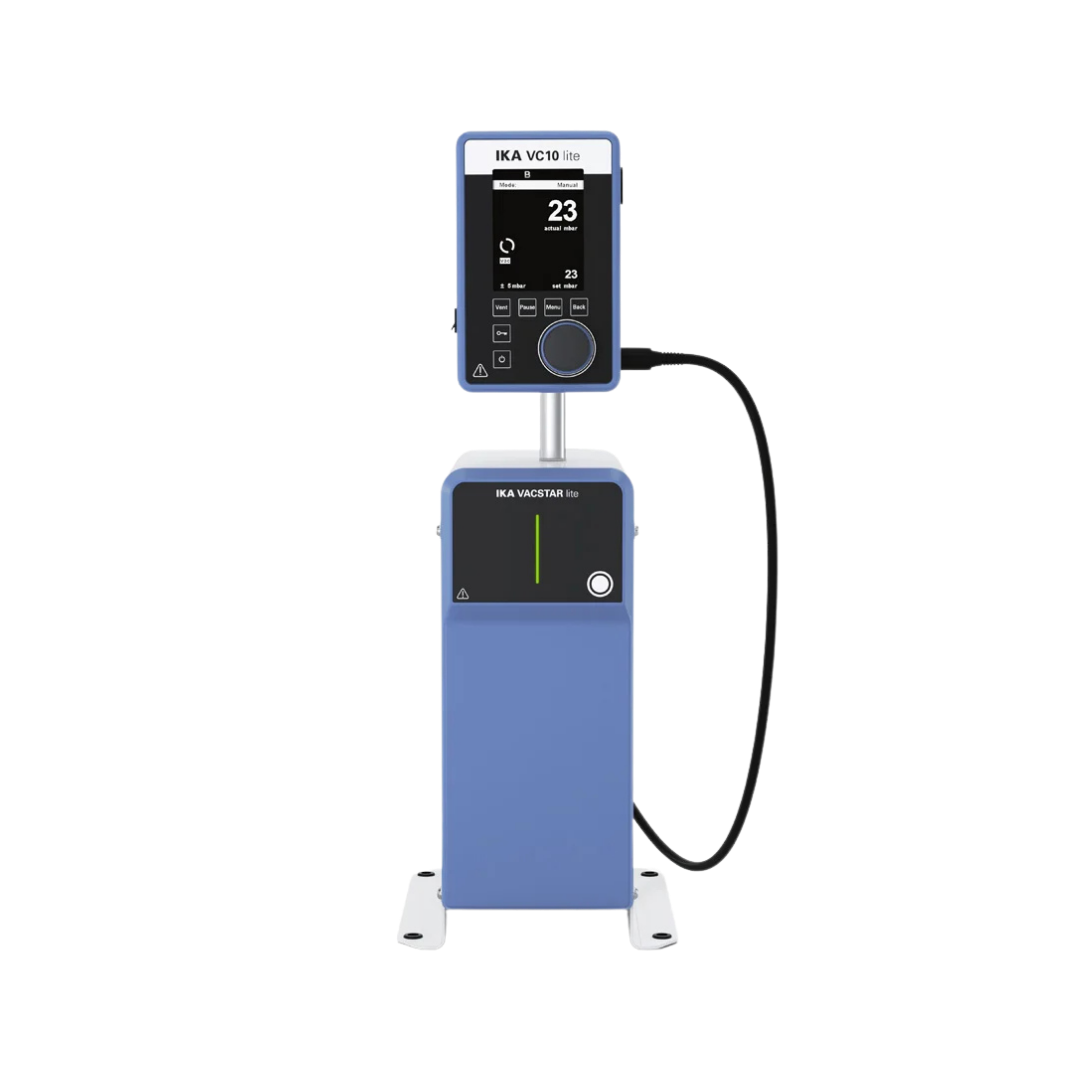

IKA VACSTAR lite Starter Solution, diaphragm vacuum pump, including emission condenser, 2 mbar, 0010014496

Compact, high-performance equipment for your laboratory: the IKA VACSTAR lite Starter Solution

With the IKA VACSTAR lite Starter Solution (MPN 0010014496), you get a perfectly coordinated vacuum package that combines space-saving design, high suction power and environmental awareness. This 4-cylinder diaphragm vacuum pump has been developed to handle the demanding tasks of everyday life in a modern laboratory – whether as a partner for your rotary evaporator, for drying cabinets or for filtration tasks. For you, the ‘Starter Solution’ means: unpack, connect and start safely, as the essential safety emission capacitor (VSE 1) is already included in the scope of delivery.

Small but mighty: performance in a minimal space

The VACSTAR lite impresses with its award-winning, extremely compact design. With dimensions barely larger than a drinks bottle, this pump fits into even the smallest of nooks or directly inside a fume cupboard. But don’t be fooled by its size: with an impressive pumping speed of 22 l/min and an outstanding ultimate vacuum of 2 mbar, it’s right up there with the big players. This high pumping speed guarantees fast process times and efficient operation, even with low-boiling-point solvents.

Protection for the laboratory and the environment: the safety emission condenser

A highlight of this set is the included VSE 1 vacuum safety emission condenser. Vacuum pumps extract vapours that should often not simply be released into the room air. The VSE 1 reliably prevents solvent vapours from entering the laboratory atmosphere. This not only protects staff health from harmful emissions but also safeguards the environment. Furthermore, the condenser enables the effective recovery of valuable solvents, which reduces operating costs and promotes sustainable working practices.

Chemical-resistant and low-maintenance

As a dry diaphragm pump, the VACSTAR lite operates 100% oil-free. For you, this means: no tedious oil changes, no disposal of waste oil and no contamination of your samples by oil vapours. All parts in contact with the process fluid are made from high-quality, chemical-resistant materials (PTFE diaphragms, FKM valves, etc.). This makes the pump extremely resistant to aggressive chemicals and vapours, guaranteeing a long service life and low maintenance costs.

Intuitive operation and process reliability

The “lite” version focuses on the essentials: pure functionality. Operation is intuitive via a rotary knob, which allows you to continuously adjust the speed and thus the suction capacity. This enables the process to be started gently to prevent boiling delays, or ramped up to maximum performance. An integrated non-return valve also protects the system against backflow when the pump is switched off or in the event of a power cut.

Technical specifications in detail

• Type: 4-cylinder diaphragm vacuum pump
• Max. pumping speed: 22 l/min (1.32 m³/h)
• Ultimate vacuum: 2 mbar (abs.)
• Control: Speed control via rotary knob (manual)
• Materials (in contact with the medium): Al₂O₃, PTFE, FKM, PP, PPS (chemical-resistant)
• Connection: Hose nozzle Ø 8 mm
• Sound pressure level: 54 dB(A) (pleasantly quiet)
• Protection class: IP 20
• Dimensions (W x H x D): 150 x 375 x 270 mm
• Weight: 5.75 kg
• Special feature: Includes VSE 1 emission capacitor

Contents

• 1 x IKA VACSTAR lite vacuum pump
• 1 x VSE 1 vacuum safety emission condenser
• 1 x vacuum hose
• 1 x power supply unit (multi-plug)
• Operating instructions

Individual requirements & accessories

Do you also require a digital vacuum controller (e.g. VC 10) for fully automatic distillations, or Woulff flasks to protect the pump from liquid hammer? We stock the entire IKA vacuum range. Please contact our procurement service for system advice.
