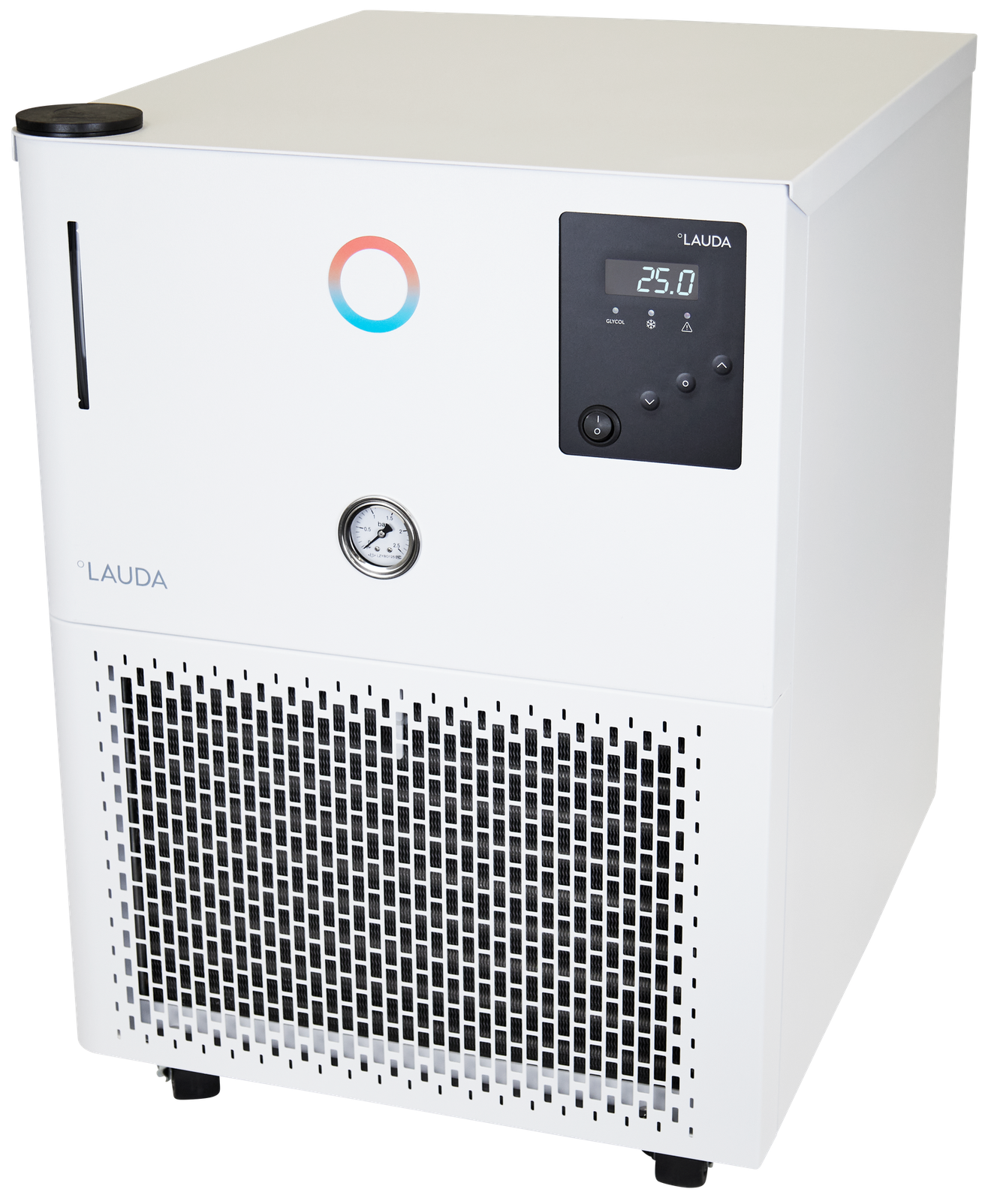

LAUDA Microcool MC 1200 Recirculating Chiller, -10 to 40 °C, 1,200 Watts Cooling Capacity, L004461

If several loads need to be supplied simultaneously on a single circuit, or if the heat input from a single load is high, the LAUDA Microcool MC 1200 is the most powerful model in the Microcool range: 1,200 watts of cooling capacity at 20 °C, operating temperature range -10 to 40 °C, natural refrigerant R-290. Measuring 450 x 550 x 650 millimetres and weighing 63 kilograms, a permanent installation space on the floor or under a table must be provided; the unit is too large to be placed on a laboratory bench.

Cooling capacity and circulation

At 40 °C with a water-glycol mixture and at 20 °C with ethanol, the MC 1200 achieves a cooling capacity of 1.2 kilowatts in each case. As the setpoint temperature decreases, the capacity decreases: 1.05 kilowatts at 10 °C, 0.75 kilowatts at 0 °C, 0.4 kilowatts at minus 10 °C. Circulation is provided by a magnetically coupled block pump, connected via a G 3/4-inch thread. The circuit’s fill volume is between 7 and 14 l, depending on the external pipe volume of the connected load.

Display, safety and automatic control

The actual and setpoint values are shown on a 1-line LED display; control is fully electronic and continuous. An illuminated liquid level indicator with a low-level alarm protects against dry running, whilst winding temperature monitoring protects against pump overload. An auto-start timer and an auto-shut-down function ensure unattended operation, meaning the unit can be switched on and off at fixed times. With a sound pressure level of 59 dB(A), a power consumption of 0.82 kilowatts and a current draw of 4.2 amperes, the MC 1200 falls within the typical range for this cooling capacity.

Mains connection and maintenance

The unit is connected to the mains at 230 volts at 50 hertz via a power cable with an angled Schuko plug. If a different plug type is required, for example for the UK or North America, LAUDA supplies these under a separate order number within the same product range. The unit is filled from the top and drained via a connection on the rear of the unit, which is convenient when changing the coolant or servicing the pump.

Typical applications

With a cooling capacity of 1,200 watts, the MC 1200 is suitable for applications where several loads are connected to a single circuit or where a single load generates a significant amount of heat:

• Centralised cooling supply for several rotary evaporators or condensers on a single circuit
• Cooling of reactors with high reaction heat during continuous operation
• Replacement of several smaller individual coolers with a single central unit
• Laboratory operations with continuous cooling requirements throughout the day

Selection guide for the Microcool range

If the cooling requirement is lower, the LAUDA Microcool MC 600 with 600 watts is sufficient, or, for the laboratory bench, the compact LAUDA Microcool MC 350. If the same circuit also needs to be heated, the compressor-based LAUDA Alpha RA 12 and LAUDA Alpha RA 24 cooling thermostats are the more technically suitable solution.

Technical details

Scope of delivery

• LAUDA Microcool MC 1200 circulation cooler, order number L004461
• Mains cable with angled Schuko plug (CEE7/7)
• Operating instructions as a PDF download

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, LAUDA DR. R. WOBSER GMBH & CO. KG, is DE 66424057. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

The appliance operates using the natural refrigerant R-290, with a charge of 0.085 kg and a GWP of 3, which, according to the data sheet, corresponds to a CO2 equivalent of approximately 0.0 tonnes. As a hydrocarbon refrigerant, R-290 is not covered by Regulation (EU) 2024/573 on certain fluorinated greenhouse gases.

Warranty and procurement service

LAUDA DR. R. WOBSER GMBH & CO. KG, Lauda-Königshofen, offers end customers a 5-year ‘Best’ warranty on this unit from the date of delivery. This is subject to registration at lauda.de within three months of delivery and the use of genuine LAUDA temperature control fluids. The warranty covers defects in materials and workmanship. Excluded are, amongst other things, wear parts such as filters and seals, damage caused during transport, damage resulting from unauthorised tampering, as well as cables, plugs, hoses and adaptors. LAUDA’s warranty terms and conditions (as at 03/2025) apply. Your statutory warranty rights remain unaffected.

Accessories available for the MC 1200 include a fabric-reinforced EPDM hose. If required, the procurement service at LT Laborhandel can source additional accessories and spare parts for the unit.
