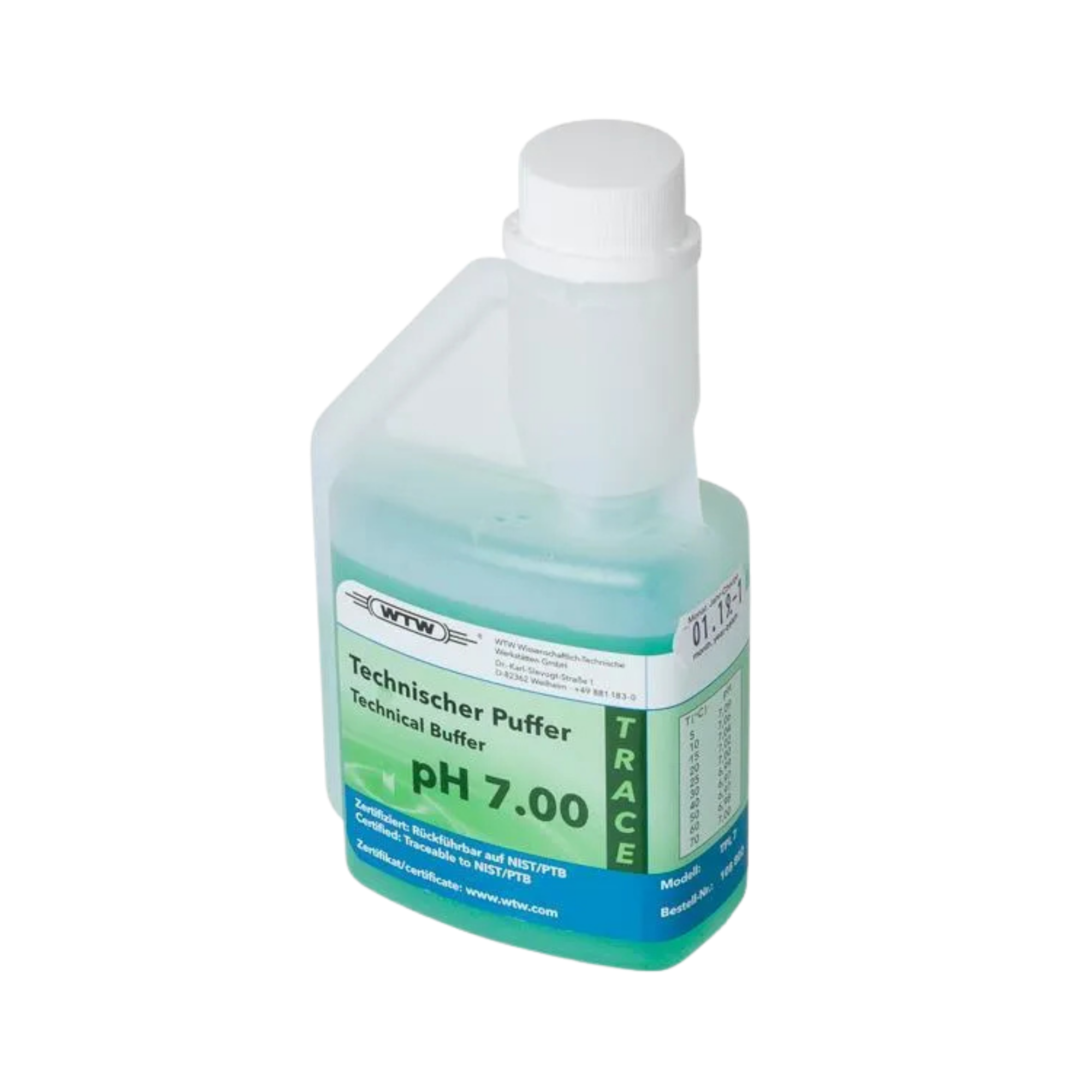

WTW Technical Buffer Solution pH 7, Calibration Standard Series, (50 ml – 1000 ml)

WTW Technical Buffer Solution pH 7 (108802, 108702, 108708), defined as a high-precision electrochemical calibration standard, provides the metrological foundation for the validation of pH measurement chains in pharmaceutical analysis, biotechnology research and industrial quality assurance. In chemical metrology, a pH value of 7.00 represents the electrical zero point (isopotential point) of most commercially available pH electrodes. From a physico-chemical perspective, the effectiveness of this buffer solution is based on a precisely balanced phosphate buffer system consisting of dihydrogen phosphate (H₂PO₄⁻) and hydrogen phosphate (HPO₄²⁻). This system utilises chemical equilibrium to neutralise external acidic or basic influences, thereby maintaining the hydrogen ion activity at a constant level over a wide range. For procurement professionals in the pharmaceutical industry and research, the reliability of this zero point is an essential prerequisite for investment security, as it forms the basis for the linear calculation of the slope across the entire measurement range.

Thermodynamics of ion activity and temperature coefficients

The thermodynamics of the WTW Technical Buffer Solution pH 7 are characterised by a strictly defined temperature dependence of the dissociation constant. As the pH value is physically defined as the negative decimal logarithm of the H+ activity, changes in temperature affect the chemical equilibrium via the kinetic energy of the system. The TEP 7, TPL 7 and STP 7 variants feature a detailed temperature table, printed on the label, covering the range from 0 °C to 95 °C. This metrological precision is of fundamental importance for modern pH metres with automatic temperature compensation (ATC) in order to calculate the Nernst factor physically correctly and minimise measurement uncertainty. In industrial process analysis, where measurements are often taken far from the standard temperature of 25 °C, this documented temperature coefficient guarantees the full traceability of results to national primary standards.

Variant-specific kinetics and application profiles (STP, TPL, TEP)

The range of container sizes – 50 ml (STP 7), 250 ml (TPL 7) and 1000 ml (TEP 7) – allows for specific adaptation to the respective laboratory kinetics and sample throughput. The STP 7 variant (108708), supplied in a 50 ml bottle, is ideally designed for mobile field use or for laboratories with low throughput, in order to minimise the time the opened container is left open and thus the risk of carbonation due to atmospheric CO₂. The standard 250-ml TPL 7 (108802) is the universal workhorse for daily routine calibration in university education and research. For high-throughput environments in pharmaceutical production, the 1-litre variant TEP 7 (108702) offers a highly efficient solution for supplying automated calibration stations. Each variant is subject to the same stringent electrochemical specifications, enabling easy scaling of laboratory processes without compromising analytical integrity.

Material science of the barrier layer and storage stability

A critical quality attribute of the WTW Technical Buffer Solution pH 7 is the chemical composition of the storage containers. The bottles are made of high-density polyethylene (HDPE), which provides an excellent diffusion barrier against atmospheric gases. The ingress of carbon dioxide would physically shift the pH value into the acidic range via the formation of carbonic acid (H₂CO₃), which would lead to significant calibration errors, particularly in the neutral pH range. The stabilised matrix of the WTW buffer solutions also prevents microbiological growth without altering the surface tension of the electrode’s glass membrane. For pharmaceutical buyers, this long-term stability is a key factor in reducing TCO (Total Cost of Ownership), as the solutions exhibit a metrological drift of less than 0.01 pH units over their entire service life, provided that the handling instructions are followed.

Electrochemical metrology and compliance in quality assurance

Finally, the use of the WTW Technical Buffer Solution pH 7 ensures compliance with the highest regulatory standards, such as GMP, GLP and ISO 17025. When calibrating a measuring chain, the buffer solution is used to determine the asymmetry voltage. The use of technical buffers in accordance with DIN 19267 ensures a high degree of comparability of measured values between different laboratory sites. The solution’s optimised ionic strength reduces the electrode’s response time, which enhances efficiency, particularly in diagnostics and time-critical process controls. By choosing the WTW buffer series, laboratories are investing in a tried-and-tested system solution that harmonises physical excellence with the practical requirements of modern quality management.

Technical Details

Thermodynamics & Chemical Specifications

• Nominal pH value (at 25 °C): 7.00
• Measurement uncertainty: ± 0.03 pH
• Buffer system: Phosphate buffer (based on KH₂PO₄ / Na₂HPO₄)
• Temperature range: 0 °C to 95 °C (with documented table of values)
• Kinetics: Rapid potential stabilisation through optimised ionic conductivity

Metrology & Control Engineering

• Conformity: Complies with the requirements for technical buffers in accordance with DIN 19267
• Traceability: Directly traceable to NIST / PTB primary standards
• Calibration function: Determination of zero point and asymmetry voltage
• Stability: Microbiologically stabilised, CO₂-inhibited

Materials Science & Variants – Dimensions

• Container material: High-density polyethylene (HDPE) with barrier properties
• Variant STP 7 (108708): 50 ml bottle (ideal for field use)
• Variant TPL 7 (108802): 250 ml bottle (standard size for routine use)
• Variant TEP 7 (108702): 1000 ml bottle (for high-volume use/automation)

Environmental conditions & storage

• Storage temperature: 15 °C to 25 °C (recommended)
• Shelf life: Typically 24 months from date of manufacture (depending on batch)
• Physical state: Liquid, odourless, pH-neutral

Contents

• 1 x WTW Technical Buffer Solution pH 7 (in the selected variant: 50 ml, 250 ml or 1000 ml)
• 1 x temperature correction table (printed on the label)

Important note: Buffer solutions are consumables. To ensure metrological integrity, solution that has been removed must never be returned to the original container. The use of a separate beaker for calibration is physically essential.

Individual requirements & accessories

For a complete two-point calibration, in addition to the WTW Technical Buffer Solution pH 7, a second standard (e.g. pH 4.01 TPL 4 or pH 10.01 TPL 10) is required to determine the slope of the electrode. For the maintenance of your pH sensors, we also recommend WTW cleaning solutions (e.g. RL 1 for protein removal) and a 3-molar KCl solution for the proper storage of the reference systems. All supplementary standards and maintenance kits are available via our procurement service.
