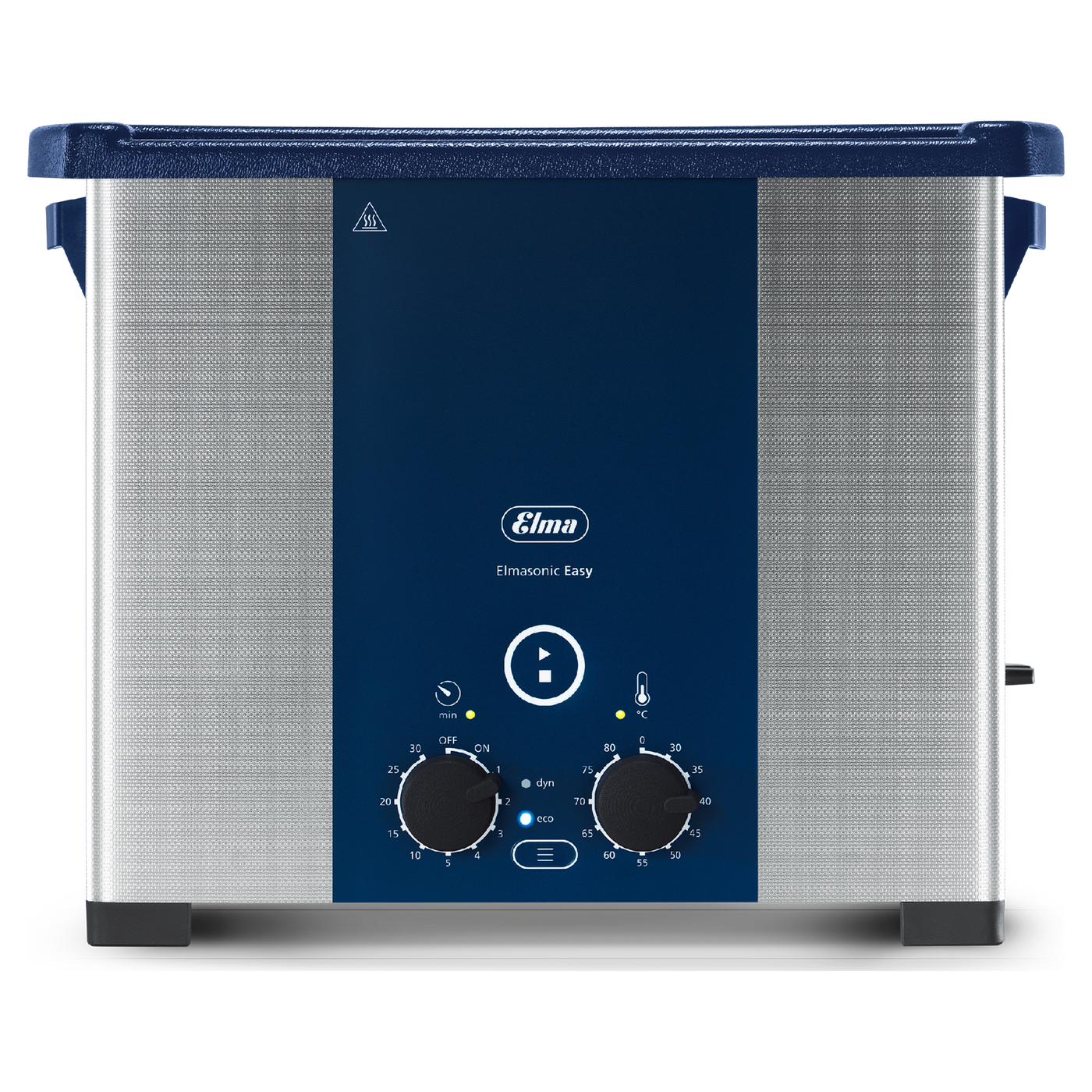

Elma Elmasonic Easy 100H Ultrasonic Bath with Heating, 9.5 Litre, 37 kHz, 1118896

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Elma Elmasonic Easy 100H Ultrasonic Bath with Heating, 9.5 Litre, 37 kHz, 1118896"

Carburettors, filters and industrial components are on Elma's list of items cleaned with the Easy series, as are grinding and polishing pastes, chips and flux as contamination. For this, the Elma Elmasonic Easy 100H has a tank with 9.5 litres total volume and internal dimensions of 280 x 220 x 145 mm. Unlike the models up to 40H, it has a drain connection, and the hose nozzle is included.

Drain, hose connection and drain strainer

The G 3/8 inch drain connection is opened and closed with a rotary knob, and the hose connection has an internal diameter of 12 mm. The hose for waste water disposal is not part of the scope of delivery. A stainless steel drain strainer (item no. 1045648) is available as an accessory for sizes 30 to 300.

Power and heating

The ultrasound has 150 W effective power and 600 W peak at 37 kHz. The heater delivers 400 W, and the total power consumption is 550 W. The temperature range extends from 25 to 80 °C, and at a bath temperature of 90 °C the unit switches off as a safety measure. With lid at a distance of 1 m, the sound pressure level is below 80 dB(A). Two modes are available, Eco and Dynamic, with Eco the quieter and Dynamic the more intensive.

Basket, fill level and lid

The fill level is 115 mm, and 6.8 litres of working volume are recommended. The modular cleaning basket 100 (item no. 1113387) has internal dimensions of 250 x 195 x 90 mm and may be loaded with up to 6.0 kg, and 85 mm remain between the basket floor and the liquid level. Lids available are the stainless steel lid 100/120 (item no. 1111932) and plastic lid 100/120 in three colours (item no. 1003285, 1101133, 1071697). The insert lid 1 (item no. 1111909) holds four cleaning glasses or beakers, and a cooling coil (item no. 1037515) is available as an accessory.

Operation without a display

The rotary knob for the cleaning duration also switches the unit on and off, and ultrasonic cleaning is started and stopped with the start/stop button. The steps are 1, 2, 3, 4, 5, 10, 15, 20, 25 and 30 minutes, plus ON for continuous operation with a stop after 6 hours at most. A second rotary knob sets the temperature, the mode button switches between Eco and Dynamic, and LEDs show the status. After 8 hours without operation the unit switches off. The Easy series has no programs, nor Sweep, Pulse or Degas.

Between 40H and 120H

The Easy 40H holds 3.9 litres and has no drain, whereas the 100H has a drain with hose nozzle. It weighs 5.9 kg (with lid) and measures 380 x 315 x 280 mm externally. The Easy 120H has, at almost the same footprint (275 x 215 mm instead of 280 x 220 mm), a tank that is 50 mm deeper, 12.9 litres, 200 W ultrasonic power and a fan.

Typical applications

  • Cleaning of carburettors, filters and industrial parts
  • Removal of grinding and polishing pastes, chips and flux
  • Cleaning of parts in workshops and repair shops
  • Cleaning of laboratory instruments as well as beakers and test tubes

Technical details

Total volume9.5 litres (recommended working volume 6.8 litres)
Internal dimensions of tank (W x D x H)280 x 220 x 145 mm
Fill level115 mm
Distance from basket floor to liquid level85 mm
Basket 100 (accessory), internal dimensions250 x 195 x 90 mm, load max. 6.0 kg
External dimensions with lid (W x D x H)380 x 315 x 280 mm
Weight with lid5.9 kg
Ultrasonic frequency37 kHz
Ultrasonic power150 W effective, 600 W peak
Heating power400 W
Temperature range25 to 80 °C
Total power consumption550 W
Ultrasonic modesEco, Dynamic
Time steps1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes, ON up to max. 6 hours
Sound pressure level< 80 dB(A) with lid at 1 m
Tank and housing materialStainless steel
DrainG 3/8 inch with rotary knob open/closed, hose connection internal Ø 12 mm
Power connectionIEC power connector 220 to 240 V~, 50/60 Hz
Protection ratingIP20, protection class I

Scope of delivery

  • 1x Elma Elmasonic Easy 100H Ultrasonic Bath
  • Plastic lid, can be turned upside down and used as a drip tray for a basket
  • Power cable
  • Hose nozzle for the drain
  • Operating instructions

Basket, stainless steel lid, insert lid, drain strainer and cooling coil are not included in the scope of delivery and are available separately.

Regulatory information

The Easy 100H is an electrical device. The manufacturer is ELMA Schmidbauer GmbH in Singen, and the WEEE registration number is DE 45649814. Notes on take-back and disposal can be found on the page Environment and disposal. It bears the CE marking, and the EU declaration of conformity is available from the manufacturer.

Individual requirements and procurement service

For the cleaning basket 100, the insert lid, the stainless steel lid, the drain strainer or the cooling coil, our procurement service takes your enquiry.
