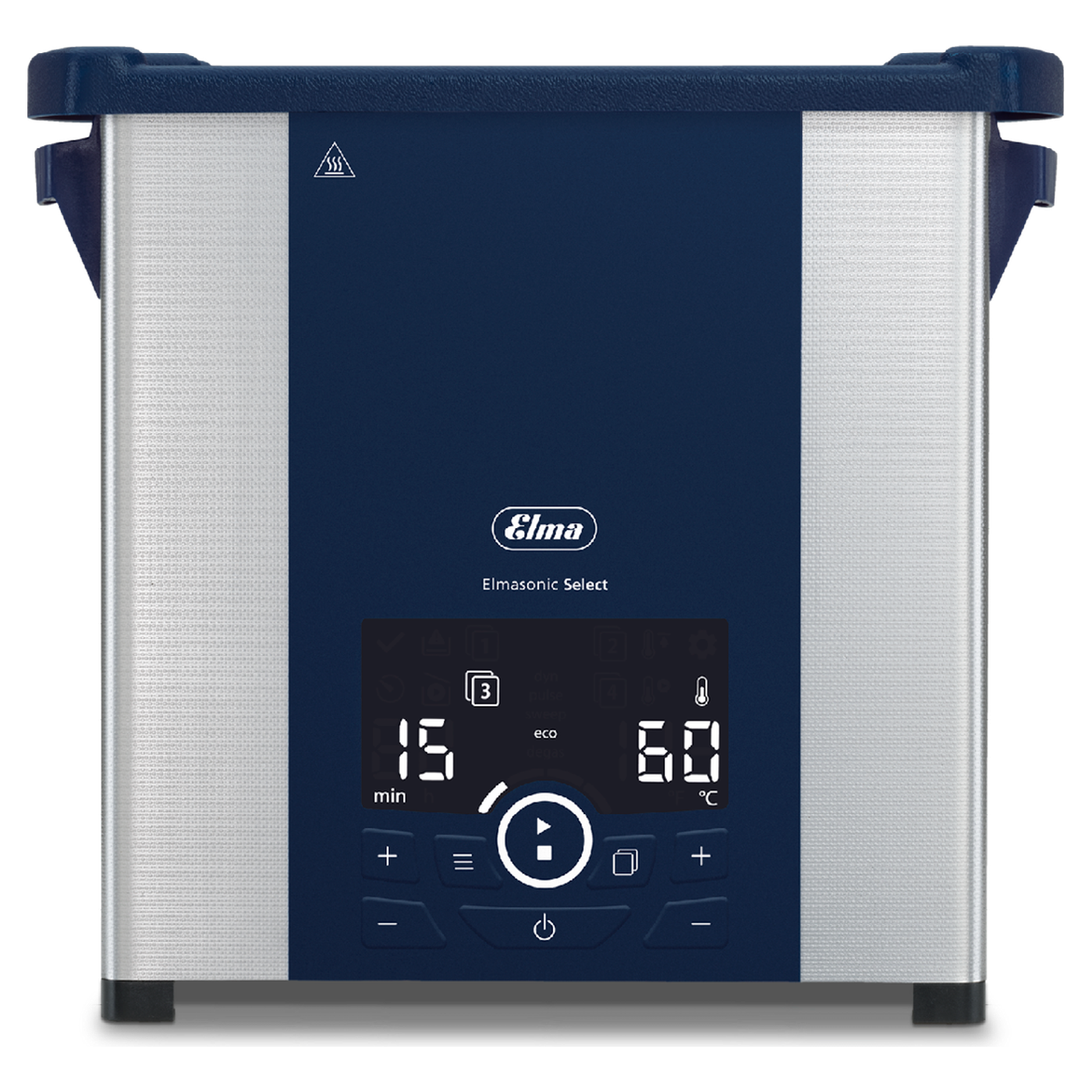

Elma Elmasonic Select 40 Ultrasonic Bath with Heating, 3.9 Litre, 37 kHz, 1106668

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Elma Elmasonic Select 40 Ultrasonic Bath with Heating, 3.9 Litre, 37 kHz, 1106668"

Watch components, jewellery and test tubes are among the smaller items the Select series cleans. The Elma Elmasonic Select 40 holds 3.9 litres, with a recommended working volume of 2.9 litres. It operates at 37 kHz, has a heater and stores four programs. Elma aims the Select series at research and development laboratories, pharmaceutical and industrial analytical laboratories, workshops and repair shops, metalworking companies, watchmakers and jewellers.

Tank, fill level and basket

The tank measures 215 x 115 x 145 mm internally. The fill level is 115 mm, leaving 90 mm from the basket floor to the liquid level. The original accessory basket has internal dimensions of 190 x 105 x 75 mm and can be loaded with up to 3 kg. The supplied plastic lid can be turned upside down and used as a drip tray for a basket. The Select 40 has no drain connection, so no hose nozzle is included.

Power and ultrasonic modes

The effective ultrasonic power is 120 W with 480 W peak power, the heater delivers 200 W, and the total power consumption is 320 W. There is a choice of five modes. Eco is the gentle mode, Sweep distributes the mechanical cleaning effect evenly, Pulse increases the peak power for stubborn soiling, Dynamic combines Pulse and Sweep, and Degas prepares the liquid for the subsequent cleaning. Auto-Degas and a temperature-controlled start are also available. Four programs store a combination of mode, duration and temperature, and the Select button calls up program operation.

Operation at the unit

The large display shows duration and temperature, and settings are made via a wipe-clean membrane keypad with plus and minus keys. Every input is confirmed acoustically. The duration can be selected from 1 minute to 6 hours, the setpoint temperature from 25 to 80 °C, and there is also an adjustable limit temperature between 40 and 60 °C. Dry-run protection is active when the heating is on, and after 8 hours the unit switches off as a safety measure. The sound pressure level with lid at a distance of 1 m is below 80 dB(A). The ultrasonic pressure level is below 110 dB, also measured with lid at a distance of 1 m. The unit's degree of protection is IP20, and its protection class is I.

When a different tank is suitable

The tank of the Select 40 is 215 mm long. The Elmasonic Select 60 has a tank of 280 x 130 x 145 mm and 5.9 litres total volume, plus 400 W heating power and 150 W effective ultrasonic power. Unlike the Select 40, it has a drain connection. The Elmasonic Select 80 has a tank of 475 x 110 x 145 mm, so more than twice as long with 5 mm less depth. Frequency, modes and program memory are the same on all three units.

Typical applications

  • Cleaning of watch components and jewellery
  • Cleaning of laboratory instruments, volumetric measuring equipment and test tubes
  • Removal of oils and greases, adhesive and flux residues, and grinding and polishing pastes
  • Sample preparation: degassing, homogenising, emulsifying, dispersing, lysing and deagglomerating

Technical details

Total volume3.9 litres (recommended working volume 2.9 litres)
Internal dimensions of tank (W x D x H)215 x 115 x 145 mm
External dimensions with lid (W x D x H)305 x 170 x 280 mm
Weight with lid3.8 kg
Ultrasonic frequency37 kHz (tolerance -2.5/+5.5 kHz)
Ultrasonic power120 W effective, 480 W peak
Heating power200 W
Total power consumption320 W
Temperature range25 to 80 °C setpoint temperature, limit temperature adjustable 40 to 60 °C
Operating modesEco, Sweep, Pulse, Dynamic, Degas, 4 programs that can be saved
Timer1 minute to 6 hours
Drainno drain connection
Tank and housing materialStainless steel
Power connectionIEC power connector, 220 to 240 V~, 50/60 Hz
Degree of protection / protection classIP20 / I

Scope of delivery

  • 1x Elma Elmasonic Select 40 Ultrasonic Bath
  • Plastic lid, can be turned upside down and used as a drip tray for a basket
  • Power cable with IEC power connector
  • Operating instructions

Cleaning basket and further accessories are not part of the scope of delivery.

Regulatory information

The unit is an electrical device within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Elma Schmidbauer GmbH is DE 45649814. Notes on returning old appliances can be found on our page Environment and disposal.

Individual requirements and procurement service

For this unit Elma offers the modular cleaning basket 40 (item no. 1113045), a stainless steel lid 30/40 (item no. 1111930), an insert lid for two cleaning glasses or beakers (item no. 1110262) and a cooling coil (item no. 1038735). We procure the matching accessories and advise on tank size within the Select range.
