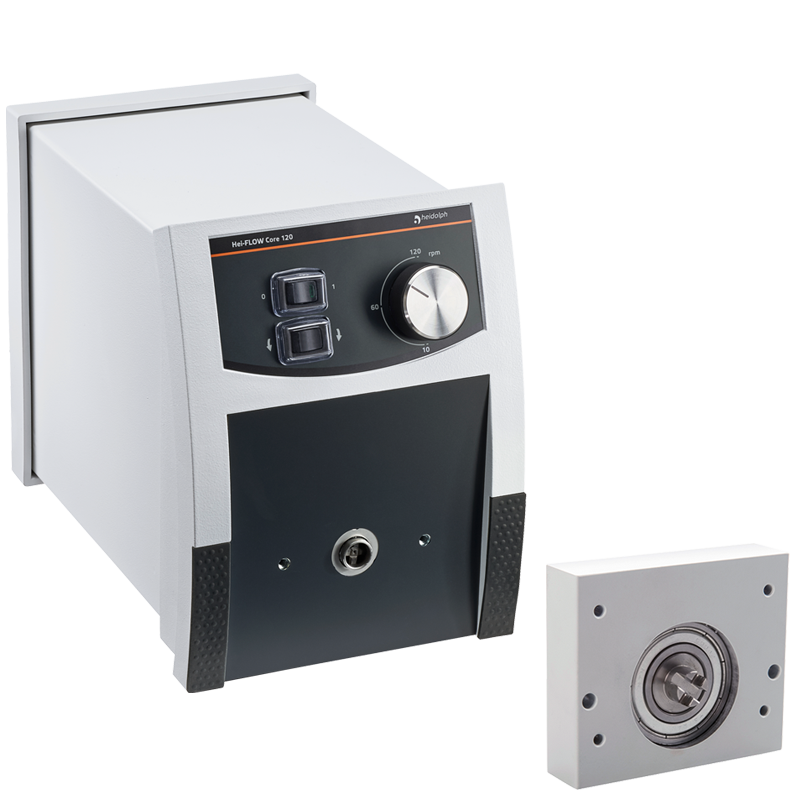

Heidolph Hei-FLOW Core 120 Multi Peristaltic Pump, 10 to 120 rpm, with Multi-channel Adapter, 523-50013-00

Without the right technology, pumping several samples simultaneously at the same flow rate often takes longer than the actual analysis. The Hei-FLOW Core 120 Multi is the multi-channel version of Heidolph’s standard range and, like the basic model, covers a speed range of 10 to 120 revolutions per minute. According to the LT price list 2026, the multi-channel adapter is already included in the scope of delivery for this model; however, this is not specifically stated on the manufacturer’s website.

Designed for parallel channel operation

With a multi-channel pump head, the flow rate ranges from 0.005 to 364 millilitres per minute per channel; with a single-channel pump head, the same drive can optionally be used for flow rates ranging from 0.85 to 861 millilitres per minute. For multi-channel operation, cassettes are available in small, medium and large sizes, as well as multi-channel pump heads with 4, 8 or 12 channels, each suited to the required flow rate. For the small cassette, there is also a dedicated 2-stopper tubing and an extension tube, both available in silicone, Viton, PharMed or Tygon standard, so that even very small volumes per channel can be precisely allocated.

Digital control, same drive as the Core 120

Technically, the Core 120 Multi corresponds to the basic model: an EC motor with a power consumption of 100 watts, digital speed control with a control accuracy of ± 0.5 per cent according to the data sheet and a delivery accuracy of ± 5 per cent, continuous operation around the clock and overheating protection. The housing, weight (7.6 kilograms) and dimensions (166 × 225 × 256 millimetres, excluding the pump head) are also identical.

Protection rating and connection

IP 54 protection rating in accordance with DIN EN 60529 keeps out dust and splashing water, whilst protection class 1 in accordance with EN 61140 ensures the housing is earthed. The sound pressure level is below 55 dB(A) in accordance with IEC 61010. The Core 120 Multi is connected to a supply of 110 to 240 volts at 50 or 60 hertz.

Typical applications

• Parallel dosing of equal volumes into multiple vessels
• Serial dilutions and buffer distribution in multi-channel operation
• Switching between multi-channel and single-channel dispensing depending on the task at hand
• Sample preparation with reproducible, simultaneously running channels

Selection guide: Multi-channel or single-channel

Those who only occasionally require multiple channels and otherwise work with single-channel pump heads will find the Hei-FLOW Core 120 without a pre-installed adapter to be the more cost-effective option. For higher flow rates with a smaller number of channels, the Hei-FLOW Core 600, with 50 to 600 revolutions per minute, significantly outperforms the Core 120 series, although it is designed for single-channel pump heads. If the multi-channel drive is also to be controlled via an analogue interface or foot switch, the Hei-FLOW Expert 120 Multi offers the same range of channels with external control. The Hei-FLOW Ultimate 120 Multi provides the most comprehensive features, including a digital display and dosing functions.

Technical details

Scope of delivery

• Hei-FLOW Core 120 Multi drive unit, order number 523-50013-00
• Multi-channel adapter (included in the scope of delivery for this variant according to LT price list 2026; not confirmed separately on the manufacturer’s website)
• Operating instructions and Safety Guide as PDF downloads

Multi-channel pump head, cassette and tubing are not included in the Scope of delivery and must be selected separately to match the required number of channels.

Regulatory information

The device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. LT Laborhandel will source multi-channel pump heads, cassettes and suitable tubing for the Core 120 Multi on request.
