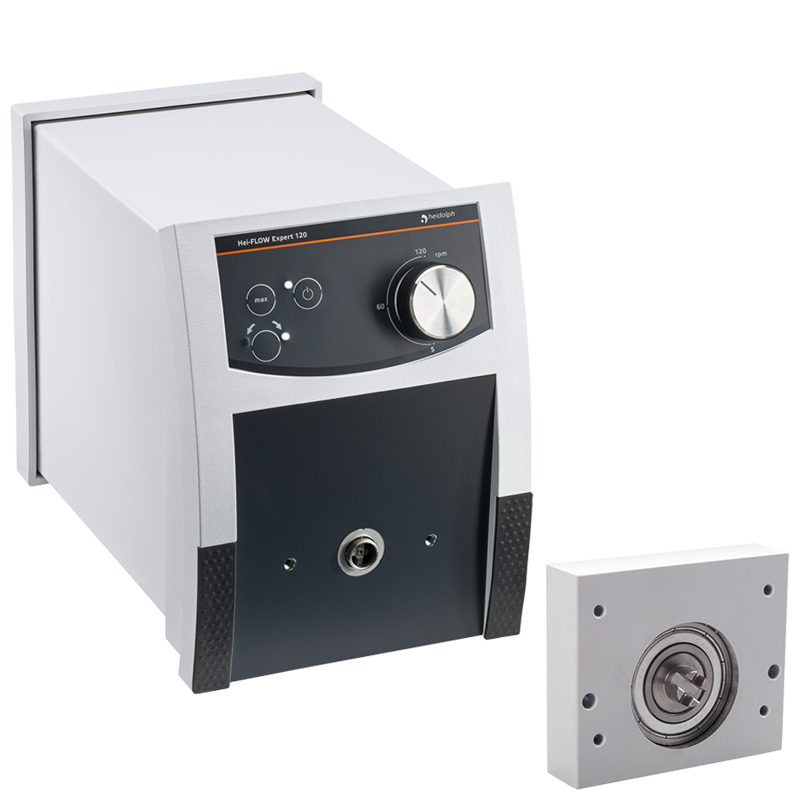

Heidolph Hei-FLOW Expert 120 Multi Peristaltic Pump, 5 to 120 rpm, Multi-channel, Foot Switch Connection, 523-51013-00
€2,457.00
- Multi-channel adapter integrated at the factory
- Speed range 5 to 120 rpm, control accuracy ± 0.5 %
- Analogue interface (0 to 10 V / 4 to 20 mA) for external control
- Connection for foot switch
- Continuous operation 24 hours a day, 7 days a week, degree of protection IP 54
- 3-year Heidolph manufacturer’s warranty
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Heidolph Hei-FLOW Expert 120 Multi Peristaltic Pump, 5 to 120 rpm, Multi-channel, Foot Switch Connection, 523-51013-00"
Anyone who needs to supply several hoses simultaneously, for example, when filling several reaction vessels in parallel, requires a drive that is inherently designed for multi-channel pump heads. The Hei-FLOW Expert 120 Multi comes with the multi-channel adapter fitted at the factory and covers a speed range of 5 to 120 revolutions per minute. The analogue interface and the connection for a foot switch allow for external control, leaving both hands free for the tubing and vessel.
Multi-channel operation from the factory
The integrated multi-channel adapter distinguishes the Multi variant from the standard Hei-FLOW Expert 120: With a single-channel pump head, the flow rate ranges from 0.5 to 936 millilitres per minute; with a multi-channel pump head, it ranges from 0.005 to 277 millilitres per minute. For multi-channel operation, cassettes in three sizes and multi-channel pump heads with 4, 8 or 12 channels are available as accessories. The speed control accuracy is ± 0.5 %, and the flow rate accuracy is ± 3.5 %.
External control and hands-free operation
The analogue interface (0 to 10 V or 4 to 20 mA) allows the speed, direction of rotation, and start/stop functions to be controlled externally, for example from a higher-level process control system. An optional foot switch complements the unit for applications where both hands must remain on the container. The direction of rotation can be reversed at any time at the touch of a button, whilst pressing the button for maximum speed accelerates the filling and emptying of the hose.
Designed for continuous operation
The EC motor is designed for continuous operation round the clock, seven days a week, and is protected against overheating by an electronic current limiter. Degree of protection IP 54 according to DIN EN 60529 and protection class 1 according to EN 61140 make the drive suitable for daily laboratory use; the sound pressure level remains below 55 dB(A) based on IEC 61010.
Typical applications
- Parallel filling of multiple reaction vessels or sample containers via a multi-channel pump head
- Dosing processes with external control via PLC or analogue signal
- Applications using a foot switch where both hands must remain on the vessel
- Continuous operation in shift work thanks to 24/7 design
Selection guide within the Hei-FLOW range
For those who do not require multi-channel operation, the single-channel Hei-FLOW Expert 120 offers the same electronics without an integrated adapter. If simple speed control without an analogue interface is sufficient, the Hei-FLOW Core 120 Multi is the more cost-effective alternative with the same multi-channel adapter. Those who also require a digital display, an RS232 interface and volume or interval dosing will find these features in the Hei-FLOW Ultimate 120 Multi. For significantly higher flow rates in single-channel operation, the Hei-FLOW Expert 600 is available with a speed range of 24 to 600 revolutions per minute.
Technical details
| Dimensions (W x H x D) | 166 x 225 x 256 mm, excluding pump head |
| Weight | 7.6 kg, excluding pump head |
| Drive | EC motor |
| Speed range | 5 to 120 rpm |
| Degree of protection | IP 54 according to DIN EN 60529 |
| Sound pressure level | < 55 dB(A), based on IEC 61010 |
| Rated voltage | 110 to 240 V, 50/60 Hz |
| Protection class | 1 (EN 61140) |
| Overheating protection | Yes, with electronic current limiting |
| Control accuracy | ± 0.5 % |
| Speed control | Digital |
| Interfaces | Analogue (0 to 10 V / 4 to 20 mA): speed, direction of rotation, start/stop |
| Power consumption / Motor power | 100 W |
| Operating mode | Continuous operation 24 hours / 7 days |
| Direction of rotation | clockwise / anti-clockwise |
| Speed display | Analogue |
| Flow rate, single channel | 0.5 to 936 ml/min |
| Flow rate, multi-channel | 0.005 to 277 ml/min |
| Accuracy | ± 3.5 % |
| Connection for foot switch | Yes |
Scope of delivery
- Hei-FLOW Expert 120 Multi drive unit, order number 523-51013-00
- Factory-fitted multi-channel adapter
A pump head is not included with this drive unit and must be selected separately from the range of accessories to match the number of channels; the same applies to the hoses. The operating instructions and Safety Guide are available as PDF downloads.
Regulatory information
The device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.
Warranty and procurement service
Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service will put together the appropriate equipment, including suitable pump heads, multi-channel cassettes and tubing, to fit this drive.
| Display type: | Analogue |
|---|---|
| Max. speed: | 120 rpm |
| Power supply: | Mains operation |
| Supply form: | Single unit |
