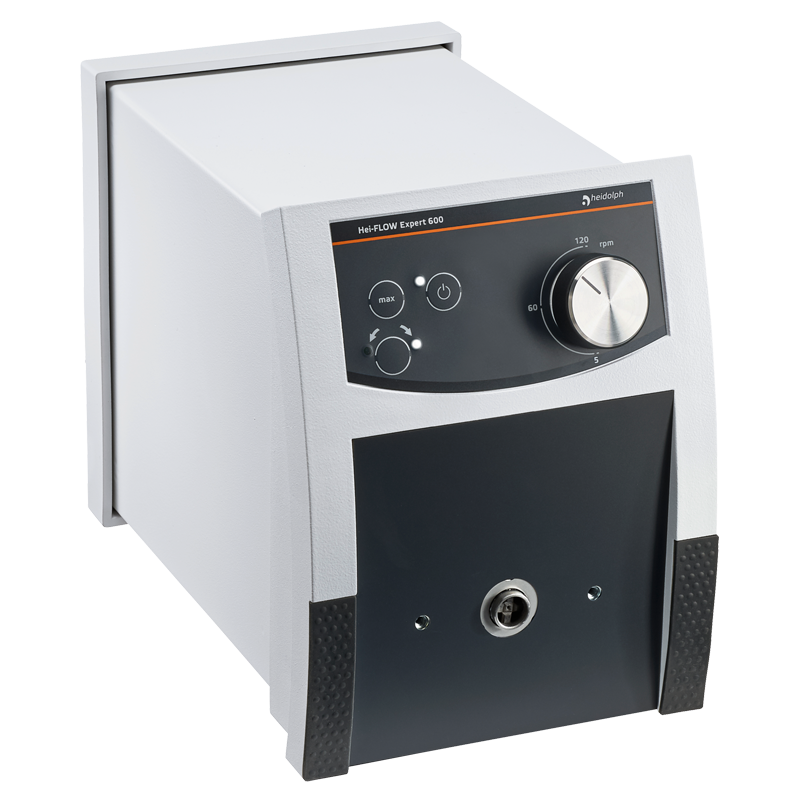

Heidolph Hei-FLOW Expert 600 Peristaltic Pump, 24 to 600 rpm, Analog Interface, 523-51060-00

Reactors and larger vessels often require a higher flow rate than a 120-series drive can provide. The Hei-FLOW Expert 600 covers a speed range from 24 to 600 revolutions per minute and, with single-channel pump heads, achieves a flow rate of up to 4,056 millilitres per minute. Like the entire Expert range, it features an analogue interface and a connection for a foot switch; this model is not designed for multi-channel operation. Compared with the 120-series variants, the focus here is clearly on flow rate rather than precise dosing.

High flow rate for larger volumes

With a flow rate ranging from 2.0 to 4,056 millilitres per minute, the Expert 600 covers a range sufficient for the rapid filling and emptying of larger vessels or for continuous processes with high throughput. Pressing the button for maximum speed further accelerates filling and emptying operations, whilst the direction of rotation is reversed at the touch of a button. The speed control accuracy is ± 0.5 per cent, and the flow rate accuracy is ± 3.5 per cent. The speed range of 24 to 600 revolutions per minute is thus significantly higher than that of the 120 models in the Hei-FLOW range, making the drive suitable for applications requiring higher flow rates per unit of time.

Analogue connection to higher-level systems

The interface (0 to 10 V or 4 to 20 mA) transmits speed, direction of rotation and start/stop signals to an external control system. An optional foot switch allows dosing by foot pressure, whilst both hands remain on the tubing or vessel. Suitable single-channel pump heads (SP quick, SP standard, SP vario) and tubing materials ranging from silicone to Tygon are available as accessories.

Robust for continuous operation

The EC motor runs continuously round the clock, seven days a week, and is protected against overheating by an electronic current limiter. Protection rating IP 54 in accordance with DIN EN 60529 and protection class 1 in accordance with EN 61140 allow for use in day-to-day laboratory operations; the sound pressure level remains below 55 dB(A) in accordance with IEC 61010. The rated voltage of 110 to 240 V at 50 or 60 Hz means the drive can be used regardless of the local mains supply.

Typical applications

• Rapid filling and emptying of larger reaction vessels or containers
• Continuous conveying processes with high throughput
• External control via PLC or analogue signal
• Dosing via foot switch, without manual operation on the control panel

Selection guide within the Hei-FLOW range

If simple speed control without an analogue interface or foot switch connection is sufficient, the Hei-FLOW Core 600 is the more cost-effective alternative within the same speed range. Those who also require a digital display, an RS232 interface, volume and interval dosing, as well as soft start, will find these features in the Hei-FLOW Ultimate 600. For multi-channel operation in the lower speed range, the Hei-FLOW Expert 120 Multi and the single-channel Hei-FLOW Expert 120 are available.

Technical details

Scope of delivery

• Hei-FLOW Expert 600 drive unit, order number 523-51060-00

A pump head is not included and must be selected separately from the range of accessories to suit the hose diameter; the same applies to the hoses. The operating instructions and Safety Guide are available as PDF downloads.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. The procurement service at LT Laborhandel will put together the appropriate pump heads and tubing to suit this drive.
