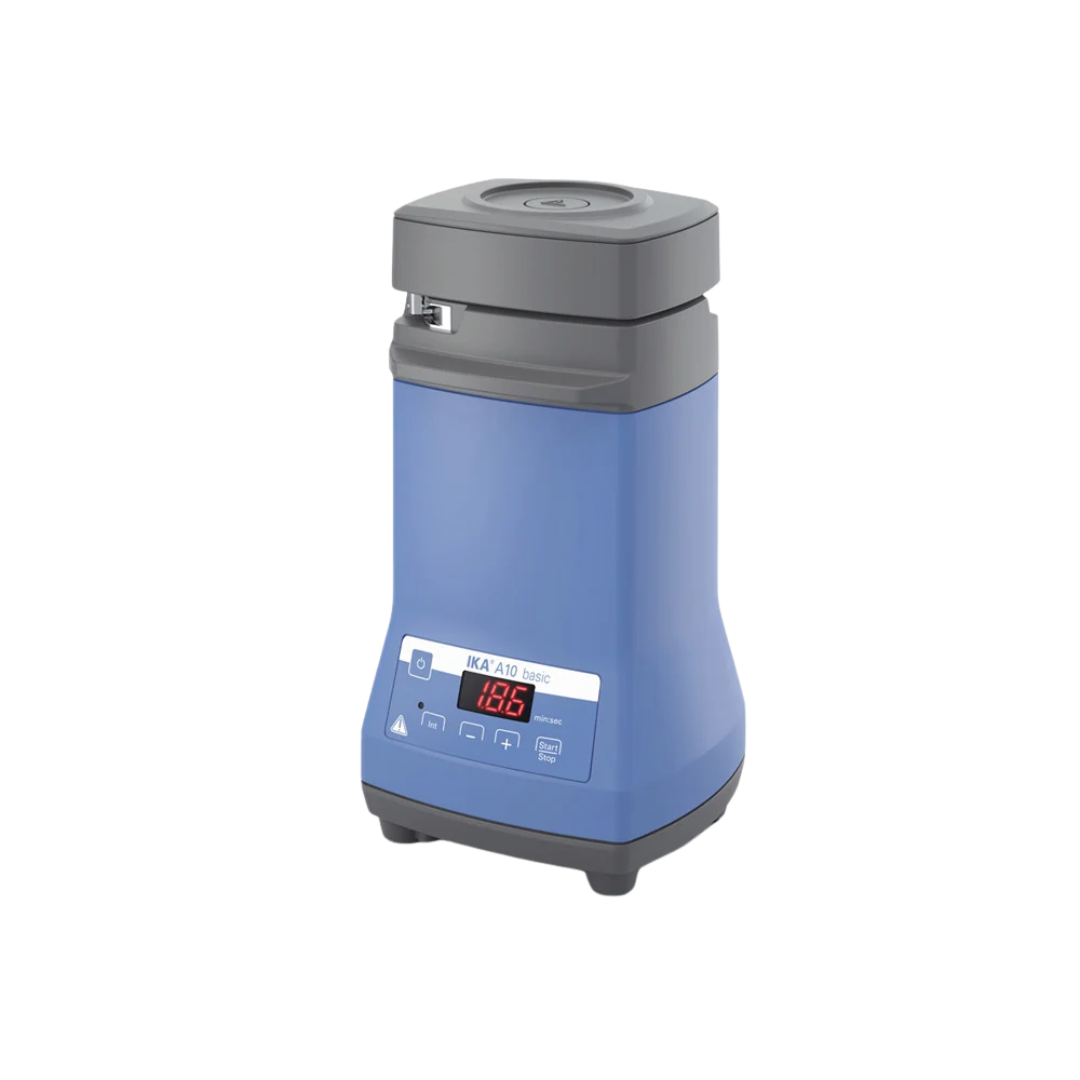

IKA A 10 basic analytical mill, coolable, 0004020700

Versatile grinding for demanding samples

The IKA A 10 basic is a newly designed batch mill that stands out for its exceptional flexibility in day-to-day laboratory work. Not only does it grind hard and brittle materials, but it also handles soft or fibrous samples up to a volume of 50 ml with ease. A key advantage for analytical work: the grinding chamber features integrated connections for water cooling. Furthermore, samples can be embrittled with dry ice directly in the grinding chamber, which makes it possible to process tough, greasy or water-containing substances.

Safety and durability

Safety and robustness were the focus during the development of the A 10 basic. The unit only starts up when the lid is correctly closed and features a quick-stop function as well as a lid lock during operation. The built-in brushless motor not only runs pleasantly quietly but is also extremely wear-resistant, guaranteeing a long service life.

Precise Control and Reproducibility

All parameters can be conveniently controlled via the intuitive membrane keypad. A digital display with a timer function shows the grinding time precisely, whilst intermittent operation ensures optimised mixing and comminution. As the grinding chamber, beater geometry and rotational speed (25,000 rpm) are identical to those of the tried-and-tested predecessor model, the A 10, your existing test results remain comparable and valid.

Technical details

• Max. working volume: 50 ml
• Max. speed: 25,000 rpm
• Motor power input/output: 300 W / 240 W
• Operating principle: Cutting/impact
• Max. feed material hardness: 5 Mohs
• Max. feed particle size: 6 mm
• Timer: Yes (digital display)
• Cooling: Integrated water connections & suitable for dry ice
• Grinding chamber/beater material: Stainless steel (1.4301 / 1.4034)
• Protection class according to DIN EN 60529: IP 41
• Dimensions (W x H x D): 130 x 250 x 145 mm
• Weight: 3.1 kg

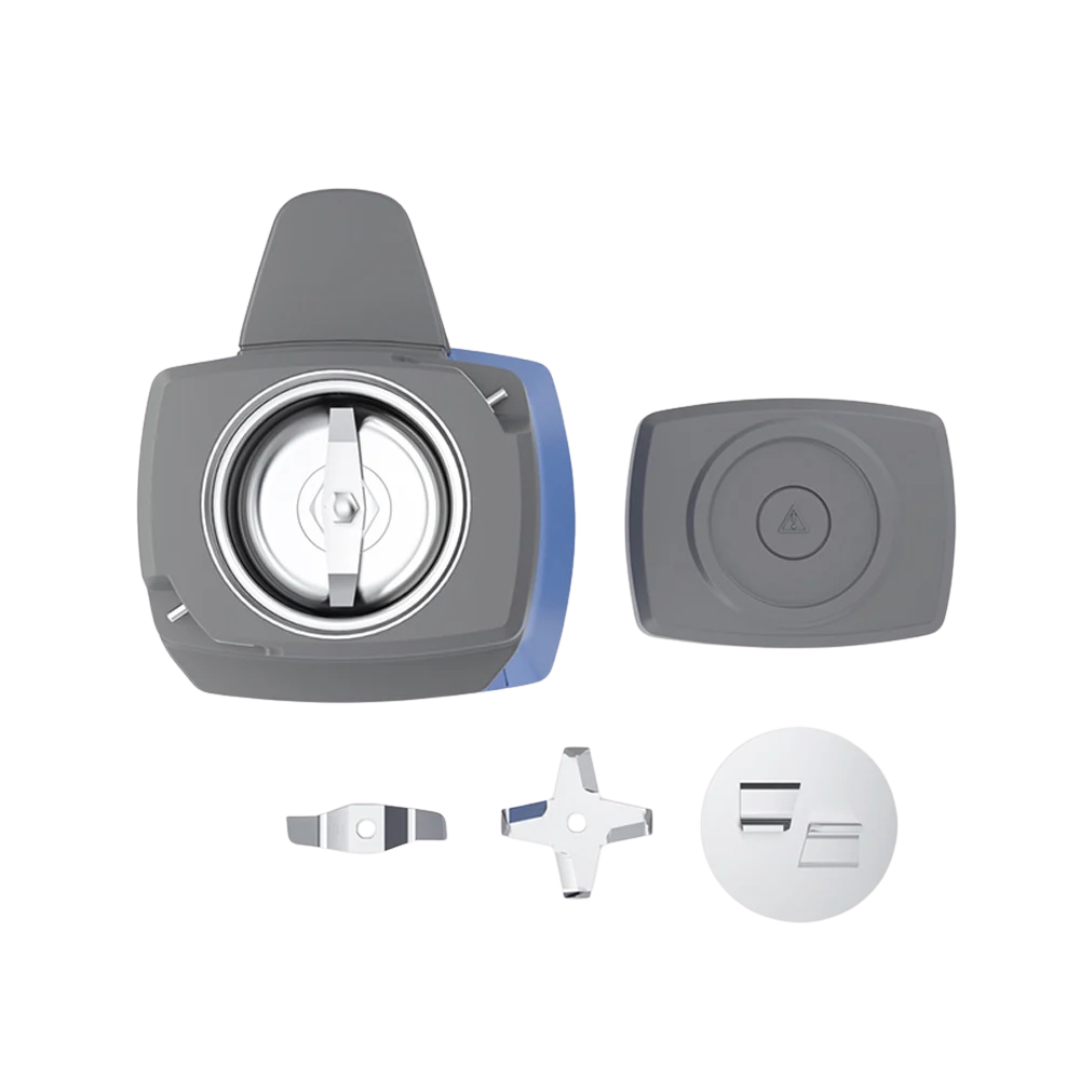

Contents of delivery

• IKA A 10 basic analytical mill
• A 10.1 stainless steel beater
• A 10.4 Grinding chamber reducer (for small quantities)
• 2 x clips for cooling water hose
• 2 x felt rings
• Tool set

Customised requirements & procurement service

Do you need the A 10.2 star beater for fibrous samples or the A 10.3 carbide blade for particularly hard materials? We can configure your mill to suit your specific application. Contact our procurement service for advice on the available interchangeable tools.
