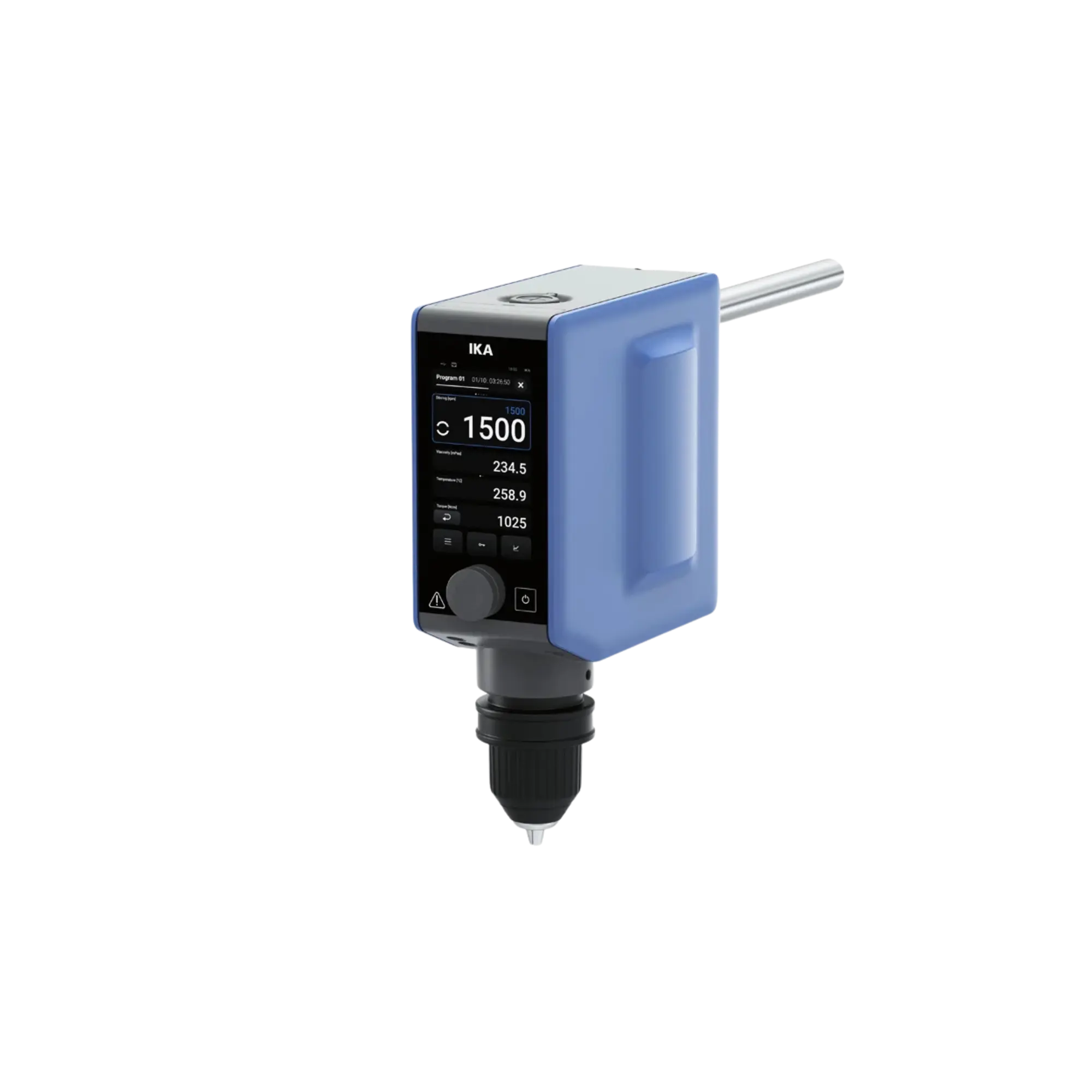

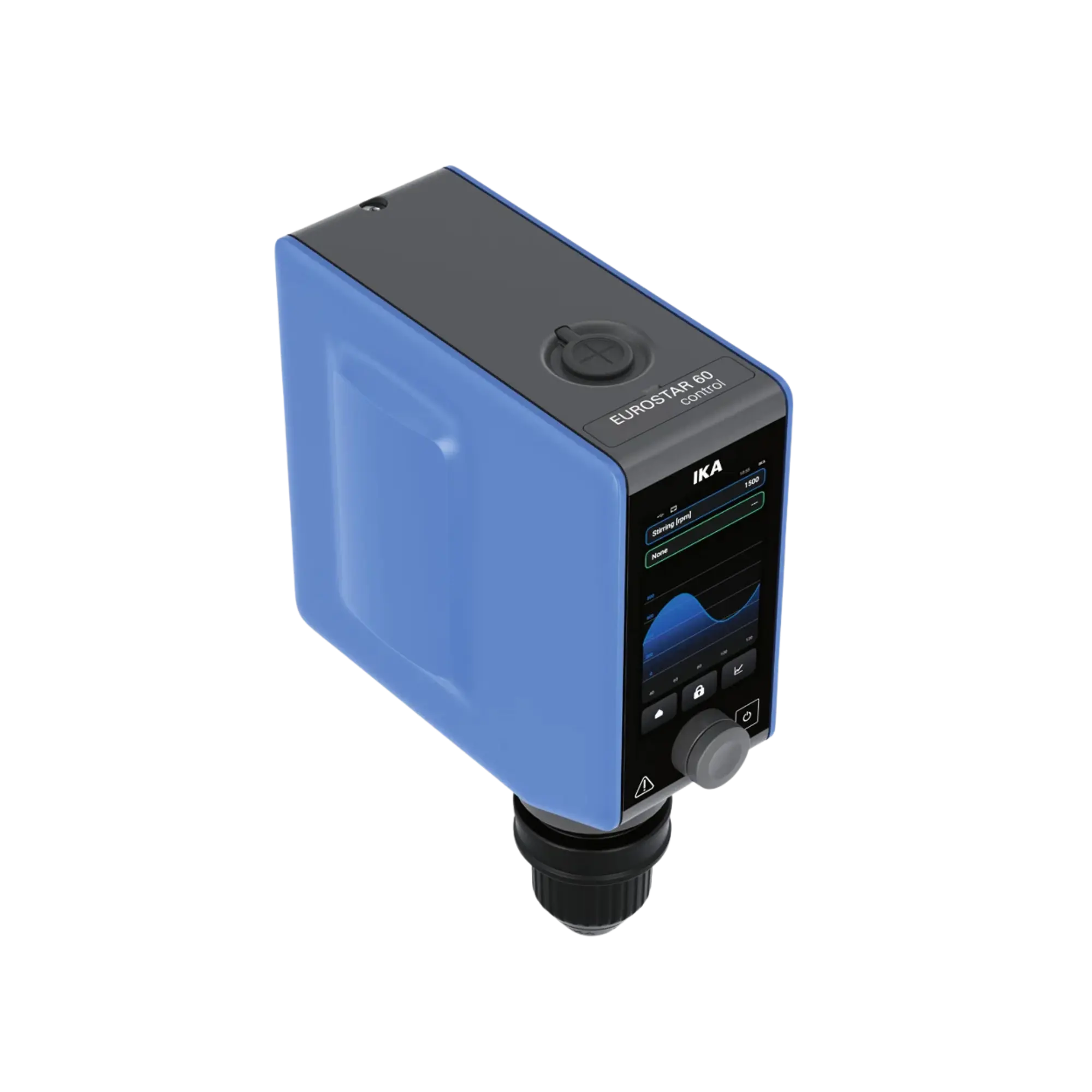

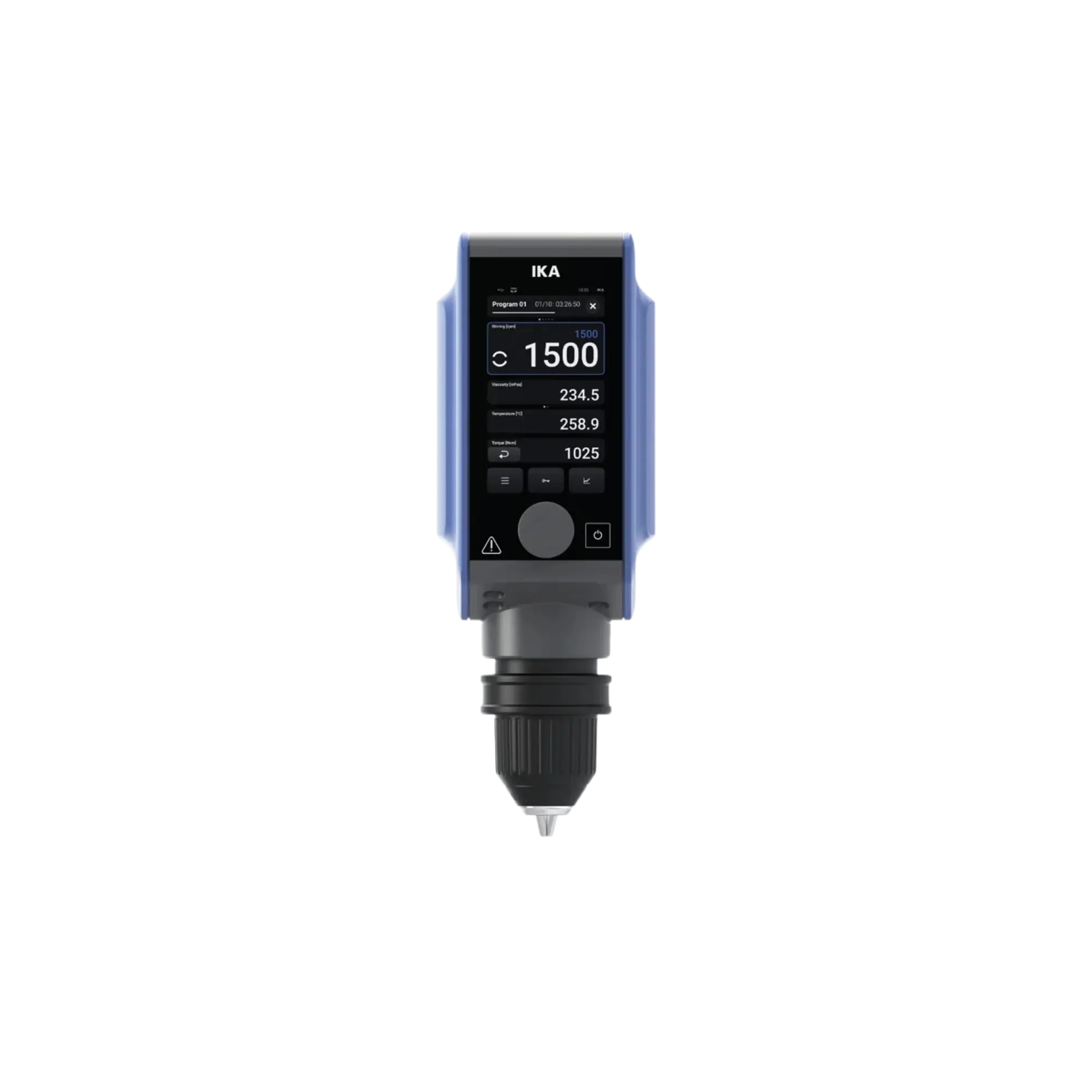

IKA EUROSTAR 60 control overhead stirrer with TFT display, up to 60 litres, 0020105158
€1,798.50
% Manufacturer's RRP: €2,398.00 25% below manufacturer's RRP
- Overhead stirrer for batches up to 60 litres and viscosities up to 50,000 mPas
- TFT graphic display with real-time viscosity readout via integrated torque sensor (±1 Ncm)
- Integrated PT1000 temperature measurement, reversible rotation direction and interval mode
- Wi-Fi, LAN, USB-C and RS232 for connection to labworldsoft
- Vibration sensor and housing with IP 54 protection rating for continuous operation
Product information "IKA EUROSTAR 60 control overhead stirrer with TFT display, up to 60 litres, 0020105158"
The IKA EUROSTAR 60 control overhead stirrer (MPN 0020105158) represents the modernised, highly advanced mechatronic generation of professional laboratory stirrers. With a footprint reduced by up to 23 % compared with previous models, this unit fits into any laboratory layout. Designed for universal and highly demanding mixing tasks in a B2B environment, the system processes sample volumes of up to 60 litres (based on water) as well as viscous media with a viscosity of up to 50,000 mPas. It is suitable for complex syntheses, mixing viscous substances and fully documented processes in chemical, pharmaceutical and biotechnological research.
Within the EUROSTAR series, the Model 60 control is the more compact version of the top-of-the-range Model 100 control: It offers the same comprehensive sensor technology and connectivity, but with a capacity limited to 60 litres and 50,000 mPas, whilst the Model 60 digital, with the same volume, does not feature temperature measurement, direction-of-rotation reversal or wireless network connectivity.
High-precision real-time viscosity measurement via torque sensor
A key feature of the control series is the integrated torque sensor. With an accuracy of ±1 Ncm, it enables continuous torque monitoring throughout the entire mixing process. The internal microprocessor control system uses these values to calculate the exact viscosity of the medium and displays it in mPas on the TFT graphic display. Coupled with automatic speed control in the range of 30 to 2,000 revolutions per minute, the brushless DC motor dynamically adapts to changes in load.
Advanced process functions and safety architecture
The EUROSTAR 60 control offers tools that go beyond conventional stirring. The system features an integrated temperature measurement function (via PT1000 interface), a rotation direction that can be reversed at the touch of a button (counter-clockwise/clockwise rotation), and a programmable interval mode. An integrated vibration sensor monitors the test setup for imbalances or critical vibrations and initiates an automatic safety shutdown in the event of danger. Mechanical blockages or thermal overloads are countered by self-contained safety circuits, whilst a lock button protects the control panel against unintentional parameter changes.
Industry 4.0 readiness and robust housing design
With USB-C, RS232, Ethernet, wireless (WPAN) and Wi-Fi interfaces, the overhead stirrer can be connected to a PC and controlled and documented via the labworldsoft laboratory software. The housing, made from coated die-cast aluminium and robust thermoplastic, meets degree of protection IP 54 (splash- and steam-proof). The brushless DC motor operates with virtually no wear, is whisper-quiet (52 dBA without tools) and is designed for a 100 % duty cycle in continuous operation.
Typical applications
- Process development with comprehensive documentation of torque, viscosity and temperature for batches of up to 60 litres
- Stirring of viscous media up to 50,000 mPas, where a reversible direction of rotation specifically remixes sediments
- Syntheses and reactions with temperature monitoring via PT1000 and automatic safety shut-off in the event of imbalance or blockage
- Networked laboratory workstations connected to labworldsoft via Wi-Fi or LAN, where a smaller volume than that of the Model 100 control is sufficient
Technical details
| Drive & performance data | |
| Motor principle | Brushless DC motor (BLDC) |
| Motor power consumption | 168 watts |
| Motor power output | 131 watts |
| Max. power at the mixing shaft | 126 watts |
| Power consumption | 186 watts |
| Permissible duty cycle | 100 % (designed for continuous operation) |
| Voltage range | 100 to 240 V / frequency 50/60 Hz |
| Mixing & viscosity data | |
| Maximum mixing volume per mixing point (water) | 60 litres |
| Maximum viscosity | 50,000 mPas |
| Maximum torque at the stirring shaft | 100 Ncm |
| Maximum torque at 30 to 200 rpm | 100 Ncm |
| Max. torque at 200 to 2,000 rpm | 100 to 60 Ncm (linear adjustment) |
| Max. torque I / Max. torque II | 100 Ncm / 60 Ncm |
| Rated torque | 0.6 Nm |
| Speed & time control | |
| Speed range | 30 to 2,000 rpm (revolutions per minute) |
| Speed adjustment | Continuously variable via electronic control |
| Speed adjustment & measurement accuracy | ±1 rpm |
| Speed measurement deviation (n > 300 rpm) | ±1 % |
| Speed measurement deviation (n < 300 rpm) | ±3 rpm |
| Direction of rotation reversible | Yes (left-hand/right-hand rotation integrated) |
| Intermittent operation / Interval mode | Yes |
| Timer | Yes, integrated (setting range 1 to 6,000 minutes) |
| Metrology & Sensors | |
| Speed display & timer display | High-resolution TFT graphic display |
| Torque measurement | Integrated (accuracy ±1 Ncm) |
| Viscosity measurement | Integrated with direct mPas calculation and on-screen display |
| Connection for external temperature sensor | PT1000 |
| Temperature measurement range | -10 to +350 °C (resolution 0.1 K) |
| Temperature measurement accuracy | ±0.5 K plus the tolerance of the PT1000 sensor (Class A) |
| Vibration sensor | Integrated for automatic imbalance detection |
| Interfaces & connectivity | |
| Wireless interfaces | Wi-Fi/WLAN and WPAN (wireless) |
| Wired interfaces | USB-C, RS232 and Ethernet |
| Software compatibility | labworldsoft (process automation and documentation) |
| Design & Geometry | |
| Stirrer tool mounting | Chuck (clamping range: 0.5 to 10 mm in diameter) |
| Hollow shaft (can be inserted whilst stationary) | Yes (inner diameter 11 mm) |
| Mounting on stand | Extension rod (diameter 16 mm / length 220 mm) |
| Housing material | Coated cast aluminium and special thermoplastic |
| Degree of protection according to DIN EN 60529 | IP 54 (splash- and steam-proof) |
| Noise level without tools | 52 dB(A) |
| Dimensions (width x depth x height) | 89 x 191 x 237 mm |
| Net weight | 3.9 kg |
| Permissible ambient temperature | +5 to +40 °C (relative humidity up to 80 %) |
Scope of delivery
- 1 x IKA EUROSTAR 60 control overhead stirrer (MPN 0020105158)
- 1 x integrated extension rod for stand mounting
- 1 x universal mains cable
- 1 x Detailed operating instructions / safety guide
Individual requirements and procurement service
We offer original IKA system peripherals for the EUROSTAR 60 control:
- Stirring tools & shaft guards: Stainless steel and PTFE stirring elements (e.g. propeller stirrers, anchor stirrers, dissolver discs) as well as the matching IKA R 401 stirring shaft guard with hinge (MPN 0020122349)
- Stand accessories: Sturdy IKA telescopic stands (e.g. R 2722) and boss heads (e.g. R 270) for securing the 3.9-kilogramme drive
- Temperature measurement technology: IKA PT1000 stainless steel temperature probes for utilising the integrated temperature monitoring directly within the medium
Please make use of our technical procurement service when planning the digitalisation of your laboratory processes.
