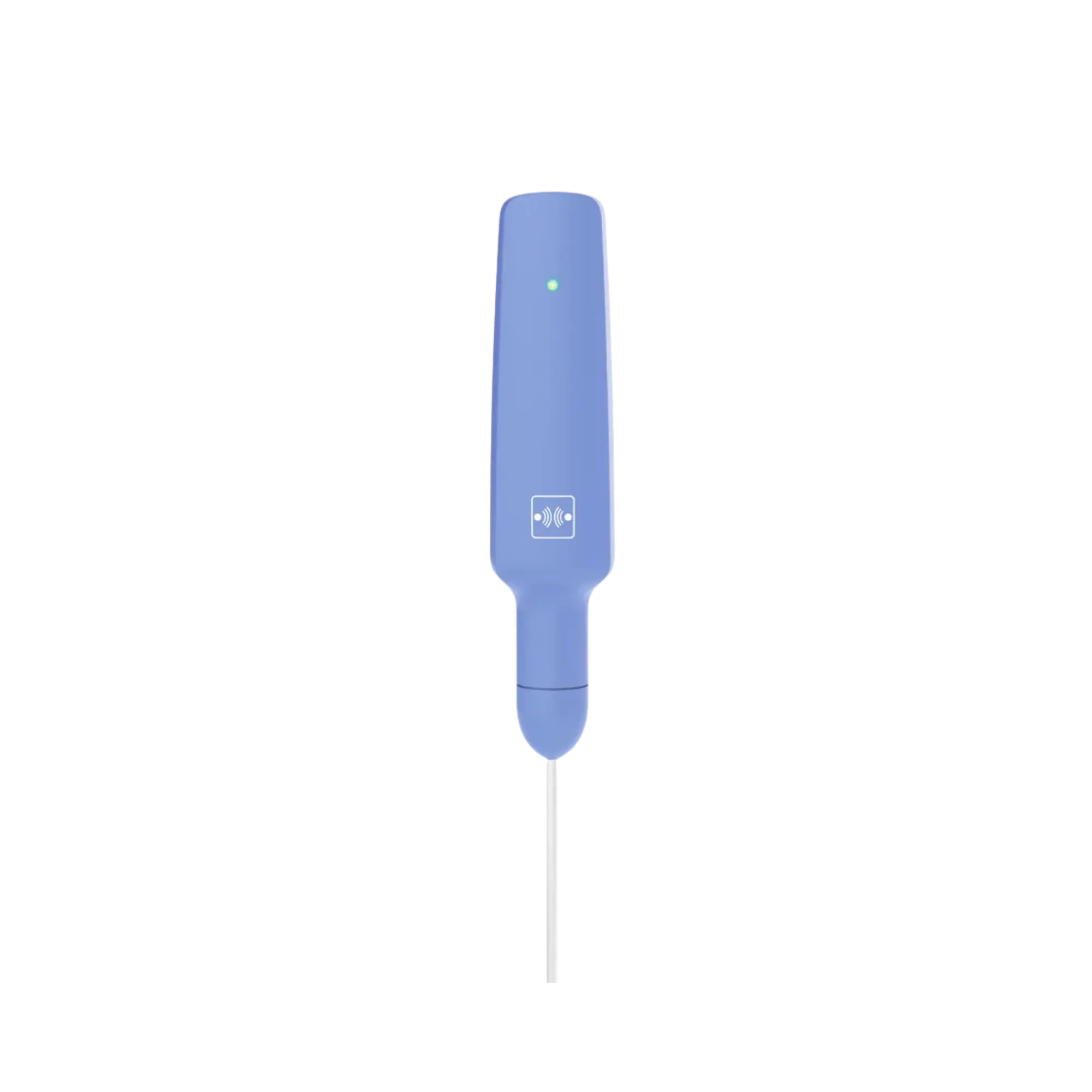

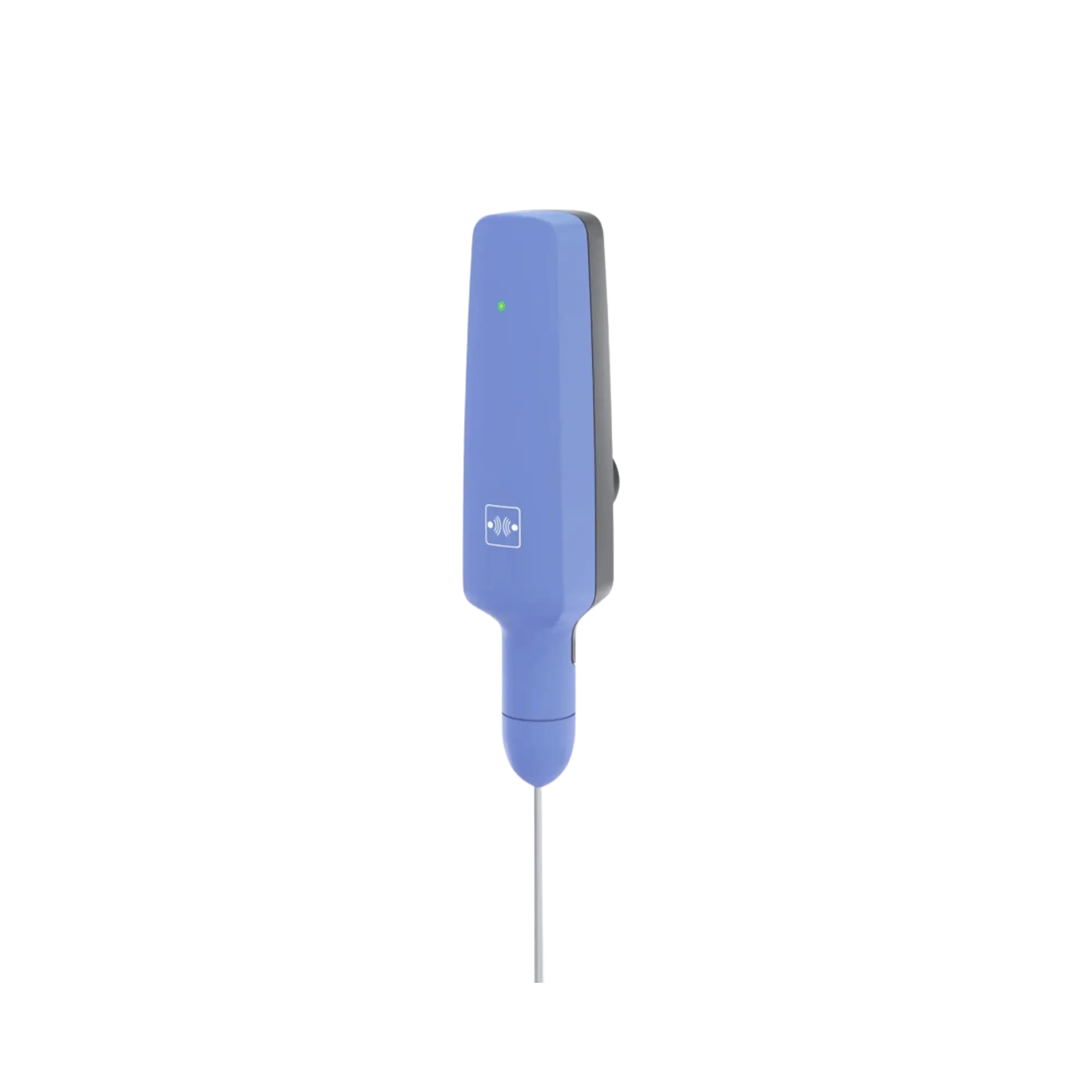

IKA Pt.Wireless wireless sensor for temperature and pH measurement, 0025008369
€161.60
% Manufacturer's RRP: €202.00 20% below manufacturer's RRP
- Wireless combined sensor for temperature and pH
- Wireless signal transmission via WPAN up to 15 metres
- Integrated BNC interface for external pH electrodes
- Real-time display and calibration via the IKA app
- LED battery warning when the remaining runtime drops
- Long battery life of up to 150 hours at a time
- Dust- and splash-proof housing to IP 54 standard
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA Pt.Wireless wireless sensor for temperature and pH measurement, 0025008369"
The IKA Pt.Wireless wireless sensor (MPN 0025008369) is a system solution for digital temperature and electrochemical sample analysis in the laboratory. Designed as an intelligent, fully wireless sensor, this instrument eliminates the need for cumbersome cable routing in fume hoods, gloveboxes or on crowded laboratory workstations. Via digital radio transmission (WPAN), the system transmits transient measurement data in real time over a range of up to 15 metres to compatible IKA system components, such as the latest generations of the RCT basic and RET basic magnetic stirrer series, Eurostar control stirrers, and directly to the labworldsoft (LWS) laboratory equipment software.
Full app integration and display-free efficiency
Unlike traditional measuring instruments, the Pt.Wireless does away with physically bulky display elements on the sensor itself and shifts all visual control to the innovative IKA app. Once paired in a straightforward process, the smartphone or tablet acts as a high-resolution dashboard for the real-time display of all parameters. Calibration of the precise temperature and pH calibration curves is also carried out directly via the app’s user interface. For electrochemical analysis, the slim module features an integrated BNC interface to which an analogue pH electrode can be connected directly. This transforms the system into an ultra-compact all-in-one solution for monitoring complex reaction media.
Intelligent LED status monitoring for weekend operation
The Pt.Wireless’s key technical feature is its predictive, multi-stage energy management system, which enables a continuous operating time of up to 150 hours. To reduce unforeseen system failures during long-term experiments, the sensor features a smart battery status warning via an integrated LED indicator. If the remaining runtime of the lithium battery falls below 70 hours, the LED signals, according to the manufacturer, at an early stage that the remaining runtime is no longer sufficient for unattended operation over a full weekend. When the remaining runtime falls below a critical reserve of approximately 20 hours, the indicator changes to a slowly flashing yellow warning signal to alert laboratory staff that the remaining runtime for overnight operation is about to end.
Technical details
Analytical & Measurement Ranges (Temperature & pH)
- Sensor type: PT1000 (DIN IEC 751 Class A), flexibly interchangeable
- Replaceable primary sensor: standard component H62.51
- Temperature measurement range: -20 °C to +400 °C (depending on the H62 sensor)
- Temperature measurement resolution: 0.1 K
- Temperature measurement accuracy: ±0.2 K + tolerance of the PT1000 sensor
- Minimum immersion depth: 20 mm
- pH measurement function: Yes, via integrated BNC socket (female)
- pH measurement range: 0 to 14 pH
- pH resolution / accuracy: 0.01 pH / ±0.1 pH
Wireless technology & interfaces
- Wireless interface: WPAN (digital radio transmission)
- Communication range: Up to 15 metres (depending on the building)
- Wired interface: USB-C (for PC connection and alternative data transfer)
- App connectivity: Direct pairing with the IKA app for real-time display and sensor calibration
Power management & status LED
- Power supply: Integrated, rechargeable battery (700 mAh capacity)
- DC voltage: 5 V=
- Maximum charging current: 500 mA
- Operating time (with a fully charged battery): Up to 150 hours
- Battery charging rate: 50 % charge in 60 minutes; 75 % charge in 90 minutes
- Safety status LED: Yes, multi-stage visual remaining runtime warning (< 70 h weekend indicator / < 20 h flashing yellow signal for overnight operation)
- Integrated warning functions: Audible and visual via LED
Dimensions & environmental data
- Dimensions (width x depth x height): 30 x 380 x 38 mm
- Net weight: 0.09 kg (extremely light at 90 grams for gentle handling)
- Degree of protection according to DIN EN 60529: IP 54 (dust- and splash-proof housing)
- Permissible ambient temperature: +5 to +40 °C
- Permissible relative humidity: Up to 80 %
Scope of delivery
- 1 x IKA Pt.Wireless wireless sensor (MPN: 0025008369)
- 1 x Replaceable temperature sensor H62.51
- 1 x built-in rechargeable battery (700 mAh)
- 1 x USB-C connection cable
- 1 x Detailed operating instructions / safety guide
A pH electrode is not included as standard and must be ordered separately as an accessory.
Regulatory information
This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.
Individual requirements & accessories
To ensure the Pt.Wireless integrates seamlessly into your digital laboratory processes, we offer a comprehensive range of original system peripherals:
- pH electrodes: High-quality laboratory measuring chains with standardised BNC connectors, suitable for aqueous media, viscous samples or aggressive organic matrices.
- Wireless receiver (USB WD): For wireless retrofitting of older RCT basic magnetic stirrers without a built-in WPAN module.
- Mounts & stands: Precisely fitting IKA mounting rods and boss heads for stable, vibration-free fixing of the sensor directly above the sample vessel.
- Software integration: labworldsoft (LWS) laboratory software for centralised data recording, monitoring and documentation of all measurement curves. Use our technical procurement service to configure your networked measurement station.
