IKA ETS-D7 Wireless Sensor, smart wireless temperature sensor and pH meter, 0025008370

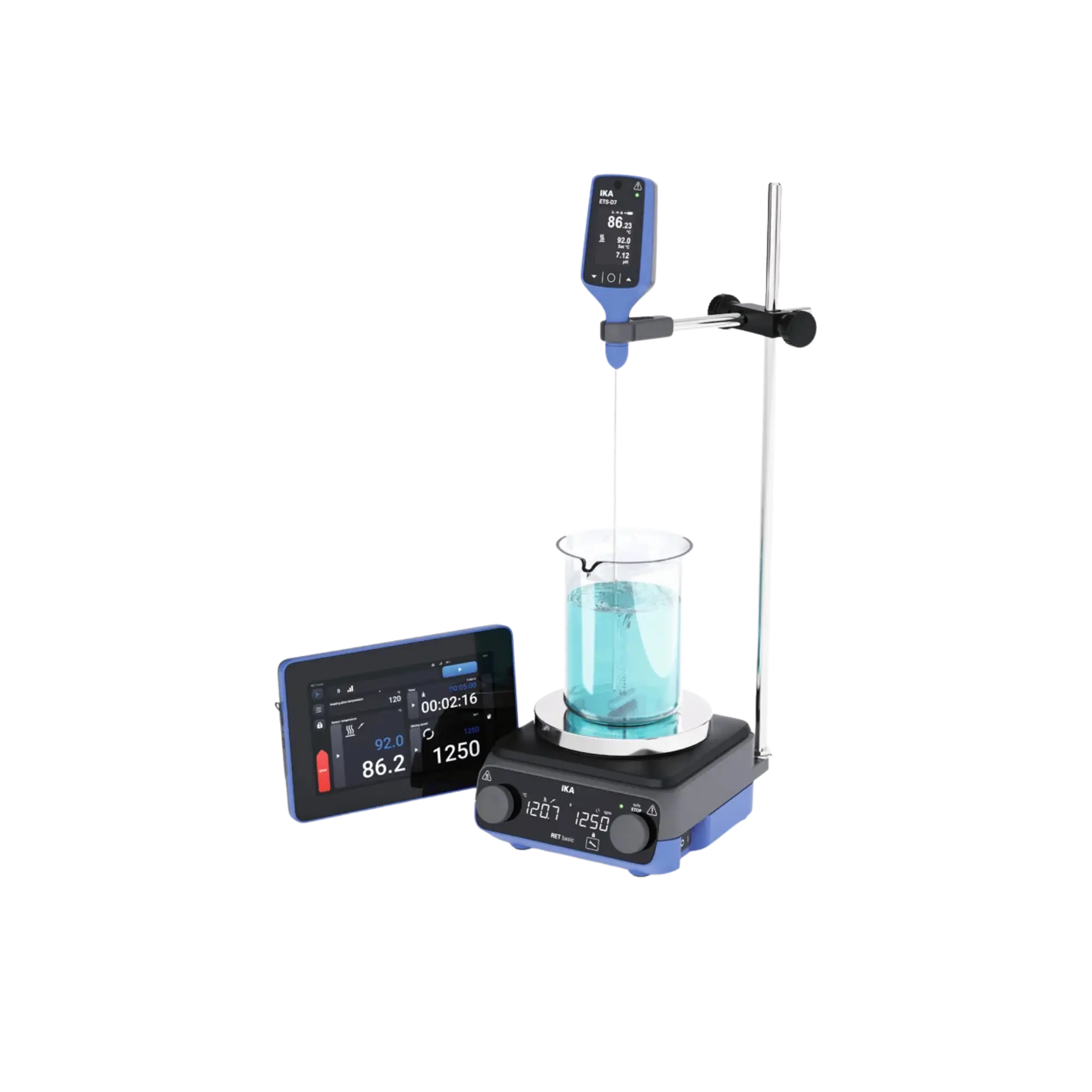

The IKA ETS-D7 Wireless Sensor (MPN 0025008370) is a highly innovative, mechatronic, high-end wireless system solution for the simultaneous thermal and electrochemical analysis of samples in the modern laboratory. Far more than a conventional measuring transducer, this wireless instrument functions as an intelligent sensor and control centre. It transmits transient temperature data via digital radio transmission (WPAN) over a distance of up to 15 metres to compatible IKA drives, such as the magnetic stirrers of the RET basic and RCT basic series or the Eurostar control stirrers. This technological decoupling completely eliminates disruptive signal cables in the fume cupboard or glovebox and takes occupational safety and mechanical flexibility to a new level.

All-in-one dual measurement technology with integrated BNC interface

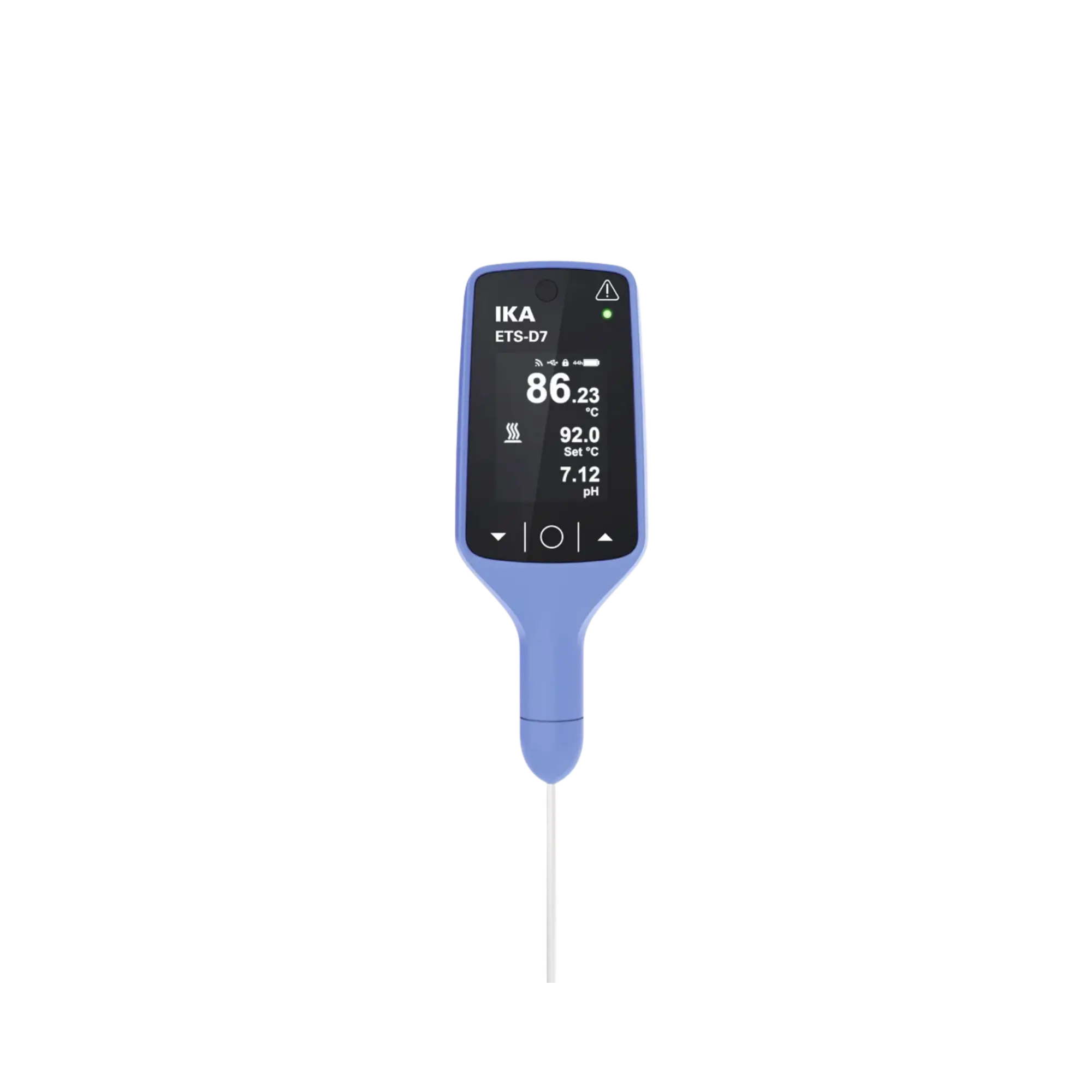

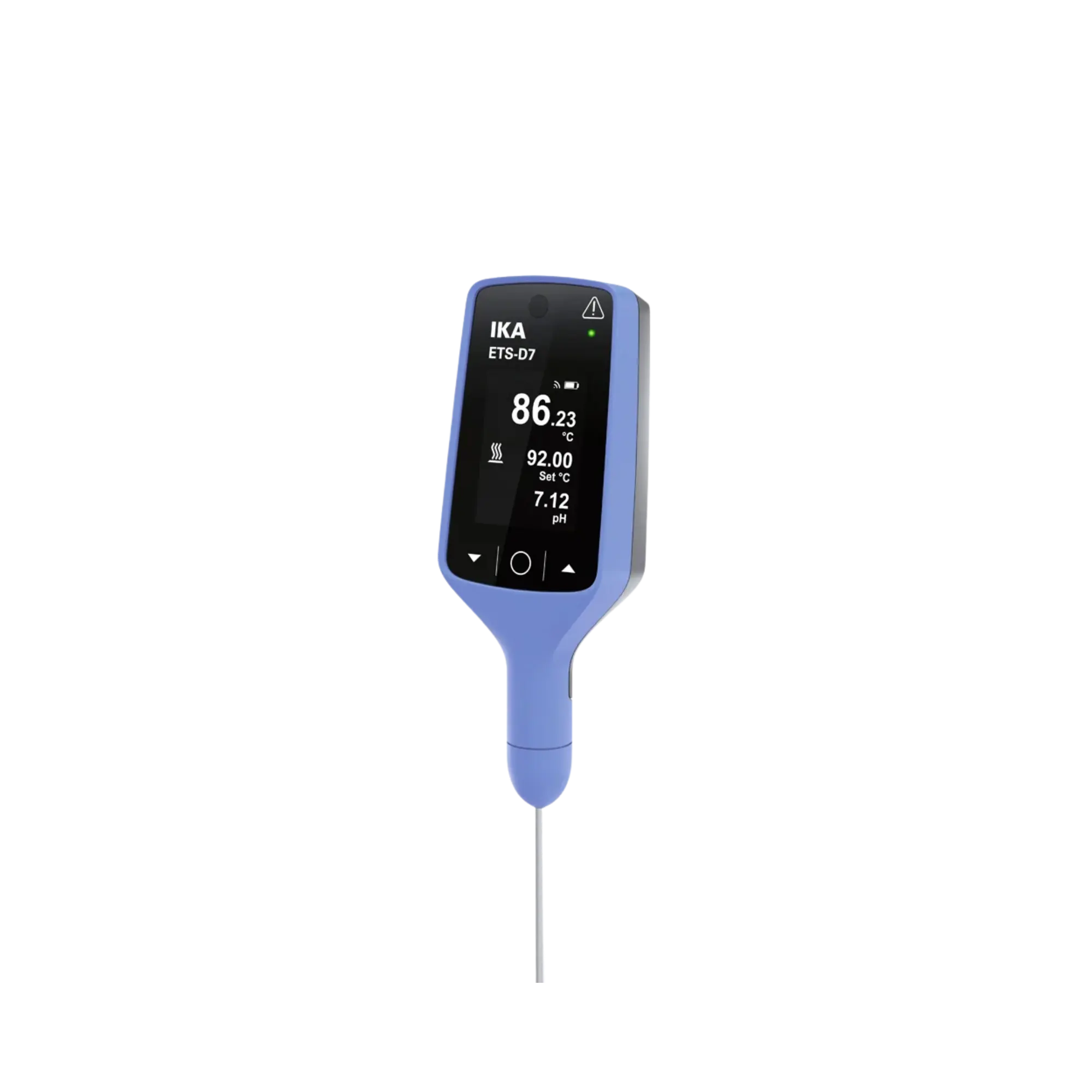

An outstanding technical feature of the ETS-D7 is its versatile configuration as a self-contained, stand-alone measuring device. The compact module features an integrated BNC socket, to which an analogue pH electrode can be connected directly. This transforms the temperature sensor into a fully-fledged, portable pH meter without the need for costly additional investment. The integrated, high-contrast TFT touchscreen displays both the temperature readings and the transient pH value with a fine metrological resolution of two decimal places (0.01). This guarantees absolutely error-free and precise readability of all process parameters directly at the physical measurement site.

Smart sensor technology and highly efficient energy management

The wireless sensor’s electronic system architecture stands out thanks to its forward-looking, software-controlled energy management. Using integrated infrared and ambient light sensors, the device automatically detects whether laboratory staff are in the immediate vicinity to read the measurements. The display only activates when actually needed (Auto-Wake) and automatically switches to a deep standby mode when idle, thereby achieving a remarkable battery life of up to 100 hours. For test series requiring continuous visual monitoring, continuous display operation can be flexibly enabled.

Bidirectional connectivity for seamless Industry 4.0 validation

Thanks to a sophisticated bidirectional communication matrix, the ETS-D7 enables full synchronisation of setpoint and actual values in a networked laboratory. Depending on the connected main unit, adjustments to temperature and stirring parameters can be made directly via the sensor’s touch interface. Furthermore, the sensor can be integrated as a second, redundant temperature sensor into critical safety control loops to reliably prevent exothermic incidents. Full compatibility with the labworldsoft (LWS) laboratory software ensures seamless digital recording, centralised control and audit-compliant documentation of all transient measurement curves in accordance with modern quality management standards.

Technical details

Measurement system & sensors

• Sensor type: PT1000 (DIN IEC 751 Class A), flexibly interchangeable
• Interchangeable probe: standard component H62.51
• Temperature measurement range: –20 °C to +400 °C (in combination with H62 sensor)
• Temperature measurement resolution: 0.01 K
• Temperature measurement accuracy: ±0.05 K + tolerance of the PT1000 sensor
• Minimum immersion depth: 20 mm
• pH measurement function: Yes, via integrated BNC socket (female)
• pH measurement range: 0 to 14 pH
• pH resolution / accuracy: 0.01 pH / ±0.1 pH

Operation, interfaces & wireless technology

• Display technology: Brilliant TFT touchscreen with full touch functionality
• Proximity sensors: Integrated infrared and brightness detection for intelligent auto-wake operation
• Signalling: Visual status LED and integrated audible warning function
• Wireless interface: WPAN (digital radio transmission)
• Communication range: Up to 15 metres (depending on the building structure)
• Wired interface: USB-C (for direct PC connection and alternative data transfer)

Power management & battery

• Power supply: Built-in, rechargeable battery
• Battery capacity / DC voltage: 700 mAh / 5 V=
• Maximum charging current: 500 mA
• Operating time (display permanently ON): Up to 50 hours
• Operating time (display in auto-wake mode): Up to 100 hours
• Charging rate: 50% capacity in 60 minutes; 75% capacity in 90 minutes

Design & environmental specifications

• Dimensions (width x depth x height): 52 x 385 x 40 mm
• Net weight: 0.125 kg (lightweight at 125 grams for flexible handling)
• Protection class according to DIN EN 60529: IP 54 (complete protection against dust and splashing water)
• Permissible ambient temperature: +5 to +40 degrees Celsius
• Permissible relative humidity: Up to 80 per cent

Contents of the pack

• 1 x IKA ETS-D7 Wireless Sensor main unit (MPN: 0025008370)
• 1 x Replaceable temperature probe H62.51
• 1 x Integrated lithium-ion battery (700 mAh)
• 1 x Quick Start Guide / Safety Guide

Note: A pH electrode and a USB-C charging adapter must be ordered separately as accessories.

Customised requirements & accessories

To make the most of the IKA ETS-D7’s multifunctional capabilities, we stock a wide range of compatible system peripherals:

• pH electrodes: High-quality laboratory measuring chains with standardised BNC connectors, perfectly suited to aqueous media, viscous samples or aggressive organic matrices.
• Wireless receiver (USB WD): For wireless integration and retrofitting of older RCT basic magnetic stirrers without a built-in WPAN module.
• Software & Mounting: labworldsoft (LWS) laboratory software for transient measurement data acquisition, as well as IKA support rods and cross-sockets for stable, vibration-free mounting of the sensor directly above the sample vessel. Please use our technical procurement service to configure your networked measurement station.
