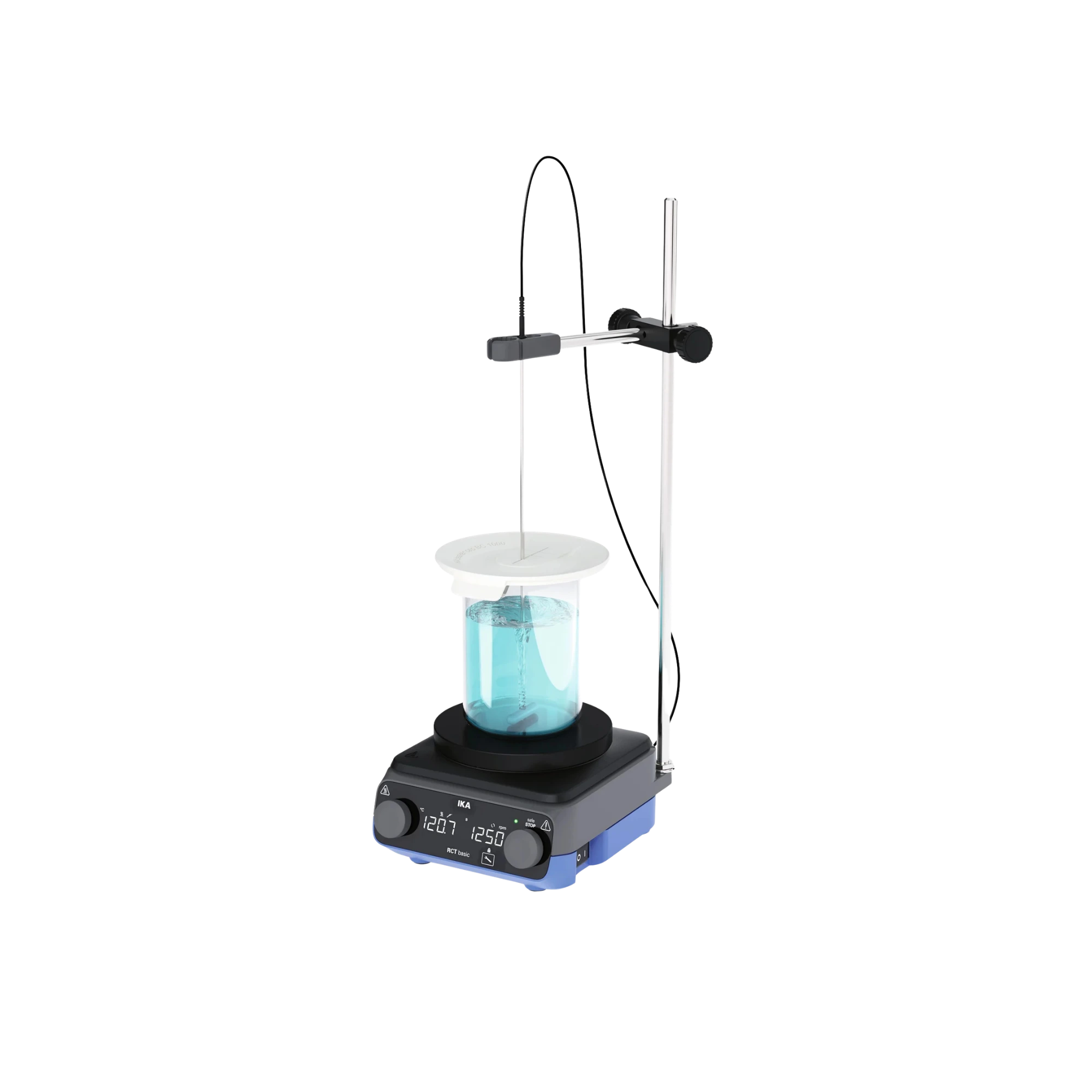

IKA RCT basic anodised ready-to-go Solution complete magnetic stirrer package, anodised aluminium base, 0010016471

The new IKA ETS-D5 electronic contact thermometer (MPN 0025008371) completely redefines precision, safety and ease of use in laboratory thermal analysis. Developed as a high-performance mechatronic control unit for demanding laboratory processes, this instrument takes over active, direct temperature control of the medium once connected. It controls the heating power of a coupled magnetic stirrer by intelligently switching the heating plate on and off, whilst the stirrer itself acts as a redundant monitoring unit for the preset safety limits. The ETS-D5 thus transforms any compatible workstation into a future-proof, high-precision control centre for reproducible experimental series. Integrated safety architecture for risk-free processes From a process engineering perspective, the ETS-D5 offers a comprehensive range of sophisticated protective functions that contribute significantly to laboratory safety and risk minimisation. The system features an adjustable sensor timeout, which is triggered immediately if the probe is inadvertently outside the liquid medium. Precise temperature drop detection reacts dynamically to unexpected thermal gradients, whilst setpoint monitoring (Delta T) immediately stops temperature control if the target value is exceeded by a critical margin. To prevent operator errors in multi-user operation, the maximum settable temperature can be strictly limited via a setpoint limit. In the event of a transient fault, the heating circuit remains permanently switched off to protect personnel and the sample matrix. Optimised PID control and application-specific modes The instrument’s control technology ensures absolutely stable temperature control without thermal overshoot. Coupled with a high-precision, interchangeable PT1000 temperature sensor of tolerance class A, the system covers a wide operating range from –20 °C to +400 °C. Three application-specific temperature control modes ensure maximum flexibility in day-to-day laboratory work: ‘Fast’ for ultra-fast heating cycles, ‘Precise’ for working at the minimum tolerance limit, and a specialised synthesis block mode that is perfectly tailored to the thermodynamic requirements of chemical syntheses. For highly sensitive organic or biological sample structures, the heating rate can also be precisely reduced in percentage increments. Ergonomic touch-screen control concept and documentation The instrument’s exterior breaks away from complicated analogue designs and features a user-friendly, clear touchscreen display for intuitive parameter configuration during continuous operation. The almost completely enclosed system reliably protects the internal electronic components from aggressive vapours and liquids in the harsh everyday laboratory environment. A future-proof, integrated USB-C interface also enables the rapid, error-free export of all transient measurement data to a PC, thereby ensuring seamless documentation, validation and traceability of your processes in accordance with modern GLP standards. Technical details Measurement system & control characteristics Sensor type: PT1000 (DIN IEC 751 Class A), easily replaceable Temperature measurement range: –20 °C to +400 °C Measurement and setpoint resolution: 0.1 K Temperature measurement accuracy: ±0.2 K + tolerance of the PT1000 sensor Control accuracy in the medium: ±0.5 K (validated with 500 ml of water in a 600-ml beaker) Temperature control modes: Fast, Precise (highest accuracy), Synthesis block-optimised Heating rate: Individually adjustable in percentage steps for sensitive samples Control algorithm: Optimised PID control to prevent overshoot Safety & monitoring functions Sensor timeout: Detects the absence of the sensor in the medium (time-adjustable) Temperature drop detection: Automatic response to unexpected temperature drops Setpoint monitoring (Delta T): Shuts off the heating function if the Delta T limit is exceeded Setpoint Limitation: Software-based limitation of the maximum settable temperature Safe-Temp & Emergency Protection: Immediate safety shutdown of the heating circuit in the event of a fault; the stirrer remains deactivated Operation, Interfaces & Geometry Display technology: User-friendly, flat touchscreen for intuitive operation Digital interface: USB-C for direct data transfer and software connection to a PC Connector to the main unit: DIN 45322 (MAS6 standard) Dimensions (width x height x depth): 52 x 36 x 385 mm Minimum probe insertion depth: 20 mm Net weight: 0.156 kg (156 grams) Environmental data & electrical specifications Protection class according to DIN EN 60529: IP 54 (dust- and splash-proof) Operating voltage / DC voltage: 8 to 16 V= Current consumption: 100 mA Permissible ambient temperature: +5 to +40 degrees Celsius Permissible relative humidity: Up to 80 per cent Contents of the package 1 x IKA ETS-D5 electronic contact thermometer (MPN: 0025008371) 1 x PT1000 temperature probe (standard version) 1 x USB-C connection cable 1 x Detailed operating instructions / safety guide Individual Requirements & Accessories To ensure optimal utilisation of the intelligent ETS-D5 control centre, we offer a complementary range of original system peripherals: Specialised probes for corrosive media: Optional interchangeable sensors made from robust special-purpose glass (H66.51) or featuring a highly chemically resistant protective coating (H66.53) for safe operation in acids and alkalis. Mechanical mounts: Precisely fitting extension cables for flexible spatial extension of the measuring station, as well as sturdy IKA support rods and cross-couplings for vibration-free stand locking above the sample point. Compatible stirring systems: Ideal as a metrological upgrade for IKA magnetic stirrers without integrated primary temperature control, to establish a redundant, independent medium safety circuit. Use our technical B2B procurement service to configure your measuring stations.

The IKA ETS-D7 Wireless Sensor (MPN 0025008370) is a highly innovative, mechatronic, high-end wireless system solution for the simultaneous thermal and electrochemical analysis of samples in the modern laboratory. Far more than a conventional measuring transducer, this wireless instrument functions as an intelligent sensor and control centre. It transmits transient temperature data via digital radio transmission (WPAN) over a distance of up to 15 metres to compatible IKA drives, such as the magnetic stirrers of the RET basic and RCT basic series or the Eurostar control stirrers. This technological decoupling completely eliminates disruptive signal cables in the fume cupboard or glovebox and takes occupational safety and mechanical flexibility to a new level. All-in-one dual measurement technology with integrated BNC interface An outstanding technical feature of the ETS-D7 is its versatile configuration as a self-contained, stand-alone measuring device. The compact module features an integrated BNC socket, to which an analogue pH electrode can be connected directly. This transforms the temperature sensor into a fully-fledged, portable pH meter without the need for costly additional investment. The integrated, high-contrast TFT touchscreen displays both the temperature readings and the transient pH value with a fine metrological resolution of two decimal places (0.01). This guarantees absolutely error-free and precise readability of all process parameters directly at the physical measurement site. Smart sensor technology and highly efficient energy management The wireless sensor’s electronic system architecture stands out thanks to its forward-looking, software-controlled energy management. Using integrated infrared and ambient light sensors, the device automatically detects whether laboratory staff are in the immediate vicinity to read the measurements. The display only activates when actually needed (Auto-Wake) and automatically switches to a deep standby mode when idle, thereby achieving a remarkable battery life of up to 100 hours. For test series requiring continuous visual monitoring, continuous display operation can be flexibly enabled. Bidirectional connectivity for seamless Industry 4.0 validation Thanks to a sophisticated bidirectional communication matrix, the ETS-D7 enables full synchronisation of setpoint and actual values in a networked laboratory. Depending on the connected main unit, adjustments to temperature and stirring parameters can be made directly via the sensor’s touch interface. Furthermore, the sensor can be integrated as a second, redundant temperature sensor into critical safety control loops to reliably prevent exothermic incidents. Full compatibility with the labworldsoft (LWS) laboratory software ensures seamless digital recording, centralised control and audit-compliant documentation of all transient measurement curves in accordance with modern quality management standards. Technical details Measurement system & sensors Sensor type: PT1000 (DIN IEC 751 Class A), flexibly interchangeable Interchangeable probe: standard component H62.51 Temperature measurement range: –20 °C to +400 °C (in combination with H62 sensor) Temperature measurement resolution: 0.01 K Temperature measurement accuracy: ±0.05 K + tolerance of the PT1000 sensor Minimum immersion depth: 20 mm pH measurement function: Yes, via integrated BNC socket (female) pH measurement range: 0 to 14 pH pH resolution / accuracy: 0.01 pH / ±0.1 pH Operation, interfaces & wireless technology Display technology: Brilliant TFT touchscreen with full touch functionality Proximity sensors: Integrated infrared and brightness detection for intelligent auto-wake operation Signalling: Visual status LED and integrated audible warning function Wireless interface: WPAN (digital radio transmission) Communication range: Up to 15 metres (depending on the building structure) Wired interface: USB-C (for direct PC connection and alternative data transfer) Power management & battery Power supply: Built-in, rechargeable battery Battery capacity / DC voltage: 700 mAh / 5 V= Maximum charging current: 500 mA Operating time (display permanently ON): Up to 50 hours Operating time (display in auto-wake mode): Up to 100 hours Charging rate: 50% capacity in 60 minutes; 75% capacity in 90 minutes Design & environmental specifications Dimensions (width x depth x height): 52 x 385 x 40 mm Net weight: 0.125 kg (lightweight at 125 grams for flexible handling) Protection class according to DIN EN 60529: IP 54 (complete protection against dust and splashing water) Permissible ambient temperature: +5 to +40 degrees Celsius Permissible relative humidity: Up to 80 per cent Contents of the pack 1 x IKA ETS-D7 Wireless Sensor main unit (MPN: 0025008370) 1 x Replaceable temperature probe H62.51 1 x Integrated lithium-ion battery (700 mAh) 1 x Quick Start Guide / Safety Guide Note: A pH electrode and a USB-C charging adapter must be ordered separately as accessories. Customised requirements & accessories To make the most of the IKA ETS-D7’s multifunctional capabilities, we stock a wide range of compatible system peripherals: pH electrodes: High-quality laboratory measuring chains with standardised BNC connectors, perfectly suited to aqueous media, viscous samples or aggressive organic matrices. Wireless receiver (USB WD): For wireless integration and retrofitting of older RCT basic magnetic stirrers without a built-in WPAN module. Software & Mounting: labworldsoft (LWS) laboratory software for transient measurement data acquisition, as well as IKA support rods and cross-sockets for stable, vibration-free mounting of the sensor directly above the sample vessel. Please use our technical procurement service to configure your networked measurement station.

The IKA Pt.Wireless wireless sensor (MPN 0025008369) represents a technologically pioneering, highly optimised mechatronic system solution for seamless digital temperature and electrochemical sample analysis in the laboratory. Designed as an intelligent, fully wireless sensor, this instrument eliminates the need for cumbersome cable routing in fume cupboards, gloveboxes or on crowded laboratory workstations. Via digital radio transmission (WPAN), the system transmits transient measurement data in real time over a range of up to 15 metres to compatible IKA system components – such as the latest generations of the RCT basic and RET basic magnetic stirrer series, Eurostar control stirrers, and directly to the labworldsoft (LWS) laboratory equipment software. Full app integration and display-free efficiency Unlike traditional measuring instruments, the Pt.Wireless does away with physically bulky display elements on the sensor itself and shifts all visual control to the innovative IKA app. Once paired – a straightforward process – the smartphone or tablet acts as a high-resolution dashboard for the real-time display of all parameters. Calibration of the precise temperature and pH calibration curves is also carried out error-free directly via the app’s user interface. For electrochemical analysis, the slim module features an integrated BNC interface to which an analogue pH electrode can be connected directly. This transforms the system into an ultra-compact all-in-one solution for monitoring complex reaction media. Intelligent LED status monitoring for weekend operation The Pt.Wireless’s key technical feature is its predictive, multi-stage energy management system, which enables a continuous operating time of up to 150 hours. To reliably prevent unforeseen system failures during critical long-term experiments, the sensor features a smart battery status warning via an integrated LED indicator. If the remaining runtime of the lithium battery falls below 70 hours, the LED signals at an early stage that safe, unattended operation over a full weekend can no longer be guaranteed. When the remaining runtime falls below a critical reserve of approximately 20 hours, the indicator changes to a slowly flashing yellow warning signal to alert laboratory staff that safe overnight operation is about to cease. Technical details Analytical & Measurement Ranges (Temperature & pH) Sensor type: PT1000 (DIN IEC 751 Class A), flexibly interchangeable Replaceable primary sensor: standard component H62.51 Temperature measurement range: –20 °C to +400 °C (depending on the H62 sensor) Temperature measurement resolution: 0.1 K Temperature measurement accuracy: ±0.2 K + tolerance of the PT1000 sensor Minimum immersion depth: 20 mm pH measurement function: Yes, via integrated BNC socket (female) pH measurement range: 0 to 14 pH pH resolution / accuracy: 0.01 pH / ±0.1 pH Wireless technology & interfaces Wireless interface: WPAN (digital radio transmission) Communication range: Up to 15 metres (depending on the building) Wired interface: USB-C (for PC connection and alternative data transfer) App connectivity: Direct pairing with the IKA app for real-time display and sensor calibration Power management & status LED Power supply: Integrated, rechargeable battery (700 mAh capacity) DC voltage: 5 V= Maximum charging current: 500 mA Operating time (with a fully charged battery): Up to 150 hours Battery charging rate: 50% charge in 60 minutes; 75% charge in 90 minutes Safety status LED: Yes, multi-stage visual remaining runtime warning (< 70 h weekend indicator / < 20 h flashing yellow signal for overnight operation) Integrated warning functions: Audible and visual via LED Dimensions & environmental data Dimensions (width x depth x height): 30 x 380 x 38 mm Net weight: 0.09 kg (extremely light at 90 grams for gentle handling) Protection class according to DIN EN 60529: IP 54 (dust- and splash-proof housing) Permissible ambient temperature: +5 to +40 degrees Celsius Permissible relative humidity: Up to 80 per cent Contents 1 x IKA Pt.Wireless wireless sensor (MPN: 0025008369) 1 x Replaceable temperature probe H62.51 1 x built-in rechargeable battery (700 mAh) 1 x USB-C connection cable 1 x Detailed operating instructions / safety guide A pH electrode is not included as standard and must be ordered separately as an accessory. Customised requirements & accessories To ensure the Pt.Wireless integrates seamlessly into your digital laboratory processes, we offer a comprehensive range of original system peripherals: pH electrodes: High-quality laboratory measuring chains with standardised BNC connectors, perfectly suited to aqueous media, viscous samples or aggressive organic matrices. Wireless receiver (USB WD): For wireless retrofitting of older RCT basic magnetic stirrers without a built-in WPAN module. Mounts & stands: Precisely fitting IKA mounting rods and cross-sockets for stable, vibration-free fixing of the sensor directly above the sample vessel. Software integration: labworldsoft (LWS) laboratory software for centralised data recording, monitoring and comprehensive documentation of all transient measurement curves. Use our technical procurement service to configure your networked measurement station.
