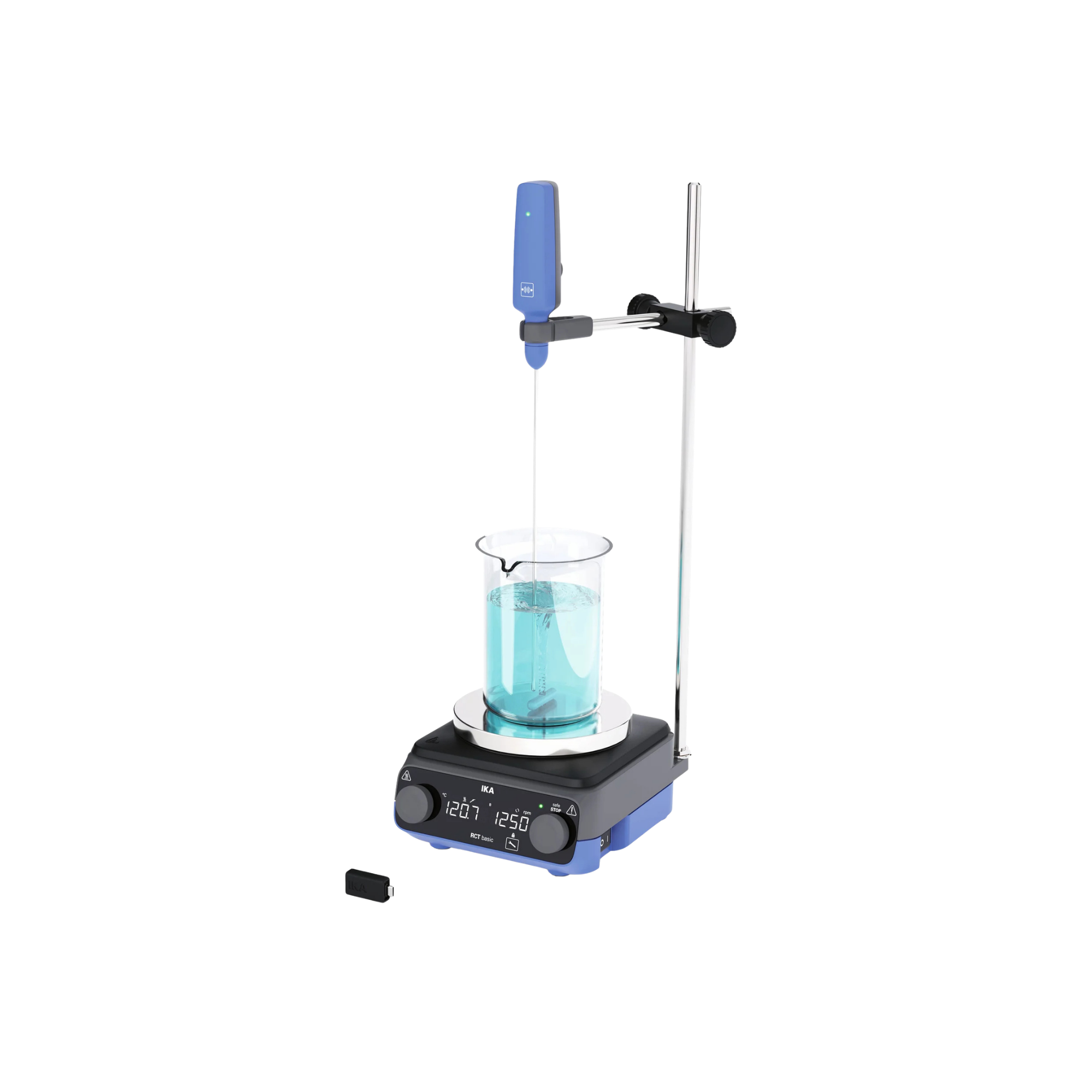

IKA RCT basic PT Wireless Solution Magnetic Stirrer Complete Package, aluminium base, 0010016513

The IKA RCT basic PT Wireless Solution Complete Package (MPN 0010016513) represents a technologically pioneering, highly optimised mechatronic system solution for the simultaneous stirring, mixing and wireless temperature control of liquid media. This turnkey complete set combines the globally acclaimed premium RCT basic heating magnetic stirrer with innovative, wireless temperature measurement technology. Particularly in fume cupboards, cleanbench workstations, gloveboxes or densely equipped laboratory workstations, conventional sensor cables often pose a mechanical hindrance or a safety risk. This wireless system solution completely eliminates disruptive cables in the workspace whilst ensuring highly precise, seamless temperature control directly within the sample.

Excellent thermal conductivity thanks to the Kera-Disk base

The materials science basis of the magnetic stirrer is the innovative IKA Kera-Disk base with a diameter of 135 mm. The base plate is made of a highly conductive aluminium alloy, which ensures minimal heating times and absolutely homogeneous temperature distribution across the entire base surface. To ensure uncompromising chemical resistance to highly corrosive media, acids and alkalis, the metal surface is sealed with a non-porous, scratch-resistant ceramic coating. This robust hybrid construction facilitates residue-free cleaning and protects the mechanical integrity of the heating surface during heavy-duty continuous use.

Wireless media temperature control for maximum workplace safety

The key process engineering feature of this complete package is the wireless transmission of laboratory data. The wireless temperature sensor included in the set is placed directly within the liquid core of the sample and transmits the transient actual values in real time via digital radio transmission to the stirrer’s microprocessor control unit. A highly efficient PID control loop continuously adjusts the heating power of the Kera-Disk, thereby effectively preventing the temperature from overshooting the target value. This reliably protects sensitive organic syntheses, biological sample matrices or highly volatile solvents from thermal degradation and significantly increases the reproducibility of your experimental series.

Hermetically sealed housing and comprehensive laboratory safety

The long-term durability of the instrument is ensured by a hermetically sealed die-cast aluminium housing. This structural barrier complies with protection class IP 42 and reliably protects the internal electronic control elements and the powerful magnetic drive against the ingress of spilled liquids, corrosive vapours or dust. A comprehensive safety concept protects users and the laboratory infrastructure: an independently adjustable safety circuit immediately switches off the heating function in the event of an unexpected overheating, whilst a visual residual heat indicator (Hot Top Indicator) reliably warns staff of the risk of burns even after the instrument has been switched off.

Technical details

Drive & stirring specifications (RCT basic)

• Number of stirring points: 1
• Maximum stirring volume (based on water): 20 litres
• Motor power output: 9 watts
• Speed range: 50 to 1500 revolutions per minute (rpm)
• Speed control: Stepless analogue rotary control with digital LED display
• Magnetic coupling: High holding force, prevents the stirring blade from being torn off in the event of sudden changes in viscosity

Thermodynamics & heating power

• Heating power: 600 watts (for ultra-fast heating cycles)
• Heating plate temperature: Room temperature to 310 °C
• Heating plate temperature accuracy: +/- 1 K
• Heating plate diameter: 135 mm
• Heating disc material: Kera-Disk (aluminium alloy with ceramic coating)
• Adjustable safety range (min./max.): 50 to 360 °C

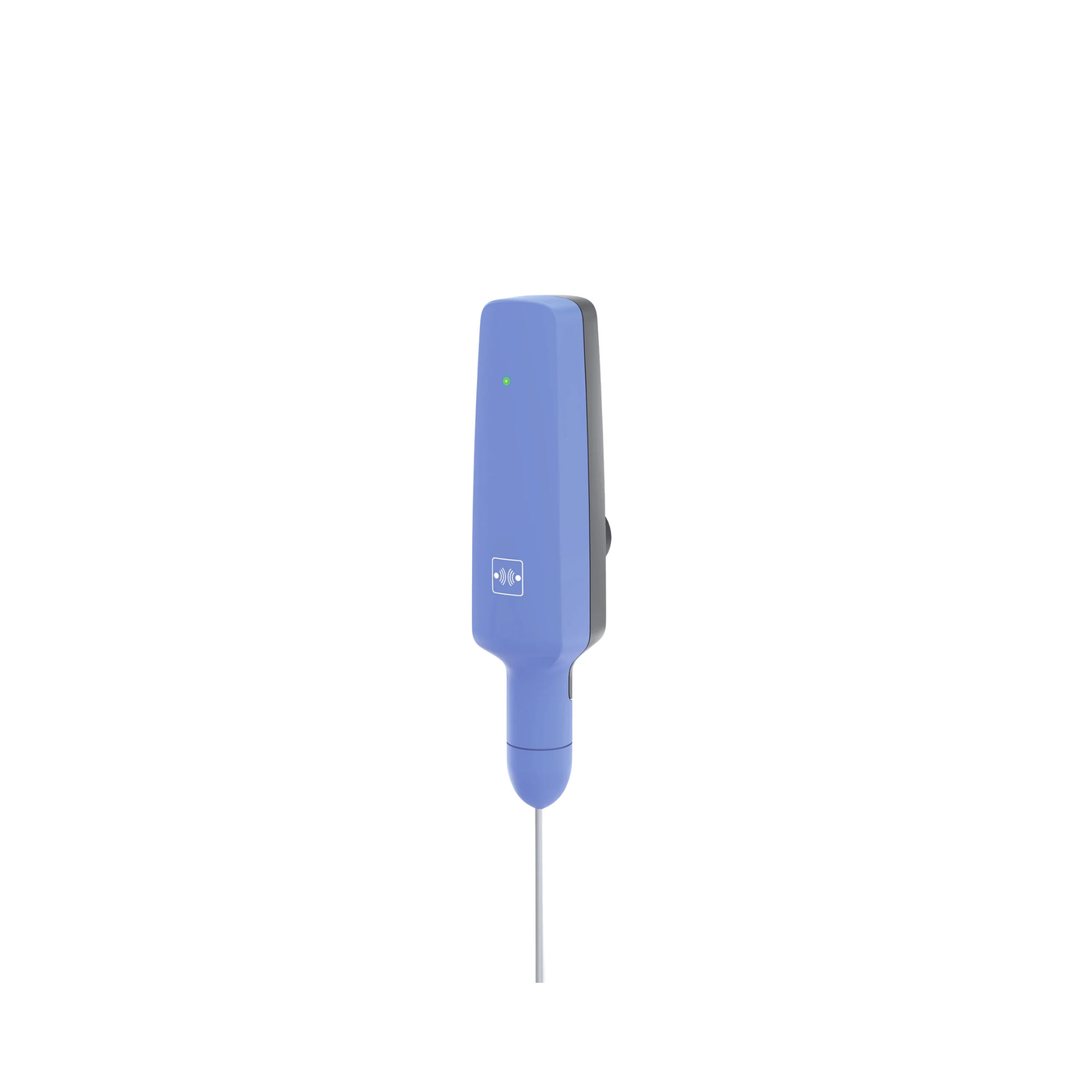

Wireless temperature measurement technology (Wireless PT)

• Measurement principle: Wireless, digital radio transmission of measurement data
• Sensor type: High-precision Pt1000 temperature sensor with integrated radio transmitter
• Control accuracy in the medium: ±0.5 K
• Signal range: Optimised for operation in enclosed laboratory fume cupboards and glove boxes

Design, geometry & protection classes

• Housing material: Robust die-cast aluminium housing, powder-coated to resist chemicals
• Protection class according to DIN EN 60529: IP 42 (hermetically sealed against ingress of media)
• Dimensions (W x D x H): 160 x 270 x 85 mm
• Mains connection: 220–230 V / 50/60 Hz

Contents

• 1 x IKA RCT basic magnetic stirrer with heating
• 1 x Wireless Pt1000 temperature sensor unit (wireless radio sensor)
• 1 x Mounting bracket / accessory for probe positioning
• 1 x mains cable
• 1 x Detailed operating instructions / quality certificate

Customised requirements & accessories

To ensure you get the most out of the IKA RCT basic PT Wireless Solution complete package, we stock a comprehensive range of compatible system accessories. For safe, oil-free operation with round-bottom flasks, we recommend the heat-efficient IKA Dry attachments (DryZone) made from anodised aluminium, which completely eliminate the need for traditional, unhygienic oil baths. To protect the stirrer housing from stubborn contamination, we stock precisely fitting silicone protective covers (H 104). For complex mixing requirements, we also offer a wide range of PTFE-coated magnetic stir bars in various shapes (e.g. cylindrical, triangular or oval). For seamless digital recording of all stirring and temperature curves, the system can also be linked to the labworldsoft laboratory software via the integrated interface. Please make use of our technical procurement service to design your measuring station to suit your specific requirements.
