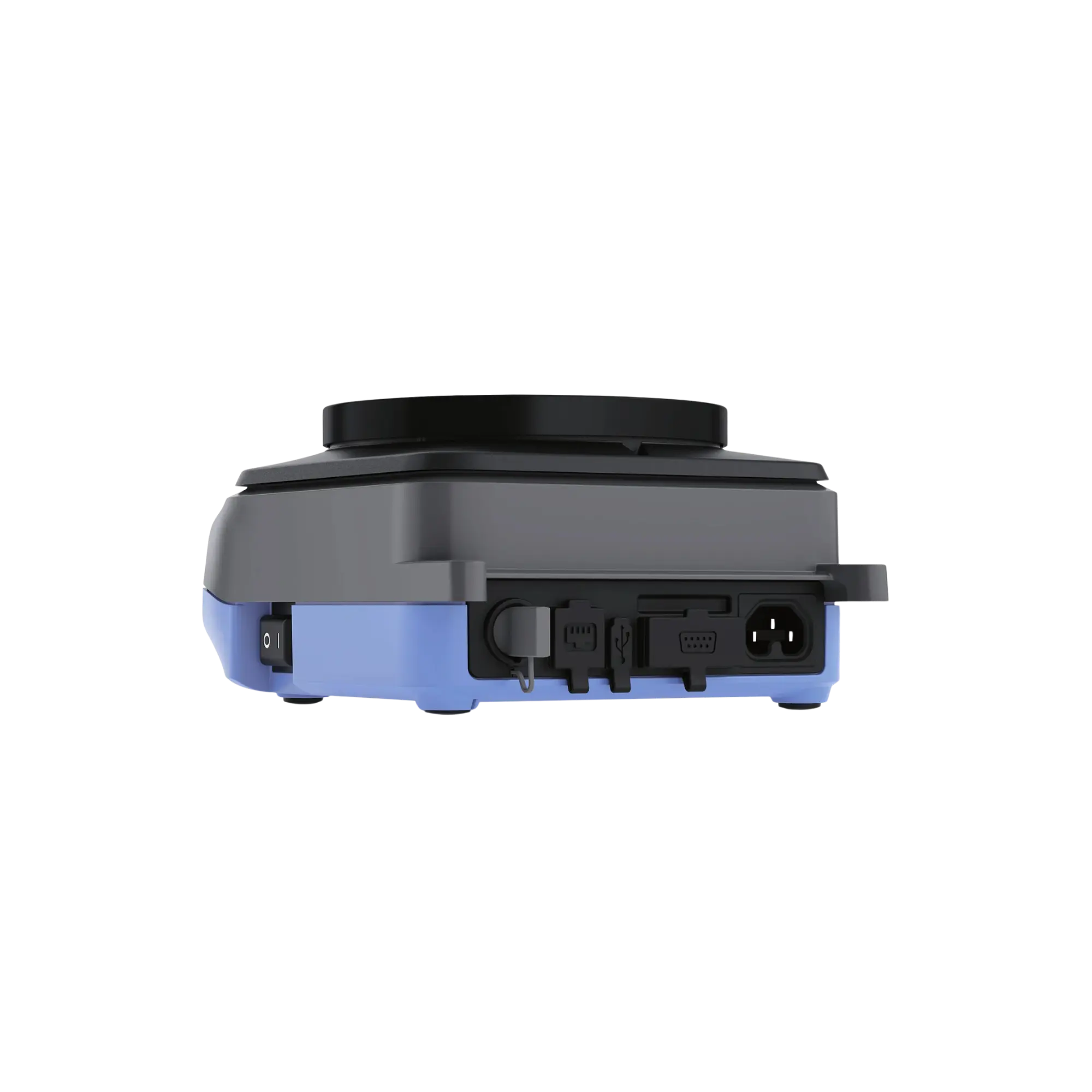

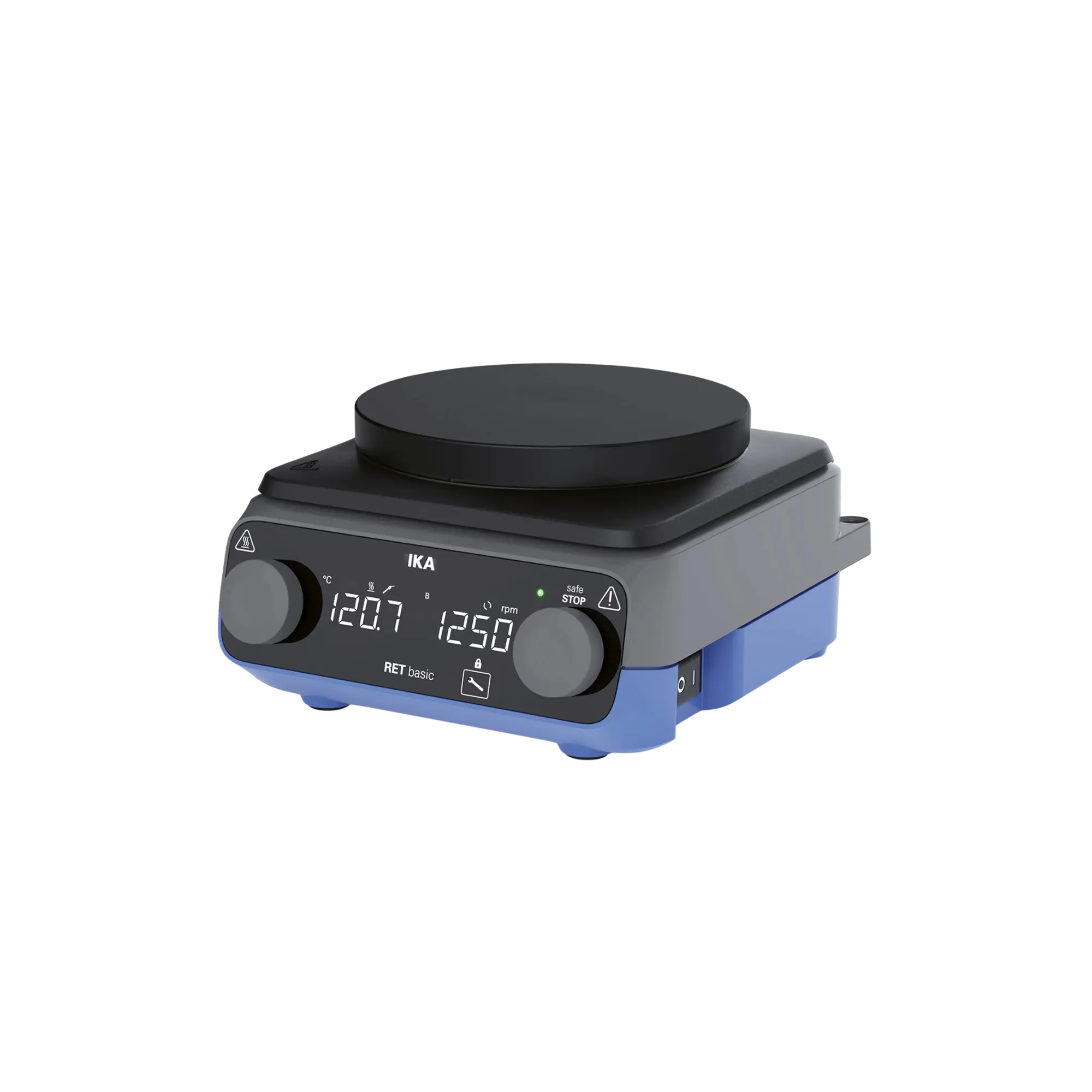

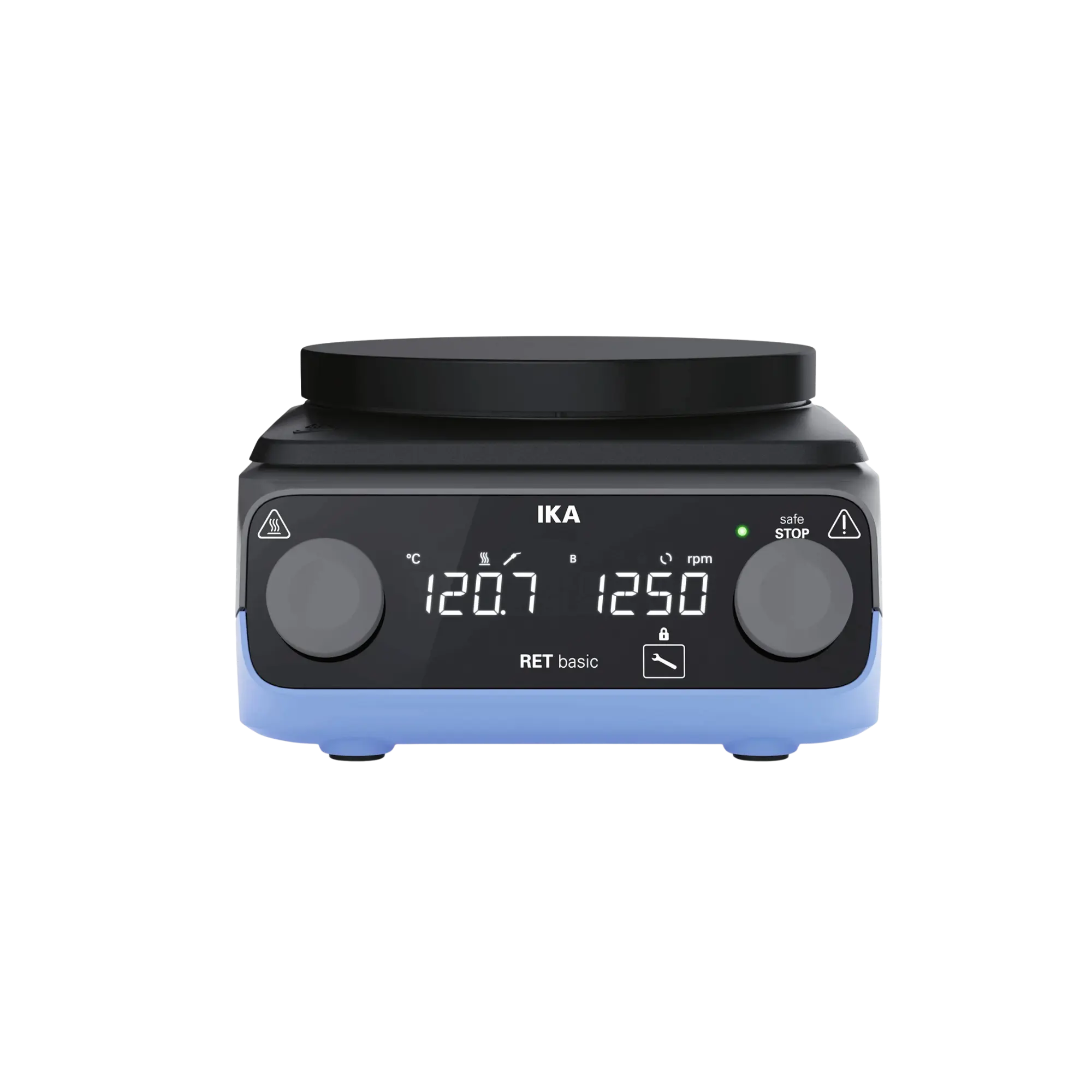

IKA RET basic anodised magnetic stirrer with heating, anodised aluminium base, Wi-Fi/LAN, 0020133787

The IKA ETS-D5 is an electronic contact thermometer with a PT1000 sensor and touchscreen display for external temperature control on compatible IKA magnetic stirrers with heating. Once connected, it takes over active temperature control within the medium and switches the heating of the connected magnetic stirrer on and off as required, whilst the magnetic stirrer itself remains active as an additional safety monitoring device. The replaceable PT1000 sensor, tolerance class A, covers a measuring range from -20 °C to +400 °C with a resolution of 0.1 K. Three control modes (Fast, Precise, Synthesis Block-optimised) adapt the heating rate to different applications. Integrated safety functions such as sensor timeout and temperature drop detection automatically switch off the heater in the event of a fault. The housing is dust- and splash-proof to IP 54. Suitable for The IKA RCT basic magnetic stirrer with heating (MPN 0025008259) is confirmed to be compatible: Its own connection specification states that external temperature sensors of types PT1000, ETS-D5 and ETS-D6 are supported via a socket in accordance with DIN 12878. Technical details Sensor typePT1000 (DIN IEC 751 Class A), replaceable Temperature measurement range-20 °C to +400 °C Measurement and setpoint resolution0.1 K Temperature measurement accuracy±0.2 K plus the tolerance of the PT1000 sensor Control modesFast, Precise, Synthesis block-optimised Connection to the magnetic stirrerDIN 12878 Digital interfaceUSB-C (data transfer/PC connection) Dimensions (W x H x D)52 x 36 x 385 mm Net weight0.156 kg Protection class according to DIN EN 60529IP 54 Operating voltage8 to 16 V= Scope of delivery The package includes the ETS-D5 contact thermometer, a standard PT1000 temperature sensor, a USB-C connection cable and a comprehensive user manual.

The IKA ETS-D7 Wireless Sensor (MPN 0025008370) is a wireless temperature sensor, which transmits measured values wirelessly to compatible IKA magnetic stirrers and agitators, thereby eliminating the need for cumbersome cable connections in the fume cupboard or glovebox. Temperature data can be sent in real time to the paired drive unit via a digital WPAN radio link with a range of up to 15 metres, allowing the stirrer and sensor to be positioned independently of one another. Thanks to an integrated BNC socket, the ETS-D7 also functions as a stand-alone pH meter as soon as a suitable pH electrode is connected, thereby covering two measurement tasks with a single device. For networked laboratory workstations where temperature and stirring parameters are to be documented centrally, this wireless solution also reduces the amount of cabling required at the workstation. All-in-one measurement technology: temperature and pH in a single device An analogue pH electrode can be connected directly to the ETS-D7 via the integrated BNC socket. This transforms the wireless sensor into a fully-fledged, portable pH meter, eliminating the need to purchase an additional device for occasional pH checks. The TFT touchscreen displays temperature and pH values with a resolution of two decimal places (0.01) each; the accuracy of the pH measurement is ±0.1 pH over a measuring range of 0 to 14 pH. The touchscreen interface allows you to switch between displays and adjust settings directly on the device. For laboratories that only need to check pH values occasionally, this eliminates the need to purchase a separate pH metre. The temperature probe’s minimum immersion depth of 20 mm also allows measurements to be taken in smaller sample vessels. Intelligent energy management with Auto-Wake An integrated infrared and brightness sensor detects whether people are in the immediate vicinity and automatically activates the display when necessary (Auto-Wake). When idle, the sensor automatically switches to standby mode, achieving a battery life of up to 100 hours in Auto-Wake mode. With the display switched on continuously, the operating time is up to 50 hours. The integrated battery, with a capacity of 700 mAh at 5 V, reaches around 50 per cent of its full capacity after 60 minutes and around 75 per cent after 90 minutes, meaning that even short charging breaks can be utilised for continued use. For long test series lasting several days, this energy management system significantly reduces the effort required for recharging. Suitable for IKA RET basic, RCT basic and Eurostar control The ETS-D7 transmits its measured values via WPAN radio to compatible IKA drives. These include the magnetic stirrers of the RET basic and RCT basic series, as well as the Eurostar control stirrers. For older RCT basic models without an integrated WPAN module, the wireless connection can be retrofitted using a separately available USB wireless receiver. Depending on the connected drive, temperature and stirring parameters can be adjusted directly via the sensor’s touchscreen interface using bidirectional communication. In addition, the ETS-D7 can be integrated into safety control loops as a second, redundant temperature sensor, providing an independent control mechanism in the event of exothermic reactions. For laboratories already using a RET basic magnetic stirrer, the ETS-D7 can thus be used as a wireless extension of the existing temperature control system. Bidirectional networking for process documentation Full compatibility with the labworldsoft laboratory software enables the digital recording, central control and documentation of recorded temperature and pH curves. For laboratories that need to document their measurement series in an audit-compliant manner, the ETS-D7 can thus be integrated into existing digital quality management processes, rather than recording measurement values manually. This ensures that the assignment of measurement values remains traceable even when test series are running in parallel across multiple workstations. Typical applications Its wireless design and dual function as a temperature and pH meter make the ETS-D7 a versatile tool in a variety of laboratory situations: Temperature monitoring during syntheses with reflux cooling, without intrusive cables in the fume cupboardCable-free measurements in the glovebox, where signal cables would restrict handlingpH monitoring directly at the reaction vessel via the integrated BNC interfaceRedundant temperature monitoring in safety-critical, exothermic reactionsDocumentation of temperature and pH curves via labworldsoft in a networked laboratoryRetrofitting older RCT basic magnetic stirrers with wireless temperature controlMobile use as a stand-alone pH meter, independent of the connected stirrer Technical details Sensor typePT1000 (DIN IEC 751 Class A), replaceable Replaceable temperature sensorStandard component H62.51 Temperature measurement range-20 °C to +400 °C (in combination with H62 sensor) Temperature measurement resolution0.01 K Temperature measurement accuracy±0.05 K plus the tolerance of the PT1000 sensor Minimum immersion depth20 mm pH measurement functionVia integrated BNC socket (female) pH measurement range0 to 14 pH pH resolution0.01 pH pH accuracy±0.1 pH Display technologyTFT touchscreen Proximity sensorsInfrared and brightness detection for auto-wake AlertsStatus LED and audible alert function Wireless interfaceWPAN Communication rangeUp to 15 metres (depending on the building structure) Wired interfaceUSB-C Power supplyBuilt-in, rechargeable battery Battery capacity700 mAh, 5 V Maximum charging current500 mA Operating time (display on continuously)Up to 50 hours Operating time (Auto-Wake mode)Up to 100 hours Charging rate50% capacity in 60 minutes, 75% capacity in 90 minutes Dimensions (W x D x H)52 x 385 x 40 mm Net weight0.125 kg Protection class according to DIN EN 60529IP 54 Permissible ambient temperature+5 to +40 °C Permissible relative humidityUp to 80 % Scope of delivery 1 x IKA ETS-D7 Wireless Sensor main unit (MPN 0025008370)1 x Replaceable temperature probe H62.511 x Integrated lithium-ion battery (700 mAh)1 x Quick Start Guide / Safety Guide A pH electrode and a USB-C charging adapter are not included and are available separately. Individual requirements and procurement service We stock suitable accessories for setting up a complete, networked measurement station based on the ETS-D7: pH electrodes with BNC connectors for aqueous, viscous or organic mediaUSB wireless receivers for retrofitting older models of RCT basic magnetic stirrers without an integrated WPAN modulelabworldsoft laboratory software, as well as support rods and cross-sockets for securely fixing the sensor above the sample vessel We are happy to assist you with the configuration of your networked measurement station via our procurement service.

The IKA Pt.Wireless wireless sensor (MPN 0025008369) represents a technologically pioneering, highly optimised mechatronic system solution for seamless digital temperature and electrochemical sample analysis in the laboratory. Designed as an intelligent, fully wireless sensor, this instrument eliminates the need for cumbersome cable routing in fume cupboards, gloveboxes or on crowded laboratory workstations. Via digital radio transmission (WPAN), the system transmits transient measurement data in real time over a range of up to 15 metres to compatible IKA system components – such as the latest generations of the RCT basic and RET basic magnetic stirrer series, Eurostar control stirrers, and directly to the labworldsoft (LWS) laboratory equipment software. Full app integration and display-free efficiency Unlike traditional measuring instruments, the Pt.Wireless does away with physically bulky display elements on the sensor itself and shifts all visual control to the innovative IKA app. Once paired – a straightforward process – the smartphone or tablet acts as a high-resolution dashboard for the real-time display of all parameters. Calibration of the precise temperature and pH calibration curves is also carried out error-free directly via the app’s user interface. For electrochemical analysis, the slim module features an integrated BNC interface to which an analogue pH electrode can be connected directly. This transforms the system into an ultra-compact all-in-one solution for monitoring complex reaction media. Intelligent LED status monitoring for weekend operation The Pt.Wireless’s key technical feature is its predictive, multi-stage energy management system, which enables a continuous operating time of up to 150 hours. To reliably prevent unforeseen system failures during critical long-term experiments, the sensor features a smart battery status warning via an integrated LED indicator. If the remaining runtime of the lithium battery falls below 70 hours, the LED signals at an early stage that safe, unattended operation over a full weekend can no longer be guaranteed. When the remaining runtime falls below a critical reserve of approximately 20 hours, the indicator changes to a slowly flashing yellow warning signal to alert laboratory staff that safe overnight operation is about to cease. Technical details Analytical & Measurement Ranges (Temperature & pH) Sensor type: PT1000 (DIN IEC 751 Class A), flexibly interchangeable Replaceable primary sensor: standard component H62.51 Temperature measurement range: –20 °C to +400 °C (depending on the H62 sensor) Temperature measurement resolution: 0.1 K Temperature measurement accuracy: ±0.2 K + tolerance of the PT1000 sensor Minimum immersion depth: 20 mm pH measurement function: Yes, via integrated BNC socket (female) pH measurement range: 0 to 14 pH pH resolution / accuracy: 0.01 pH / ±0.1 pH Wireless technology & interfaces Wireless interface: WPAN (digital radio transmission) Communication range: Up to 15 metres (depending on the building) Wired interface: USB-C (for PC connection and alternative data transfer) App connectivity: Direct pairing with the IKA app for real-time display and sensor calibration Power management & status LED Power supply: Integrated, rechargeable battery (700 mAh capacity) DC voltage: 5 V= Maximum charging current: 500 mA Operating time (with a fully charged battery): Up to 150 hours Battery charging rate: 50% charge in 60 minutes; 75% charge in 90 minutes Safety status LED: Yes, multi-stage visual remaining runtime warning (< 70 h weekend indicator / < 20 h flashing yellow signal for overnight operation) Integrated warning functions: Audible and visual via LED Dimensions & environmental data Dimensions (width x depth x height): 30 x 380 x 38 mm Net weight: 0.09 kg (extremely light at 90 grams for gentle handling) Protection class according to DIN EN 60529: IP 54 (dust- and splash-proof housing) Permissible ambient temperature: +5 to +40 degrees Celsius Permissible relative humidity: Up to 80 per cent Contents 1 x IKA Pt.Wireless wireless sensor (MPN: 0025008369) 1 x Replaceable temperature probe H62.51 1 x built-in rechargeable battery (700 mAh) 1 x USB-C connection cable 1 x Detailed operating instructions / safety guide A pH electrode is not included as standard and must be ordered separately as an accessory. Customised requirements & accessories To ensure the Pt.Wireless integrates seamlessly into your digital laboratory processes, we offer a comprehensive range of original system peripherals: pH electrodes: High-quality laboratory measuring chains with standardised BNC connectors, perfectly suited to aqueous media, viscous samples or aggressive organic matrices. Wireless receiver (USB WD): For wireless retrofitting of older RCT basic magnetic stirrers without a built-in WPAN module. Mounts & stands: Precisely fitting IKA mounting rods and cross-sockets for stable, vibration-free fixing of the sensor directly above the sample vessel. Software integration: labworldsoft (LWS) laboratory software for centralised data recording, monitoring and comprehensive documentation of all transient measurement curves. Use our technical procurement service to configure your networked measurement station.
