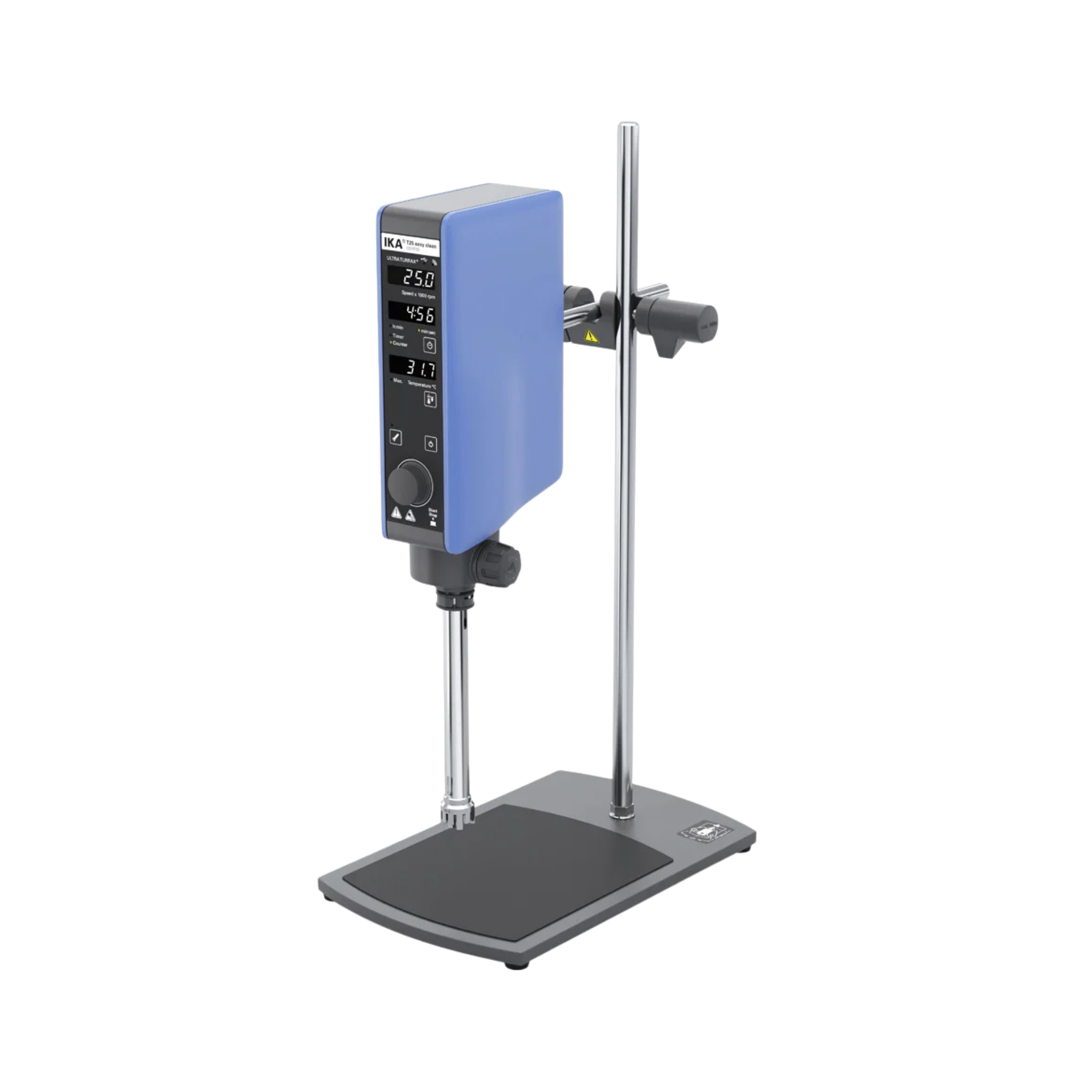

IKA T 25 easy clean control Solution Disperser Set, 3,000 to 25,000 rpm, with temperature measurement, 0010015172

The T 25 easy clean control Solution combines the T 25 easy clean control temperature-measuring drive unit with a suitable tool, stand and cross-joint to form a ready-to-use set. Anyone who needs to disperse heat-sensitive samples whilst monitoring the temperature will find this a fully equipped package, without having to assemble the tool and stand separately.

Tool with temperature sensor included in the set

In addition to the drive unit (ID No. 0025002500), the set includes the S 25 EC - T - C - 25 G with temperature probe (ID No. 0020108999), an R 1826 plate stand (ID No. 0003160100) and an R 182 cross-sleeve (ID No. 0002657700). Compared to the T 25 easy clean digital Solution, the supplied tool additionally measures the sample temperature between 0 and 125 degrees Celsius with an accuracy of ±1 Kelvin. Should requirements exceed the supplied 25-millimetre size, further temperature-measuring tools with a diameter of 18 millimetres, as well as flat versions, are available from the range of accessories.

RFID tool recognition and maintenance documentation

The tool records its operating hours via RFID; the drive unit reads this data, thereby facilitating the planning of regular maintenance. Continuous temperature monitoring with an adjustable limit protects the sample from overheating without the need for manual monitoring during dispersion. All tools in the S-25 series are compatible with the drive unit, meaning that, if required, the set can also be used with a tool without a temperature sensor for standard dispersion tasks.

Cleaning without dismantling

The supplied easy-clean tool can be opened for cleaning without having to completely dismantle the rotor-stator unit. Combined with the brushless DC motor, which operates at 70 dB(A) without an attachment fitted, the set is suitable for sectors with high hygiene and compliance requirements, such as the pharmaceutical, cosmetics and agricultural industries, particularly for heat-sensitive products requiring automation and documentation. When connected to the mains, the set operates at 220 to 240 volts with a power consumption of 500 watts; for locations outside Europe, a version operating at 100 to 120 volts is available on request.

Documentation and Certificates

Unlike the individual unit, there is no separate EU Declaration of Conformity for this set available on the downloads page; however, the filename of the data sheet clearly confirms the set’s designation. The joint operating instructions for the T-25 easy-clean series are available in 14 languages, along with technical information on the temperature-measuring tool.

Typical areas of application

As a complete package, the set is aimed at laboratories that wish to implement temperature monitoring and documented maintenance from the outset.

• Getting started with temperature-controlled homogenisation without the need to purchase separate tools
• Dispersion of heat-sensitive pharmaceutical and cosmetic formulations
• Stationary operation on a stand with documented maintenance via RFID
• Processes with a fixed temperature limit to protect the sample

Selection guide: this set and similar models

If temperature measurement is not required, the T 25 easy clean digital Solution is usually sufficient and available at a lower price. If you only need the drive unit without tools or a stand, look for the T 25 easy clean control ULTRA-TURRAX. For more compact applications with Wi-Fi and Ethernet connectivity for smaller volumes, the T 25 mini control Solution offers a technically independent, more compact alternative; it operates with a power consumption of 210 watts instead of 500 watts.

Technical details

The following figures apply to the drive unit included in the set; the manufacturer does not provide separate overall dimensions for the set.

Contents

• T 25 easy clean control ULTRA-TURRAX drive unit, ID no. 0025002500
• S 25 EC - T - C - 25 G dispersing tool with temperature sensor, ID No. 0020108999
• Plate stand R 1826, ID No. 0003160100
• Cross-sleeve R 182, ID No. 0002657700

Regulatory information

The drive unit in this set is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

The T 25 easy clean control Solution is covered by IKA’s manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For additional temperature-measuring instruments or a second stand, LT Laborhandel’s procurement service will arrange the package.
