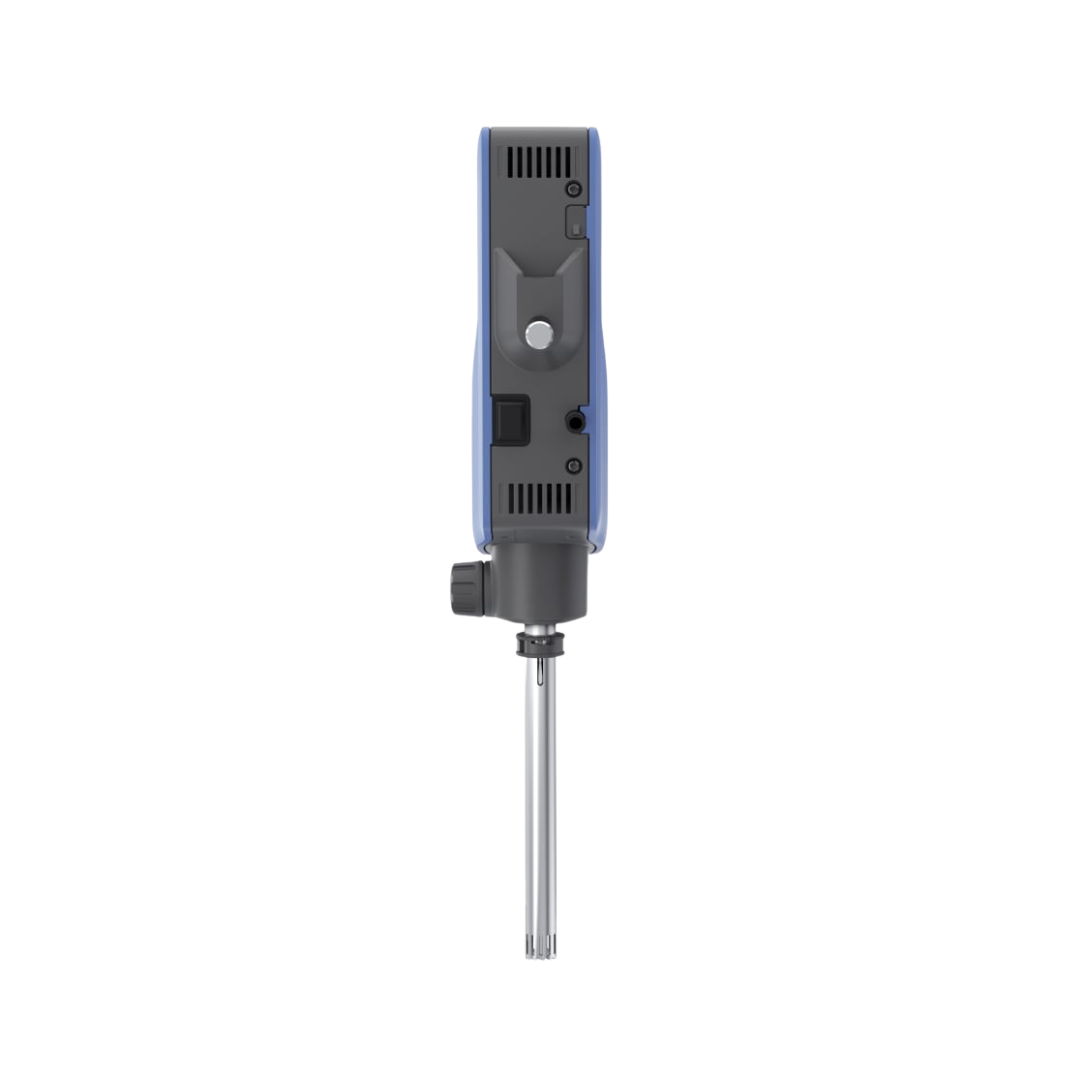

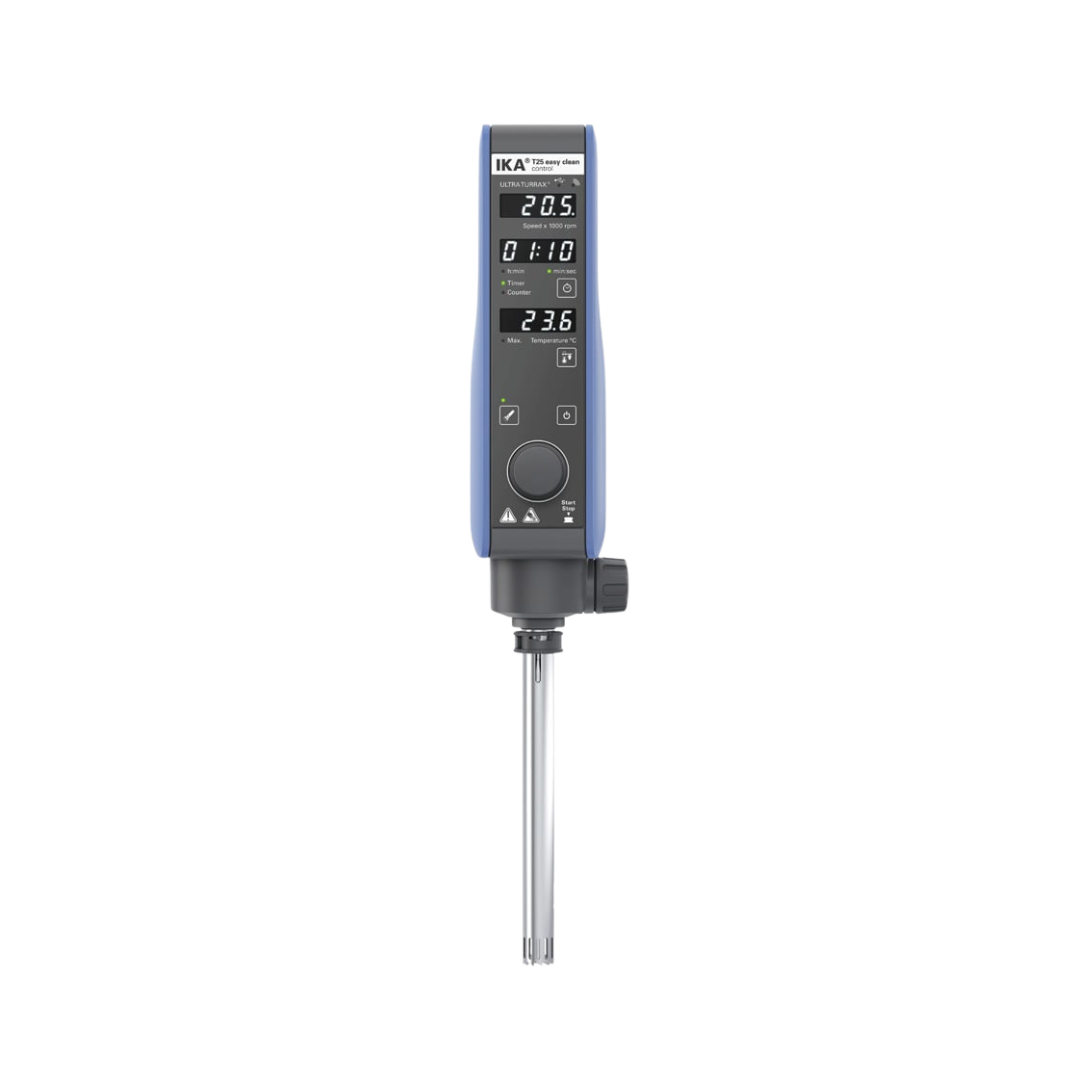

IKA T 25 easy clean control ULTRA-TURRAX disperser, 3,000 to 25,000 rpm, with temperature measurement, 0025002500

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA T 25 easy clean control ULTRA-TURRAX disperser, 3,000 to 25,000 rpm, with temperature measurement, 0025002500"

The T 25 easy clean control ULTRA-TURRAX uses an RFID-enabled tool to measure the sample temperature, thereby monitoring heat-sensitive formulations. A dispersing tool is not supplied with the drive unit; it is selected from the relevant tool range to suit the temperature measurement function.

Temperature measurement and tool recognition via RFID

Using a tool fitted with a temperature sensor, the unit measures the sample temperature within a range of 0 to 125 °C, with a resolution of 0.1 Kelvin and an accuracy of ±1 Kelvin. The unit monitors the temperature continuously with an adjustable limit, whilst the tool simultaneously records its operating hours via RFID, which simplifies maintenance planning. In addition to the standard tool, the range of accessories includes further variants with temperature sensors in diameters of 18 and 25 millimetres, as well as a flat version.

Easy-clean cleaning without dismantling

As with the digital version, the tool on the control model can be opened for cleaning without dismantling the entire rotor-stator unit. The brushless DC motor runs at 70 dB(A) without a tool fitted, making it comparatively quiet and free from carbon dust. All dispersing tools in the S-25 series are compatible with this drive unit; even classic tools without temperature sensors can be used with it for tasks where temperature measurement is not a factor.

Operation, remote control and connection

The speed is continuously adjustable between 3,000 and 25,000 revolutions per minute via an LED display, whilst a timer manages recurring process times. In addition to operation via the unit itself, the T 25 easy clean control can be controlled using the optional WiCo remote control, which is not included in the scope of delivery. A micro-USB interface connects the unit to labworldsoft; it operates on a mains supply of 220 to 240 volts, or 100 to 120 volts on request for locations outside Europe. The housing is protected to IP 30 in accordance with DIN EN 60529 and is designed for a 100 % duty cycle at a permissible ambient temperature of 5 to 40 °C.

Documentation and conformity

As with the digital version, a separate EU Declaration of Conformity is available for download for this drive unit, along with a dedicated data sheet. The operating instructions are shared with the digital version and are available in 14 languages.

Typical applications

The temperature monitoring feature makes the unit particularly suitable for applications where samples may be damaged by excessive heating.

  • Dispersion of heat-sensitive pharmaceutical and cosmetic formulations
  • Processes requiring documented maintenance via RFID operating hours recording
  • Homogenisation where a fixed temperature limit must be maintained
  • Remote control via WiCo for applications in a fume hood

Selection guide: control, digital or Set?

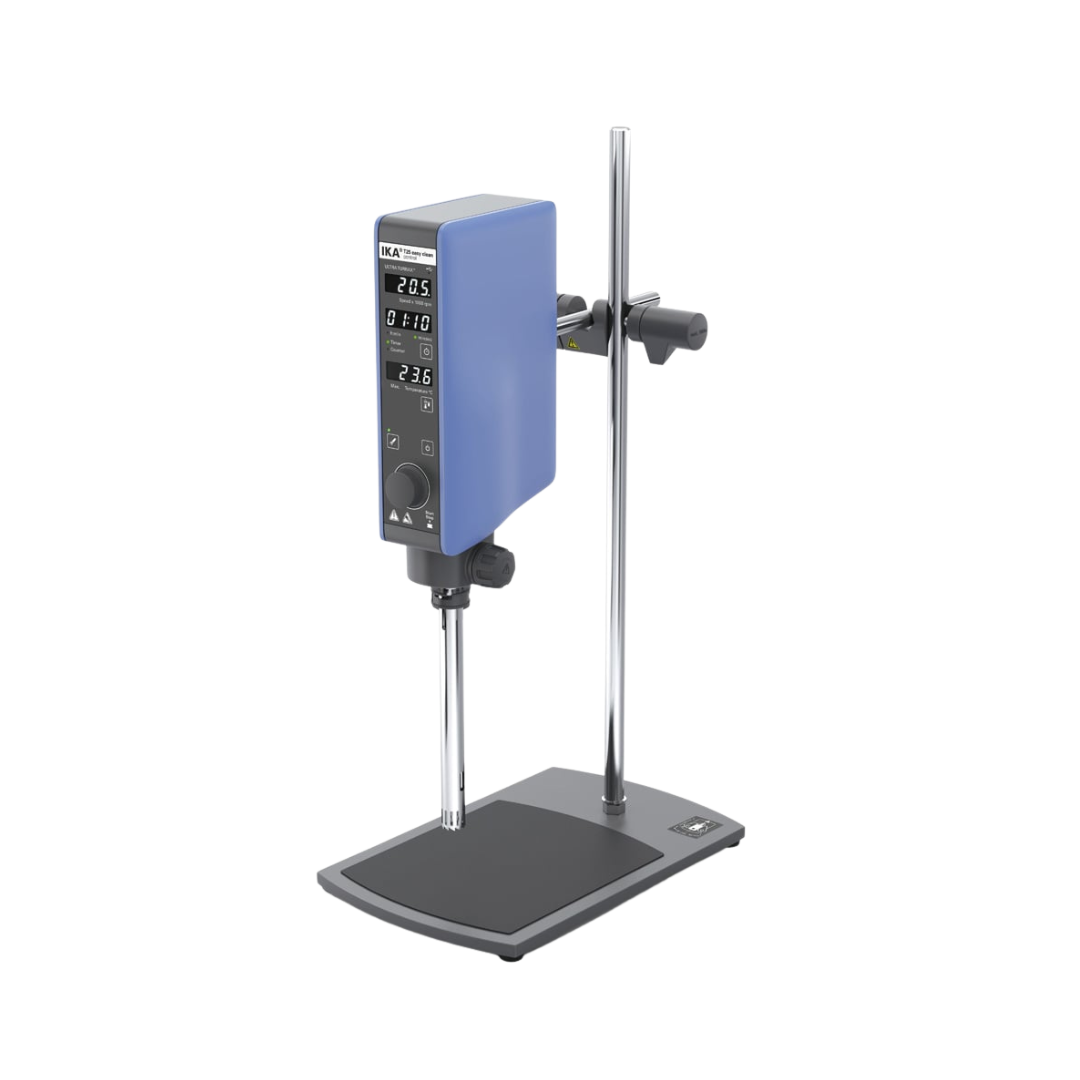

If temperature measurement is not required, the more affordable T 25 easy clean digital ULTRA-TURRAX is usually sufficient. Those who do not yet own a temperature-measuring tool will find the T 25 easy clean control Solution to be the suitable complete set, comprising the tool, stand and boss head. For more compact, networked applications with Wi-Fi and Ethernet, the standalone T 25 mini control Solution is available; it covers smaller volumes at lower power. For higher volumes with a more powerful drive, but without temperature measurement, the T 25 digital ULTRA-TURRAX is suitable.

Technical details

The following table summarises the key specifications for the drive, temperature measurement and connections, as specified by IKA for the ‘control’ variant of the T 25 easy clean series.

Motor power input / output500 W / 400 W
Processable volume (H₂O)1 to 2,000 ml
Max. viscosity5,000 mPas
Speed range3,000 to 25,000 rpm, continuously variable (2 % deviation)
Speed displayLED
Motor typebrushless, direct current
Noise level without tools70 dB(A)
Support arm diameter / support arm length13 mm / 160 mm
TimerYes, LED display
Permissible duty cycle100 %
Permissible ambient temperature / humidity5 to 40 °C / 80 %
IP ratingIP 30 in accordance with DIN EN 60529
USB interfaceMicro-USB
Connected load220 to 240 V, 50/60 Hz, 500 W (alternative voltage option: 100 to 120 V)
Temperature measurement range0 to 125 °C
Temperature measurement resolution0.1 K
Temperature measurement accuracy±1 K
Dimensions (W x H x D)89 x 270 x 161 mm
Weight3 kg

Scope of delivery

  • T 25 easy clean control ULTRA-TURRAX drive unit
  • USB cable, USB A to Micro-B, 2 m

A dispersing tool and the WiCo remote control are not included in the scope of delivery and must be ordered separately if required.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our Environment and Disposal page.

Warranty and procurement service

The IKA manufacturer’s warranty applies to the T 25 easy clean control ULTRA-TURRAX: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. For dispersing tools with temperature sensors, stands or the WiCo remote control, our procurement service will handle the assembly.

Certification marks: NRTL (TÜV SÜD, USA/Canada)
Display type: Digital
Max. speed: 25,000 rpm
Power supply: Mains operation
Supply form: Single unit
Volume range: 1 ml - 2000 ml
