IKA ULTRA-TURRAX Tube Drive P control workstation, set with mixing vessels, 400 to 8,000 rpm, OLED display, 0025005836

Anyone setting up a new Tube-Drive system needs not only the drive unit but also the appropriate consumables; otherwise, the unit will be left without any operational accessories on the very first day. The Tube Drive P control Workstation combines the drive’s control unit with a basic set of disposable mixing tubes and accessories, so that stirring, dispersing and grinding in sealed tubes can begin straight out of the box. This is ideal for laboratories using Tube Drive technology for the first time or wishing to set up a second, fully equipped workstation.

More powerful drive with OLED display and turbo button

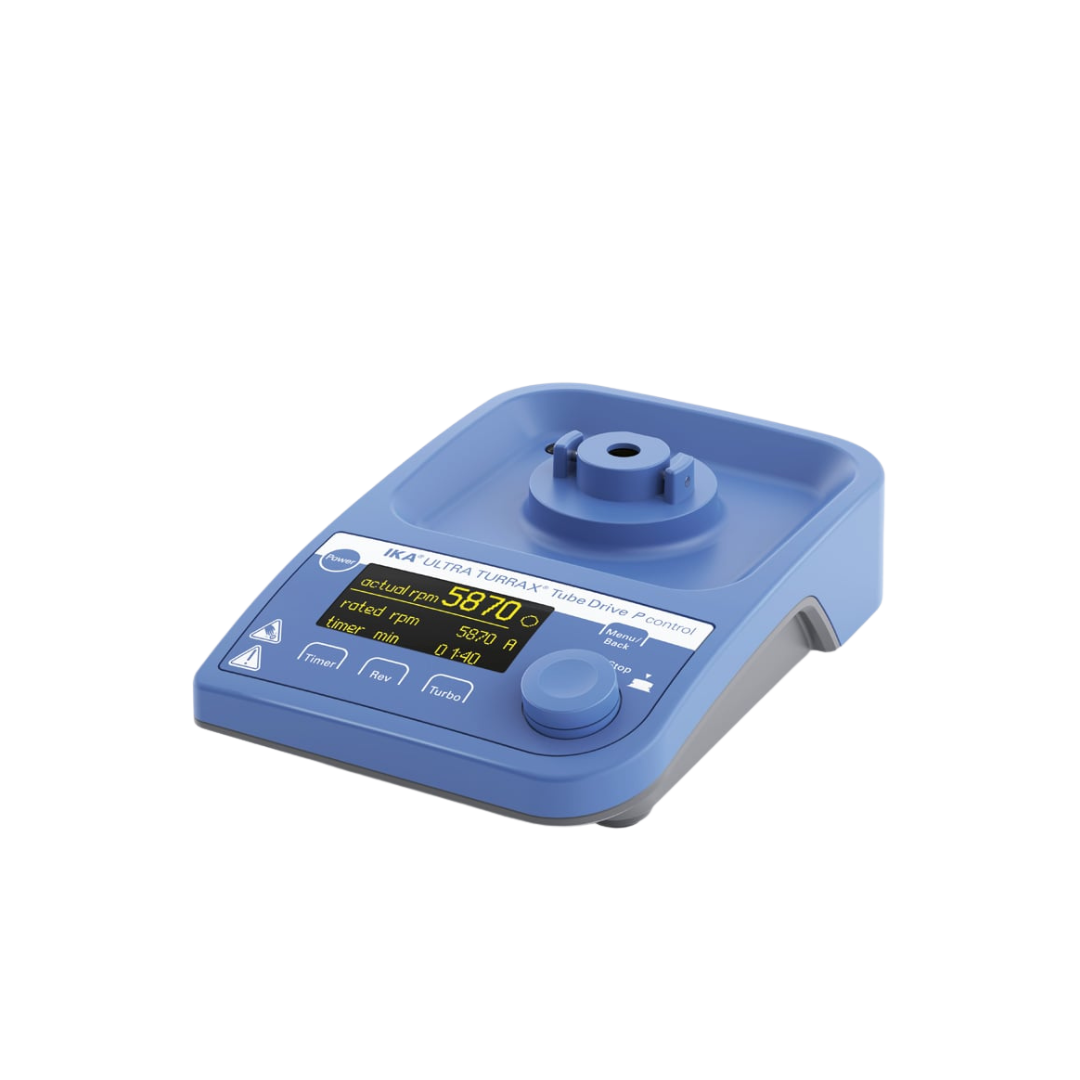

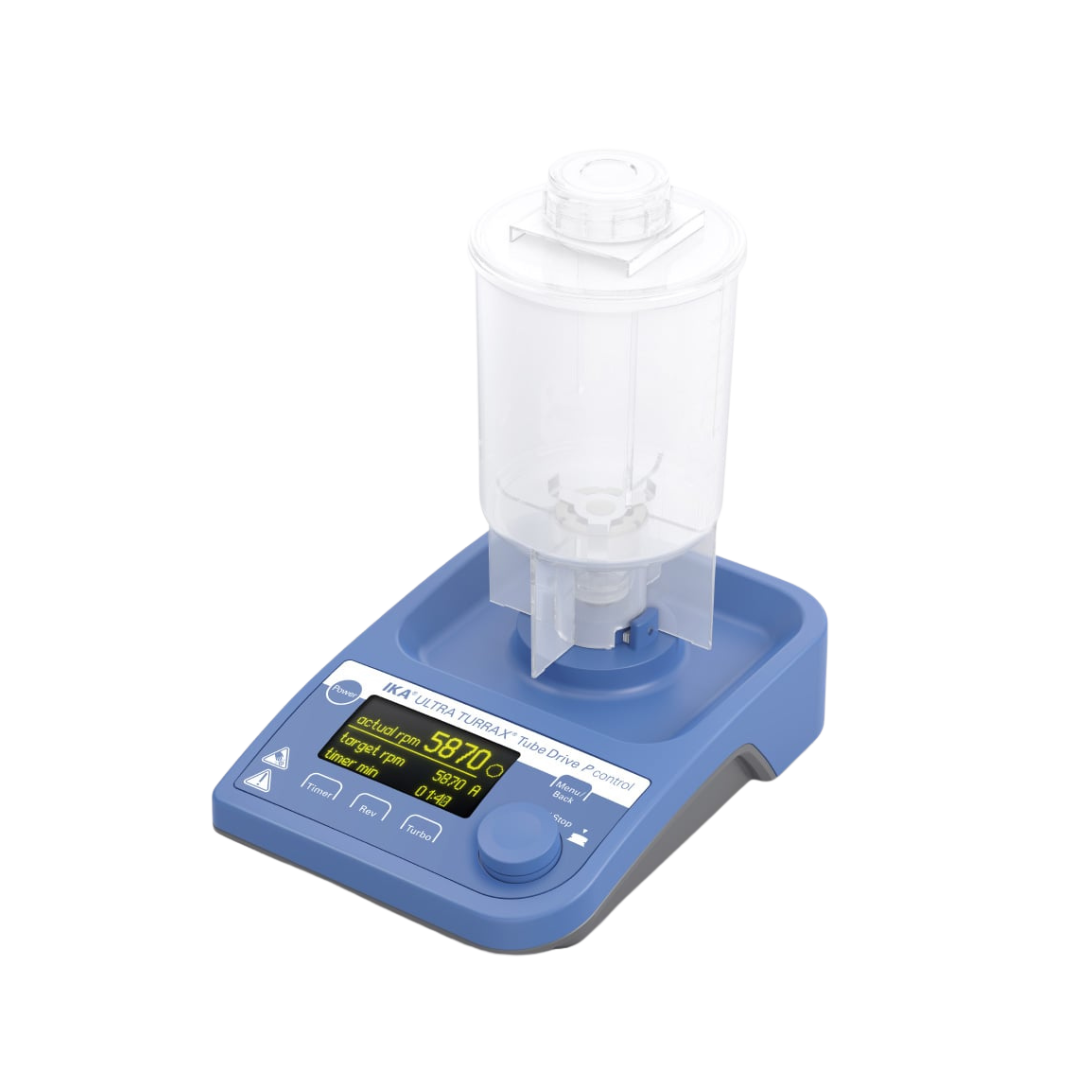

Compared with the basic ULTRA-TURRAX Tube Drive model, the P-control unit operates with a power input of 36 watts and an output power of 28 watts across a speed range of 400 to 8,000 revolutions per minute, adjustable in 10-rpm increments and with a deviation of just 3 per cent. An OLED display shows the speed and timer; the direction of rotation can be reversed via a multilingual menu; and a turbo button allows for brief, more intense runs up to the upper speed limit. Test conditions for time, energy and volume can be programmed and saved in a parameter library, making recurring protocols reproducible without having to reset the values for each run. A USB-B interface connects the device to a computer; the appropriate USB-A-to-B cable is included.

What’s included in the set

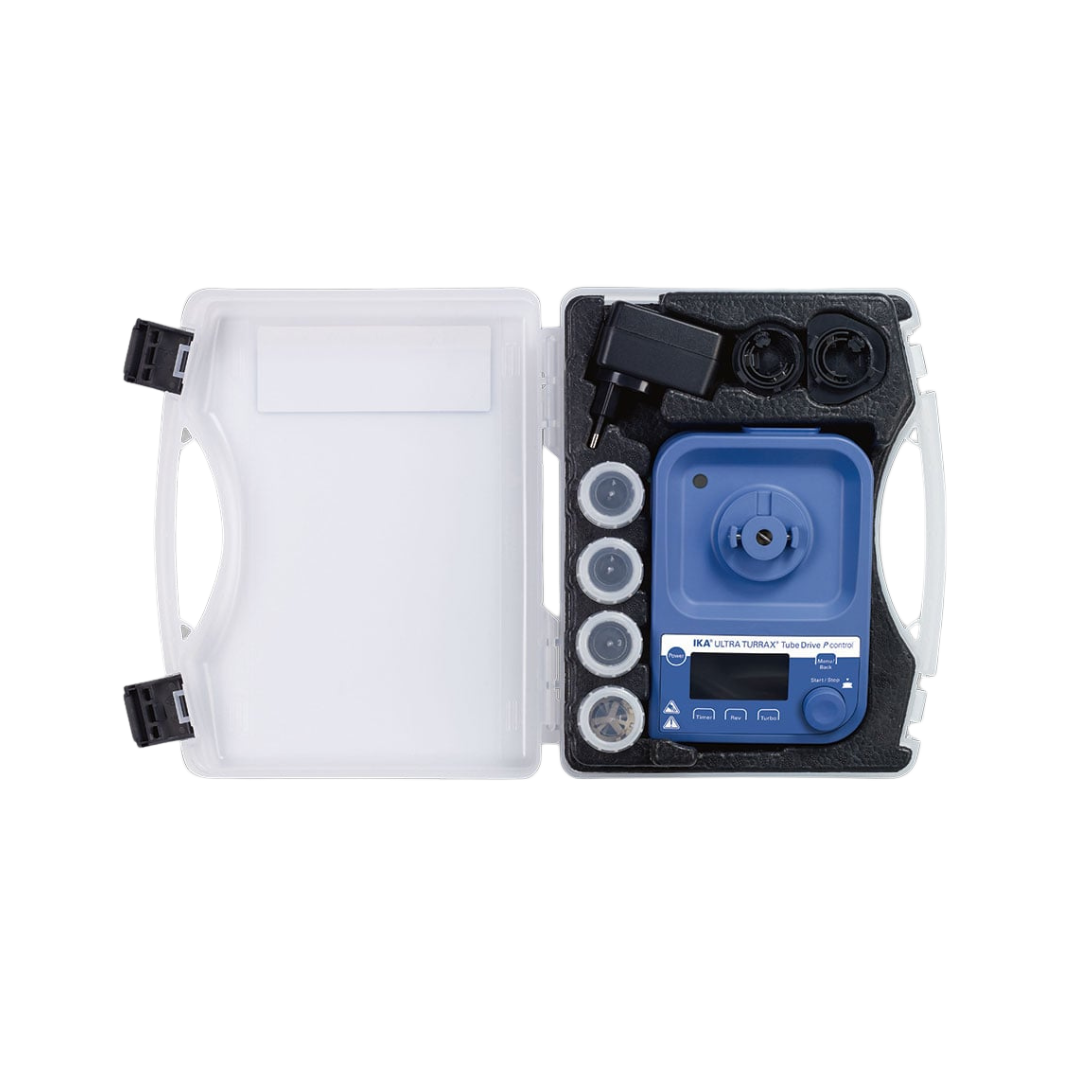

In addition to the drive unit, the workstation comes with three ST-20 stirring vessels, one DT-20 dispersing vessel, glass and stainless steel beads for BMT tubes, a removal hook, a plastic tube for emptying, and a USB A-to-B cable. The set therefore covers the three basic functions of stirring, dispersing and grinding with beads, without the need to order additional tubes separately before running the first experiments. The ST-20 vessels are suitable for simple stirring and mixing tasks with a volume of 20 millilitres; the DT-20 vessel features a rotor-stator assembly for finer dispersion results; and the loose beads can be inserted into separate BMT vessels as soon as the need for bead milling arises.

Typical applications

• Initial set-up of a new Tube-Drive workstation without having to wait for separate consumables
• Comparative trials with stirring, dispersing and bead-milling tools on the same drive
• Training and induction of new staff at a fully equipped workstation
• A second workstation for a laboratory that already has experience with Tube-Drive technology

For ongoing operation, suitable refill packs from the ST, DT and BMT series, as well as sterile IVD variants in various volumes, can be reordered. Connection to the Labworldsoft laboratory equipment software is also possible via the USB-B interface, for example to document run logs for later analysis or qualification records.

Selection guide: Set or drive unit only

Those who already maintain their own stock of mixing vessels or specifically require only a particular type of tube can save on the consumables supplied with this workstation by opting for the ULTRA-TURRAX Tube Drive P control drive unit alone. For specialised applications with pre-configured tubes, the UTTD control Pharma Solution for tablet testing and the UTTD control Life Science Solution for tissue homogenisation are also available, both featuring the same P-control drive.

Technical details

Contents

• ULTRA-TURRAX Tube Drive P control (drive unit)
• ST-20 mixing vessel, 20 ml (3 pieces)
• DT-20 mixing vessel, disperser, 20 ml
• Glass beads (6.0 mm) for BMT tubes
• Stainless steel beads (5.0 mm) for BMT tubes
• Removal hook
• Plastic tubing for emptying
• USB A-B cable

Regulatory information

The drive unit in this set is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

The IKA manufacturer’s warranty applies to the Tube Drive P control Workstation: 2 years, extended to 3 years if registered at ika.com/register within 90 days of purchase. LT Laborhandel’s procurement service can provide additional mixing vessels, balls or a second drive unit to complement your existing equipment; on request, this can include qualification documentation (IQ/OQ) and factory calibration certificates for regulated environments.
