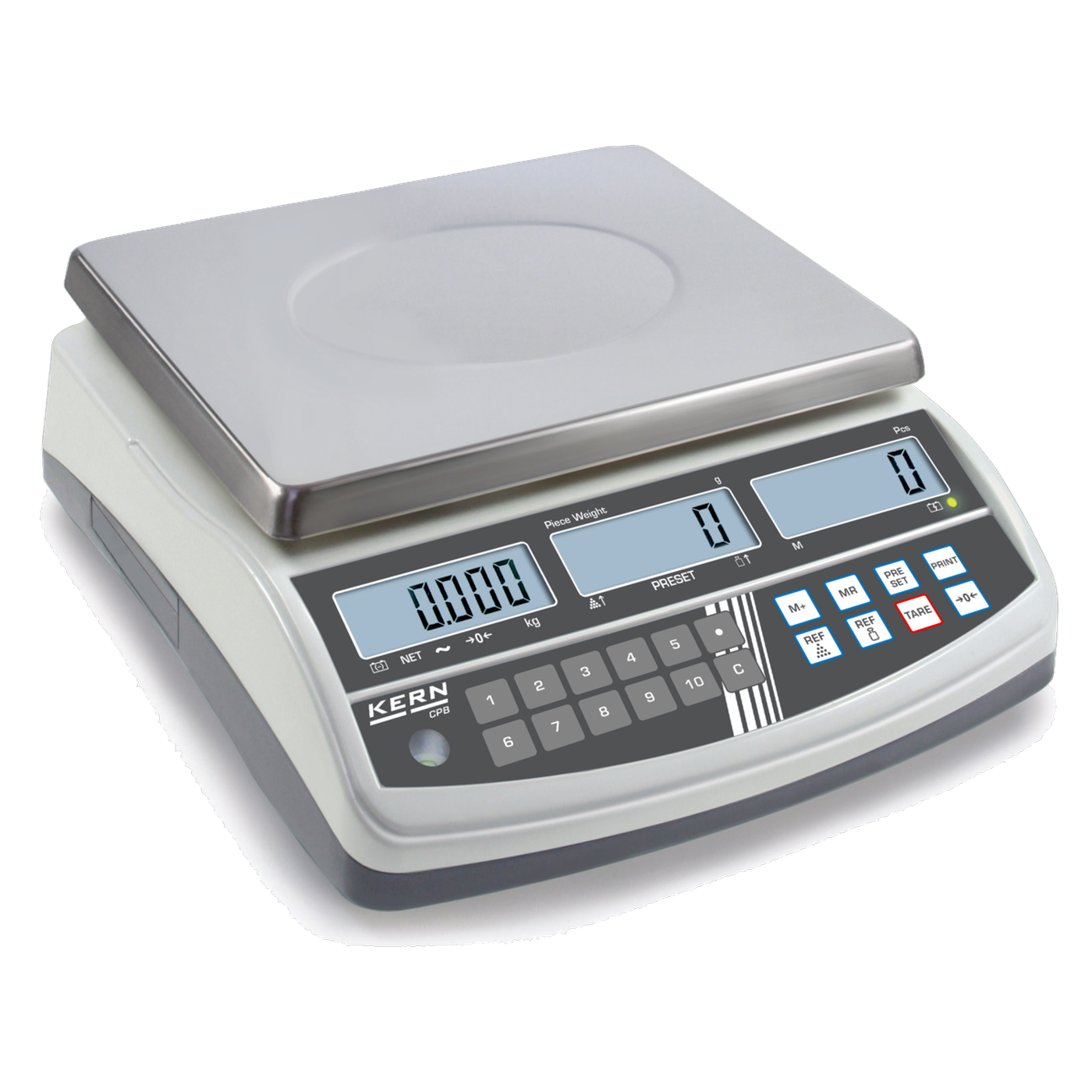

Kern CPB 15K0.2N Counting Balance, 15 kg / 0.2 g, Stainless Steel Platform 295 x 225 mm

The Kern CPB 15K0.2N has a weighing range of 15 kg and reads to 0.2 g. It sits between the other two CPB counting scales: the CPB 6K0.1N weighs up to 6 kg, and the CPB 30K0.5N up to 30 kg. All three have the same stainless steel platform measuring 295 x 225 mm.

Weight, reference, quantity

The three displays on the CPB 15K0.2N show total weight, reference weight and total count side by side; the digits are 20 mm high. The reference weight is programmed via the keypad; alternatively, a reference quantity can be specified. Automatic reference optimisation gradually improves the average part weight. The minimum part weight is 2.5 g; under laboratory conditions, 250 mg.

Resolution and measurement values

The balance has a resolution of 75,000 parts, and the counting resolution is 60,000. Reproducibility is 0.4 g, linearity ± 0.8 g, stabilisation time is 2 seconds under laboratory conditions, and warm-up time is 120 minutes. The weighing system operates using strain gauges. Calibration is carried out using external weights; 10 kg and 5 kg of class F2 are recommended, totalling 15 kg. The DAkkS calibration has item no. 963-128.

From target count to tare pan

The ‘fill-to-target’ function operates with a programmable target number of items or a target weight and emits an audible signal when the target is reached. The PRE-TARE function is used to subtract the known weight of a container in advance. The cumulative total memory adds identical items to the total count and total weight. A tare pan (RFS-A02) and spare safety covers, also available as a pack of 5, are available as accessories. If the balance is to be used as a standard balance, simply press a button to switch to weighing mode.

Connection and operation

RS-232 is fitted as standard. Kern supplies converters and adapters (AFH 13, YKI-10, YKI-11, YKI-12, YKI-02), as well as the CFS-A04 Y-cable for a signal lamp and a parallel printer. The device operates on a mains power supply of 100 to 240 V; an internal rechargeable battery (GAB-A04) is optional. Kern states an operating time of 90 hours with the backlight switched off and a charging time of 12 hours. The plastic housing measures 315 x 350 x 100 mm; with the display, the device is 125 mm high. It is fitted with a spirit level and swivelling screw feet. The permissible operating conditions are 0 °C to 40 °C and 0 % to 80 % relative humidity.

Typical applications

Kern recommends the counting scales for annual stock-taking and for use across multiple sites such as production, warehousing and dispatch. For the 15K0.2N, this results in the following tasks:

• Stocktaking of parts with a total weight of up to 15 kg
• Picking based on target quantity or target weight
• Filling quantity control with container tare weight deducted
• Counting from a unit weight of 2.5 g
• Use at various locations such as production, warehouse and dispatch

For finer readability within a 6 kg weighing range, the Kern CPB 6K0.1N is available; for 30 kg, the Kern CPB 30K0.5N.

Frequently asked questions

How large is the weighing surface? 295 x 225 mm, made of stainless steel.

What calibration weights are recommended? 10 kg and 5 kg of class F2 combined, external.

Is there a PC interface? RS-232 is fitted as standard. Converters for USB, Ethernet and Wi-Fi, as well as a Bluetooth adapter, are available as accessories.

Can the balance also be used for standard weighing? Yes, it switches from counting to weighing mode at the touch of a button.

Technical details

Scope of delivery

• CPB 15K0.2N counting scale with stainless steel weighing plate
• Mains power supply with mains adaptors for the EU, UK, USA and Switzerland
• Safety hood

Individual requirements and procurement service

Power supplies for the UK, USA and EU/CH, the internal rechargeable battery, signal lamp, printer and interface cables are available for the CPB 15K0.2N. We can advise you on putting together your configuration. Enquiries should be sent to lt-laborhandel.com/service.
