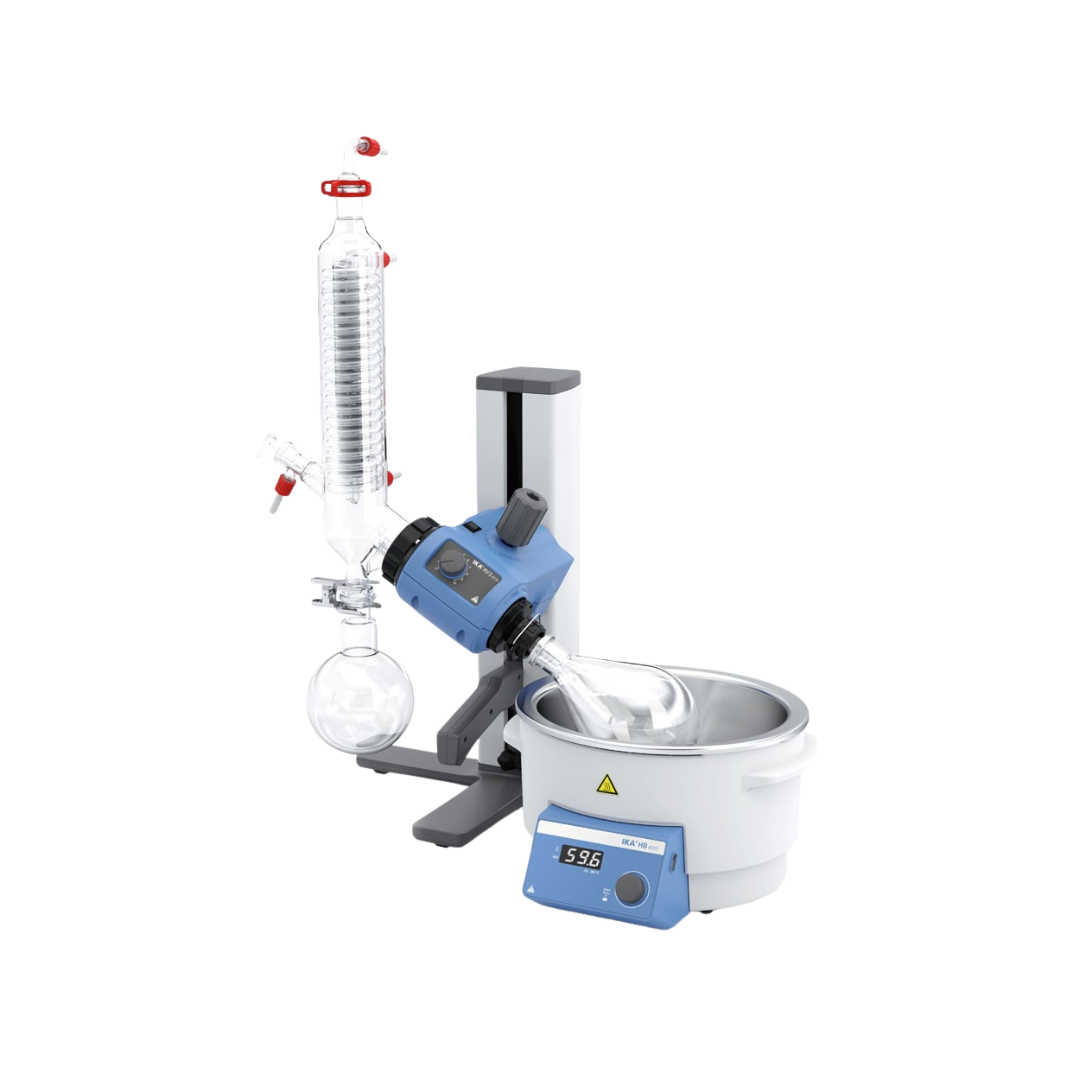

IKA Rotary Evaporator RV 3 V, Set with Heating Bath and Uncoated Glassware, 0010003324
€2,121.75
% Manufacturer's RRP: €3,031.00 30% below manufacturer's RRP
Available, delivery time: 1-3 days
- Compact entry-level package with manual lift
- HB eco heating bath with digital temperature display up to 99 °C
- Speed range 20 to 300 rpm
- Cooling surface 1500 cm²
- Uncoated vertical glassware included in the set
- Suitable for chemistry, pharmaceuticals and research
Product information "IKA Rotary Evaporator RV 3 V, Set with Heating Bath and Uncoated Glassware, 0010003324"
Not every distillation in the laboratory needs a heating bath temperature of 180 degrees Celsius or motorised control. For routine evaporation of aqueous and low-boiling solvents, a compact, robust device that can be operated without lengthy training is often enough. That is exactly what the IKA RV 3 V rotary evaporator is designed for: the RV 3 eco drive unit with manual lift comes together with the HB eco S099 water heating bath up to 99 degrees Celsius and uncoated vertical glassware in one package that can be connected directly to a vacuum pump and cooling water supply. For laboratories that already have a central vacuum and cooling water supply, or that need a second, easy-to-operate workstation alongside a more elaborate RV 10 station, the package is therefore an obvious, budget-conscious addition.
Selection guide: RV 3, RV 8 or RV 10, and which specification level?
Within the IKA rotary evaporator series, the RV 3 V marks the entry level: manual lift, heating bath with eco control up to 99 degrees Celsius and uncoated glass. Anyone who needs higher heating bath temperatures up to 180 degrees Celsius, for example for higher-boiling solvents or oil bath operation, will only find this specification from the RV 8 series onwards. The following overview classifies the five common complete packages of the RV series.
| Model designation | IKA RV 3 V | RV 3 V-C | RV 8 V | RV 10 digital V Starter Solution | RV 10 auto pro V-C |
| Lift | manual | manual | manual (hand lift) | motor with safety stop | motor with safety stop |
| Control level | eco | eco | heating bath with digital display | digital | auto, with integrated vacuum controller |
| Condenser coating | uncoated | coated | uncoated | uncoated | coated |
| Cooling surface | 1500 cm² for all five versions |
| Speed range | 20 to 300 rpm | 20 to 300 rpm | 5 to 300 rpm | 5 to 280 rpm | 5 to 300 rpm |
| Stroke | 150 mm | 150 mm | 120 mm | 140 mm | 140 mm |
| Heating temperature range | Room temp. to 99 °C | Room temp. to 99 °C | Room temp. to 180 °C | Room temp. to 180 °C | Room temp. to 180 °C |
| Vacuum pump in set | no | no | no | yes, VACSTAR lite with VC 10 lite controller | yes, VACSTAR digital |
| Recirculating chiller in set | no | no | no | yes, RC 2 lite | no |
Differentiation within the RV family
Anyone who prefers coated glass for additional splinter protection but otherwise wants the same specification will find, in the IKA RV 3 V-C rotary evaporator , the technically identical drive and heating bath combination, only with coated instead of uncoated vertical glassware. Anyone who needs higher heating bath temperatures up to 180 degrees Celsius and a wider speed range from 5 rpm is better served by the IKA RV 8 V . For laboratories that also want an integrated vacuum pump in the set, the Pro version IKA RV 3 pro V-C Complete rotary evaporator is the next step up. Since the RV 3 V includes neither a vacuum pump nor a recirculating chiller, we recommend the IKA RC 2 lite recirculating chillerfor the cooling circuit, which according to the manufacturer is expressly intended for cooling rotary evaporators. This allows you to expand from the entry-level package in exactly the direction your laboratory needs, without replacing the entire device.
Typical applications
The RV 3 V rotary evaporator is suitable for routine evaporation and concentration in the temperature range up to 99 degrees Celsius:
- Routine solvent evaporation and recovery in chemistry and QA laboratories
- Concentrating aqueous samples and extracts as part of sample preparation
- Teaching and training laboratories that need a robust, easy-to-operate entry-level device
- Budget-oriented equipping of second or replacement workstations alongside an existing RV 10 station
- Chemistry, pharmaceuticals, bioindustry, research and development, production and quality assurance, and plant engineering as the fields of application named by the manufacturer
Manual vacuum control: what matters with the entry-level model
Without an integrated vacuum controller, pressure control in the RV 3 series is handled by the separately procured vacuum pump or an upstream vacuum controller. For a clean distillation process, it is advisable to apply the vacuum slowly at the start and to set the target pressure finally only once stable boiling has been reached, instead of immediately regulating to the lowest achievable pressure. This helps avoid bumping, which is more likely to occur with manual control than with automatic vacuum control such as in the auto level of the RV 10 series. The manual hand lift with a stroke of 150 millimetres also allows the flask to be lifted quickly out of the heating bath if necessary, for example when foam forms and the process has to be interrupted briefly.
Use, installation and maintenance
The drive unit is designed for ambient temperatures of 5 to 40 degrees Celsius and a relative humidity of up to 80 per cent, protection class IP 20 according to DIN EN 60529. The manual hand lift requires somewhat more attention than a motorised lift when raising and lowering the glassware, but it can be operated without software or programming. The HB eco water heating bath should be checked regularly for sufficient water level and limescale deposits, especially with frequent operation near the upper temperature limit of 99 degrees Celsius. The RV 10.8001 seal on the vapour duct is a wearing part and should be the first thing to check if vacuum tightness declines. The drive unit is operated at 100 to 240 volts at 50 or 60 hertz and draws up to 1400 watts, so a normal laboratory socket is sufficient for operation. For the cooling water circuit of the vertical condenser, a connection with adjustable flow is recommended, so that the cooling capacity can be adapted to different solvents and ambient temperatures without keeping water consumption unnecessarily high.
Technical details
| Condenser type | upright (vertical, uncoated) |
| Cooling surface | 1500 cm² |
| Motor principle | DC |
| Speed range | 20 to 300 rpm |
| Speed tolerance (<100 rpm / >100 rpm) | ±1 rpm / ±1 % |
| Lift | manual |
| Stroke | 150 mm |
| Heating temperature range | Room temp. to 99 °C |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage / frequency | 100 to 240 V / 50/60 Hz |
| Device power consumption | 1400 W |
Scope of delivery
The package includes the RV 3 eco drive unit, the HB eco water heating bath with digital temperature display and the uncoated vertical glassware RV 10.1 (ident no. 0003655300). A vacuum pump and a recirculating chiller are not part of the scope of delivery.
- 1 x RV 3 eco drive unit
- 1 x HB eco S099 water heating bath, up to 99 °C, with digital temperature display and carrying handles
- 1 x RV 10.1 glassware, vertical, uncoated (ident no. 0003655300)
- 1 x RV 10.70 vapour duct tube (NS 29/32)
- 1 x RV 10.8001 seal
Regulatory information
As an electrical device, the rotary evaporator falls under the WEEE Directive (ElektroG). The IKA WEEE registration number is DE 66784213. Take-back at the end of its service life takes place within the framework of the statutory take-back obligations, and disposal with household waste is not permitted.
Investment logic: what is in the set, what is still missing?
Drive, heating bath and glassware are already covered by the RV 3 V, but for operation under vacuum a vacuum pump of its own is missing, and for a closed, water-saving cooling circuit a recirculating chiller such as the IKA RC 2 lite, which the manufacturer expressly intends for cooling rotary evaporators. Anyone who can foresee needing higher heating bath temperatures or a wider speed range should rather go straight to the RV 8 V or to the Pro version RV 3 pro V-C Complete with integrated pump than retrofit, since the heating bath type cannot be replaced afterwards. For an existing laboratory with vacuum and cooling water infrastructure already in place, the RV 3 V on the other hand is ready for use without further investment. Anyone who is unsure whether to purchase a vacuum pump of their own or to use an existing house vacuum line should first clarify the final pressure actually required for the planned applications, because this determines whether a simple diaphragm pump is sufficient or a more powerful model makes more sense. This clarification is particularly worthwhile if the RV 3 V is to be set up as a second device alongside an existing RV 10 station with its own vacuum supply, because the purchase cost of the vacuum pump may be saved entirely.
Frequently asked questions
- Is a vacuum pump included in the scope of delivery? No, the package contains the drive, heating bath and glassware. A vacuum pump has to be procured separately for operation under vacuum.
- How hot does the heating bath get? The HB eco water heating bath heats from room temperature up to 99 degrees Celsius. For higher temperatures, the RV 8 V with oil heating bath is more suitable.
- Is the glassware coated? No, the RV 3 V includes the uncoated glassware RV 10.1. The coated version is available as the RV 3 V-C.
- Which recirculating chiller suits this device? The manufacturer expressly names the cooling of rotary evaporators as a field of application for the IKA RC 2 lite.
- How is the lift operated? The lift is manual, with a stroke of 150 mm, without a motor or programming.
- Can I upgrade to a larger device later? A direct conversion is not intended. For higher throughput or higher temperatures, we recommend switching to the RV 8 V or the Pro version.
- What mains voltage is required? The drive unit works in the range of 100 to 240 volts at 50 or 60 hertz and draws up to 1400 watts.
- Can a vacuum pump be added to the device later? Yes, a suitable pump can be retrofitted at any time. The package itself is unaffected, since drive, heating bath and glassware work independently of vacuum generation.
