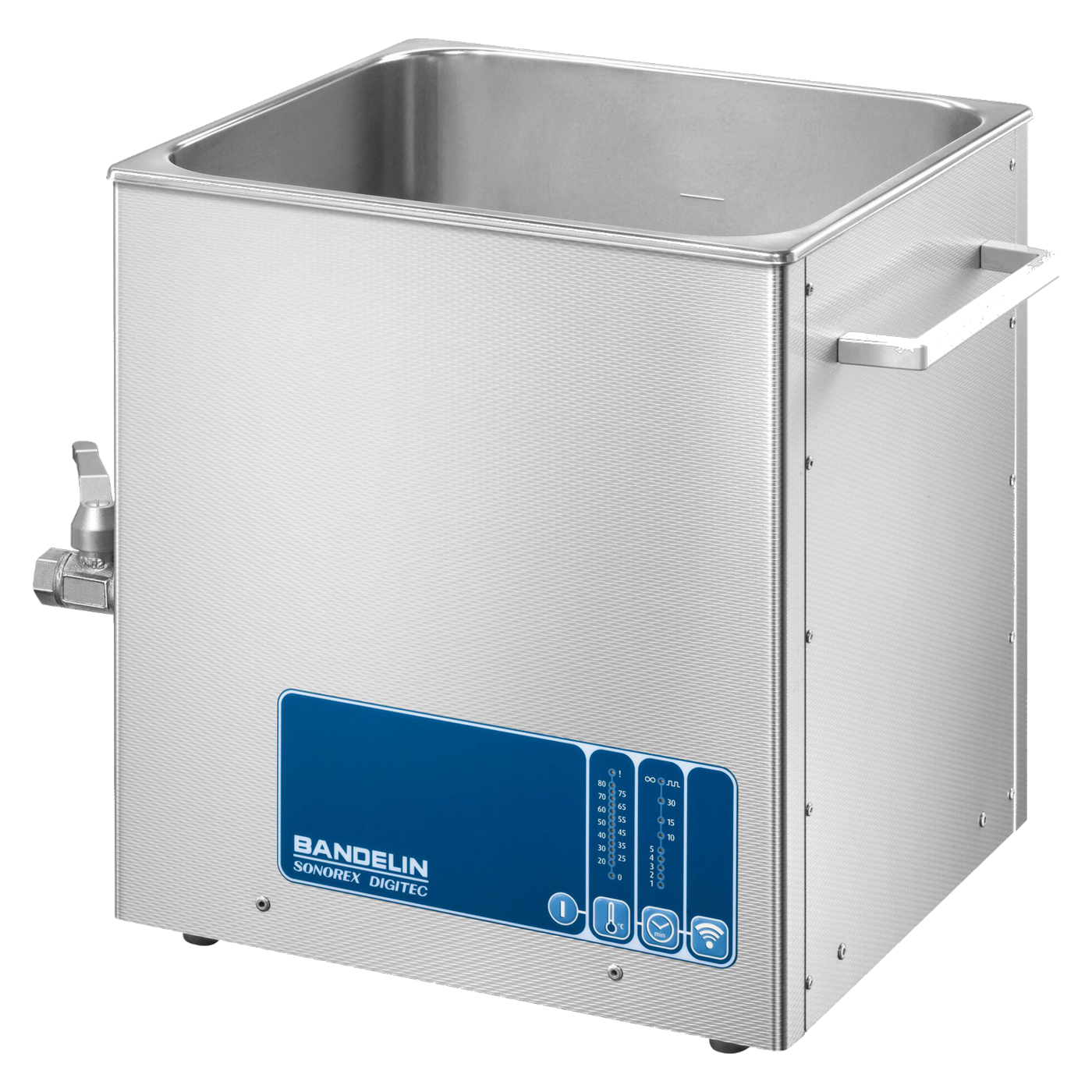

Bandelin SONOREX DIGITEC DT 514 BH Ultrasonic Bath with Heater, 18.7 L, 200 mm Deep, 3216
€1,796.00
% Manufacturer's RRP: €2,363.00 23% below manufacturer's RRP
- Ultrasonic bath with heating, 600 W, adjustable from 20 to 80 °C
- 18.7-litre total capacity, working capacity 12.5 l
- Tank: 325 x 300 x 200 mm, made of 1.4301 stainless steel, 1.0 mm thick
- Four vibration systems, 860 W peak power at 35 kHz
- SweepTec, pulse function, DEGAS, protection against delayed boiling
- G 1/2 ball valve on the left-hand side
- Class I medical device in accordance with Regulation (EU) 2017/745
- Matching lid D 514 and basket K 14 B available
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Bandelin SONOREX DIGITEC DT 514 BH Ultrasonic Bath with Heater, 18.7 L, 200 mm Deep, 3216"
The Bandelin SONOREX DIGITEC DT 514 BH has a tank 200 mm deep. Its internal dimensions are 325 x 300 x 200 mm and it has a capacity of 18.7 l, of which 12.5 l is working capacity. It is fitted with a heating element, push-button controls and a drain.
200 millimetres deep instead of 150
The base area is the same as that of the DT 514 H, but the tank is 50 mm deeper. This increases the total capacity from 13.5 to 18.7 l and the working capacity from 9.0 to 12.5 l. With external dimensions of 355 x 325 x 385 mm, the unit is correspondingly taller and weighs 9.7 kg. The tank (1.0 mm) and housing are made of 1.4301 stainless steel.
Heating and safety features
The 600-watt heating element is adjustable from 20 to 80 °C; the setpoint and actual temperature are shown on the display. For protection, the heater has built-in delayed-boiling protection and dry-run protection. The DT 514 operates without a heater but with the 150 mm deep tank.
Ultrasound and timer
Four vibration systems generate a peak power of 860 watts at 35 kHz (215 watts rated power). SweepTec automatically prevents standing waves in the ultrasonic field; there is also a pulse function and DEGAS rapid degassing. The time can be set to 1, 2, 3, 4, 5, 10, 15 or 30 minutes (± 5 %) or to continuous operation. The unit switches off after twelve hours if no button is pressed.
Operation and connection
The water drains via the G 1/2 ball valve on the left-hand side; a hose connector and hose for installation are included. The mains cable is 2 m long and permanently attached. The current consumption is 3.6 A at 230 V; the protection rating is IP 33; the permissible ambient temperature ranges from 5 to 40 °C.
Baskets and holders
For this tank, Bandelin offers the K 14 B insert basket (275 x 245 x 50 mm, up to 10 kg) and the K 14 AZ basket (285 x 260 x 155 mm, mesh size 12.5 x 12.5 mm), which is designed to hold one full-view mask, two full-face masks or four half-masks. Also available are the GH 14 apparatus holder, the D 514 lid, the DE 514 perforated lid for four insert beakers and the KW 14 B hanging tray (275 x 210 x 195 mm).
Typical applications
- Ultrasonic cleaning of objects of various shapes, types and sizes in laboratories, medical practices and workshops
- Cleaning of taller items thanks to a tank depth of 200 mm
- Rapid degassing of liquids
- Homogenisation and emulsification
- Sample preparation for analysis
- Cleaning of instruments; the ultrasonic bath is classified as a Class I medical device, the suitability of the instruments depends on the instrument manufacturer’s specifications
Frequently asked questions
How deep is the tank?
200 mm, with a base area of 325 x 300 mm.
What temperature range is available?
20 to 80 °C with a heating power of 600 watts.
How much liquid does it hold?
The working capacity is 12.5 l; the total capacity is 18.7 l.
What mains voltage is the 3216 model designed for?
230 V with a CEE 7/7 EU plug. Bandelin supplies versions with UK, Swiss and US plugs under the order numbers 3216-GB, 3216-CH and 3216-1.
Technical details
| Total capacity / Working capacity | 18.7 l / 12.5 l |
| Internal dimensions of the tank (L x W x D) | 325 x 300 x 200 mm |
| External dimensions (L x W x H) | 355 x 325 x 385 mm (excluding handles and ball valve, including feet) |
| Weight (net / gross) | 9.7 kg / 11.8 kg |
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | Peak power 860 W, rated power 215 W, 4 vibration systems |
| Heating | 600 W, adjustable temperature range 20 to 80 °C, protection against delayed boiling, dry-run protection |
| Timer | 1, 2, 3, 4, 5, 10, 15, 30 min (± 5 %) or continuous operation |
| Operation | Buttons, display |
| Functions | SweepTec, pulse function, DEGAS rapid degassing, protection against delayed boiling, dry-run protection for the heating element, automatic safety shut-off 12 hours after the last button press |
| Tank material | Stainless steel 1.4301, thickness 1.0 mm |
| Housing material | Stainless steel 1.4301 |
| Drain | Ball valve G 1/2, left-hand side |
| Handles | on the side |
| Mains connection | 230 V~ (± 10 %), 50/60 Hz, alternatively 115 V~ (± 10 %), 2 m fixed mains lead, protection class I |
| Current consumption | 230 V 3.6 A / 115 V 7.1 A |
| Leakage current | less than 3.5 mA |
| Degree of protection | IP 33 |
| Permissible ambient temperature | 5 to 40 °C |
| Medical device class | Class I (Regulation (EU) 2017/745) |
| Conformity | Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU |
| Packaging dimensions | 475 x 445 x 465 mm |
Scope of delivery
- 1x Bandelin SONOREX DIGITEC DT 514 BH ultrasonic bath with heater
- Mains cable (2 m, permanently attached to the unit)
- Ball valve, hose connector and hose for fitting to the drain
The scope of delivery does not include baskets, lids, holders and insert beakers, and they are available separately.
Individual requirements and procurement service
The K 14 B or K 14 AZ baskets, the D 514 lid or the KW 14 B hanging tray require individual procurement. You can request a quote via our procurement service.
| Volume: | 18.7 l |
|---|
Matching accessories
The D 514 stainless steel lid is intended for 8 ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series. It protects the bath liquid from external contamination. During operation it reduces noise emission, and condensation runs back into the tank.The tanks of the compatible units hold 13.5 or 18.7 litres. According to Bandelin, the lid also shortens the heating-up phase on units with heating. According to Bandelin, it prevents odour nuisance when cleaning or disinfecting agents are added. The K 14 and K 14 B insert baskets are also available.Typical applicationsTypical uses in the compatible units:Cleaning several items simultaneously in an insert basketDegassing of larger volumes of aqueous solutions prior to analysisHeat-assisted batch cleaning in workshops and industrySuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 H20713.5SONOREX SUPER RK 514 BH26318.7SONOREX SUPER RK 51427713.5SONOREX DIGITEC DT 514 H321113.5SONOREX DIGITEC DT 514 BH321618.7SONOREX DIGITEC DT 514325013.5SONOREX DIGIPLUS DL 514 BH718518.7SONOREX smart ST 514 BH710718.7Technical detailsMaterialStainless steelScope of delivery1 SONOREX D 514 stainless steel lidIndividual requirements & procurement serviceThe procurement service clarifies compatibility with older or unlisted SONOREX ultrasonic baths and accepts enquiries about accessories.
The K 14 B insert basket holds the items to be sonicated in 4 ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series. Items to be sonicated do not belong on the tank bottom, because abrasion can occur between the items and the oscillating tank. Bandelin designs the baskets so that the parts lie in the optimum range of the cavitation field, 1 to 2 cm above the bottom. After operation, the basket can be taken out for rinsing without coming into contact with the sonication liquid.The basket is made of stainless steel and has handles. The internal dimensions (L x W x D) are 275 x 245 x 50 mm, the mesh size is 5 x 5 mm and the payload is up to 10 kg. The dimensions are the same as for the K 14, but the basket is intended for BH units with a tank volume of 18.7 litres. The D 514 lid is also available.Typical applicationsTypical uses in the compatible units:Cleaning several beakers or larger pieces of laboratory glassware simultaneouslyHeat-assisted batch cleaning in workshops and industrySample preparation and cleaning of laboratory glassware, cuvettes and small parts in day-to-day laboratory workSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 BH26318.7SONOREX DIGITEC DT 514 BH321618.7SONOREX DIGIPLUS DL 514 BH718518.7SONOREX smart ST 514 BH710718.7Technical detailsMaterialStainless steelInternal dimensions (L x W x D)275 x 245 x 50 mmMesh size5 x 5 mmPayloadup to 10 kgScope of delivery1 SONOREX K 14 B insert basketIndividual requirements & procurement serviceThe procurement service accepts enquiries about baskets, lids and other accessories and clarifies compatibility with older ultrasonic baths.
The KD 0 sieve basket is made of stainless steel with sieve mesh. The internal diameter is 75 mm, the mesh size 1 x 1 mm according to Bandelin. It is placed in insert vessels, or fine parts can be cleaned with it directly in the ultrasonic bath. According to Bandelin, it is intended for very fine parts.The internal dimensions (L x W x D) are 75 x 75 x 40 mm; on the outside the basket measures 85 x 82 x 40 mm. It has handles. Bandelin names SD 06, SD 09, EB 05 and PD 06 as insert vessels; they are also available.Typical applicationsTypical uses in the ultrasonic baths:Fine cleaning of jewellery and small metal partsPre-cleaning of precision mechanical components and watch movementsTechnical detailsMaterialStainless steelInternal dimensions (L x W x D)75 x 75 x 40 mmExternal dimensions (L x W x H)85 x 82 x 40 mmMesh size1 x 1 mmScope of delivery1 SONOREX KD 0 stainless steel sieve basketIndividual requirements & procurement serviceThe procurement service accepts enquiries about insert vessels and further accessories for the SONOREX ultrasonic baths.
The PD 04 sieve basket is made of plastic and has a very fine mesh with a mesh size of 0.63 x 0.63 mm. It is placed in insert vessels or used to clean very fine parts directly in the ultrasonic bath. According to Bandelin, it is also intended for delicate parts.The internal dimensions (L x W x D) are 60 x 60 x 45 mm, and the sieve basket measures 75 x 75 x 50 mm on the outside. It is intended for ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series. As insert vessels into which it fits, Bandelin names KB 04, SD 04, SD 05, SD 06, SD 09, EB 05 and PD 06. The insert vessels are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Fine cleaning of jewellery and small metal partsPre-cleaning of precision mechanical components and watch movementsCleaning of small sensor tips, cannulas and needlesTechnical detailsMaterialPlasticInternal dimensions (L x W x D)60 x 60 x 45 mmExternal dimensions (L x W x H)75 x 75 x 50 mmMesh size0.63 x 0.63 mmScope of delivery1 SONOREX PD 04 plastic sieve basketIndividual requirements & procurement serviceThe procurement service accepts enquiries about insert vessels and other accessories for the SONOREX ultrasonic baths, as well as questions about compatibility with older units.
The GH 14 instrument holder is intended for particularly large individual parts in the SONOREX ultrasonic bath, such as larger laboratory flasks. Compared with the basket, it has more cleaning volume. It is made of stainless steel, and the basket brackets are partly covered with polyolefin heat-shrink tubing. According to Bandelin, they protect against damage to the tank rim and dampen noise. It is suitable for 5 models of the SONOREX SUPER RK and DIGITEC DT series.The interior measures 280 x 250 mm, the mesh size is 12.5 x 12.5 mm and the holder carries up to 10 kg. The tanks of the compatible units hold 13.5 or 18.7 litres.Typical applicationsTypical uses in the compatible units:Ultrasonic cleaning of items of varying shape, type and size in laboratories, practices and workshopsCleaning taller items thanks to a tank depth of 200 mmSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 H20713.5SONOREX SUPER RK 51427713.5SONOREX DIGITEC DT 514 H321113.5SONOREX DIGITEC DT 514 BH321618.7SONOREX DIGITEC DT 514325013.5Technical detailsMaterialStainless steelInternal dimensions (L x W)280 x 250 mmExternal height120 mmPayloadup to 10 kgMesh size12.5 x 12.5 mmCovering of the basket bracketspartly polyolefin heat-shrink tubingScope of delivery1 SONOREX GH 14 stainless steel instrument holderIndividual requirements & procurement serviceA lid, a basket or other accessories for older SONOREX units can be requested via the procurement service.
The SD 09 insert beaker is made of glass, with the GR ring and the DD lid. Its internal dimensions are 91 x 91 x 180 mm. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids, abrasive contaminants and sample liquids. The beaker is also intended for cleaning agents or solvents that are aggressive towards stainless steel. The ultrasound acts indirectly; a cleaning solution serves as the coupling liquid.The beaker holds 1,000 ml and measures 95 x 95 x 180 mm on the outside. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket fits into the beaker. These parts are also available.Typical applicationsTypical uses:Sonication of sample liquids in the beakerRemoval of chemically aggressive or abrasive contaminantsSonication of cleaning agents or solvents that are aggressive towards stainless steel in the beakerTechnical detailsMaterialGlassInternal dimensions (L x W x D)91 x 91 x 180 mmExternal dimensions (L x W x H)95 x 95 x 180 mmWorking volume1,000 mlScope of delivery1 SONOREX SD 09 glass insert beaker with GR ring and DD lidIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and suitable sieve baskets.
The SD 06 glass insert beaker holds 600 ml. The scope of delivery includes the GR ring and the DD lid. The beaker hangs in a DE perforated lid or an insert strip. Bandelin names insert beakers for chemically aggressive liquids, for abrasive contaminants and for sonicating sample liquids; the ultrasound acts indirectly in this case. It is also intended for cleaning agents or solvents that are aggressive towards stainless steel.The external dimensions are 90 x 90 x 125 mm. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket also fits into the beaker. All the parts mentioned are also available.Typical applicationsTypical uses:Sonication of sample liquids in the beakerCleaning of very fine parts in the KD 0 sieve basket, which is placed in the beakerRemoving dental cement in one beaker and, at the same time, cleaning and disinfecting dental instruments in a second beaker (example according to Bandelin)Technical detailsMaterialGlassExternal dimensions (L x W x H)90 x 90 x 125 mmCapacity600 mlScope of delivery1 SONOREX SD 06 glass insert beaker with GR ring and DD lidIndividual requirements & procurement servicePerforated lids, insert strips and sieve baskets for this beaker can be requested via the procurement service.
The KW 14 B hanging tray is made of polypropylene and has internal dimensions of 275 x 210 x 195 mm. Because nothing may lie on the tank bottom during operation, there are plastic hanging trays for this purpose. According to Bandelin, the tray is temperature-resistant up to 80 °C with water and up to 60 °C with acids. A cleaning solution serves as the coupling liquid in the ultrasonic bath. It fits 4 models of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series.The tanks of the compatible units hold 18.7 litres; the external dimensions of the hanging tray are 390 x 330 x 195 mm. According to Bandelin, it protects the stainless steel tank and is intended for chemically aggressive liquids.Typical applicationsTypical uses:Sample preparation for analysisHomogenisation and emulsificationSonication of chemically aggressive liquidsSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 BH26318.7SONOREX DIGITEC DT 514 BH321618.7SONOREX DIGIPLUS DL 514 BH718518.7SONOREX smart ST 514 BH710718.7Technical detailsTray materialPolypropylene (PP)Internal dimensions (L x W x D)275 x 210 x 195 mmExternal dimensions (L x W x H)390 x 330 x 195 mmScope of delivery1 SONOREX KW 14 B polypropylene hanging trayIndividual requirements & procurement serviceThe procurement service clarifies on request whether a tray, a basket or a lid fits the existing unit.
The K 14 AZ is a stainless steel insert basket for 2 ultrasonic baths of the SONOREX SUPER RK and DIGITEC DT series. Its internal dimensions (L x W x D) are 285 x 260 x 155 mm. Because nothing may lie on the tank bottom during operation, the items to be sonicated go into the basket. Otherwise abrasion can occur between the items being sonicated and the oscillating tank. According to Bandelin, the parts in the basket lie 1 to 2 cm above the bottom and thus in the optimum range of the cavitation field. For rinsing, the basket can be taken out.It has handles, the mesh size is 12.5 x 12.5 mm and the payload is up to 10 kg. The compatible tanks hold 18.7 litres.Typical applicationsTypical uses in the compatible units:Cleaning several beakers or larger pieces of laboratory glassware simultaneouslyCleaning taller items thanks to a tank depth of 200 mmHeat-assisted batch cleaning in workshops and industrySuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 BH26318.7SONOREX DIGITEC DT 514 BH321618.7Technical detailsMaterialStainless steelInternal dimensions (L x W x D)285 x 260 x 155 mmMesh size12.5 x 12.5 mmPayloadup to 10 kgScope of delivery1 SONOREX K 14 AZ stainless steel insert basketIndividual requirements & procurement serviceFor lids in a suitable size, other baskets and accessories for older SONOREX units, an enquiry to the procurement service is worthwhile.
The EG 1 insert grid protects delicate parts in the stainless steel basket. According to Bandelin, it prevents the parts from resting on the bottom of the basket, touching one another or damaging one another. The grid is made of polypropylene (PP) and is cut to size. The scope of delivery includes 10 fastening buttons.The grid measures 600 x 500 mm and has a mesh size of 3 x 3 mm. According to Bandelin, it protects the items being cleaned from scratches and is resistant to Bandelin cleaning agents. It fits into insert baskets of SONOREX ultrasonic baths, for example K 1 C, K 14 and K 28 C, which are also available.Typical applicationsTypical uses in the compatible units:Fine cleaning of jewellery and small metal partsCleaning of spectacles, watches and jewelleryPre-cleaning of precision mechanical components and watch movementsTechnical detailsMaterialPolypropylene (PP)Dimensions (L x W)600 x 500 mmMesh size3 x 3 mmScope of delivery1 SONOREX EG 1 insert grid made of polypropylene (PP), to be cut to size, 10 fastening buttonsIndividual requirements & procurement serviceThe procurement service accepts enquiries about baskets that fit the insert grid and further accessories.
The EB 05 stainless steel beaker holds 600 ml and has a lid and rubber ring. As an insert beaker, it is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids and when sonicating sample liquids; the ultrasound then acts indirectly. The internal dimensions are 88 x 88 x 110 mm. For this, the ultrasonic bath needs a cleaning solution as coupling liquid.The beaker measures 90 x 90 x 110 mm on the outside. According to Bandelin, suitable holders are the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4. According to Bandelin, the KD 0 sieve basket fits into the beaker. These parts are also available.Typical applicationsTypical uses:Sonication of chemically aggressive liquids in the beakerSonication of sample liquidsCleaning of very fine parts in the KD 0 sieve basket, which is placed in the beakerTechnical detailsMaterialStainless steelInternal dimensions (L x W x D)88 x 88 x 110 mmExternal dimensions (L x W x H)90 x 90 x 110 mmWorking volume600 mlScope of delivery1 SONOREX EB 05 stainless steel beaker with lid and rubber ringIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and further insert beakers.
The PD 06 plastic beaker holds 600 ml and is supplied with a lid and rubber ring. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used when liquids are chemically aggressive, when contaminants are abrasive or when sample liquids are sonicated. The ultrasound then acts indirectly. The internal dimensions are 86 x 86 x 125 mm. A cleaning solution serves as the coupling liquid in the ultrasonic bath.According to Bandelin, the beaker fits the perforated lids DE 52, DE 100, DE 156, DE 255, DE 510 and DE 514 and the insert strip ES 4, which are also available. With a cleaning agent or solvent that is aggressive towards stainless steel, the beaker is required, according to Bandelin, to protect the cleaning unit.Typical applicationsTypical uses:Sonication of sample liquids in the insert beakerUse of cleaning agents or solvents that are aggressive towards stainless steel, to protect the ultrasonic bathRemoving dental cement in one beaker and cleaning and disinfecting instruments in a second beaker without changing the liquid in the ultrasonic bath (example according to Bandelin)Technical detailsMaterialPlasticInternal dimensions (L x W x D)86 x 86 x 125 mmExternal dimensions (L x W x H)90 x 90 x 125 mmWorking volume600 mlScope of delivery1 SONOREX PD 06 plastic beaker with lid and rubber ringIndividual requirements & procurement serviceThe procurement service accepts enquiries about perforated lids, insert strips and further insert beakers for SONOREX ultrasonic baths.
The DE 514 perforated lid is made of stainless steel. It holds insert beakers because nothing may lie on the tank bottom during operation. Several beakers with different liquids are possible at the same time. According to Bandelin, insert beakers are used for chemically aggressive liquids and sample liquids; the ultrasound acts indirectly. The perforated lid is intended for 8 models of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series.The perforated lid measures 356 x 291 x 11 mm on the outside and fits tanks of 13.5 or 18.7 litres. According to Bandelin, the perforated lid is sound-dampening and shortens the heating-up phase on units with heating. Bandelin names PD 06, SD 06, SD 09 and EB 05 as insert beakers; they are also available.Typical applicationsTypical uses in the compatible units:Rapid degassing of liquidsHomogenisation and emulsificationSonochemical applications, such as radical generation or improved mass transferSuitable forModelBandelin device no.Tank volume (l)SONOREX SUPER RK 514 H20713.5SONOREX SUPER RK 514 BH26318.7SONOREX SUPER RK 51427713.5SONOREX DIGITEC DT 514 H321113.5SONOREX DIGITEC DT 514 BH321618.7SONOREX DIGITEC DT 514325013.5SONOREX DIGIPLUS DL 514 BH718518.7SONOREX smart ST 514 BH710718.7Technical detailsMaterialStainless steelExternal dimensions (L x W x H)356 x 291 x 11 mmScope of delivery1 SONOREX DE 514 stainless steel perforated lidIndividual requirements & procurement serviceThe procurement service accepts enquiries about beakers, insert strips and further accessories for the SONOREX ultrasonic baths.
The FT 14 foil test frame measures 220 x 380 mm and is made of stainless steel. It is intended for tanks with internal dimensions from 280 x 234 x 80 mm to 325 x 300 x 300 mm. The frame fits 13 models of the SUPER RK, DIGITEC DT and smart ST series.The foil test according to IEC 886 is used to test an ultrasonic cleaner. According to Bandelin, the choice of frame depends on the size of the ultrasonic cleaner. The FL 14 aluminium foil with a thickness of 15 µm is also available and is not included in the scope of delivery.Typical applicationsTypical occasions for the foil test:Testing at commissioning and regularly thereafter, according to Bandelin for example quarterlyVisualisation of the intensity and distribution of cavitation in the tankComparison of archived foils (scan or photo) over the operating periodSuitable forModelBandelin device no.Tank volume (l)DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514 H321113.5DT 514 BH321618.7DT 510 F132424.3RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 H20713.5RK 514 BH26318.7ST 514 BH710718.7Technical detailsMaterialStainless steelFrame dimensions (L x W)220 x 380 mmCompatible internal tank dimensions (L x W x D)280 x 234 x 80 mm to 325 x 300 x 300 mmCompatible foilFL 14, thickness 15 µmScope of delivery1 SONOREX FT 14 stainless steel foil test frameIndividual requirements & procurement serviceIf you are unsure whether the tank matches the internal dimensions, or if you need foils for it, you can reach the procurement service with the tank dimensions or the unit number.
The EK 250 holding clamp is made of stainless steel and intended for laboratory flasks up to d = 85 mm. It is used for tip-proof sonication of laboratory flasks in the SONOREX ultrasonic bath. It is fastened in insert baskets and instrument holders. Bandelin states that laboratory flasks do not float up or tip over with the clamp.For smaller flasks, the clamps EK 100 (up to d = 65 mm), EK 50 (up to d = 52 mm), EK 25 (up to d = 42 mm) and EK 10 (up to d = 31 mm) are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Sample preparation for analysis in the DT 510 HRapid degassing of liquids in the DT 514 HHomogenisation and emulsification in the DT 255Suitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 85 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 250 stainless steel holding clampIndividual requirements & procurement serviceFor clamps of other sizes, insert baskets and instrument holders, our procurement service accepts enquiries.
According to Bandelin, the GR 06 rubber ring fits the SD 06, SD 09, EB 05 and PD 06. Bandelin lists it as a rubber ring for insert beakers. The model table shows the SONOREX ultrasonic baths in which these parts are intended. These are 47 models of the SUPER RK, DIGITEC DT and smart ST series. The insert beakers are not included in the scope of delivery.Typical applicationsAccording to Bandelin, insert beakers are used for indirect sonication in these cases:when using chemically aggressive liquidswhen removing chemically aggressive or abrasive contaminantswhen sonicating sample liquidsSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 1050 CH327190.0DT 10632705.6DT 15632756.0DT 156 BH32219.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 105032358.0RK 1050 CH18490.0RK 1063065.6RK 1563056RK 156 BH6469.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Scope of delivery1 SONOREX GR 06 rubber ringIndividual requirements & procurement serviceFor insert beakers, further rubber rings and questions about assignment to a particular SONOREX unit, our procurement service accepts enquiries.
The EK 10 holding clamp is intended for laboratory flasks up to d = 31 mm. It is made of stainless steel and is used for tip-proof sonication in the SONOREX ultrasonic bath. It is fastened in insert baskets and instrument holders. According to Bandelin, the clamp prevents laboratory flasks from floating up or tipping over.For larger flasks, the EK 25 (up to d = 42 mm), EK 50 (up to d = 52 mm), EK 100 (up to d = 65 mm) and EK 250 (up to d = 85 mm) are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Homogenisation and emulsification of small quantities in the DT 31Sample preparation for analysis in the DT 31 HUniform indirect sonication of samples, including in laboratory flasks, in the DT 510 F SetSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 31 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 10 stainless steel holding clampIndividual requirements & procurement serviceFor insert baskets, instrument holders and clamps for larger flasks, our procurement service accepts enquiries.
The EK 100 stainless steel holding clamp is available for laboratory flasks up to d = 65 mm. It allows tip-proof sonication of laboratory flasks in the SONOREX ultrasonic bath. The clamp is fastened in insert baskets and instrument holders. According to Bandelin, it prevents laboratory flasks from floating up or tipping over.For larger flasks there is the EK 250 (up to d = 85 mm), for smaller ones the EK 50 (up to d = 52 mm), EK 25 (up to d = 42 mm) and EK 10 (up to d = 31 mm). All are also available. The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Uniform indirect sonication of samples, including in laboratory flasks, in the DT 510 F SetSonochemical applications in the DT 52 HSample preparation for analysis in the DT 102 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 65 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 100 stainless steel holding clampIndividual requirements & procurement serviceFor clamps of other sizes and for questions about compatibility with older SONOREX units, our procurement service accepts enquiries.
The EK 50 is a stainless steel holding clamp for laboratory flasks up to d = 52 mm. It holds laboratory flasks tip-proof in the SONOREX ultrasonic bath and is fastened in insert baskets or instrument holders. According to Bandelin, the clamp prevents laboratory flasks from floating up and tipping over.Larger flasks are taken by the EK 100 (up to d = 65 mm) and the EK 250 (up to d = 85 mm), smaller ones by the EK 25 (up to d = 42 mm) and the EK 10 (up to d = 31 mm). These sizes are also available. The insert basket and instrument holder are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Homogenisation and emulsification in the DT 52 HRapid degassing of liquids in the DT 52Sonochemistry, for example radical generation or improved mass transfer, in the DT 103 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 52 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 50 stainless steel holding clampIndividual requirements & procurement serviceIf you need clamps for several flask sizes, you can enquire with the procurement service, as you can about insert baskets and instrument holders.
The GV 10 handle adjuster is available for the K 10/B, K 14/B and K 28/C insert baskets. According to Bandelin, it is easy to retrofit and adjusts the immersion depth of the baskets continuously. Sample containers can thus be sonicated at the optimum immersion depth. The scope of delivery includes 2 pieces. The assignment applies to 20 models of the SUPER RK, DIGITEC DT and smart ST series.Bandelin also recommends the GV 10 for the ZF 10 and ZF 28 laboratory flask holders, so that laboratory flasks are not flooded at the optimum fill level. The baskets are not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Sample preparation for analysis in the DT 510 HCleaning of several beakers or larger laboratory glassware items simultaneously in the RK 514 BHCleaning taller objects thanks to the 200 mm tank depth in the DT 514 BHSuitable forModelBandelin device no.Tank volume (l)DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5ST 514 BH710718.7Technical detailsCompatible basketsK 10/B, K 14/B, K 28/CScope of delivery2 piecesScope of delivery2 SONOREX GV 10 handle adjustersIndividual requirements & procurement serviceFor the insert baskets, the laboratory flask holders and questions about compatibility, our procurement service accepts enquiries.
The DD 06 plastic lid closes an insert vessel. It fits the SD 06, EB 05 and PD 06. The assignment to the ultrasonic baths results from these insert vessels; there are 47 models of the SUPER RK, DIGITEC DT and smart ST series. The insert vessels are not included in the scope of delivery.According to Bandelin, it protects the cleaning liquid from contamination from outside and prevents odour nuisance caused by added cleaning or disinfection preparations. Bandelin states that the lid directs any condensation that forms back into the tank.Typical applicationsTypical cases in which the lid sits on the insert vessel:Sonication with added cleaning or disinfection preparations when odour is to be avoidedSonication in the insert vessel when the liquid is to stay protected from contamination from outsideSonication in which condensation forms and is to run back into the tankSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 1050 CH327190.0DT 10632705.6DT 15632756.0DT 156 BH32219.0DT 25532155.5DT 255 H32405.5DT 51032459.7DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 105032358.0RK 1050 CH18490.0RK 1063065.6RK 1563056RK 156 BH6469.0RK 25530665.5RK 255 H3165.5RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialPlasticScope of delivery1 SONOREX DD 06 plastic lidIndividual requirements & procurement serviceFor the matching insert vessels and for questions about which insert vessel belongs in which SONOREX unit, our procurement service accepts enquiries.
The EK 25 stainless steel holding clamp takes laboratory flasks up to d = 42 mm. It is meant for tip-proof sonication in the SONOREX ultrasonic bath and is fastened in insert baskets and instrument holders. Bandelin states that laboratory flasks do not float up or tip over with the clamp.For larger flasks, the EK 50 (up to d = 52 mm), EK 100 (up to d = 65 mm) and EK 250 (up to d = 85 mm) are also available, for smaller ones the EK 10 (up to d = 31 mm). The insert basket or instrument holder is not included in the scope of delivery.Typical applicationsTypical uses in the compatible units:Small-scale sonochemical applications in the DT 31Sample preparation for analysis in the DT 52Homogenisation and emulsification in the DT 31 HSuitable forModelBandelin device no.Tank volume (l)DT 10032103.0DT 100 H32303.0DT 102 H32353.0DT 1028325528.0DT 1028 CH326645.0DT 1028 H323128.0DT 103 H32014.0DT 25532155.5DT 255 H32405.5DT 3132000.9DT 31 H32200.9DT 51032459.7DT 510 F132424.3DT 510 H32069.7DT 512 H322613.0DT 514325013.5DT 514 BH321618.7DT 514 H321113.5DT 5232051.8DT 52 H32251.8RK 1003013.0RK 100 H3123.0RK 102 H3033.0RK 102832228.0RK 1028 C66145.0RK 1028 CH14345.0RK 1028 H32428.0RK 103 H3264.0RK 25530665.5RK 255 H3165.5RK 313290.9RK 5103279.7RK 510 H3219.7RK 512 H79513.0RK 51427713.5RK 514 BH26318.7RK 514 H20713.5RK 523111.8RK 52 H1641.8ST 102 H71003.0ST 103 H71014ST 514 BH710718.7Technical detailsMaterialStainless steelLaboratory flasksup to d = 42 mmFasteningin insert baskets and instrument holdersScope of delivery1 SONOREX EK 25 stainless steel holding clampIndividual requirements & procurement serviceFor insert baskets, instrument holders and clamps of other sizes, our procurement service accepts enquiries.
