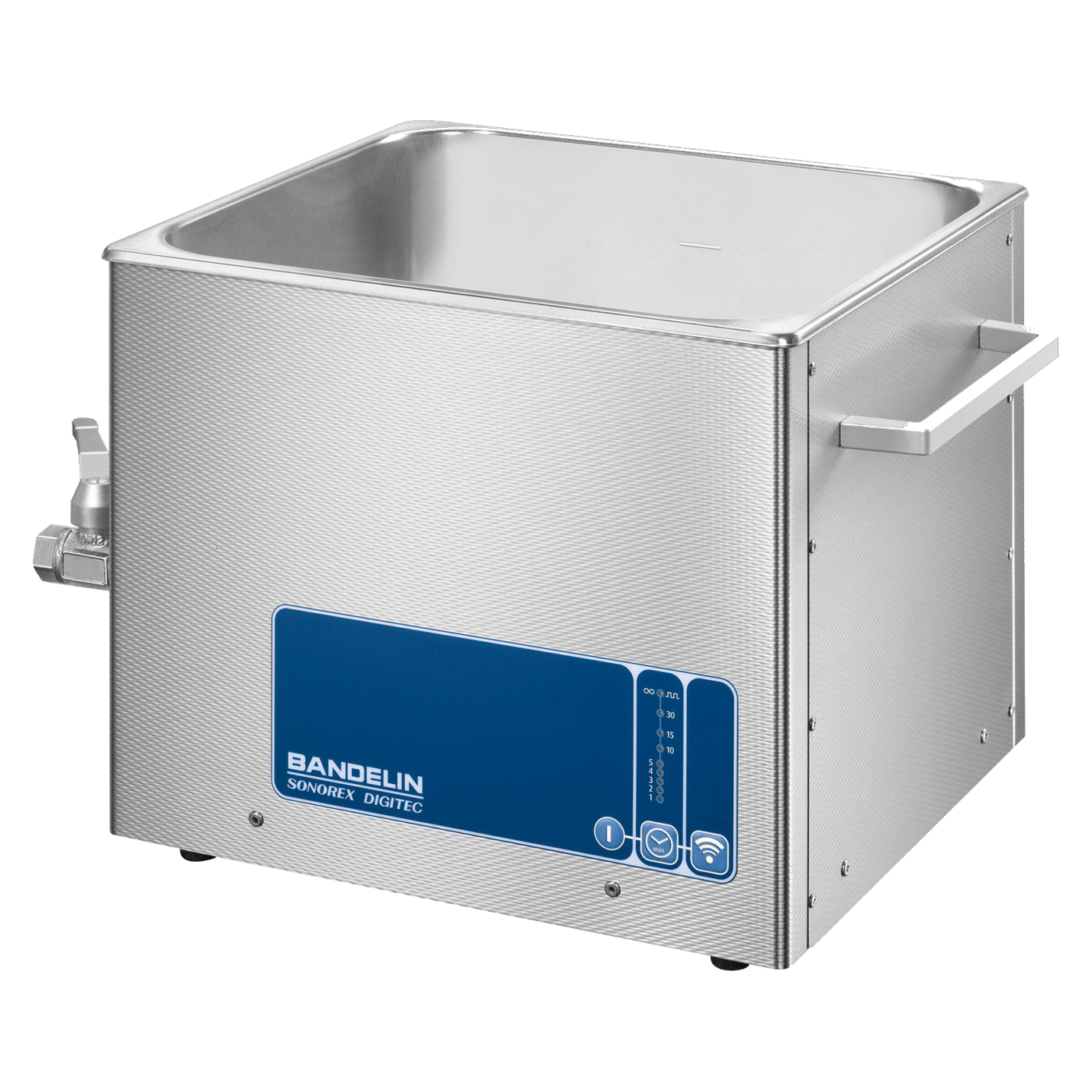

Bandelin SONOREX DIGITEC DT 514 Ultrasonic Bath, 13.5 L, 35 kHz, 3250

The basin of the Bandelin SONOREX DIGITEC DT 514 is almost square, with a base measuring 325 x 300 mm, and has a capacity of 13.5 l at a depth of 150 mm. The bath has four agitation systems, push-button controls and a ball valve drain. This model does not feature a built-in heater.

Larger surface area compared to the DT 510

The DT 510 has a significantly smaller base area of 300 x 240 mm, whilst the depth of 150 mm is identical. The DT 514 has a working capacity of 9.0 l; the fill-level marker helps with filling. The unit measures 355 x 325 x 305 mm externally and weighs 8.7 kg; side handles make it easier to carry.

860 watts peak power

Four oscillation systems achieve a peak power of 860 watts at 35 kHz; the rated power is 215 watts. The SweepTec function automatically prevents standing waves in the ultrasonic field; a pulse function and DEGAS degassing are also included. DEGAS is activated at the start of the cleaning process.

Timer, shut-off and drain

The cleaning duration can be set using the buttons to 1, 2, 3, 4, 5, 10, 15 or 30 minutes (± 5 per cent); alternatively, the bath runs in continuous operation. The display shows the remaining time; the unit switches off automatically twelve hours after the last button press. The G 1/2 ball valve on the left-hand side drains the tank; a hose nozzle and hose are included.

With or without heating

The DT 514 H features the same tank and additionally offers 600 watts of heating power for temperatures ranging from 20 to 80 °C. If you need even more depth, you can opt for the DT 514 BH with a tub depth of 200 mm and a capacity of 18.7 l, which is also heated. The DT 514 is suitable if the bath liquid does not need to be heated.

Accessories for the large bath

Bandelin supplies the following accessories for the DT 514: the K 14 hanging basket (275 x 245 x 50 mm, up to 10 kg), the GH 14 equipment holder, the D 514 lid and the DE 514 perforated lid for four insert cups. The KAH 14.3 cassette holder (305 x 205 x 135 mm) holds three 1/1 DIN cassettes, six 1/2 DIN cassettes or twelve 1/4 DIN cassettes and can carry up to 5 kg. The SM 14 silicone studded mat and the KW 14 polypropylene hanging tray with PVC lid (280 x 215 x 145 mm) complete the range.

Typical applications

• Ultrasonic cleaning of items of various shapes, types and sizes in laboratories, medical practices and workshops
• Cleaning of multiple items simultaneously in a hanging basket
• Rapid degassing of liquids
• Homogenisation and emulsification
• Sample preparation for analysis
• Cleaning of instruments classified as Class I medical devices; the suitability of the instruments is determined by the instrument manufacturer’s specifications

Frequently asked questions

What is the working capacity? 9.0 l out of a total capacity of 13.5 l.

Does the DT 514 have a heating function? No. Heated versions are the DT 514 H and the DT 514 BH.

How many DIN cassettes does the KAH 14.3 cassette holder hold? Three 1/1 cassettes, six 1/2 cassettes or twelve 1/4 cassettes. The holder is not included in the Scope of delivery.

What mains voltage does the unit require? The 3250 model on offer operates at 230 V~ (± 10 %), 50/60 Hz. For 115 V, Bandelin offers the 3250-1 model. The current consumption is 1.0 A at 230 V.

Technical details

Scope of delivery

• 1x Bandelin SONOREX DIGITEC DT 514 ultrasonic bath
• Mains lead (2 m, permanently attached to the unit)
• Ball valve, hose connector and hose for fitting to the drain

The scope of delivery does not include baskets, lids, holders and insert cups, and they are available separately.

Individual requirements and procurement service

The K 14 hanging basket, the KAH 14.3 cassette holder, the D 514 lid or a heated version are available on an individual procurement basis. You can request a quote via LT Laborhandel’s procurement service.
