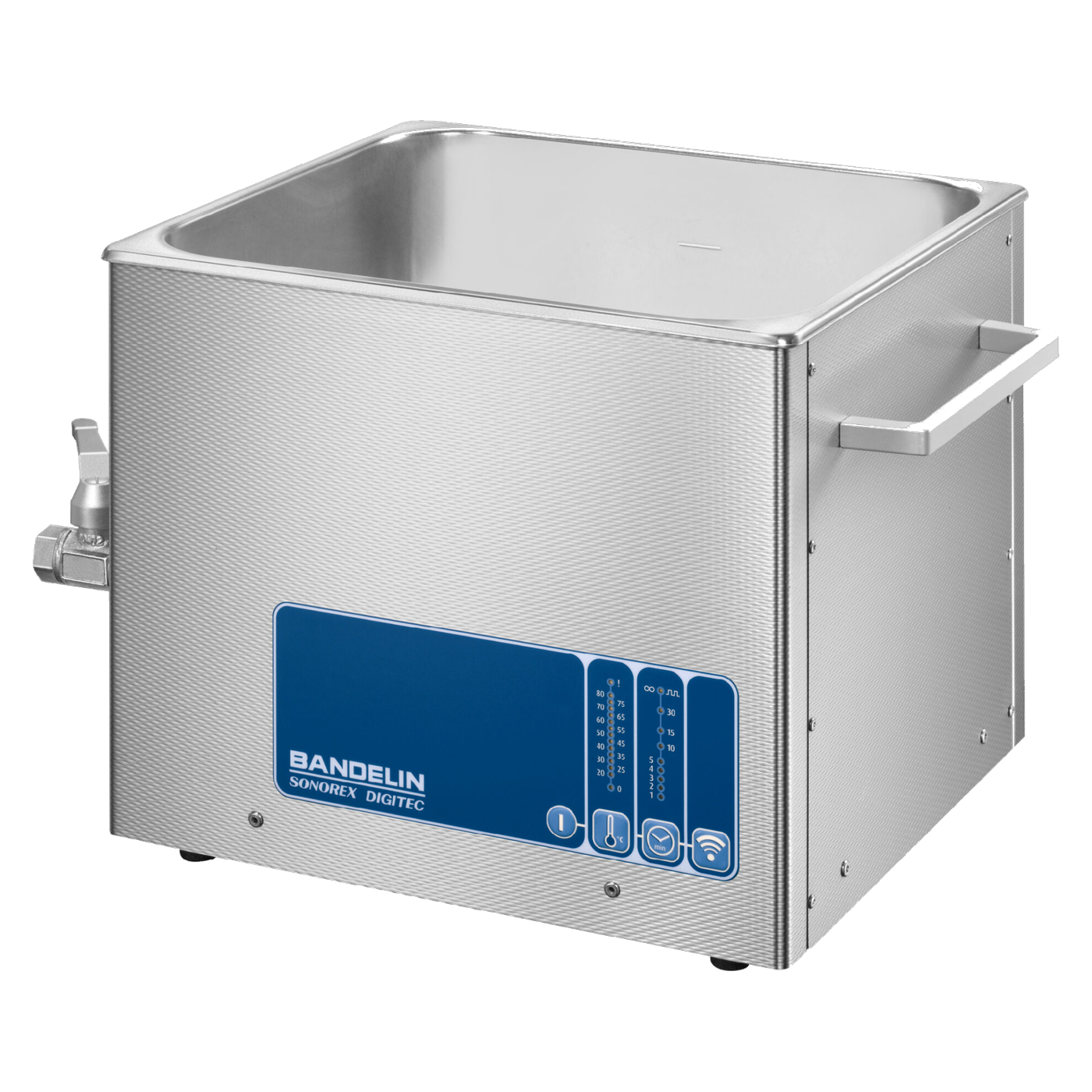

Bandelin SONOREX DIGITEC DT 514 H Ultrasonic Bath with Heating, 13.5 L, 20 to 80 °C, 3211

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Bandelin SONOREX DIGITEC DT 514 H Ultrasonic Bath with Heating, 13.5 L, 20 to 80 °C, 3211"

The Bandelin SONOREX DIGITEC DT 514 H heats up to an adjustable temperature of 20 to 80 °C with 600 watts and achieves a peak ultrasonic power of 860 watts. The tank measures 325 x 300 x 150 mm internally and has a capacity of 13.5 l.

Heating, setpoint and actual value

The temperature is set using the buttons; the display shows the setpoint and actual values for the bath temperature. Protection against delayed boiling and dry-run protection for the heater are built in. Compared to the DT 510 H (400 watts), the heating power is 50 % higher; accordingly, the current consumption is 3.6 A at 230 V, whilst for the unheated DT 514 it is 1.0 A.

Ultrasonic and time control

Four vibration systems deliver a peak power of 860 watts and a rated power of 215 watts at 35 kHz. SweepTec automatically prevents standing waves in the acoustic field; this is complemented by a pulse function and DEGAS degassing. The timer covers 1, 2, 3, 4, 5, 10, 15 and 30 minutes (± 5 %); there is also a continuous operation mode and the unit switches off 12 hours after the last button press.

Tank, drain and base

The tank and housing are made of 1.4301 stainless steel; the tank is 1.0 mm thick. The working capacity of 9.0 l can be read from the fill level mark. A G 1/2 left-hand ball valve is provided for draining; a hose connector and hose are included. The bath measures 355 x 325 x 305 mm externally, weighs 9.0 kg and has side handles. The power cable is 2 m long; the degree of protection is IP 33.

Which depth is suitable?

If you have items to clean that are taller, compare the tank depth: 150 mm for the DT 514 H, 200 mm for the DT 514 BH, which consequently has a capacity of 18.7 l. The heating power is also 600 watts for both models.

Accessories

Suitable accessories include the K 14 insert basket (275 x 245 x 50 mm, up to 10 kg), the GH 14 apparatus holder, the D 514 lid, the DE 514 perforated lid for four insert beakers, the KAH 14.3 cassette holder for DIN cassettes, the SM 14 silicone studded mat and the KW 14 hanging tray. Clamps EK 10 to EK 250 hold laboratory flasks with a diameter of up to 85 mm.

Typical applications

  • Cleaning of items of various shapes, types and sizes in laboratories, medical practices and workshops using a temperature-controlled bath
  • Rapid degassing of liquids
  • Homogenisation and emulsification
  • Sonochemical applications, such as radical generation or improved mass transfer
  • Sample preparation for analysis
  • Cleaning of instruments; the ultrasonic bath is classified as a Class I medical device, the suitability of the instruments depends on the instrument manufacturer’s specifications

Frequently asked questions

What bath temperature can be set?
20 to 80 °C with a heating power of 600 watts.

Does the tank differ from that of the DT 514? No, the tank is identical (325 x 300 x 150 mm). The difference lies in the heating system and the protection against delayed boiling.

Where is the drain?
On the left-hand side, as a G 1/2 ball valve.

Are there other plug types available?
Yes. Bandelin offers GB, CH and US variants under separate order numbers, such as 3211-GB. The 3211 model is available with a CEE 7/7 EU plug.

Technical details

Total capacity / Working capacity13.5 l / 9.0 l
Internal dimensions of tank (L x W x D)325 x 300 x 150 mm
External dimensions (L x W x H)355 x 325 x 305 mm (excluding handles and ball valve, including feet)
Weight (net / gross)9.0 kg / 10.9 kg
Ultrasonic frequency35 kHz
Ultrasonic powerPeak power 860 W, rated power 215 W, 4 vibration systems
Heating600 W, adjustable temperature range 20 to 80 °C, protection against delayed boiling, dry-run protection
Timer1, 2, 3, 4, 5, 10, 15, 30 min (± 5 %) or continuous operation
OperationButtons, display
FunctionsSweepTec, pulse function, DEGAS rapid degassing, protection against delayed boiling, dry-run protection for the heater, automatic safety shut-off 12 hours after the last button press
Tank materialStainless steel 1.4301, thickness 1.0 mm
Housing materialStainless steel 1.4301
DrainBall valve G 1/2, left-hand side
Handleson the side
Mains connection230 V~ (± 10 %), 50/60 Hz, alternatively 115 V~ (± 10 %), 2 m fixed mains lead, protection class I
Current consumption230 V 3.6 A / 115 V 7.1 A
Leakage currentless than 3.5 mA
Degree of protectionIP 33
Permissible ambient temperature5 to 40 °C
Medical device classClass I (Regulation (EU) 2017/745)
ConformityLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
Packaging dimensions475 x 445 x 380 mm

Scope of delivery

  • 1x Bandelin SONOREX DIGITEC DT 514 H ultrasonic bath with heater
  • Mains cable (2 m, permanently attached to the unit)
  • Ball valve, hose connector and hose for fitting to the drain

The scope of delivery does not include baskets, lids, holders and insert beakers, and they are available separately.

Individual requirements and procurement service

For accessories such as basket K 14, cassette holders or lid D 514, and for other heated models, individual procurement is required. You can request a quote via our procurement service.

Volume: 13.5 l
