Macherey-Nagel
Macherey-Nagel NANOCOLOR COD 160 tube test, 985026
Chemical oxygen demand (COD) is one of the most important parameters for the assessment of industrial and municipal effluents. The NANOCOLOR COD 160 tube test from Macherey-Nagel delivers precise, time-saving results in accordance with ISO 15705 when used in conjunction with the appropriate NANOCOLOR photometers. Low measurement range for samples with low organic load The test covers a measurement range of 15–160 mg/L O₂ and is therefore suitable for samples with a lower organic load than the NANOCOLOR COD 4000 (Item No. 985011). The method is based on the potassium dichromate procedure and is in accordance with DIN ISO 15705 H45, whilst also being based on EPA 410.4, APHA 5220 D and DIN 38409 H41-1. Compatible with standard NANOCOLOR photometers The test can be analysed on the following instruments: 500 D, Advance, MT Easy UV, MT Easy VIS, PF-3 COD, PF-12Plus, UV/VIS II and VIS II, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already offered in our range. Scope of application The test is designed for wastewater, sewage sludge and water samples. A sturdy box containing 20 round cuvettes is sufficient for 20 determinations. When stored at 15–25 °C, the shelf life is 1 year from the date of manufacture. Technical details Parameters COD Method COD - Potassium dichromate Measuring range COD - 15–160 mg/L O₂ Note Measurement range on the NANOCOLOR VIS II Test range Low Test method Photometric Underlying standard In accordance with DIN ISO 15705 H45, analogous to EPA 410.4, APHA 5220 D, DIN 38409 H41-1 Test No. 0-26 Platform NANOCOLOR tube tests Compatible with 500 D, Advance, MT Easy UV, MT Easy VIS, PF-3 COD, PF-12Plus, UV/VIS II, VIS II Application Wastewater, sewage sludge, water Seawater analysis No Digestion kit No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 1 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 376 g Packaging dimensions 160 x 111 x 122 mm Hazardous substances Yes Trademarks NANOCOLOR

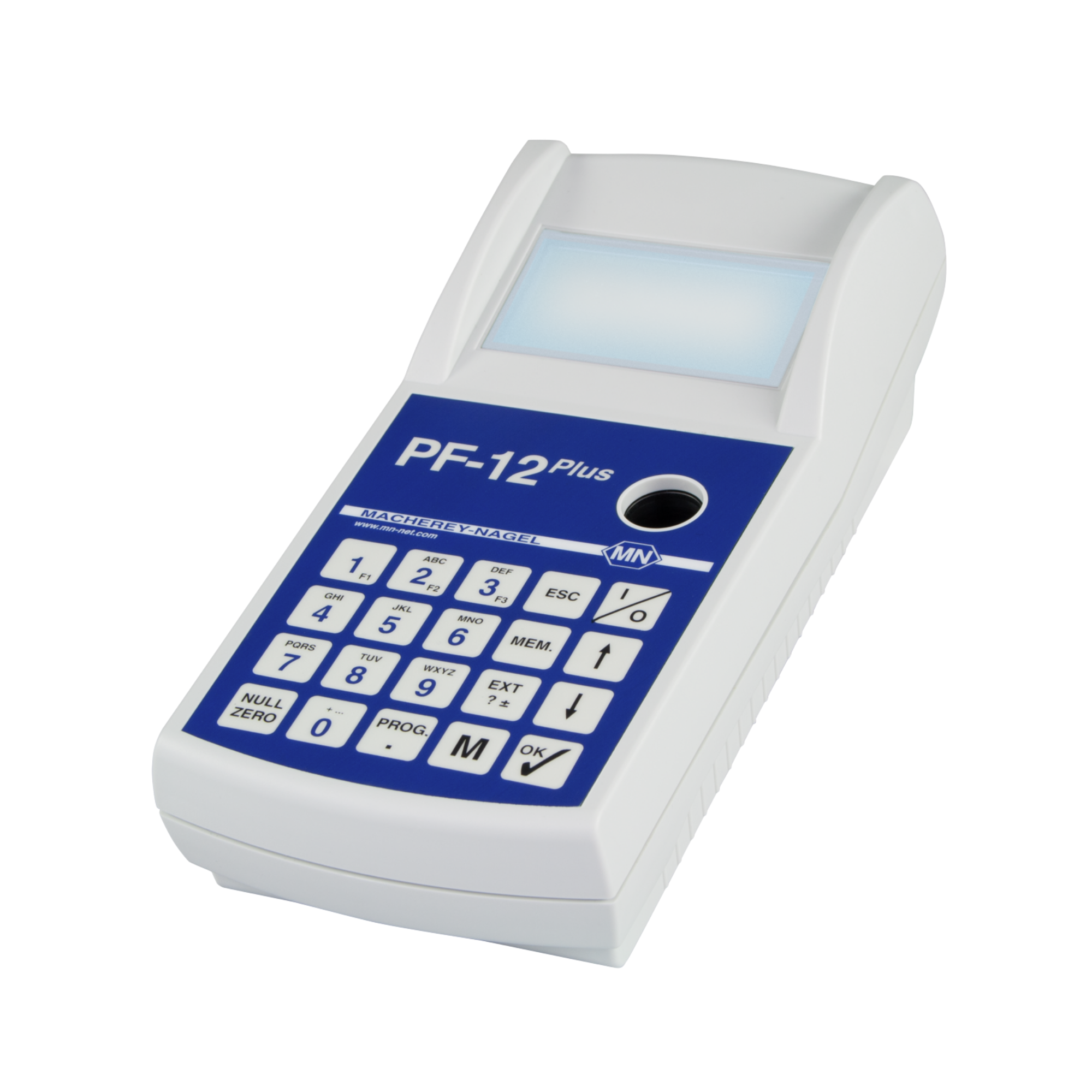

Macherey-Nagel Compact Photometer PF-12Plus for water analysis, including case and software, 919250
The Macherey-Nagel PF-12Plus compact photometer is a highly advanced, optoelectronic system solution for the precise, mobile and stationary analysis of water, wastewater and environmental samples. As a portable laboratory instrument, this photometer combines state-of-the-art filter photometry with a high degree of flexibility, whether used directly at the point of interest (POI) or in a traditional laboratory setting. When monitoring critical water parameters, industrial process water flows or municipal sewage treatment works, the accurate and rapid determination of substance concentrations is the primary criterion for documenting and controlling statutory limit values in a way that is gentle on materials, comprehensive and process-reliable. The optical architecture of the PF-12Plus is based on a long-life xenon flash lamp and a precisely matched sensor system with seven integrated interference filters. This spectral configuration enables reliable coverage of all relevant wavelengths for the evaluation of Macherey-Nagel’s renowned VISOCOLOR® ECO and NANOCOLOR® tube tests. An outstanding mechatronic safety feature is the integrated nephelometric turbidity measurement (NTU-Check). This advanced control function automatically detects interfering turbidity in the sample cuvette during the measurement process and reliably alerts the user to potential measurement errors, an invaluable advantage for analytical validity in harsh field conditions. The photometer’s mechatronic system architecture is consistently designed for user ergonomics and flexibility under changing environmental conditions. Over 100 pre-programmed methods for common parameters (such as ammonium, nitrate, nitrite, COD, phosphorus or heavy metals) enable direct measurement without time-consuming calibration cycles. The splash-proof housing and intuitive menu navigation via the large, backlit graphic display allow laboratory and service staff to handle it safely. Thanks to flexible power management (optionally via batteries, rechargeable batteries, the integrated USB cable or an external power supply), uninterrupted operational readiness in the field is permanently ensured. For documentation in GLP and GMP environments, the PF-12Plus features an internal data memory for up to 1,000 measurement results, including time, date and sample ID stamps. Via the integrated USB interface, the measurement data can be transferred to the free NANOCOLOR® PC export software. This enables digital archiving, statistical analysis and the convenient creation of certificates of analysis. The simple option to independently verify instrument calibrations using certified test solutions meets the highest requirements of audited quality management systems. Technical details Optics & Photometry Type: Filter photometer with microprocessor control, self-test and auto-calibration Light source: Extremely long-life xenon flash lamp Detector: Silicon photodiode Wavelengths (filters): 345 / 436 / 540 / 585 / 620 / 690 nm plus 860 nm for turbidity measurement Wavelength accuracy: +/- 2 nm Photometric range: +/- 3 Abs Photometric accuracy: +/- 1 % Turbidity measurement: Integrated NTU check (nephelometric at 860 nm, measurement range 1-1,000 NTU) Interfaces, memory & software Data storage: 1,000 measurements (with date, time and sample number, supports documentation in a GLP environment) Interface: USB 2.0 for bidirectional data transfer and power supply Pre-programmed tests: Over 100 pre-programmed methods (VISOCOLOR® ECO and NANOCOLOR®) User-defined methods: Up to 50 freely programmable methods Design & Power supply Display: Backlit graphic display (64 x 128 pixels) Cuvette holder: For round cuvettes with an external diameter of 16 mm (no adapter change required) Power supply: 4 x AA batteries, rechargeable batteries, USB interface or external mains adaptor Housing features: Robust, ergonomic design, splash-proof membrane keypad Dimensions (W x D x H): approx. 215 x 160 x 70 mm Weight: approx. 1.0 kg (including batteries) Scope of delivery 1 x Macherey-Nagel Compact Photometer PF-12Plus base unit (MPN: 919250) 1 x Sturdy carrying case with custom-fit foam insert 1 x Manual / Quick Start Guide (including test instructions) 4 x AA batteries (Mignon) 1 x USB cable for PC connectivity and external power supply 1 x NANOCOLOR® PC export software (free download) 1 x Calibration cuvette Important note: Reagent test kits (such as NANOCOLOR® or VISOCOLOR® ECO tube tests) are not included in the standard scope of delivery and must be ordered separately according to your specific application. Individual requirements & accessories To ensure you get the most out of the PF-12Plus, we offer a comprehensive range of reagent kits. For standardised, high-precision photometric analyses, we recommend the NANOCOLOR® tube tests (e.g. for COD, total nitrogen, total phosphorus) as well as the VISOCOLOR® ECO test kits. For on-site sample preparation, we offer portable heating blocks (e.g. the NANOCOLOR® VARIO Mini for 12 V vehicle power supply) for the chemical digestion of samples. To ensure the continuous integrity of the metrological chain in your laboratory, we also offer certified test solutions (NANOCONTROL NANOCHECK) for verifying photometric accuracy. Make use of our technical procurement service to tailor your mobile measuring station to your specific requirements.
Macherey-Nagel VISOCOLOR Fish reagent case, 933101
The VISOCOLOR Fish analysis kit has been specially developed for the analysis of fishing waters. It combines reagents and accessories for the six most important water parameters in a single set: ammonium, nitrate, nitrite, phosphate, pH and total hardness. Six key parameters for water quality Anyone wishing to assess fishing waters can hardly avoid these six parameters: ammonium, nitrate and nitrite indicate nitrogen loading and thus, indirectly, the condition of the fish population; phosphate indicates nutrient inputs and algal growth; whilst pH and total hardness provide the basic data for almost any further hydrological assessment. With a single kit, the most important parameters for a fishing water assessment can be covered directly on site, without having to put together several individual tests. Use in fish farming, club waters and water monitoring Whether monitoring an aquaculture pond, carrying out a routine check by an angling or fishing club on its own waters, or taking a random sample as part of official water monitoring: the kit provides the key parameters needed to identify pollution issues at an early stage, before they endanger fish stocks. As all the tests can be carried out without an additional photometer, the kit can be used directly at the water body, without a power connection or sensitive additional equipment. Ready for immediate on-site use The kit includes a case, test kits, accessories and instructions. Results are interpreted purely visually by colour comparison. The reagents have a shelf life of 1.5 years from the date of manufacture and should be stored at 15–25 °C to ensure that results remain reliable throughout their entire service life. Technical details Hazardous substances Yes Gross weight (including packaging) 1381.5 g Shelf life (from date of manufacture) 1.5 years Storage temperature 15–25 °C Scope of delivery Case, test kits, accessories, instructions Parameters Ammonium, nitrate, nitrite, phosphate, pH, total hardness Photometer included No Packaging dimensions 325 x 238 x 155 mm Trademark VISOCOLOR
Macherey-Nagel folded filter paper MN 615, qualitative, medium-speed (Ø 70–500 mm), 185 mm
Efficiency in the laboratory: Macherey-Nagel MN 615 folded filter papers Macherey-Nagel MN 615 folded filter papers are the time-saving solution for daily laboratory routines. Unlike simple filter paper circles, which have to be laboriously folded by hand (quarter-fold) before being placed in the funnel, these filters are already machine-folded (1/4-fold). This not only saves valuable working time but also offers a decisive technical advantage: the pleated structure significantly increases the effective filter surface area. The result is a faster flow rate and a reduced tendency to clog, as the precipitate is distributed more evenly. The all-rounder for qualitative analyses The MN 615 grade is the globally proven standard paper for qualitative analyses (ash content approx. 0.1 %), which primarily involve the clarification of solutions or the recovery of filtrates. Medium-speed filtration: With a filtration time of approx. 22 seconds (according to DIN 53137), this paper offers the ideal balance between speed and retention. Smooth surface: The fibres are processed to form a homogeneous structure that reliably retains particles. Retention range: Particles ranging from 4 to 12 µm (e.g. lead sulphide, calcium oxalate) are reliably filtered. Wide range of sizes We offer the MN 615 folded filter papers in a wide range of diameters: from 70 mm for small analytical funnels up to 500 mm for large-scale production batches. Please note that the diameter specified always refers to the diameter of the unfolded paper disc. Areas of application General chemistry: Clarification of salt solutions and buffers. Food analysis: Filtration of macerates, juices or extracts. Schools & Education: Time-saving preparation of school experiments. Environmental analysis: Pre-filtration of water samples. Technical data Grade: MN 615 (folded filter paper) Type: Qualitative filter paper Filtration speed: Medium-speed (approx. 22 s) Surface: Smooth Grammage: 70 g/m² Thickness: 0.16 mm Retention range: 4 – 12 µm Ash content: approx. 0.1 % Material: Cellulose (approx. 95 % alpha-cellulose) Format: folded into quarters (ready for the funnel) Packaging unit: 100 pieces per pack Scope of delivery 1 x pack of 100 Macherey-Nagel folded filter papers (grade MN 615) (The diameter corresponds to the variant you selected above.) Individual requirements & accessories Do you have the right funnel for your folded filter papers? Rule of thumb: The top edge of the folded filter paper should end approx. 1–2 cm below the rim of the funnel. A filter that is too large will protrude (risk of evaporation, tendency to creep), whilst one that is too small will not make full use of the funnel’s volume. Alternatives: If you need to filter very fine precipitates (e.g. barium sulphate), we recommend the denser grade MN 619. For very coarse, bulky precipitates, opt for grade MN 617. Do you require large quantities for industrial use or special sizes? Please contact our procurement service.
Macherey-Nagel VISOCOLOR Fish reagent case with PF-3 Fish, 934127
According to the manufacturer, the VISOCOLOR Fish reagent case with PF-3 Fish from Macherey-Nagel is developed for the advanced analysis of fishing waters. It contains the PF-3 Fish compact photometer, reagents and accessories for 14 water parameters. Test strips give quick results by dipping and reading, and the ECO reagents are intended for photometric determination.Tests includedThe 14 parameters are covered by four methods: test strips (chloride, total hardness, carbonate hardness, pH), titration (alkalinity), colour disc (phosphate) and photometric determination with the PF-3 Fish. Phosphate and pH are represented twice, phosphate visually and photometrically, pH as a test strip and photometrically.ParameterTest kit (REF)MethodMeasuring rangeTestsChlorideQUANTOFIX Chloride (91321)Test strips, visualLevels 0, 500, 1,000, 1,500, 2,000 and ≥ 3,000 mg/L Cl⁻100Total hardnessCarbonate hardnesspHQUANTOFIX Multi-stick for aquarium owners (91326)Test strips, visualTotal hardness: levels 0, 5, 10, 15, 20 and 25 °dCarbonate hardness: levels 0, 3, 6, 10, 15 and 20 °dpH: levels 6.4, 6.8, 7.2, 7.6, 8.0 and 8.4100AlkalinityVISOCOLOR HE Alkalinity AL 7 (915207)Titration with titration syringe0.2 to 7.2 mmol/L OH⁻200Phosphate (ortho)VISOCOLOR HE Phosphate (920182)Colour disc, visual0.05 to 1.0 mg/L PO₄-P300AmmoniumVISOCOLOR ECO Ammonium 3 (931208)Indophenol, photometric0.1 to 2.5 mg/L NH₄⁺50Chlorine (free and total)VISOCOLOR ECO Chlorine 6 (931217)DPD, photometric0.05 to 6.00 mg/L Cl₂200IronVISOCOLOR ECO Iron 2 (931226)Triazine, photometric0.04 to 2.00 mg/L Fe100Silicic acidVISOCOLOR ECO Silicic acid (931233)Silicomolybdenum blue, photometric0.2 to 3.0 mg/L SiO₂80CopperVISOCOLOR ECO Copper (931237)Cuprizone, photometric0.1 to 5.0 mg/L Cu²⁺100NitrateVISOCOLOR ECO Nitrate (931241)Azo dye, photometric4 to 60 mg/L NO₃⁻110NitriteVISOCOLOR ECO Nitrite (931244)Sulphanilic acid and 1-naphthylamine, photometric0.02 to 0.50 mg/L NO₂⁻120pHVISOCOLOR ECO pH (931270)Mixed indicator, photometricpH 6.1 to 8.4Not specifiedPhosphate (ortho)VISOCOLOR ECO Phosphate (931284)Phosphomolybdenum blue, photometric0.2 to 5.0 mg/L PO₄-P80OxygenVISOCOLOR ECO Oxygen (931288)Winkler, photometric1 to 8 mg/L O₂50PF-3 Fish compact photometerThe PF-3 Fish measures at three LED wavelengths (450, 530 and 660 nm) in round cuvettes with 16 mm outer diameter. The cuvette slot is open; according to the manual, the instrument is insensitive to extraneous light. It stores 50 measured values with date and time, transfers them via mini-USB and runs on three AA batteries or via USB. The housing is dust-tight and waterproof to IP68 (test conditions according to the manual: 1 m water depth, 1 hour). The manufacturer recommends calibrating the instrument with the calibration cuvette at least once a year.According to the brochure, the oxygen test has a shelf life of 1 year, the silicic acid test and the photometric phosphate test 3 years.Typical applicationsAnalysis of fishing watersRegular monitoring of fishing waters to avoid deficiencies and fish kills, according to the manufacturerOwn determination of important water values by fish farmers and others who work with water analysisTechnical detailsThe hazardous substance rows show the labelling of the product as a whole according to Section 2.2 of the safety data sheet. The individual reagents are classified separately in the manufacturer’s safety data sheet.PhotometerPF-3 Fish, LED photometer with 3 interference filtersWavelengths450 nm, 530 nm, 660 nm (± 2 nm)CuvettesRound cuvettes, 16 mm outer diameterData storage50 measured values with date and timeInterfaceMini-USB (power supply and data export)Degree of protectionIP68Power supply3 AA batteries or USBPhotometer, dimensions and weight170 × 95 × 68 mm, 0.5 kgPackaging dimensions400 × 302 × 190 mmGross weight (including packaging)3,450 gStorage temperature15 to 25 °CShelf life (from production)1 yearHazardous substancesYesGHS pictogramsGHS02 (flammable), GHS05 (corrosive), GHS08 (health hazard), GHS09 (environmental hazard)Signal wordDangerHazard statementsH314 (Causes severe skin burns and serious eye damage), H317 (May cause an allergic skin reaction), H334 (May cause allergy or asthma symptoms or breathing difficulties if inhaled)Precautionary statementsP260, P264, P272, P280, P284, P303+361+353, P305+351+338, P310, P333+313, P405, P501TransportUN 3316 Chemical kit, Class 9, Packing Group IIScope of delivery1 case with PF-3 Fish compact photometer and certificateTest kits for 14 parameters (REF in the table)1 calibration cuvette and 4 reaction tubes (empty cuvettes, 16 mm)Syringes (2 × 5 mL, 1 × 1 mL), 2 yellow drip tips, titration syringe 0 to 7.2 mmol/LSample beaker (25 mL), oxygen sample bottle (30 mL), titration test tube with 5 mL marking, 2 measuring glasses with screw capSliding comparator and colour disc VISOCOLOR HE PhosphateMeasuring spoons (1 black, 2 orange), tweezers, timerPF-3 manual, PF-3 Fish test instructionsRegulatory informationThe PF-3 photometer included falls under the ElektroG as an electrical appliance. The manufacturer MACHEREY-NAGEL GmbH & Co. KG is registered under WEEE registration number DE 18812169. Information on how to return old appliances can be found on the Environment and Disposal page.Individual requirements and procurement serviceRefill packs for the VISOCOLOR ECO test kits are also available. The REF numbers are in the table. Enquiries about refill packs, accessories or larger quantities are handled by our procurement service.
Macherey-Nagel folded filter paper MN 616 md, qualitative, 4–7 µm (Ø 55–500 mm), 150 mm
For finer precipitates: Macherey-Nagel MN 616 md folded filter papers Macherey-Nagel MN 616 md folded filter papers are the right choice when standard filters (such as the MN 615) reach their limits. In this quality grade, the abbreviation ‘md’ stands for a slightly higher density and improved retention capacity. These are qualitative filter papers that are machine-folded (1/4-fold) so that they can be inserted into the funnel straight away. The difference: medium-speed to slow In everyday laboratory work, it often happens that fine-grained precipitates pass through a standard filter (leaving the filtrate cloudy). This is where the MN 616 md comes into its own: Filtration speed: At approximately 55 seconds (according to DIN 53137), this paper filters significantly more slowly than the standard MN 615 type. This reduced flow rate is necessary to reliably retain finer particles. Retention capacity: The pore size range is 4 to 7 µm. This means that fine precipitates such as barium sulphate (cold-precipitated), tin oxide or sugar solutions are reliably clarified. Surface: The filters are smooth, which enables good recovery of the precipitate. Advantages of folded filter papers Despite the finer pore structure, you benefit from the pleated geometry. The large surface area prevents the filter from becoming clogged quickly, which is often a problem with flat filter paper circles of the same density. You obtain a clear filtrate within a reasonable time. Quality and purity The MN 616 md grade is made from high-quality cellulose with a very high proportion of alpha-cellulose. The ash content is < 0.1 %, which makes the paper virtually chemically inert. It is perfectly suited to qualitative analyses in chemistry, biology and food monitoring. Available sizes We offer this speciality paper in a comprehensive range, from small 55 mm filters for micro-funnel applications right up to the 500 mm large format for technical applications. Areas of application Analysis: Filtration of fine precipitates (e.g. calcium oxalate, magnesium ammonium phosphate). Beverage industry: Clarification of wine, beer or juices in cases of fine turbidity. Electroplating: Bath maintenance for fine suspended solids. Environment: Soil analysis and water treatment. Technical data Grade: MN 616 md (folded filter paper) Type: qualitative filter paper Filtration speed: Medium-speed to slow (approx. 55 s) Surface: Smooth Grammage: 85 g/m² Thickness: 0.17 mm Retention range: 4–7 µm (fine particles) Ash content: approx. 0.1 % Material: Cellulose Format: folded into quarters Packaging unit: 100 pieces per pack Scope of delivery 1 x pack of 100 Macherey-Nagel folded filter papers (grade MN 616 md) (The diameter corresponds to the variant you selected above.) Individual requirements & accessories When should you choose MN 616 md instead of MN 615? Opt for MN 616 md if your filtrate is still cloudy when using MN 615. Switch back to MN 615 if filtration with MN 616 md takes too long and the filtrate is already clear enough. Do you need funnels, stand fittings or beakers to collect the filtrate? We can fully equip your workstation. Please contact our procurement service.
Macherey-Nagel Compact Photometer PF-3 Fish, 919345
The PF-3 Fish compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specially designed to meet the requirements of fishery water analysis. It supports the measurement of ammonium, chlorine, iron, silicic acid, copper, nitrate, nitrite, pH, phosphate and oxygen, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Fish is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, rated IP 68, ready for mobile use in and around bodies of water. Wide range of parameters for water analysis With ten supported measurement parameters, the PF-3 Fish covers a particularly wide range for monitoring fishery waters, from classic nutrient parameters (ammonium, nitrate, nitrite, phosphate) through to metals (iron, copper) and oxygen, pH, chlorine and silicic acid. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test initiation directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument offers self-testing and auto-calibration. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Fish is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or deactivated) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Deactivated or automatic switch-off after 5 min, 10 min, 15 min, 20 min Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-marked Data storage 50 measurements Ambient light Insensitive to ambient light, open cuvette well Hazardous substances No Housing Shock-resistant, waterproof and dustproof, rated IP 68 Weight 0.5 kg Gross weight (including packaging) 844 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 263 x 222 x 86 mm Pre-programmed tests NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 450 nm / 530 nm / 660 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

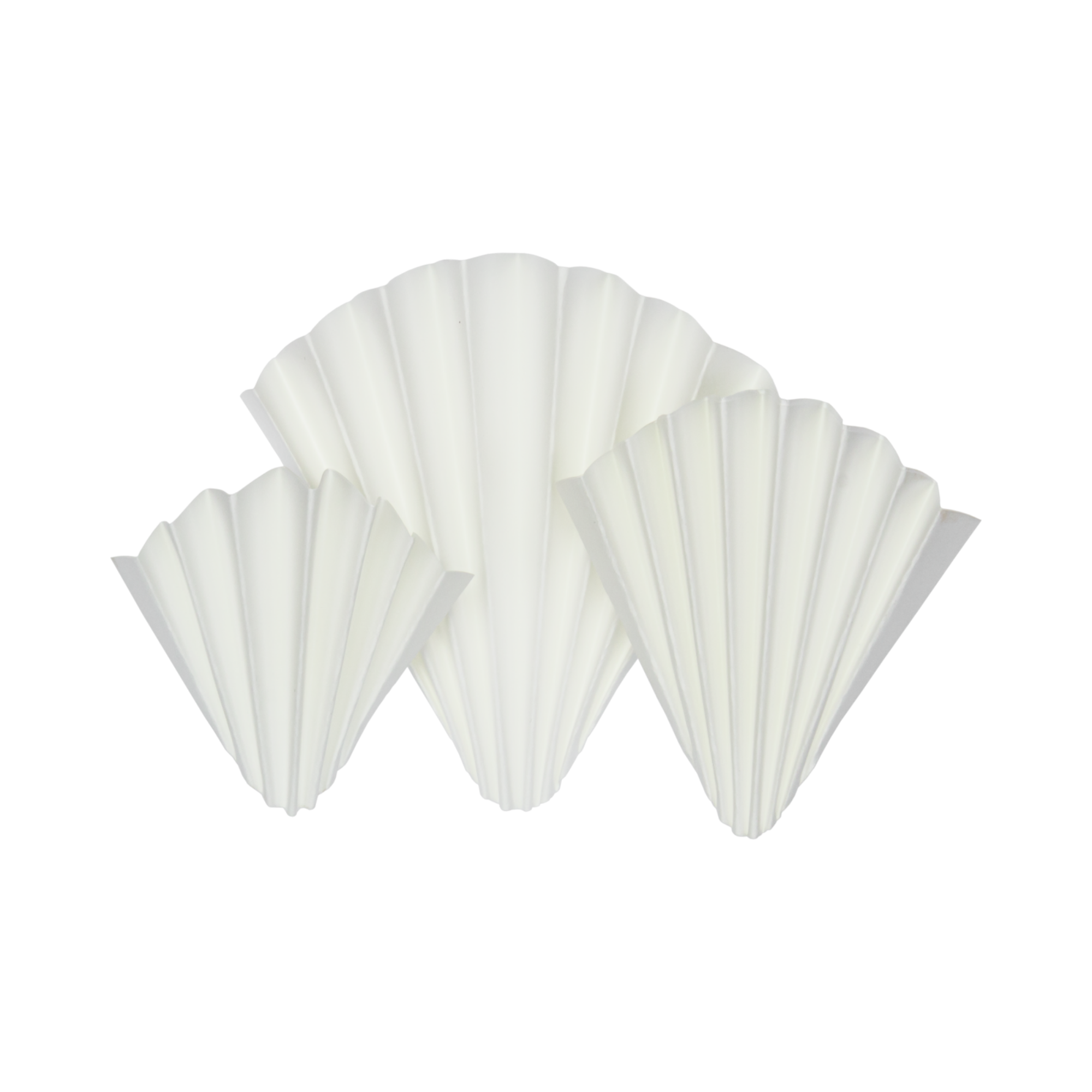

Macherey-Nagel folded filter papers, grade MN 617, qualitative, fast-filtering (Ø 55–500 mm), 90 mm
Macherey-Nagel MN 617 folded filter papers represent a system solution optimised in terms of materials science and highly efficient in terms of geometry, designed for rapid clarification, coarse particle separation and general sample preparation in day-to-day laboratory work. Available in an extremely wide range of diameters, from 55 mm for small-scale analytical batches up to large-area 500 mm filters for high-volume separation processes, this filter series caters for every scale of modern laboratory processes. For routine filtration in food analysis, environmental chemistry or industrial quality control, the structural purity and fibre stability of the filter paper are the primary criteria for clarifying media in a way that is gentle on the material, contamination-free and process-reliable. Maximum filtration speed thanks to pre-pleated geometry The design and fluid-mechanical foundation of this series lies in its ready-to-use pleated structure. Unlike traditional filter paper circles, which must first be laboriously folded twice before being inserted into the funnel, the pre-formed pleat pattern multiplies the effective filtration surface area. This leads to a drastic reduction in filtration times during daily high-throughput operation. With a standardised filtration speed of approx. 9 seconds according to the manufacturer’s specification, the MN 617 grade enables an extremely rapid liquid throughput. Flow resistance is minimised, thereby gently reducing unwanted blocking effects in viscous or particle-rich sample flows. High wet tear strength and the purest raw material base From a materials science perspective, the MN 617 grade is based on refined pulp and high-quality linters, which are processed entirely free from chemical binders or additives. The smooth surface structure ensures a homogeneous non-woven fabric that exhibits excellent inherent mechanical stability. Thanks to optimised fibre entanglement, the filters possess remarkable wet tear strength. They withstand the fluid-mechanical pressure during funnel filtration without damage and do not tend to release fibres into the filtrate. With a typical ash content of approximately 0.1 %, the paper is perfectly suited to qualitative analytical procedures where ash-free incineration is not strictly required. Cost-effective routine use The infrastructural validity of the MN 617 folded filter papers is demonstrated by their reliability in recurring routine tasks. As the filters are supplied pre-pleated and ready for use, laboratory staff save valuable working time whilst simultaneously minimising the risk of contamination from manual folding. For laboratory managers and quality management officers in regulated B2B environments, Macherey-Nagel’s range provides a basis for recurring test processes in GLP environments. Technical details Material science & filter structure Filter type: qualitative filter paper / folded filter paper (pre-configured and ready for use) Grade / Quality level: MN 617 Material basis: Refined alpha-cellulose and the purest linters Binder status: 100 % binder-free (free from chemical additives) Surface structure: Smooth Filtration properties: Fast filtration (open-pored structure for coarse precipitates) Filtration speed: approx. 9 seconds (standardised according to manufacturer’s specifications) Ash content: approx. 0.1 % (qualitative classification) Physical properties & dimensions Grammage: approx. 85 grams per square metre (85 g/m²) Filter thickness: approx. 0.22 mm (millimetres) Available diameter range: 55 mm to 500 mm Diameter variants in the range: 55, 70, 90, 110, 125, 150, 185, 240, 270, 320, 385, 400, 450, 500 mm Resistance & compliance Chemical resistance: Inert to mild acids, alkalis and a wide range of organic solvents Wet tear strength: High (structurally stable under liquid load) Quality management: Supports standardised, reproducible routine filtration processes in GLP environments Scope of delivery 1 x pack of Macherey-Nagel folded filter papers, grade MN 617, qualitative and fast-filtering (standard contents: 100 pieces per box) in the diameter selected by the customer (55 mm to 500 mm). Individual requirements & accessories To ensure the optimal integration of Macherey-Nagel folded filter papers into your daily laboratory routine, we offer a comprehensive range of complementary accessories. For traditional gravity filtration, we offer chemically highly resistant glass funnels (60-degree angle) made from borosilicate glass, as well as matching Erlenmeyer flasks and laboratory beakers for collecting the filtrate. For contamination-free and precise handling of the sensitive filter elements, we recommend flat-tipped filter tweezers made from high-alloy stainless steel. For structured filtration series, we also offer robust funnel stands and boss heads. Please make use of our technical procurement service to design your analytical infrastructure to suit your specific needs.
Macherey-Nagel VISOCOLOR School reagent case, 933100
The VISOCOLOR SCHOOL analysis kit brings hands-on water analysis straight into the classroom: all the reagents included correspond to the GUV rule for handling hazardous substances in the classroom (GUV-SR 2004). Pupils can therefore carry out the experiments themselves without teachers having to intervene at every step. A safe introduction to water analysis for the classroom Whether in chemistry, biology or geography lessons: water analysis is an integral part of many curricula when it comes to topics such as water quality, nutrient inputs or ecosystems. The VISOCOLOR SCHOOL analysis kit makes such experiments suitable for everyday use, for example when analysing water samples from a nearby stream, pond or lake as part of a field trip, or directly in the classroom using samples brought in by the pupils. As the reagents conform to GUV-SR 2004, even younger pupils can carry out the tests and evaluate colour comparisons themselves under supervision. Ammonium and pH: two parameters of high educational value The kit covers the determination of ammonium (graduation 0 / 0.2 / 0.5 / 1 / 3 mg/L NH₄⁺) and pH (graduation 4.0 / 5.0 / 6.0 / 7.0 / 8.0 / 9.0). Both parameters are well suited to teaching pupils fundamental concepts: ammonium as a classic indicator of organic pollution and nutrient inputs into water bodies, and pH as a key parameter for virtually any chemical and biological analysis of water. The kit includes a case, test kits, accessories and instructions, ready to use for the next lesson. Ready for immediate use without a photometer Analysis is carried out purely visually by colour comparison, without the need for an additional photometer. This significantly lowers the barrier to entry for schools and other educational institutions with limited equipment and enables several groups to work simultaneously, each group with its own test kit, without a single measuring device becoming a bottleneck. Cost-effective refills Once the supplies have run out, there’s no need to buy a whole new kit: an affordable refill pack is available if required. Technical details Hazardous substances Yes Gross weight (including packaging) 1,453 g Shelf life (from date of manufacture) 1.5 years Storage temperature 15–25 °C Scope of delivery Case, test kits, accessories, instructions Parameters Ammonium, pH Photometer included No Packaging dimensions 325 x 238 x 155 mm Trademark VISOCOLOR
Macherey-Nagel glass fibre filter circles MN 85/90 BF, binder-free, 0.5 µm (Ø 25–270 mm), 90 mm
Determining suspended solids in a water sample means filtering, drying and weighing. The Macherey-Nagel MN 85/90 BF glass fibre filter circles are intended for this. They consist of borosilicate glass microfibres without binder and, according to the data sheet, are suitable for the determination of suspended solids according to DIN EN 872:2005. The average retention capacity is 0.5 µm and the maximum temperature is 500 °C.Binder-free glass fibre filter circles for oven and balanceIn gravimetric methods, the filter is weighed before and after filtration. Macherey-Nagel explicitly names weighing by difference as an application of this type. Without a binder, the filter has no organic component that could lose mass at higher temperatures. The thickness is 0.51 mm with a grammage of 90 g/m², and the filtration speed is 15 s.Thermally and chemically robustMacherey-Nagel describes binder-free glass microfibre filters as thermally and chemically resistant. They are therefore also used for dust filtration in air and hot exhaust gases. The manufacturer describes its glass fibre filter papers made of 100 % borosilicate glass as suitable for aggressive media such as strong acids and bases.MN 85/90 BF or MN 85/90 with binderRetention capacity (0.5 µm) and grammage (90 g/m²) are the same for both types. The version with binder is thicker at 0.6 mm and, according to Macherey-Nagel, mechanically more stable, but it withstands only 200 °C. If you work in an oven or filter aggressive solutions, use the BF. If you filter in general and do not exceed 200 °C, you can stay with the MN 85/90 with binder.Typical applicationsDetermination of suspended solids in water and wastewater according to DIN EN 872:2005Gravimetric analyses with weighing by differenceFiltration of aggressive solutions where an organic binder would interfereDust filtration in air and hot exhaust gasesAvailable diameters13 diameters from 25 to 270 mm are available. Compared with the MN 85/90 with binder, the 320 mm diameter is not available here, but there is a 47 mm. The table lists the manufacturer’s item number for each diameter.DiameterPieces per packMPN25 mm100406002537 mm100406003745 mm100406004547 mm100406004755 mm10040600570 mm10040600790 mm100406009110 mm100406011125 mm100406012150 mm100406015185 mm100406018240 mm100406024270 mm100406027Technical detailsAll figures are typical values according to Macherey-Nagel and not a specification.TypeMN 85/90 BFMaterialBorosilicate glass microfibresBindernoneAverage retention capacity0.5 µmGrammage90 g/m²Thickness0.51 mmFiltration speed15 sMaximum temperature500 °CSurfacesmoothColourwhiteSuitable forDetermination of suspended solids according to DIN EN 872:2005 (according to the manufacturer)Shapefilter circleDiameter25 to 270 mmPack contents100 piecesScope of delivery1 pack containing 100 MN 85/90 BF glass fibre filter circles in the selected diameterIndividual requirements and procurement serviceSuction filters, filtration units, suction flasks, filter tweezers and vacuum pumps are also available. Enquiries about accessories, other types or larger quantities are handled by our procurement service.
Macherey-Nagel NANOCOLOR Sulphide 3 tube test, 985073
Reliably and rapidly determining sulphide levels in water and effluent samples is a recurring issue in effluent analysis, particularly in relation to anaerobic processes and odour problems. The NANOCOLOR Sulphide 3 tube test from Macherey-Nagel delivers precise, time-saving results when used in conjunction with the appropriate NANOCOLOR photometers.Precise method for low concentrationsThe test is based on the methylene blue method and covers a measurement range of 0.05–3.00 mg/L S²⁻, suitable for very low sulphide concentrations. The method is based on DIN 38405 D26 and D27 and is suitable for both fresh water and seawater samples.Compatible with standard NANOCOLOR photometersThe test can be analysed on the following instruments: 500 D, Advance, MT Easy UV, MT Easy VIS, PF-12Plus, UV/VIS II and VIS II, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already offered in our range.Practical for everyday laboratory useA sturdy box containing 20 round cuvettes is sufficient for 20 determinations. When stored at 15–25 °C, the shelf life from the date of manufacture is 3 years. No additional digestion kit or sewage sludge digestion kit is required for this test.Technical details Parameter Sulphide Method Sulphide - Methylene blue Measuring range Sulphide - 0.05–3.00 mg/L S²⁻ Note Measurement range on the NANOCOLOR VIS II Test range Very low Test method Photometric Underlying standard Analogous to DIN 38405 D26, DIN 38405 D27 Test No. 0-73 Platform NANOCOLOR tube tests Can be analysed with 500 D, Advance, MT Easy UV, MT Easy VIS, PF-12Plus, UV/VIS II, VIS II Application Wastewater, water Seawater analysis Yes Digestion kit No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 3 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 344 g Packaging dimensions 160 x 110 x 119 mm Hazardous substances Yes Trademarks NANOCOLOR

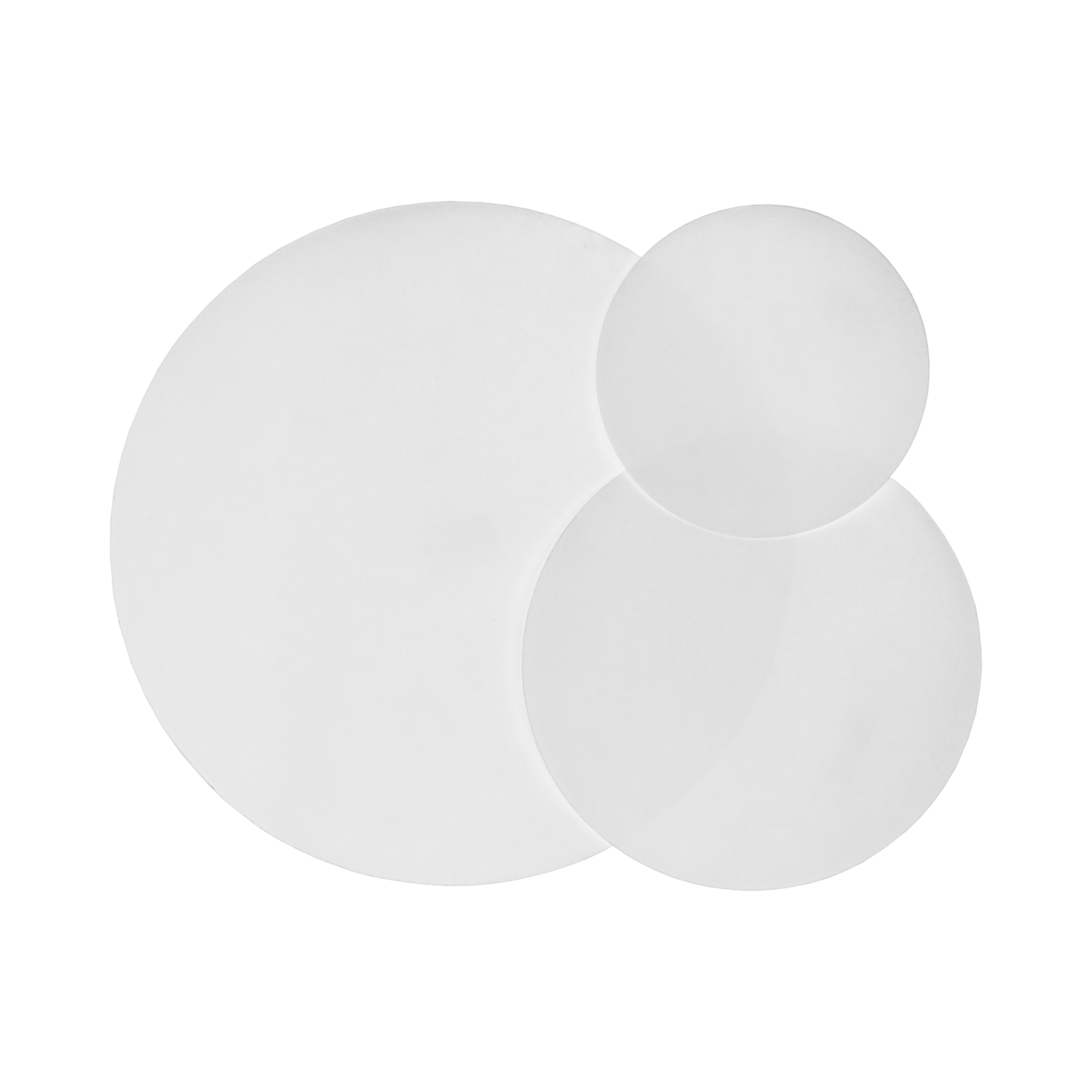

Macherey-Nagel filter paper circles MN 619 qualitative, slow-filtering, smooth (Ø 55–500 mm), 150 mm
The Macherey-Nagel MN 619 filter paper circles represent a structurally optimised and process-proven system solution for qualitative filtration in everyday laboratory work. Available in a wide range of diameters, from 55 mm for compact standard funnels up to 500 mm for high-volume separation processes, this filter series caters for every scale in chemistry, the pharmaceutical industry, environmental analysis and industrial quality control. Wherever fine-particle suspensions need to be clarified or demanding samples prepared, this slow-filtration quality enables gentle, particle-free and process-reliable working. Maximum particle retention thanks to a dense fibre structure The technological foundation of the MN 619 filter paper circles is based on refined cellulose and linter fibres, which are processed into a homogeneous, close-meshed structure. The slow filtration speed of around 100 seconds (according to the manufacturer’s specifications), from which the filter takes its name, results from the high density of the pore structure. This geometric structure ensures that even fine crystalline precipitates and microparticles are reliably retained on the filter surface. The risk of a transient particle flow through the filter medium is thus effectively minimised, which reliably safeguards the validity of subsequent qualitative analyses. Smooth surface geometry for residue-free separation From a materials science perspective, the completely smooth surface of the filter paper circle offers significant functional advantages in sample preparation. Unlike creped variants, fine precipitates on the smooth structure do not tend to become lodged in fibre recesses. This noticeably facilitates the subsequent mechanical removal or washing out of the filter cake. Furthermore, the material is characterised by high purity and a low ash content for qualitative filter papers, thereby gently preventing unwanted chemical interactions with the sample medium or solvent extractions. High wet strength for reproducible laboratory processes Despite being based on pure cellulose without synthetic stabilisers, the MN 619 filter paper circles exhibit remarkable inherent mechanical stability when wet. The three-dimensional depth structure remains completely dimensionally stable even under the hydrostatic pressure of a fully filled funnel. For laboratory managers and quality management personnel in regulated environments, Macherey-Nagel offers, with this standardised fibre grade, a documentation basis for recurring routine filtrations in GLP environments. Technical details Materials science & filter structure Filter type: Qualitative filter paper circle / paper filter Grade / Quality level: MN 619 Material composition: High-purity cellulose and refined linter fibres Surface texture: Smooth, uniformly structured Colour: White Filtration speed: Slow (approx. 100 seconds according to the manufacturer’s specifications) Intended use: Separation of fine-crystalline and very fine precipitates Physical properties Grammage: approx. 85 grams per square metre (85 g/m²) Filter thickness: approx. 0.17 mm (millimetres) Fibre shedding: Extremely low due to dense fibre bonding Chemical resistance: Inert to mild acids, alkalis and common organic solvents Dimensions & range of variants Available diameter range: 55 mm to 500 mm Common diameters: 55, 70, 90, 110, 125, 150, 185, 240, 320, 400, 500 mm Cut: Geometrically precise, fibre-free circular cut Hazard classification: Not classified as a hazardous substance under GHS guidelines; safe to handle Scope of delivery 1 x pack of Macherey-Nagel filter paper circles, grade MN 619, smooth (standard contents: 100 pieces per box) in the diameter selected by the customer (55 mm to 500 mm). Individual requirements & accessories To ensure the optimal integration of Macherey-Nagel filter paper circles into your daily laboratory routine, we offer a comprehensive range of complementary accessories. For standard filtration, our portfolio includes robust glass funnels, polypropylene funnels, as well as suitable laboratory stands and funnel holders. For contamination-free and gentle handling of the wet filter paper circles, we recommend the use of flat-tipped filter tweezers made from high-alloy, corrosion-resistant stainless steel. For subsequent drying or storage processes, we also offer chemically inert Petri dishes, watch glasses and desiccators. Please make use of our technical procurement service to design your filtration workstations to suit your specific requirements.
Macherey-Nagel MN 615 filter paper circle, qualitative, medium-speed (Ø 25–500 mm), 500 mm
The all-rounder for the laboratory: Macherey-Nagel MN 615 filter paper circles Macherey-Nagel MN 615 filter paper circles are an indispensable part of the basic equipment for chemical analysis and industrial quality assurance. These are qualitative filter papers designed for general separation tasks where the filter residue does not need to be determined gravimetrically (no ash-free ignition required). This product range is characterised by its versatility: it is available in numerous diameters ranging from 25 mm to 500 mm, thus covering every funnel size, from the smallest micro-funnel right through to large industrial filtration units. Features: The happy medium The MN 615 grade is the standard for routine filtration. It offers the ideal balance between time savings and particle retention: Filtration speed: Classified as medium-speed filtration (approx. 22 seconds according to DIN 53137), the paper enables rapid processing without clogging. Surface: The filters are smooth. This makes it considerably easier to scrape off or recover precipitates from the filter cake. Retention capacity: With a pore size range of approx. 4 to 12 µm, medium-fine to coarse precipitates (such as sulphides, lead chromate or calcium oxalate) are reliably retained. Quality and purity Macherey-Nagel uses high-quality raw materials for these filters. They consist of approximately 95 % alpha-cellulose, which contributes to high chemical stability. The ash content is approximately 0.1 %. This means the filters are largely chemically inert. Areas of application Routine laboratory work: Clarification of buffer solutions and reagents. Education: Standard filters for schools and universities (qualitative analysis). Food industry: Filtration of extracts and juices. Electroplating & metalworking: Bath maintenance and analysis. Select the suitable diameter Simply select the diameter that fits your funnel from the menu above. As a rule of thumb: when inserted, the filter should not protrude beyond the rim of the funnel, but should end approximately 1–2 cm below the rim. Technical data Grade: MN 615 Type: Qualitative filter paper, filter paper circles Filtration speed: Medium-speed (approx. 22 s) Surface: Smooth Grammage: 70 g/m² Thickness: 0.16 mm Retention range: 4 – 12 µm Ash content: approx. 0.1 % Material: Cellulose Packaging unit: 100 pieces per pack Scope of delivery 1 x pack of 100 Macherey-Nagel filter paper circles (grade MN 615) (The diameter corresponds to the variant you selected above.) Individual requirements & accessories Filter paper is only as good as the accessories used with it. To ensure your filtration process runs smoothly, you’ll need the right funnel. Suitable funnels: Whether made of glass or robust plastic (PP/TPX), make sure that the filter diameter you have chosen matches the funnel size (the filter should end approx. 1–2 cm below the rim). Other pleat configurations: Do you require faster filtration whilst maintaining the same pore size? We also offer this grade as folded filter papers (increased surface area). Quantitative analyses: If you need to ash the residue (gravimetry), you will require ash-free filters (e.g. MN 640). Can’t find the right size, or do you need large quantities for industrial applications? We can source any speciality filter for you. Please contact our procurement service.
Macherey-Nagel MN 85/90 round glass fibre filter with binder, 0.5 µm (Ø 25–320 mm), 45 mm
The Macherey-Nagel MN 85/90 glass fibre filter circles are intended for general laboratory filtration. They consist of borosilicate glass microfibres with an organic binder, have a smooth, white surface and a thickness of 0.6 mm. The average retention capacity is 0.5 µm and the filtration speed is 15 s. One pack contains 100 filters, and 13 diameters from 25 to 320 mm are available.Glass fibre filter circles with and without binderThe organic binder holds the glass fibres together. According to Macherey-Nagel, this gives the filter comparatively high mechanical stability. The binder-free counterpart MN 85/90 BF has the same retention capacity of 0.5 µm and the same grammage of 90 g/m². At 0.51 mm it is slightly thinner than the MN 85/90 at 0.6 mm, and it withstands 500 °C, whereas the MN 85/90 withstands only 200 °C.If you only filter off the residue and dry it at up to 200 °C, the filter with binder is sufficient. For higher temperatures and for aggressive solutions, the BF version is the better choice because it contains no organic component.MN 85/90 or MN 85/70The MN 85/70 is also a glass fibre filter with an organic binder and a filtration speed of 15 s. At 0.6 µm it retains more coarsely, weighs 73 g/m² and is 0.42 mm thick. The MN 85/90 is therefore finer, heavier and thicker. If the finer retention of 0.5 µm matters, the MN 85/90 is the suitable type.Typical applicationsClarification filtration of solutions, extracts and digests before analysisSeparation of precipitates and solids in vacuum filtrationPrefiltration of samples that would quickly clog a membrane filterRoutine filtration in the laboratory up to 200 °CAvailable diametersThe diameter depends on the funnel or filter holder. The filter circle should cover the perforated plate completely without standing up at the edge. All 13 diameters are listed in the table with the manufacturer’s item number.DiameterPieces per packMPN25 mm100405002537 mm100405003745 mm100405004555 mm10040500570 mm10040500790 mm100405009110 mm100405011125 mm100405012150 mm100405015185 mm100405018240 mm100405024270 mm100405027320 mm100405032Technical detailsAll figures are typical values according to Macherey-Nagel and not a specification.TypeMN 85/90MaterialBorosilicate glass microfibresBinderorganicAverage retention capacity0.5 µmGrammage90 g/m²Thickness0.6 mmFiltration speed15 sMaximum temperature200 °CSurfacesmoothColourwhiteShapefilter circleDiameter25 to 320 mmPack contents100 piecesScope of delivery1 pack containing 100 MN 85/90 glass fibre filter circles in the selected diameterIndividual requirements and procurement serviceBüchner funnels, suction flasks, filter tweezers and vacuum pumps are also available. Enquiries about accessories, other types or larger quantities are handled by our procurement service.
Macherey-Nagel MN 85/70 glass fibre filter circles, with binder, 0.6 µm (Ø 25–320 mm), 320 mm
The Macherey-Nagel MN 85/70 glass fibre filter circles are the thinner and lighter alternative to the MN 85/90. Both are glass fibre filters with an organic binder for general filtration. The MN 85/70 has a thickness of 0.42 mm and weighs 73 g/m², and its average retention capacity is 0.6 µm. As with the MN 85/90, the filtration speed is 15 s and the maximum temperature is 200 °C.MN 85/70 glass fibre filter circles compared with MN 85/90The data sheet values of the two types at a glance:ValueMN 85/70MN 85/90Average retention capacity0.6 µm0.5 µmGrammage73 g/m²90 g/m²Thickness0.42 mm0.6 mmFiltration speed15 s15 sMaximum temperature200 °C200 °CThe MN 85/70 therefore retains somewhat more coarsely, but is thinner and lighter. According to the data sheet, it is not faster; both types are at 15 s. If you need a retention capacity of 0.5 µm, use the MN 85/90. If 0.6 µm is sufficient, the MN 85/70 is the slimmer type.More diameters, including 47, 50 and 100 mmWith 16 diameters from 25 to 320 mm, the choice is larger than with the MN 85/90, which has 13. In addition, 47, 50 and 100 mm are available here. The diameter depends on the funnel or filter holder.Typical applicationsThe MN 85/70 is used for clarification filtration of solutions and extracts, for separating precipitates in vacuum filtration and for prefiltration of samples that would quickly clog a membrane filter. According to Macherey-Nagel, the organic binder gives the filter comparatively high mechanical stability. For higher temperatures up to 500 °C, the binder-free MN 85/70 BF is intended.Available diametersEach pack contains 100 filters. The table lists all 16 diameters with the manufacturer’s item number.DiameterPieces per packMPN25 mm100403002537 mm100403003745 mm100403004547 mm100403004750 mm100403005055 mm10040300570 mm10040300790 mm100403009100 mm100403010110 mm100403011125 mm100403012150 mm100403015185 mm100403018240 mm100403024270 mm100403027320 mm100403032Technical detailsAll figures are typical values according to Macherey-Nagel and not a specification.TypeMN 85/70MaterialBorosilicate glass microfibresBinderorganicAverage retention capacity0.6 µmGrammage73 g/m²Thickness0.42 mmFiltration speed15 sMaximum temperature200 °CSurfacesmoothColourwhiteShapefilter circleDiameter25 to 320 mmPack contents100 piecesScope of delivery1 pack containing 100 MN 85/70 glass fibre filter circles in the selected diameterIndividual requirements and procurement serviceBüchner funnels, suction flasks, filter tweezers and vacuum pumps are also available. Enquiries about accessories, other types or larger quantities are handled by our procurement service.
Macherey-Nagel glass fibre filter circles MN GF-1, binder-free, 0.7 µm (Ø 25–270 mm), 90 mm
The Macherey-Nagel MN GF-1 glass fibre filter circles filter quickly while retaining particles from 0.7 µm. According to the data sheet, the filtration speed is 12 s. This is shorter than for the MN 85/90 and MN 85/70 at 15 s each and for the MN GF-3 at 25 s. The filter consists of borosilicate glass microfibres without binder, is 0.28 mm thick and weighs 52 g/m².Glass fibre filter circles with short filtration timeMacherey-Nagel describes the GF-1 as a glass fibre filter with fast filtration and very good retention for highly efficient laboratory filtration and air sampling. The average retention capacity of 0.7 µm is above that of the MN GF-3 and MN 85/70 at 0.6 µm each and of the MN 85/90 at 0.5 µm. If you mainly want to save time and 0.7 µm is sufficient, the GF-1 is suitable. For a finer filtrate, the MN GF-3 is an option.Up to 500 °C without binderWithout a binder, the GF-1 withstands up to 500 °C according to the data sheet. The types with binder, MN 85/90 and MN 85/70, are rated up to 200 °C and, according to Macherey-Nagel, have comparatively high mechanical stability. The GF-1 is the type to choose when speed and temperature matter more than this additional strength.Typical applicationsLaboratory filtration with high throughput where a retention capacity of 0.7 µm is sufficientAir sampling in which particles are collected on the filterFiltration of samples with a high solids content, for which Macherey-Nagel attributes a good loading capacity to the GF-1Gravimetric determinations with drying or ignition in an oven at up to 500 °CAvailable diameters13 diameters from 25 to 270 mm are available, with 100 filters per pack. Choose the diameter to match your funnel, filter holder or sampling device. The table lists the manufacturer’s item number for each size.DiameterPieces per packMPN25 mm100411002537 mm100411003745 mm100411004547 mm100411004755 mm10041100570 mm10041100790 mm100411009110 mm100411011125 mm100411012150 mm100411015185 mm100411018240 mm100411024270 mm100411027Technical detailsAll figures are typical values according to Macherey-Nagel and not a specification.TypeMN GF-1MaterialBorosilicate glass microfibresBindernoneAverage retention capacity0.7 µmGrammage52 g/m²Thickness0.28 mmFiltration speed12 sMaximum temperature500 °CSurfacesmoothColourwhiteShapefilter circleDiameter25 to 270 mmPack contents100 piecesScope of delivery1 pack containing 100 MN GF-1 glass fibre filter circles in the selected diameterIndividual requirements and procurement serviceBüchner funnels, filter holders, suction flasks, filter tweezers and vacuum pumps are also available. Enquiries about accessories, other types or larger quantities are handled by our procurement service.
Macherey-Nagel filter paper circle MN 617, qualitative, fast (9 s), smooth (Ø 55–500 mm), 70 mm
Rapid filtration for routine qualitative analysis In chemical, biological and industrial laboratory practice, the time-saving separation of coarse solids from liquid media is an essential process step. In contrast to quantitative analyses, where the filter paper must be ashed, qualitative filtration focuses on the rapid and efficient clarification of sample solutions. The Macherey-Nagel MN 617 filter paper circles have been developed specifically to meet these requirements. Featuring a smooth, soft surface, these cellulose filters represent the ideal laboratory standard for the rapid routine purification of biological extracts, chemical buffers or large-volume aqueous solutions. With an extremely wide range of diameters, from 55 to 500 millimetres, the system can be integrated precisely and without the need for a bypass into virtually any laboratory or industrial funnel. Material specifications: High-purity cellulose matrix The analytical quality of filter paper is primarily defined by its fibre structure. The MN 617 grade is manufactured from strictly selected raw materials that ensure optimum physical integrity. The paper consists of the finest cotton linters (extremely absorbent, short fibre strands from cotton seeds), combined with chemically refined pulp from coniferous and deciduous wood. This high-purity fibre blend gives a high alpha-cellulose content of approximately 95 %. Although this is a purely qualitative filter paper, for which the ash content is usually of secondary importance in terms of process technology, this value is remarkably low at approximately 0.1 %. A precisely calibrated grammage of 85 g/m² and a constant material thickness of 0.22 mm give the filter a slight wet strength, which is entirely sufficient for all standard funnel filtration processes without the need for significant additional overpressure or a strong vacuum. Filtration kinetics: Rapid flow rate with defined particle retention The outstanding process-related property of the MN 617 is its extremely high filtration speed. In the standardised Herzberg test, the paper achieves an excellent value of just 9 seconds (the time required for 10 ml of water to pass through unimpeded). This classification as a ‘fast’ filtering paper results from a physically open, more widely spaced fibre matrix. The filter is therefore well suited for the rapid separation of coarse, bulky or extremely flocculent particles. The retention capacity lies within the defined range of 7 to 12 micrometres (µm). Typical applications in routine laboratory work include the retention of coarse crystalline precipitates, the separation of insoluble impurities in preparation for sensitive optical analysis (such as photometry or spectroscopy), or the filtration of extremely viscous, gelatinous residues which would immediately render finer and more tightly meshed filter papers unusable due to clogging. Technical details Product type: qualitative filter paper for routine analysis Grade: Macherey-Nagel MN 617 Format: Filter paper circle (pre-cut for easy folding) Available diameters: 55, 70, 90, 110, 125, 150, 185, 240, 270, 320, 385, 400, 450, 500 mm Base material: High-purity cellulose blend (cotton linter and refined pulp) Alpha-cellulose content: approx. 95 % Filtration speed (classification): Fast Filtration time (Herzberg): 9 seconds Particle retention capacity: 7–12 µm Grammage: 85 g/m² (for a stable structure) Thickness: 0.22 mm Surface texture: Smooth and soft Wet strength: Low (ideal for unpressurised gravity filtration) Ash content: approx. 0.1 % Colour: White Scope of delivery 1 x folding box containing 100 Macherey-Nagel MN 617 filter paper circles (Please select the variant with the diameter that fits your funnel: Ø 55 to 500 mm) Individual requirements & accessories Filter paper only achieves its full hydrodynamic filtration performance when used in perfect conjunction with the correct analysis funnel. Ensure that the 60° angle of the glass funnel matches the fold of your filter paper exactly to prevent air pockets. If you need to filter extremely fine precipitates (such as barium sulphate) rather than coarse particles, we strongly advise against using this fast-flowing paper and recommend switching to the MN 619 eh (slow, 140 s) or MN 619 de (very slow, 195 s) variants. Please feel free to contact our expert procurement service at any time for professional and physically accurate system advice.
Macherey-Nagel VISOCOLOR soil reagent case with PF-3 Soil and accessories, 934220
The Macherey-Nagel VISOCOLOR soil reagent case with PF-3 Soil and accessories contains the PF-3 Soil compact photometer, reagents for ammonium, potassium, nitrate, nitrite, phosphate and pH, and the equipment for sample preparation. According to the manufacturer, it is developed for soil analysis both in the laboratory and in the field. According to the manual, the methods provide sufficient accuracy for a quick assessment of nutrient conditions in the soil.Tests includedAmmonium, potassium, nitrate and phosphate are measured photometrically with the PF-3 Soil. pH and nitrite are read visually using test strips, and nitrate is also available as a strip test.ParameterTest kit (REF)MethodMeasuring rangeTestspHpH-Fix 2.0 to 9.0 (92118)Test strips, visualpH 2.0 to 9.0 in steps of 0.5100Nitrate and nitriteQUANTOFIX Nitrate/Nitrite (91313)Test strips, visualNitrate: levels 0, 10, 25, 50, 100, 250 and 500 mg/L NO₃⁻Nitrite: levels 0, 1, 5, 10, 20, 40 and 80 mg/L NO₂⁻100AmmoniumVISOCOLOR ECO Ammonium 3 (931208)Indophenol, photometric0.1 to 2.5 mg/L NH₄⁺50PotassiumVISOCOLOR ECO Potassium (931232)Potassium tetraphenylborate, turbidity, photometric2 to 25 mg/L K⁺60NitrateVISOCOLOR ECO Nitrate (931241)Azo dye, photometric4 to 60 mg/L NO₃⁻110Phosphate (ortho)VISOCOLOR ECO Phosphate (931284)Phosphomolybdenum blue, photometric0.2 to 5.0 mg/L PO₄-P80The measuring ranges are given in mg/L. The PF-3 Soil takes the dilution into account and displays results in mg/kg soil, but according to the manual only if the sample has been prepared as described in the manual.Sample preparation in the caseTwo solutions are included for extraction, a calcium chloride solution (extract A) and a CAL solution of calcium acetate lactate (extract B), each as a working solution and as a stock solution. In addition there are a balance, soil sieve, shaking bottles, measuring cylinder, funnel, MN 616 ¼ folded filter papers and syringes. The manual also describes soil moisture, soil density, sieving to 2 mm and sedimentation analysis to determine soil type. Sedimentation tube, glass stamper and pyrophosphate solution are in the case.PF-3 Soil compact photometerThe PF-3 Soil measures at three LED wavelengths (365, 450 and 660 nm) in round cuvettes with 16 mm outer diameter. The cuvette slot is open; according to the manual, the instrument is insensitive to extraneous light. It stores 50 measured values with date and time and transfers them via mini-USB; the free NANOCOLOR data export software exports the data and allows up to 10 custom methods to be created. The housing is dust-tight and waterproof to IP68 (test conditions according to the manual: 1 m water depth, 1 hour).934220 or 934210The VISOCOLOR soil reagent case with PF-3 Soil (934210) contains the photometer and the four photometric test kits, but no sample preparation, no pH test, no nitrite test and no workbook. Its gross weight is 2,250 g, that of this case 8,900 g. Anyone who has to prepare soil samples themselves chooses the case with accessories.Typical applicationsSoil analysis in the field and in the laboratoryAssessment of nutrient conditions in the soilSoil monitoring for measures such as fertilisation or limingTechnical detailsThe hazardous substance rows show the labelling of the product as a whole according to Section 2.2 of the safety data sheet. The individual reagents are classified separately in the manufacturer’s safety data sheet.PhotometerPF-3 Soil, LED photometer with 3 interference filtersWavelengths365 nm, 450 nm, 660 nm (± 2 nm)CuvettesRound cuvettes, 16 mm outer diameterData storage50 measured values with date and timeInterfaceMini-USB (power supply and data export)Degree of protectionIP68Power supply3 AA batteries or USBPhotometer, dimensions and weight170 × 95 × 68 mm, 0.5 kgPackaging dimensions525 × 455 × 200 mmGross weight (including packaging)8,900 gStorage temperature15 to 25 °CShelf life (from production)1.5 yearsHazardous substancesYesGHS pictogramsGHS02 (flammable), GHS05 (corrosive), GHS09 (hazardous to the environment)Signal wordDangerHazard statementsH314 (Causes severe skin burns and serious eye damage)Precautionary statementsP260, P264, P280, P303+361+353, P305+351+338, P310, P405, P501TransportUN 3316 Chemical kit, Class 9, Packing Group IIAccording to the brochure, the potassium and phosphate test kits have a shelf life of 3 years, ammonium and nitrate 1.5 years.Scope of delivery1 case with PF-3 Soil compact photometer and batteriespH-Fix 2.0 to 9.0 and QUANTOFIX Nitrate/NitriteVISOCOLOR ECO test kits for ammonium, potassium, nitrate and phosphateCalcium chloride solution and CAL solution (working and stock solutions), pyrophosphate solutionBalance, soil sieve, MN 616 ¼ folded filter papers, metal double spatula, plastic scoops, measuring spoon for potassium determinationWide-neck jar, shaking bottles, beakers, measuring cylinders, funnels, wash bottle for distilled waterSyringes (1 mL, 5 mL and 10 mL) with tubing, sedimentation tube, glass stamper, reaction tubes (16 mm)Workbook in four languages, PF-3 manual, VISOCOLOR manual, certificateRegulatory informationThe PF-3 photometer included falls under the ElektroG as an electrical appliance. The manufacturer MACHEREY-NAGEL GmbH & Co. KG is registered under WEEE registration number DE 18812169. Information on how to return old appliances can be found on the Environment and Disposal page.Individual requirements and procurement serviceRefill packs for the test kits and extraction solutions are also available, as are NANOCOLOR tube tests that the PF-3 Soil evaluates, for example NANOCOLOR Nitrate 50. Enquiries about accessories or larger quantities are handled by our procurement service.
Macherey-Nagel QUANTOFIX Relax Test Strip Reader, 91346
Test strips are quick and easy to use, but visual interpretation remains subjective. The QUANTOFIX Relax from Macherey-Nagel solves precisely this problem: it objectively analyses standard QUANTOFIX and pH-Fix test strips using a reflectometer, thereby combining the simplicity of the test strip method with the reliability of instrumental analysis. Objective analysis without special strips The QUANTOFIX Relax does not require specialised strips, but reads standard pH-Fix and QUANTOFIX test strips. As a microprocessor-controlled reflectometer, it features self-testing and auto-calibration. Calibration takes place automatically and independently, without the need for manual adjustment. Up to 50 strips per hour can be analysed. Operation & Documentation Operation is via an LCD display with a touchscreen and alphanumeric input. Results can be printed directly via the integrated thermal printer or processed further via the RS232, USB B (host) and PS/2 (for keyboard or barcode scanner) interfaces. The internal memory holds 200 measurements; software updates are available free of charge via the internet/PC. Compact & versatile Measuring 200 x 160 x 75 mm and weighing just 0.71 kg, the device is equally suited to mobile use in the field and to a fixed laboratory workstation. It is powered by 100–240 V AC, or optionally by 6 AA batteries, handy for use without a mains connection. Technical details Type Microprocessor-controlled reflectometer with self-test and auto-calibration Calibration Automatic, self-calibrating Strips per hour 50 Display LCD display with touchscreen Operation Alphanumeric input via touchscreen Data storage 200 measurements Interfaces RS232, USB B (host), PS/2 for connecting a keyboard or barcode scanner Further information Built-in thermal printer Update Free via the internet / PC Language DE / EN / FR / ES / IT / PT / PL / TR / HU Power supply 100–240 V AC, optionally with 6 AA batteries Operating range 10–40 °C, max. 80 % relative humidity (non-condensing) Dimensions (L x W x H) 200 x 160 x 75 mm Weight 0.71 kg Gross weight (including packaging) 1,650 g Packaging dimensions 230 x 320 x 170 mm Hazardous substances No Warranty 2 years Trademark QUANTOFIX Scope of delivery QUANTOFIX Relax, power supply unit, adapter plug, operating instructions, 1 roll of printer paper and certificate
Macherey-Nagel NANOCOLOR Silicic acid rectangular cuvette test, 91848
Reliably determining silicic acid in water and wastewater samples is particularly important in the monitoring of boiler feedwater and cooling water, as silicate deposits can cause damage to plant. The NANOCOLOR Silicic Acid standard test from Macherey-Nagel provides highly sensitive photometric measurements at low cost per sample, pre-programmed for use with the appropriate NANOCOLOR photometers. Two measurement ranges for different concentrations The test covers a standard measurement range of 0.01–5.00 mg/L Si (or 0.02–10.0 mg/L SiO₂) and a high-sensitivity measurement range of 0.002–0.100 mg/L Si (or 0.005–0.200 mg/L SiO₂). The method is based on the silicomolybdenum blue method and is based on APHA 4500-SiO₂ E and DIN EN ISO 16264 H57. Compatible with standard NANOCOLOR photometers The test can be analysed on the 500 D, Advance, UV/VIS II and VIS II instruments, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already offered in our range. Practical for everyday laboratory use One sturdy box of reagents is sufficient for 250 determinations. When stored at 15–25 °C, the shelf life from the date of manufacture is 3 years. The test is also suitable for seawater analysis; no additional digestion kit or sewage sludge digestion kit is required. Technical details Parameter Silicic acid Method Silicic acid - silicomolybdenum blue Measuring range Silicic acid - 0.01–5.00 mg/L Si, Silicic acid - 0.02–10.0 mg/L SiO₂ Sensitive measuring range Silicic acid - 0.002–0.1 mg/L Si, Silicic acid - 0.005–0.200 mg/L SiO₂ Note Measuring range on the NANOCOLOR VIS II Test range Low Test method Photometric Underlying standard Analogous to APHA 4500-SiO2 E, DIN EN ISO 16264 H57 Test No. 1-48 Platform NANOCOLOR standard tests Can be analysed using 500 D, Advance, UV/VIS II, VIS II Application Wastewater, water Seawater analysis Yes Digestion kit No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 250 test(s) Scope of delivery Sturdy box containing reagents for 250 determinations. Shelf life (from date of manufacture) 3 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 436 g Packaging dimensions 160 x 110 x 130 mm Hazardous substances Yes Trademarks NANOCOLOR
Macherey-Nagel NANOCOLOR COD 4000 tube test, 985011
Chemical oxygen demand (COD) is one of the most important parameters for the assessment of industrial and municipal effluents. The NANOCOLOR COD 4000 tube test from Macherey-Nagel delivers precise, time-saving results when used in conjunction with the appropriate NANOCOLOR photometers. Wide measuring range for highly contaminated samples The test covers a measurement range of 400–4,000 mg/L O₂ and is therefore particularly suitable for samples with a high organic load. The method is based on the potassium dichromate procedure and is based on DIN ISO 15705 H45, EPA 410.4, APHA 5220 D and DIN 38409 H41-1. Compatible with standard NANOCOLOR photometers The test can be analysed on the 500 D, Advance, PF-3 COD, PF-12Plus, UV/VIS II and VIS II instruments, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already offered in our range. Scope of application The test is designed for wastewater, sewage sludge and water samples. A sturdy box containing 20 round cuvettes is sufficient for 20 determinations. When stored at 15–25 °C, the shelf life from the date of manufacture is 1 year. Technical details Parameters COD Method COD - Potassium dichromate Measuring range COD - 400–4,000 mg/L O₂ Note Measurement range on the NANOCOLOR VIS II Test range Medium Test method Photometric Underlying standard Analogous to DIN ISO 15705 H45, EPA 410.4, APHA 5220 D, DIN 38409 H41-1 Test No. 0-11 Platform NANOCOLOR tube tests Compatible with 500 D, Advance, PF-3 COD, PF-12Plus, UV/VIS II, VIS II Application Wastewater, sewage sludge, water Seawater analysis No Digestion kit No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 1 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 479 g Packaging dimensions 160 x 110 x 119 mm Hazardous substances Yes Trademarks NANOCOLOR
Macherey-Nagel NANOCOLOR Chloride 200 tube test, 985019
Chloride is one of the standard parameters in water analysis, whether for monitoring drinking water, groundwater or surface water. The NANOCOLOR Chloride 200 tube test from Macherey-Nagel delivers precise, time-saving results when used in conjunction with the appropriate NANOCOLOR photometers. Two measurement ranges for different concentrations The test covers a measurement range of 5–200 mg/L Cl⁻ and a second range of 0.10–1.00 g/L Cl⁻. The method is based on the mercury(II) thiocyanate/iron(III) nitrate procedure and is based on EPA 325.1 and APHA 4500-Cl⁻ E. Compatible with standard NANOCOLOR photometers The test can be analysed on the 500 D, Advance, PF-12Plus, UV/VIS II and VIS II instruments, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already offered in our range. Scope of application The test is designed for groundwater, surface water and drinking water, and is also suitable for seawater analysis. A sturdy box containing 20 round cuvettes is sufficient for 20 determinations. When stored at 15–25 °C, the shelf life is 1 year from the date of manufacture. Technical details Parameter Chloride Method Chloride - mercury(II) thiocyanate/iron(III) nitrate Measuring range Chloride - 0.10–1.00 g/L Cl⁻, Chloride - 5–200 mg/L Cl⁻ Note Measuring range on the NANOCOLOR VIS II Test range Medium Test method Photometric Underlying standard Analogous to EPA 325.1, APHA 4500-Cl⁻ E Test No. 0-19 Platform NANOCOLOR tube tests Can be analysed using 500 D, Advance, PF-12Plus, UV/VIS II, VIS II Application Groundwater, surface water, drinking water Seawater analysis Yes Digestion kit No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 1 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 455 g Packaging dimensions 160 x 110 x 119 mm Hazardous substances Yes Trademarks NANOCOLOR
Macherey-Nagel NANOCOLOR Sulphate LR 200 tube test, 985062
Alongside sulphide and sulphite, sulphate is one of the most prominent sulphur compounds in water analysis and is ubiquitous in nature. The NANOCOLOR Sulphate LR 200 tube test from Macherey-Nagel delivers precise, time-saving results when used in conjunction with the appropriate NANOCOLOR photometers. Precise method for low concentrations The test covers a measurement range of 20–200 mg/L SO₄²⁻ and is based on the barium sulphate turbidity method. The method is based on APHA 4500-SO₄²⁻ E. Compatible with standard NANOCOLOR photometers The test can be analysed on the following instruments: 500 D, Advance, MT Easy UV, MT Easy VIS, PF-12Plus, UV/VIS II and VIS II, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already featured in our range. Scope of application The test is designed for groundwater, surface water and drinking water. A sturdy box containing 20 round cuvettes is sufficient for 20 determinations. When stored at 15–25 °C, the shelf life is 3 years from the date of manufacture. Technical details Parameter Sulphate Method Sulphate - barium sulphate (turbidity) Measuring range Sulphate - 20–200 mg/L SO₄²⁻ Note Measurement range on the NANOCOLOR VIS II Test range Very low Test method Photometric Underlying standard Analogous to APHA 4500-SO42− E Test No. 0-62 Platform NANOCOLOR tube tests Compatible with 500 D, Advance, MT Easy UV, MT Easy VIS, PF-12Plus, UV/VIS II, VIS II Application Groundwater, surface water, drinking water Seawater analysis No Digestion set No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 3 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 345 g Packaging dimensions 160 x 110 x 119 mm Hazardous substances Yes GHS pictograms GHS07 (harmful), GHS08 (hazardous to health) Signal word Warning H-statements H302, H332, H373, H412 Trademark NANOCOLOR
Macherey-Nagel NANOCOLOR Non-ionic surfactants 15 tube test, 985047
Non-ionic surfactants (detergents) enter wastewater and water bodies via cleaning products and laundry detergents. Their monitoring is a standard parameter in water analysis. The NANOCOLOR Non-ionic Surfactants 15 tube test from Macherey-Nagel delivers precise, time-saving results when used in conjunction with the appropriate NANOCOLOR photometers. Precise method for low concentrations The test covers a measurement range of 0.3–15.0 mg/L of Triton® X-100 and operates according to the TBPE method. Compatible with standard NANOCOLOR photometers The test can be analysed on the 500 D, Advance, PF-12Plus, UV/VIS II and VIS II instruments, including the NANOCOLOR VIS II (item no. 919650.1) and NANOCOLOR Advance (item no. 919750) spectrophotometers already available in our range. Scope of application The test is highly versatile: it can be used for wastewater, groundwater, surface water, production water, process water and drinking water. A sturdy box containing 20 round cuvettes is sufficient for 20 analyses. When stored at 15–25 °C, the shelf life from the date of manufacture is 2 years. Technical details Parameter Non-ionic surfactants Method Detergents - TBPE Measuring range Non-ionic surfactants - 0.3–15.0 mg/L Triton® X-100 Note Measurement range on the NANOCOLOR VIS II Test range Medium Test method Photometric Test No. 0-47 Platform NANOCOLOR tube tests Can be analysed with 500 D, Advance, PF-12Plus, UV/VIS II, VIS II Application Wastewater, groundwater, surface water, production water, process water, drinking water Seawater analysis No Digestion set No Sewage sludge digestion No NanOx Metal No NanOx N No Packaging unit 20 test(s) Scope of delivery Sturdy box containing 20 round cuvettes. Sufficient for 20 determinations. Shelf life (from date of manufacture) 2 year(s) Storage temperature 15–25 °C Gross weight (including packaging) 453 g Packaging dimensions 160 x 110 x 119 mm Hazardous substances Yes GHS pictograms GHS02 (flammable), GHS07 (harmful), GHS08 (hazardous to health) Signal word Warning H-statements H226, H302, H315, H319, H336, H351, H371 P-statements P201, P202, P280, P308+P313, P405, P501 Trademarks NANOCOLOR
