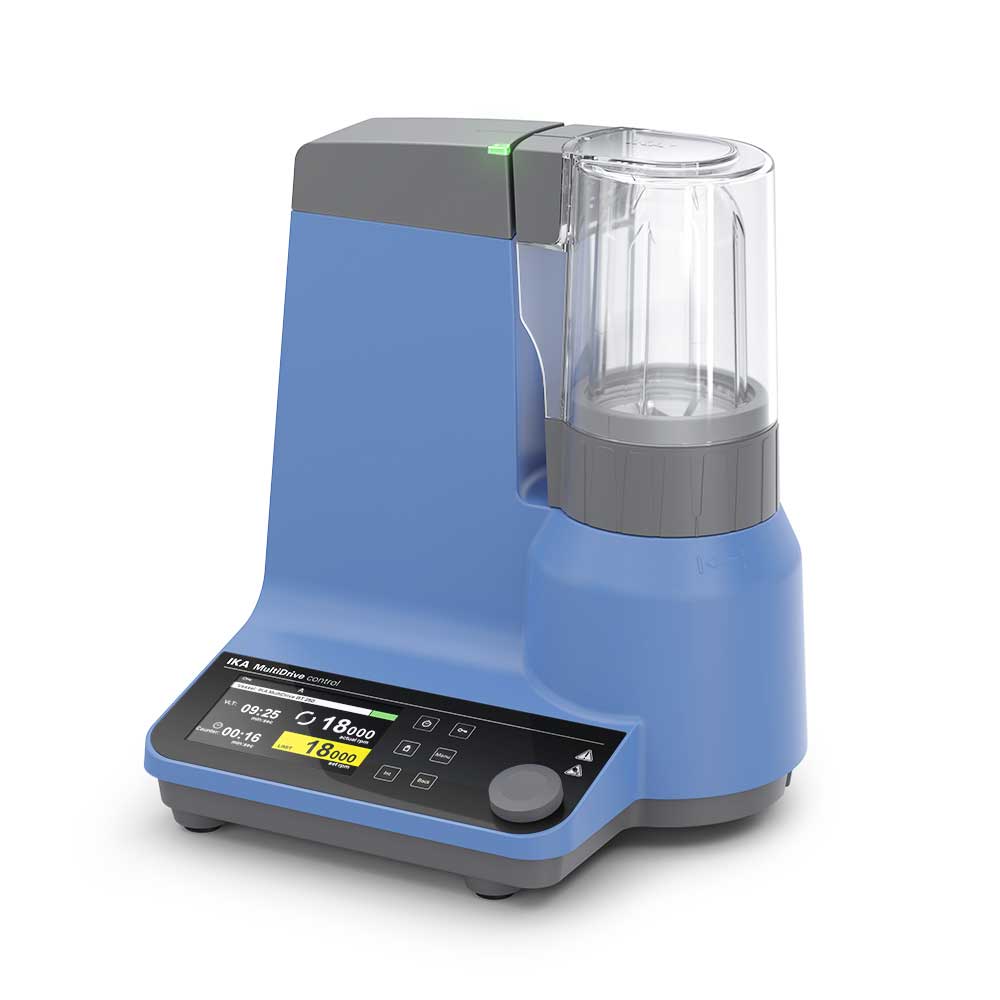

IKA MultiDrive control BT Package, 0010007086

MultiDrive control BT Package
: Disintegration without cross-contamination – this is achieved with the MultiDrive control Package, which includes autoclavable BT 250 single-use vessels and the required TC 1 protective housing for wet samples.

The BT 250 is a single-use vessel featuring a 4-blade agitator and flow breakers. The plastic mixing beaker is autoclavable. This effectively prevents cross-contamination, even with repeated use. An integrated RFID chip simultaneously records and limits the service life of the mixing beaker. The scope of delivery includes 5 replacement seals. Replacing the seal extends the service life of the mixing vessel. The disposable vessel can only be operated with the TC 1 protective housing, which is also included in the scope of delivery.

Thanks to a wide range of vessels, the MultiDrive control universal shredder handles a wide variety of shredding tasks,
from pre-shredding to fine shredding. A USB interface is provided for convenient control and documentation.

High
performance: Combined with a variable speed range of 3,000 rpm to
20,000 rpm, the 1,000-watt power output guarantees excellent
grinding performance.

Interval
operation: The interval programming function can be easily
activated at the touch of a button. Interval operation is particularly advantageous for the pre-shredding of hard samples or for extra-thorough mixing
.

Integrated cooling
A cooling system is integrated into the grinding jar, enabling indirect heat dissipation
. This ensures that the ground material and the coolant remain
separate.

TFT display
A clear TFT display ensures user-friendly
operation.

Temperature measurement
MultiDrive control offers temperature measurement and
vessel recognition via RFID. A temperature limit can be set for
temperature-sensitive materials or specific intended
reactions to protect against overheating.

Weighing function
The weighing function is also
integrated into the convenient workflow of the IKA MultiDrive control. Weighing prior to grinding is
carried out using the same mixing beaker, so that no decanting
is required.

Technical data
Process type: batch
Operating principle: cutting/impact/blending/dispersing
Motor power input: 1000 W
Motor power output: 800 W
Speed range: 3000 – 20000 rpm
Speed deviation: ±5 %
Duty cycle ON: 5 min
Duty cycle OFF: 10 min
Motor type: brushless DC
Display: TFT
RFID read/writing unit yes
Temperature display yes
Temperature measurement resolution 0.1 K
Temperature measurement accuracy ±1 K
Temperature limit min. –50 °C
Temperature limit, max. 120 °C
Maintenance instructions Yes
Weighing function Yes
Weighing range 5 – 4,000 g
Weighing range resolution 1 g
Maximum load for weighing function 4 kg
Weighing accuracy ±(0.3% + 2) g
Container recognition: Yes
Ramp programming: Yes
Dimensions (W x H x D): 300 x 350 x 250 mm
Weight: 8.5 kg
Permissible ambient temperature range: 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 31
USB interface yes
Bluetooth interface yes
Voltage 220–240 V
Frequency 50/60 Hz
Power consumption 1000 W

Accessories and spare parts available on request
