Bottle-mounted burettes
Flaschenaufsatz-Büretten ermöglichen präzises, wiederholbares Titrieren direkt aus der Vorratsflasche – ohne Umfüllen und mit deutlich weniger Handhabungsfehlern als bei klassischen Büretten. LT Laborhandel führt die BRAND Titrette in mehreren Volumenstufen, teils mit RS232-Schnittstelle zur Dokumentation der Messreihen. Passende Grundausstattung finden Sie in der Kategorie Liquid Handling. Bei Fragen zur passenden Volumenstufe hilft Ihnen unser Team gerne weiter.

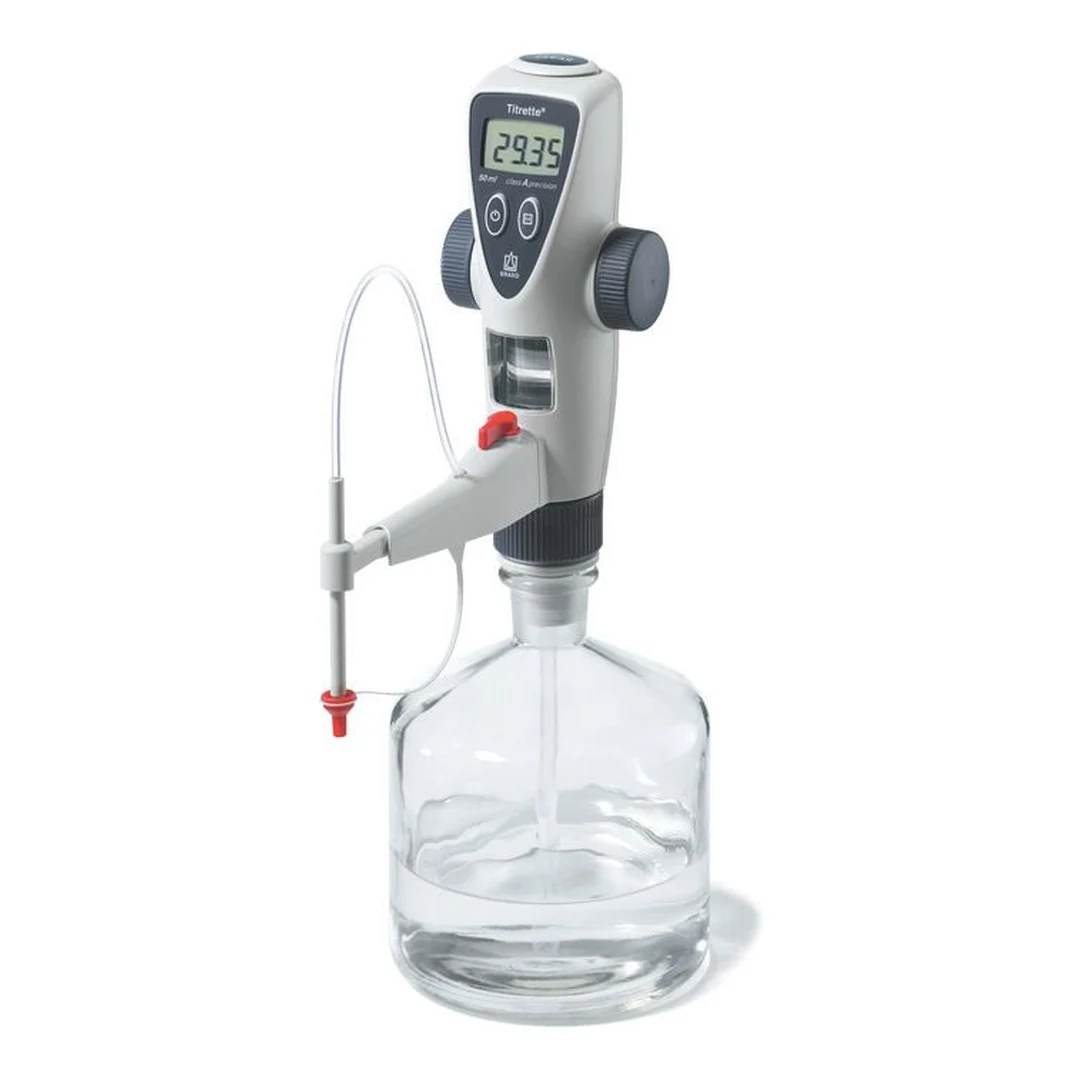

Brand Titrette Bottle-Top Burette, 50 ml, DE-M, 4760161
The 50 ml version of the Titrette is the largest volume range of the series and is intended for titrations that require a lot of standard solution, for example because the concentration is low or the end point is far from the starting volume. Like the smaller Titrettes, it screws directly onto the GL45 supply bottle.One refill less per titration seriesAnyone who has so far worked with a 25 ml burette and had to refill during longer titrations saves this intermediate step with the 50 ml Titrette. This is particularly relevant for titrations with a larger final volume, when the standard solution would otherwise run out in the middle of the determination.Error limits of the 50 ml versionFor 50 ml, Brand specifies an accuracy of 0.06 percent or 30 µl and a coefficient of variation of 0.02 percent or 10 µl. The coefficient of variation in percent is therefore lower than with the 25 ml Titrette, because the repeatability refers to the larger total volume.Typical applicationsTitrations with high consumption of standard solution, for example with low-concentration titration solutionsSerial titrations without intermediate refilling of the supply bottleWater and environmental analysis with larger sample volumesRoutine laboratories where several titrations are to run one after another without interruptionSelection guide: which volume for which titrationThe 50 ml Titrette is the right choice if more standard solution is regularly needed than a 25 ml burette delivers without refilling, for example with low-concentration titration solutions or larger sample volumes. Accuracy 0.06 percent or 30 µl and coefficient of variation 0.02 percent or 10 µl are more favourable in percentage terms than with the smaller ranges, because the repeatability refers to the larger total volume. Anyone who also wants to document consumption electronically will find the same 50 ml range with an RS232 interface as well.Titrette compared with glass burette and DispensetteCompared with a 50 ml class A glass burette, the Titrette dispenses with reading at the meniscus in favour of a digital counter, and operation via the dosing button remains manual. A Dispensette would be the wrong choice for this task, as it repeatedly dispenses a fixed volume instead of continuously summing the consumption during a titration up to the end point.Technical detailsVolume range50 mlAccuracy0.06 % / 30 µlCoefficient of variation0.02 % / 10 µlConnection threadGL45MarkingDE-MPower supply2 micro batteries AAA/UM4/LR03Application and maintenanceThe Titrette screws directly onto the supply bottle of the standard solution via one of the three supplied PP bottle adapters (GL 32, S 40, NS 29/32), and the telescopic filling tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after every bottle change, the system must be primed like any piston burette so that no air bubble in the cylinder impairs dosing accuracy. The recirculation tube allows standard solution dispensed in excess by mistake to be returned to the bottle instead of starting the titration anew. Two amber-tinted light protection windows protect light-sensitive standard solutions without requiring the bottle to be completely covered. The counter is operated by two type AAA/UM4/LR03 micro batteries, which can be replaced without tools as soon as the display signals low battery voltage. A mains connection is not required, and the device remains ready for use even at workstations without a power socket.Scope of deliveryTitrette bottle-top burette for GL45 threaded bottlesDE-M markedQuality certificateTelescopic filling tube, 170 to 330 mmRecirculation tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adapters (GL 32, S 40, NS 29/32)2 amber-tinted light protection windowsFrequently asked questionsWhat does the DE-M marking on the Titrette mean? DE-M is the German verification mark under the Weights and Measures Act, it identifies the device as suitable for applications requiring official verification.How accurately does the Titrette 50 ml dispense? Accuracy 0.06 percent or 30 µl, coefficient of variation 0.02 percent or 10 µl, according to the manufacturer.Which bottle thread fits the Titrette? GL45 directly, plus GL 32, S 40 and NS 29/32 via the supplied PP adapters.What is included in the scope of delivery? The Titrette itself, telescopic filling tube, recirculation tube, three bottle adapters, two micro batteries and a quality certificate.What happens if I accidentally dispense too much standard solution? The excess amount can be returned to the supply bottle via the supplied recirculation tube without starting the titration anew.Individual requirements & procurement serviceSuitable bottle adapters, replacement filling tubes or further accessories for the Titrette series can be requested via the procurement service of LT Laborhandel. Contact via lt-laborhandel.com/service.
Brand Titrette Bottle-mounted Burette, 50 ml, with RS232 Interface, DE-M, 4760261
The Titrette 50 ml with an RS232 interface has the same margin of error as the standard version, but also features a data interface. This allows the titration value to be transferred directly to a PC or a titration log, rather than having to type it out from the display.RS232 instead of manual transferWith a 50 ml volume, these are usually runs involving high consumption of titrant, which also need to be documented, for example in water or environmental analysis. The RS232 interface transfers the consumption value directly to a titration log or a LIMS connection, without the need for an additional transfer step.Error limits of the 50 ml versionFor 50 ml, Brand specifies an accuracy of 0.06 per cent / 30 µl and a coefficient of variation of 0.02 per cent / 10 µl, identical to the Titrette without a PC interface in the same volume range. The RS232 interface does not affect dosing accuracy; it merely extends the output of the measured value.Typical applicationsTitrations involving high consumption of titrant and where documentation is requiredWater and environmental analysis with electronic data loggingConnection to titration or LIMS software via the serial interfaceBatch titrations where manual transfer from the display would be too prone to errorsSelection guide: RS232 for high consumptionWith a 50 ml volume, batch runs often involve high consumption of titrant, for example in water and environmental analysis, where every result must be documented. The RS232 interface handles the logging here, eliminating the need to read off and type in each value individually. For lower consumption, 10 ml and 25 ml options are available, also with or without a PC interface. For series with many repetitions, the time saved compared to manual recording adds up significantly, particularly when multiple titration stations with different volumes are being documented in parallel.Titrette RS232 versus glass burette and DispensetteA 50 ml Class A glass burette requires the value to be recorded manually, whilst the Titrette RS232 transmits it electronically. Compared to a Dispensette, the Titrette is designed for continuous summation during titration, rather than for a fixed repeat dose.Technical detailsVolume range50 mlAccuracy0.06% / 30 µlCoefficient of variation0.02% / 10 µlPC interfaceRS232Connection threadGL45MarkingDE-MPower supply2 AAA/UM4/LR03 micro batteriesUse and maintenanceThe Titrette is screwed directly onto the stock bottle containing the measuring solution using one of the three PP bottle adaptors supplied (GL 32, S 40, NS 29/32) directly onto the storage bottle containing the standard solution; the telescopic suction tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after each bottle change, the system must be vented, as with any piston burette, to ensure that no air bubbles in the cylinder affect the dosing accuracy. The return tube allows any accidentally dispensed excess titrant to be returned to the bottle, rather than having to restart the titration. Two brown-tinted light-protection windows shield light-sensitive titrants without the need to cover the bottle completely. The counter is powered by two AAA/UM4/LR03 micro-batteries, which can be replaced without tools as soon as the display indicates a low battery voltage. A mains connection is not required; the device remains operational even at workstations without a socket.Scope of deliveryTitrette bottle-mounted burette for GL45-threaded bottlesMarked DE-MQuality certificateTelescopic suction tube, 170 to 330 mmReturn tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adaptors (GL 32, S 40, NS 29/32)2 brown-tinted light-protection windowsFrequently asked questionsWhat data does the RS232 interface output? The titration consumption value, as specified by the manufacturer, for direct transfer to a PC or analysis software.How accurately does the Titrette dispense 50 ml via RS232? Accuracy: 0.06 per cent or 30 µl; coefficient of variation: 0.02 per cent or 10 µl, identical to the version without a PC interface.Which bottle threads are compatible with the Titrette? GL45 directly; via a PP adapter, also GL 32, S 40 and NS 29/32.What is included in the scope of delivery? The Titrette with RS232 interface, telescopic suction tube, return tube, three bottle adaptors, two micro-batteries and a quality certificate.Individual requirements and procurement serviceYou can enquire about suitable bottle adaptors, replacement suction tubes or other accessories for the Titrette range via LT Laborhandel’s procurement service. Contact us at lt-laborhandel.com/service.

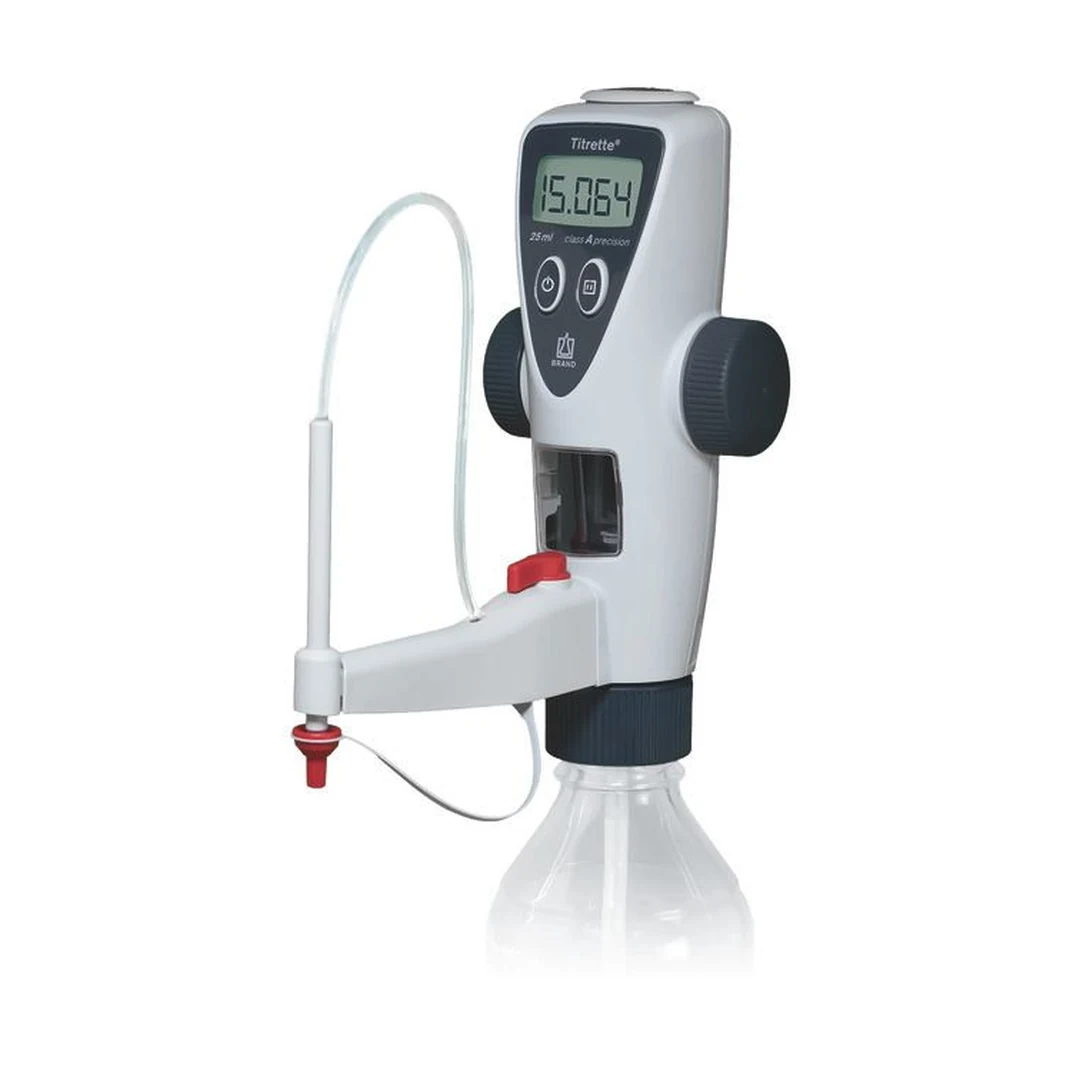

Brand Titrette Bottle-Top Burette, 25 ml, DE-M, 4760151
With 25 ml, the Titrette covers the volume most often required in titration practice. The bottle-top burette screws directly onto the GL45 supply bottle and handles dispensing and display digitally, instead of draining the standard solution via a separate glass burette with a stopcock.Counter instead of meniscus readingThe dispensed value appears as a number on the display, not as a line on a glass scale. This removes the usual source of error when reading the meniscus, especially with coloured or turbid titration solutions where the scale is hard to see.Error limits of the 25 ml versionFor 25 ml, Brand specifies an accuracy of 0.07 percent or 18 µl and a coefficient of variation of 0.025 percent or 6 µl. These values match the error limits stated in the instructions for use for this volume range.Typical applicationsVolumetric titrations in routine quality controlRecurring titrations with constant volume requirement, for example acid-base or redox titrationsWorkstations with several titration bottles, where each bottle carries its own TitretteTraining establishments where a digital counter makes handling the burette easierSelection guide: which volume for which titrationWith 25 ml, this version covers the range needed most often in practice, between the fine 10 ml range for small consumption quantities and the 50 ml range for series with high demand. Accuracy 0.07 percent or 18 µl and coefficient of variation 0.025 percent or 6 µl lie between the two other volume ranges. Anyone who does not want to read the consumption value manually but pass it directly to a LIMS or an Excel spreadsheet will also find the same 25 ml range with an RS232 interface in the product range.Titrette compared with glass burette and DispensetteA class A glass burette requires reading the meniscus on a printed scale, the Titrette shows the same value digitally on the counter, and both are operated manually. Compared with a Dispensette, the difference lies in the purpose: the Dispensette repeatedly dispenses a fixed, preselected volume, the Titrette sums the consumption during a single titration up to the colour or potential change.Technical detailsVolume range25 mlAccuracy0.07 % / 18 µlCoefficient of variation0.025 % / 6 µlConnection threadGL45MarkingDE-MPower supply2 micro batteries AAA/UM4/LR03Application and maintenanceThe Titrette screws directly onto the supply bottle of the standard solution via one of the three supplied PP bottle adapters (GL 32, S 40, NS 29/32), and the telescopic filling tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after every bottle change, the system must be primed like any piston burette so that no air bubble in the cylinder impairs dosing accuracy. The recirculation tube allows standard solution dispensed in excess by mistake to be returned to the bottle instead of starting the titration anew. Two amber-tinted light protection windows protect light-sensitive standard solutions without requiring the bottle to be completely covered. The counter is operated by two type AAA/UM4/LR03 micro batteries, which can be replaced without tools as soon as the display signals low battery voltage. A mains connection is not required, and the device remains ready for use even at workstations without a power socket.Scope of deliveryTitrette bottle-top burette for GL45 threaded bottlesDE-M markedQuality certificateTelescopic filling tube, 170 to 330 mmRecirculation tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adapters (GL 32, S 40, NS 29/32)2 amber-tinted light protection windowsFrequently asked questionsWhat does the DE-M marking on the Titrette mean? DE-M is the German verification mark under the Weights and Measures Act, it identifies the device as suitable for applications requiring official verification.How accurately does the Titrette 25 ml dispense? Accuracy 0.07 percent or 18 µl, coefficient of variation 0.025 percent or 6 µl, according to the manufacturer.Which bottle thread fits the Titrette? GL45 directly, plus GL 32, S 40 and NS 29/32 via the supplied PP adapters.What is included in the scope of delivery? The Titrette itself, telescopic filling tube, recirculation tube, three bottle adapters, two micro batteries and a quality certificate.What happens if I accidentally dispense too much standard solution? The excess amount can be returned to the supply bottle via the supplied recirculation tube without starting the titration anew.Individual requirements & procurement serviceSuitable bottle adapters, replacement filling tubes or further accessories for the Titrette series can be requested via the procurement service of LT Laborhandel. Contact via lt-laborhandel.com/service.

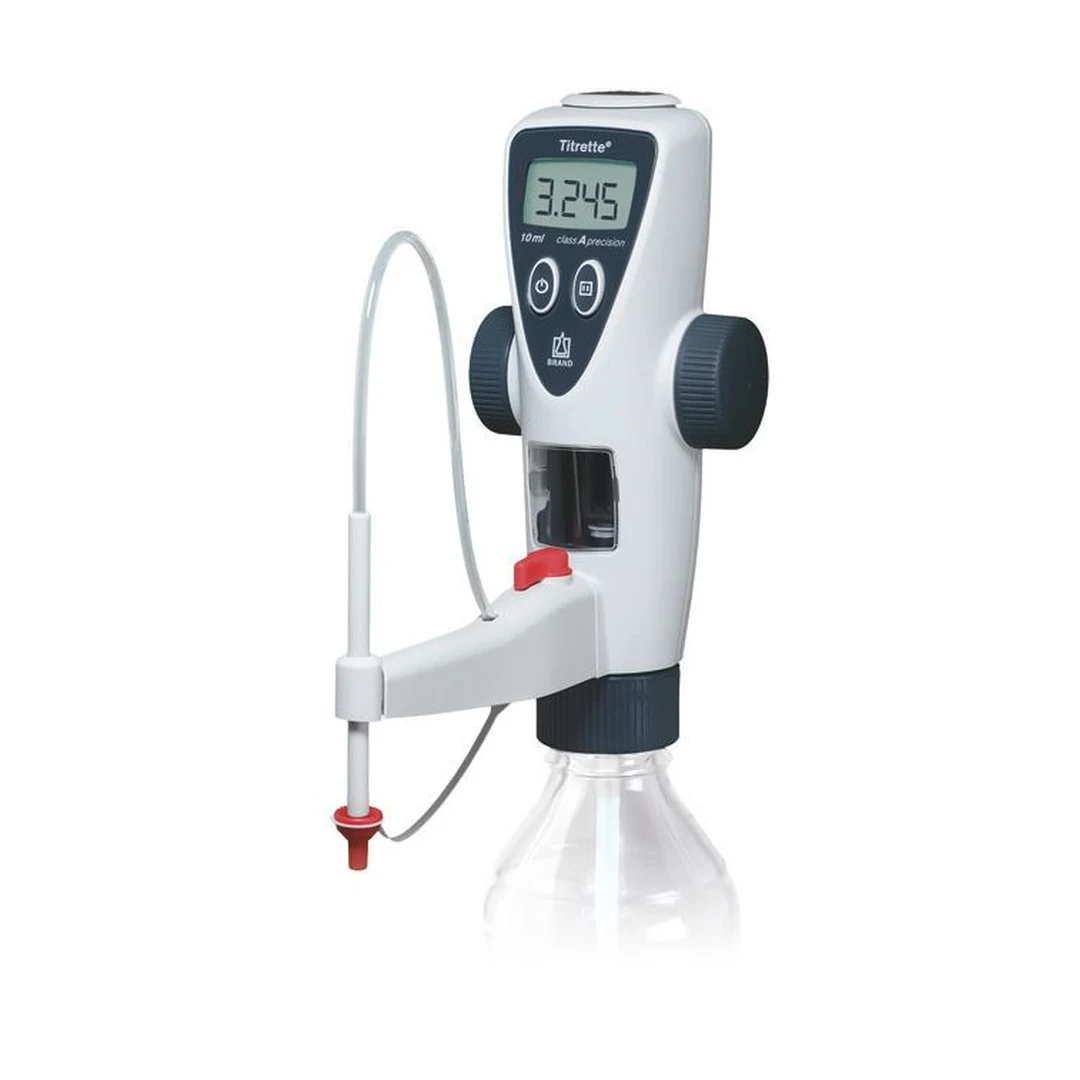

Brand Titrette Bottle-Top Burette, 10 ml, DE-M, 4760141
The Titrette 10 ml is the finest volume range of the Brand bottle-top burette and is suitable for titrations where a few millilitres of standard solution are sufficient and every drop counts. It screws directly onto the GL45 supply bottle and replaces the classic glass burette including stand at the workstation.Digital display instead of estimated readingInstead of a glass scale, the Titrette shows the dispensed value on a counter with display. This reduces reading errors such as can occur at the meniscus edge of a classic burette, especially with small volumes, where a tenth of a millilitre already makes up a noticeable share of the total volume.Error limits for the 10 ml rangeFor the 10 ml version, Brand specifies an accuracy of 0.1 percent or 10 µl and a coefficient of variation of 0.05 percent or 5 µl. These are tighter absolute error limits than for the larger Titrette volumes, because the percentage and microlitre values shift accordingly with a smaller total volume.Typical applicationsTitrations with low consumption of standard solution, for example with concentrated samplesRepeated small-volume titrations in routine analysisWorkstations without space for a classic burette with standEducation and training, where a digital counter is meant to make reading easierSelection guide: which volume for which titrationThe Titrette series covers 10, 25 and 50 ml. Anyone who mainly works with low consumption of standard solution, for example with highly concentrated samples or small sample quantities, is right with the 10 ml version: the absolute error limits of 10 µl accuracy and 5 µl coefficient of variation are the tightest of the whole series. Anyone who more often needs volumes close to 20 to 30 ml is better served by the 25 ml range, anyone who regularly consumes significantly more by the 50 ml Titrette. For electronic transfer of the consumption value to a LIMS or an Excel evaluation, each of the three volume ranges is additionally available with an RS232 interface.Titrette compared with glass burette and DispensetteCompared with a classic class A glass burette, the Titrette replaces reading at the meniscus with a digital counter, but it is still operated manually via the dosing button. The Titrette differs from a Dispensette in its operating principle: the Dispensette repeatedly dispenses a previously set volume in the same amount, whereas the Titrette continuously sums up the consumption up to the end point of the titration and displays the cumulative value.Technical detailsVolume range10 mlAccuracy0.1 % / 10 µlCoefficient of variation0.05 % / 5 µlConnection threadGL45MarkingDE-MPower supply2 micro batteries AAA/UM4/LR03Application and maintenanceThe Titrette screws directly onto the supply bottle of the standard solution via one of the three supplied PP bottle adapters (GL 32, S 40, NS 29/32), and the telescopic filling tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after every bottle change, the system must be primed like any piston burette so that no air bubble in the cylinder impairs dosing accuracy. The recirculation tube allows standard solution dispensed in excess by mistake to be returned to the bottle instead of starting the titration anew. Two amber-tinted light protection windows protect light-sensitive standard solutions without requiring the bottle to be completely covered. The counter is operated by two type AAA/UM4/LR03 micro batteries, which can be replaced without tools as soon as the display signals low battery voltage. A mains connection is not required, and the device remains ready for use even at workstations without a power socket.Scope of deliveryTitrette bottle-top burette for GL45 threaded bottlesDE-M markedQuality certificateTelescopic filling tube, 170 to 330 mmRecirculation tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adapters (GL 32, S 40, NS 29/32)2 amber-tinted light protection windowsFrequently asked questionsWhat does the DE-M marking on the Titrette mean? DE-M is the German verification mark under the Weights and Measures Act, it identifies the device as suitable for applications requiring official verification.How accurately does the Titrette 10 ml dispense? Accuracy 0.1 percent or 10 µl, coefficient of variation 0.05 percent or 5 µl, according to the manufacturer.Which bottle thread fits the Titrette? GL45 directly, plus GL 32, S 40 and NS 29/32 via the supplied PP adapters.What is included in the scope of delivery? The Titrette itself, telescopic filling tube, recirculation tube, three bottle adapters, two micro batteries and a quality certificate.What happens if I accidentally dispense too much standard solution? The excess amount can be returned to the supply bottle via the supplied recirculation tube without starting the titration anew.Individual requirements & procurement serviceSuitable bottle adapters, replacement filling tubes or further accessories for the Titrette series can be requested via the procurement service of LT Laborhandel. Contact via lt-laborhandel.com/service.
Brand Titrette SH Bottle-mounted Burette, 25 ml, Soxhlet-Henkel Scale, 4760451
The Titrette SH is a special version of the digital bottle-top burette, featuring a display in degrees Soxhlet-Henkel rather than millilitres. This scale is commonly used in milk analysis, where the acidity is traditionally expressed in Soxhlet-Henkel units rather than converting the volume of standard solution used into millilitres.Display directly in the familiar unitWhereas a standard Titrette displays the volume consumed in millilitres and the conversion to degrees SH would have to be carried out manually, the Titrette SH displays the value directly in the target unit. This saves a calculation step and eliminates the potential for error that can arise in the process.Accuracy limitsBrand specifies an accuracy of 0.07 per cent (or 18 µl) and a coefficient of variation of 0.025 per cent (or 6 µl) for the Titrette SH, identical to the standard 25-ml version.Typical applicationsDetermination of the acidity of milk according to the Soxhlet-Henkel method in milk analysisDairies and dairy laboratories with an established SH scale in their routine proceduresBusinesses wishing to avoid the conversion step from ml to SH degrees in day-to-day operationsSelection guide: SH scale or millilitresThose who traditionally record the acidity of milk in degrees Soxhlet-Henkel can avoid the need to convert from millilitres by using the Titrette SH. For all other titrations where the volume used is required in ml, the standard Titrettes in 10, 25 or 50 ml are the right choice, with an optional RS232 interface for electronic data transfer to a LIMS if required.Titrette SH versus glass burette and DispensetteA glass burette with an SH scale still requires reading at the meniscus, whereas the Titrette SH displays the value digitally. Compared with a Dispensette, the fundamental difference remains: the Dispensette repeatedly dispenses a fixed volume, whilst the Titrette SH continuously totals the volume used up to the inflection point of the titration, only directly in SH degrees rather than millilitres.Technical detailsScaleSoxhlet-Henkel (SH) degreesAccuracy0.07 % / 18 µlCoefficient of variation0.025 % / 6 µlConnection threadGL45Power supply2 AAA/UM4/LR03 micro batteriesUse and maintenanceThe Titrette is screwed directly onto the stock bottle of the calibration solution using one of the three PP bottle adaptors supplied (GL 32, S 40, NS 29/32) directly onto the storage bottle containing the standard solution; the telescopic suction tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after each bottle change, the system must be vented, as with any piston burette, to ensure that no air bubbles in the cylinder affect the dosing accuracy. The return tube allows any accidentally dispensed excess titrant to be returned to the bottle, rather than having to restart the titration. Two brown-tinted light-protection windows shield light-sensitive titrants without the need to cover the bottle completely. The counter is powered by two AAA/UM4/LR03 micro-batteries, which can be replaced without tools as soon as the display indicates a low battery voltage. A mains connection is not required; the device remains operational even at workstations without a socket.Scope of deliveryTitrette SH bottle-mounted burette for GL45-threaded bottlesQuality certificateTelescopic suction tube, 170 to 330 mmBackflow tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adaptors (GL 32, S 40, NS 29/32)Frequently Asked QuestionsWhat does the scale on the Titrette SH indicate? It indicates the volume in degrees Soxhlet-Henkel rather than in millilitres, for direct use in milk analysis.How accurate is the Titrette SH? Accuracy 0.07 per cent or 18 µl, coefficient of variation 0.025 per cent or 6 µl; according to the manufacturer’s specifications, identical to the 25-ml standard version.Which bottle threading is compatible with the Titrette SH? GL45 directly; via a PP adapter, it is also compatible with GL 32, S 40 and NS 29/32.Is the Titrette SH also available with an RS232 interface? We can clarify this on request; the standard versions in 10, 25 and 50 ml are available with this.Before placing an order, it is worth making a quick enquiry via the LT procurement service in case there are any relevant differences in the Scope of delivery.Individual requirements and procurement serviceYou can enquire about suitable bottle adaptors, replacement suction tubes or other accessories for the Titrette series via LT Laborhandel’s procurement service. Please contact us at lt-laborhandel.com/service.
Brand Titrette Bottle-mounted Burette, 10 ml, with RS232 Interface, DE-M, 4760241
The Titrette 10 ml with an RS232 interface has the same margin of error as the standard version, but also features a data interface. This allows the titration value to be transferred directly to a PC or a titration log, rather than having to type it out from the display.RS232 instead of manual transferWith small titration volumes, every value read counts double, because even a minor typing error during transfer can significantly alter the result in percentage terms. Via RS232, the value is transferred unchanged from the counter to the analysis software or the titration log.Error limits of the 10 ml versionFor 10 ml, Brand specifies an accuracy of 0.1 per cent / 10 µl and a coefficient of variation of 0.05 per cent / 5 µl, identical to the Titrette without a PC interface in the same volume range. The RS232 interface does not affect dosing accuracy; it merely extends the output of the measured value.Typical applicationsTitrations requiring documentation, where the consumption value is recorded in the reportSmall-volume titrations with high demands on transfer accuracyConnection to titration or LIMS software via the serial interfaceQuality assurance with complete traceability of the consumption valueSelection guide: RS232 for small-volume seriesFor titrations with low consumption of titrant, where every microlitre counts, the RS232 interface offers a particular advantage, especially for series: the value is transferred directly to the titration record without having to be typed in individually for ten or twenty repetitions. Those who do not require electronic data transfer will find the same 10 ml accuracy in the standard version without a PC interface; for larger volumes, 25 ml and 50 ml versions are available, also with or without RS232. When switching between several titration stations with different volume requirements, this allows for consistent data recording, regardless of whether 10, 25 or 50 ml is used at each station.Titrette RS232 versus glass burette and DispensetteA Class A glass burette does not provide an electronically readable value; the volume used must be entered manually into the log. The Titrette with RS232 performs this step automatically. Compared with a Dispensette, the fundamental difference remains: the Dispensette repeatedly dispenses a fixed volume, whilst the Titrette accumulates the volume used during the titration up to the inflection point.Technical detailsVolume range10 mlAccuracy0.1% / 10 µlCoefficient of variation0.05% / 5 µlPC interfaceRS232Connection threadGL45LabellingDE-MPower supply2 AAA/UM4/LR03 micro batteriesUse and maintenanceThe Titrette is screwed directly onto the stock bottle containing the measuring solution using one of the three PP bottle adaptors supplied (GL 32, S 40, NS 29/32) directly onto the storage bottle containing the standard solution; the telescopic suction tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after each bottle change, the system must be vented, as with any piston burette, to ensure that no air bubbles in the cylinder affect the dosing accuracy. The return tube allows any accidentally dispensed excess titrant to be returned to the bottle, rather than having to restart the titration. Two brown-tinted light-shielding windows protect light-sensitive titrants without the need to completely cover the bottle. The counter is powered by two AAA/UM4/LR03 micro-batteries, which can be replaced without tools as soon as the display indicates a low battery voltage. A mains connection is not required; the device remains operational even at workstations without a socket.Scope of deliveryTitrette bottle-mounted burette for GL45-threaded bottlesMarked DE-MQuality certificateTelescopic suction tube, 170 to 330 mmReturn tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adaptors (GL 32, S 40, NS 29/32)2 brown-tinted light-protection windowsFrequently asked questionsWhat data does the RS232 interface output? The titration consumption value, as specified by the manufacturer, for direct transfer to a PC or analysis software.How accurately does the Titrette dispense 10 ml via RS232? Accuracy: 0.1 per cent or 10 µl; coefficient of variation: 0.05 per cent or 5 µl, identical to the version without a PC interface.Which bottle threads are compatible with the Titrette? GL45 directly; via PP adaptors, also GL 32, S 40 and NS 29/32.What is included in the scope of delivery? The Titrette with RS232 interface, telescopic suction tube, return tube, three bottle adaptors, two micro-batteries and a quality certificate.Individual requirements and procurement serviceYou can enquire about suitable bottle adaptors, replacement suction tubes or other accessories for the Titrette range via LT Laborhandel’s procurement service. Contact us at lt-laborhandel.com/service.
Brand Titrette Bottle-mounted Burette, 25 ml, with RS232 Interface, DE-M, 4760251
The Titrette 25 ml with an RS232 interface has the same margin of error as the standard version, but also features a data interface. This allows the titration value to be transferred directly to a PC or a titration log, rather than having to type it out from the display.RS232 instead of manual transferThe 25 ml model is the most commonly used Titrette size; accordingly, it is frequently found in settings where titration results are documented electronically. Via the RS232 interface, the consumption value can be transferred directly to a PC without having to copy it manually from the display.Accuracy limits of the 25 ml modelFor 25 ml, Brand specifies an accuracy of 0.07 per cent / 18 µl and a coefficient of variation of 0.025 per cent / 6 µl, identical to the Titrette without a PC interface in the same volume range. The RS232 interface does not affect dosing accuracy; it merely extends the output of the measured value.Typical applicationsRoutine titrations with electronic recording of the consumption valueConnection to titration or LIMS software via the serial interfaceQuality assurance with documented, traceable measurement resultsWorkstations carrying out several titration runs per day, where manual data transfer is time-consumingSelection guide: RS232 for the most commonly used volume range25 ml is the volume setting most commonly used in titration practice; accordingly, an electronic connection to LIMS or Excel analysis via RS232 is often worthwhile here. Those who do not require data transfer can save on additional costs by opting for the standard version without a PC interface; 10 ml and 50 ml options are available for smaller or larger consumption volumes. In laboratories with strict quality requirements, this allows for seamless documentation of which consumption value corresponds to which sample, without the risk of transcription errors.Titrette RS232 versus glass burette and DispensetteA 25 ml Class A glass burette requires the value read to be transferred manually to the log; the Titrette RS232 transmits it directly. The Titrette also differs from a Dispensette in its operating principle: a fixed repeat dose as opposed to continuous accumulation up to the endpoint. This accumulation is at the heart of titration: it is not a fixed volume that counts, but the volume consumed up to the point at which the reaction reaches its inflection point, and it is precisely this point that the RS232 interface records electronically.Technical detailsVolume range25 mlAccuracy0.07% / 18 µlCoefficient of variation0.025% / 6 µlPC interfaceRS232Connection threadGL45MarkingDE-MPower supply2 AAA/UM4/LR03 micro batteriesUse and maintenanceThe Titrette is screwed directly onto the stock bottle containing the measuring solution using one of the three PP bottle adaptors supplied (GL 32, S 40, NS 29/32) directly onto the storage bottle containing the standard solution; the telescopic suction tube can be adjusted to bottle heights between 170 and 330 mm. Before first use and after each bottle change, the system must be vented, as with any piston burette, to ensure that no air bubbles in the cylinder affect the dosing accuracy. The return tube allows any accidentally dispensed excess titrant to be returned to the bottle, rather than having to restart the titration. Two brown-tinted light-protection windows shield light-sensitive titrants without the need to cover the bottle completely. The counter is powered by two AAA/UM4/LR03 micro-batteries, which can be replaced without tools as soon as the display indicates a low battery voltage. A mains connection is not required; the device remains operational even at workstations without a socket.Scope of deliveryTitrette bottle-mounted burette for GL45-threaded bottlesMarked DE-MQuality certificateTelescopic suction tube, 170 to 330 mmReturn tube2 micro batteries (AAA/UM4/LR03)3 PP bottle adaptors (GL 32, S 40, NS 29/32)2 brown-tinted light-protection windowsFrequently asked questionsWhat data does the RS232 interface output? The titration consumption value, as specified by the manufacturer, for direct transfer to a PC or analysis software.How accurately does the Titrette dispense 25 ml via RS232? Accuracy: 0.07 per cent or 18 µl; coefficient of variation: 0.025 per cent or 6 µl, identical to the version without a PC interface.Which bottle threads are compatible with the Titrette? GL45 directly; via a PP adapter, also GL 32, S 40 and NS 29/32.What is included in the scope of delivery? The Titrette with RS232 interface, telescopic suction tube, return tube, three bottle adaptors, two micro-batteries and a quality certificate.Individual requirements and procurement serviceYou can enquire about suitable bottle adaptors, replacement suction tubes or other accessories for the Titrette range via LT Laborhandel’s procurement service. Contact us at lt-laborhandel.com/service.
