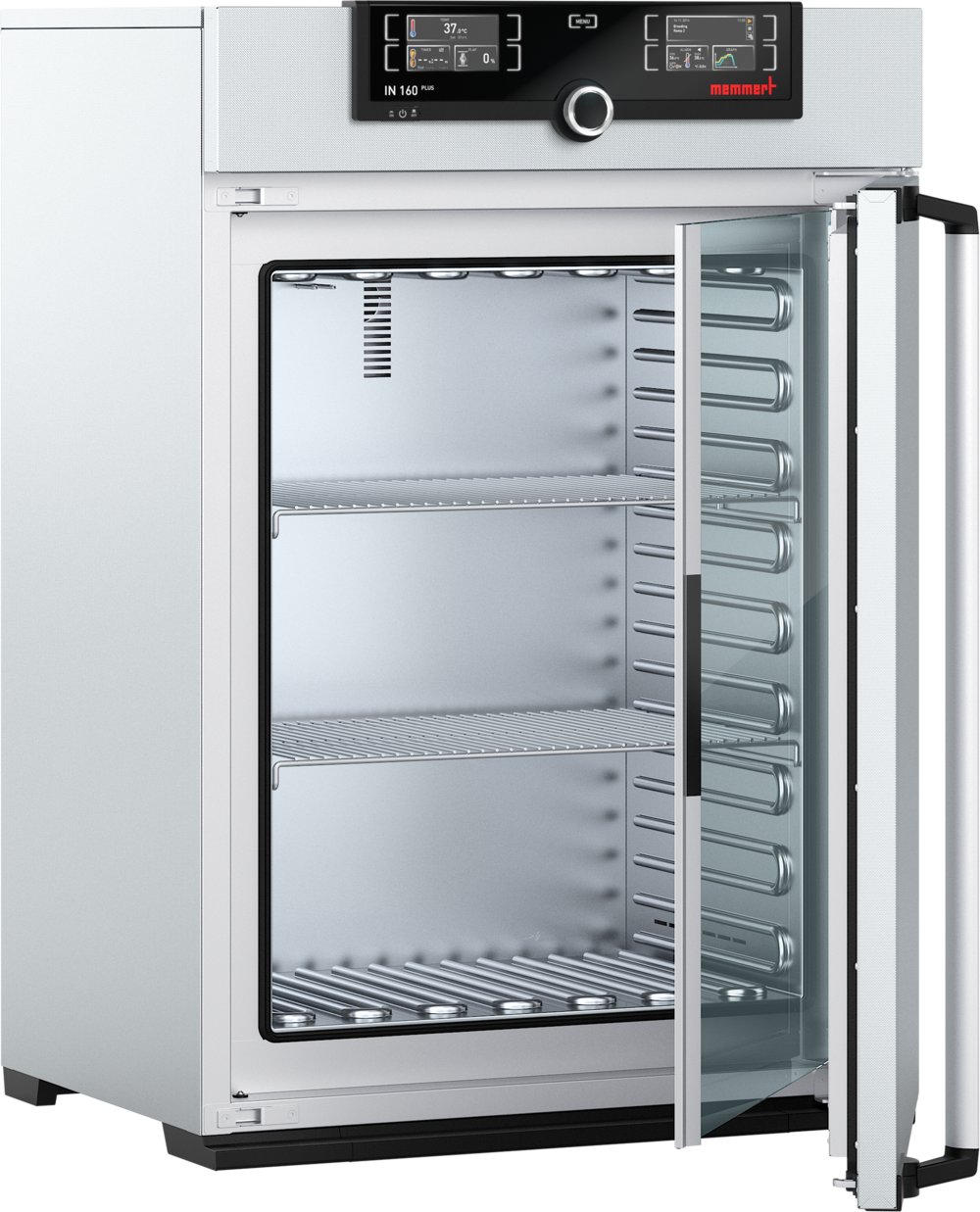

Memmert IN160plus incubator, 161 l, +20 to +80 °C, TwinDISPLAY

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Memmert IN160plus incubator, 161 l, +20 to +80 °C, TwinDISPLAY"

Measuring 560 x 400 mm, the IN160plus has the same footprint as the smaller IN110plus, but is significantly taller, with an internal height of 720 mm. This results in an internal volume of 161 litres with a maximum of eight shelves and a net weight of around 96 kilograms. Temperature control is managed via a ControlCOCKPIT TwinDISPLAY with two Pt100 sensors operating in the range from +20 to +80 °C.

Same footprint as the IN110plus

An electronically adjustable exhaust air flap mixes in preheated fresh air, whilst the exhaust air outlet with a throttle valve is electronically controllable. The interior features deep-drawn ribbing with 4-sided all-round heating; the housing has a fully galvanised sheet steel rear panel. For applications with forced air circulation, Memmert offers the same size model in the IF-plus series.

Control with HeatBALANCE

If one of the two DIN Class A Pt100 sensors in a 4-wire measurement fails, the second takes over its function; both supply data to the ControlCOCKPIT TwinDISPLAY, which features two TFT colour graphic displays. The distribution of heating power between the upper and lower heating groups can be adjusted via HeatBALANCE from -50 to +50 %; programmes are managed via Ethernet or USB using AtmoCONTROL.

Multi-stage temperature monitoring

AutoSAFETY additionally monitors the setpoint with upper and lower temperature limits at freely selectable intervals and issues visual and audible warnings. As a mechanical fallback measure, a temperature limiter of protection class 1 according to DIN 12880 switches off the heating at approximately 20 °C above the maximum cabinet temperature; an adjustable temperature monitor of protection class 3.1 or an adjustable temperature limiter of protection class 2 can also be selected. The pre-programmed sterilisation programme sterilises the interior at 160 °C in 4 hours, but not the contents.

Choosing the right size

If the IN110plus, with its 108-litre capacity and five shelves, is no longer sufficient, the IN160plus offers eight shelves and an internal volume of 161 litres whilst occupying the same floor space. If even more capacity is required, the table below lists the IN260plus with a capacity of 256 litres.

Typical applications

The IN160plus incubates and temperature-controls several sample series simultaneously between +20 and +80 °C, including in research applications.

  • Incubating and temperature-controlling batches across eight shelves
  • Sterilising the interior using the permanently installed programme
  • Use in research

Technical details

Setting temperature range+20 to +80 °C
Working temperature rangeAt least 5 °C above room temperature up to +80 °C
Temperature setting accuracy0.1 °C
Temperature sensor2 Pt100 sensors, DIN Class A, in a 4-wire configuration for mutual monitoring and function takeover in the event of a fault
HeatBALANCE functionAdjustment of the heating power distribution between the upper and lower heating groups from -50 % to +50 %
Adjustable temperature monitor/limiterAdjustable temperature monitor (TWW), protection class 3.1, or adjustable temperature limiter (TWB), protection class 2, selectable via the display
AutoSAFETYadditionally integrated over- and under-temperature monitoring ‘ASF’, automatically tracks the setpoint at a freely selectable interval, alarm if temperature exceeds or falls below the setpoint, heating shut-off if exceeded
Sterilisation programmePermanently set sterilisation programme (4 hours/160 °C) for sterilising the interior; not intended for sterilising the load
Internal volume161 l
Internal dimensions (W x H x D)560 x 720 x 400 mm
External dimensions of housing (W x H x D)745 x 1,104 x 584 mm (depth plus 56 mm for door handle)
Net weightapprox. 96 kg
Connection 230 V50/60 Hz, approx. 1,600 W
Connection 115 V50/60 Hz, approx. 900 W
Maximum number of shelves8
Shelves included in the scope of delivery2
InteriorEasy to clean, reinforced with deep-drawn ribbing, with protected, integrated 4-sided all-round heating
ControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic displays
Permissible ambient temperature+5 °C to +40 °C
Permissible relative humiditymax. 80 % non-condensing
Maximum installation altitudemax. 2,000 m above sea level
MarkingsCE, VDE GS, UL, EAC

Other sizes in the series

The IN-plus series with TwinDISPLAY ranges from 32 to 749 litres internal volume, sorted by internal volume:

ModelInternal volumeSet temperatureDisplay
IN30plus32 l+20 to +80 °CTwinDISPLAY
IN55plus53 l+20 to +80 °CTwinDISPLAY
IN75plus74 l+20 to +80 °CTwinDISPLAY
IN110plus108 l+20 to +80 °CTwinDISPLAY
IN160plus (this page)161 l+20 to +80 °CTwinDISPLAY
IN260plus256 l+20 to +80 °CTwinDISPLAY
IN450plus449 l+20 to +80 °CTwinDISPLAY
IN750plus749 l+20 to +80 °CTwinDISPLAY

The same capacity is also available with SingleDISPLAY and a Pt100 sensor in the IN series: IN160.

Scope of delivery

  • 1x Memmert IN160plus incubator
  • Factory calibration certificate (calibrated at +37 °C)
  • Fully insulated stainless steel door with 2-point locking (compression door lock)
  • Inner glass door
  • 2x stainless steel grid shelves, electropolished

Regulatory information

This appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Memmert GmbH + Co. KG, is DE 66812464. Information on the return of old appliances can be found on our Environment and disposal page.

Installation in a wall opening

For fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29736) or without air slots (B29737). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.

Individual requirements and procurement service

The IN160plus can be fitted ex-works with, amongst other things, a 115 V power supply at no extra charge, a temperature limiting (factory limit on the maximum adjustable temperature) function and a supply air filter. Accessories include a USB user ID stick, additional grid shelves and perforated trays, a built-in frame and pipe extensions. We arrange calibration and IQ/OQ services for qualification and requalification. Should your requirements differ, we will advise you on an individual basis.

Certification marks: GS (VDE)
Volume: 161 l
