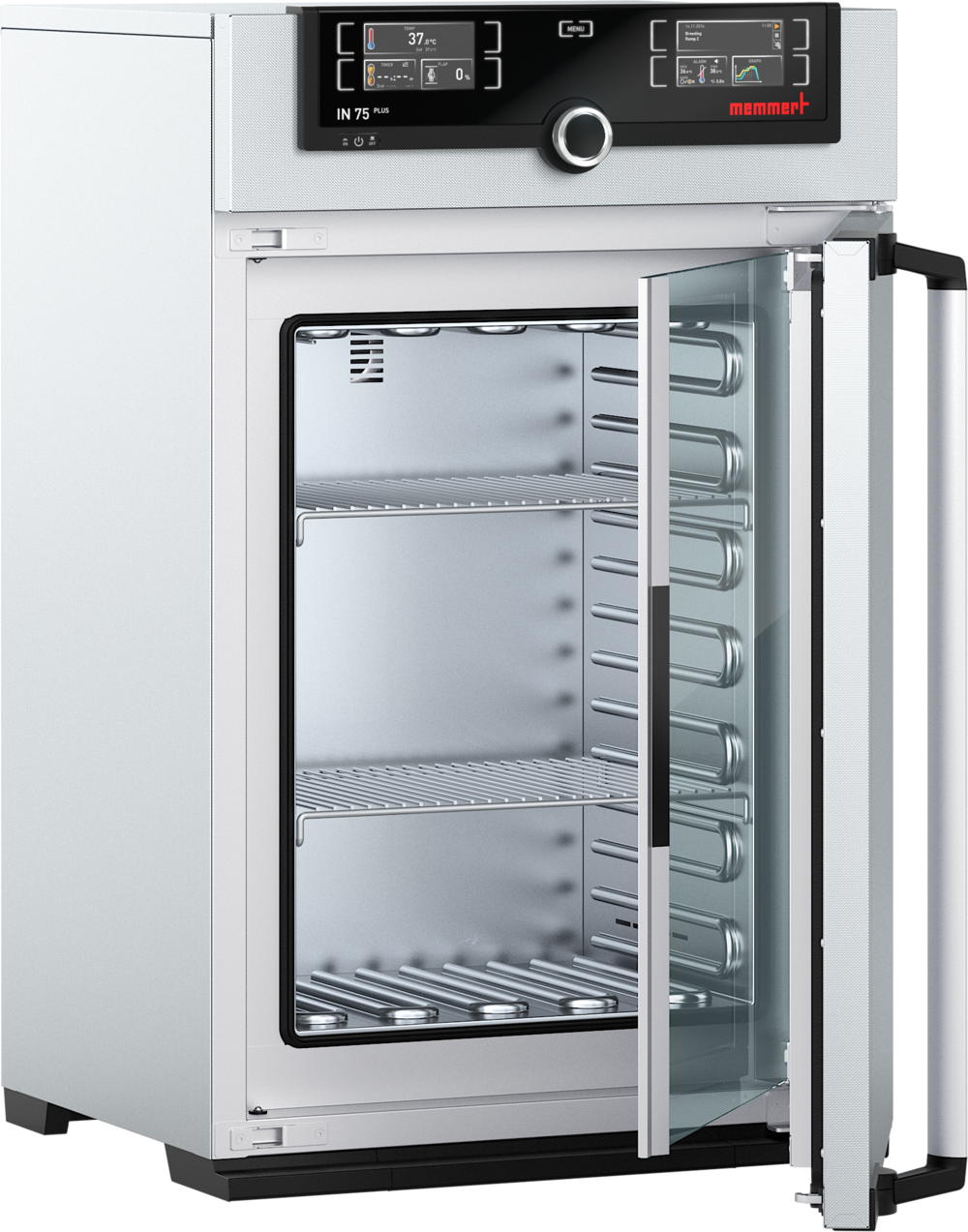

Memmert IN75plus Incubator, 74 L, with TwinDISPLAY & natural convection
€2,397.00
Available, delivery time: 2-3 weeks
- 74-litre internal capacity, ControlCOCKPIT TwinDISPLAY
- HeatBALANCE function for adjusting the distribution of heating power
- Setting range +20 to +80 °C, setting accuracy 0.1 °C
- AutoSAFETY over- and under-temperature monitoring with alarm
- Pre-programmed sterilisation cycle (4 hours at 160 °C) for the interior
- Factory calibration certificate at +37 °C included
Product information "Memmert IN75plus Incubator, 74 L, with TwinDISPLAY & natural convection"
The IN75plus has a capacity of 74 litres and sits in the IN-plus series between the smaller IN55plus and the larger IN110plus. Two Pt100 sensors monitor each other, whilst HeatBALANCE adjusts the distribution of heating power between the upper and lower heating groups. Control is via a ControlCOCKPIT TwinDISPLAY within the range of +20 to +80 °C.
Design and air flow
An electronically adjustable exhaust air damper mixes in preheated fresh air; the exhaust air outlet with a throttle valve is electronically controllable. The interior features deep-drawn ribbing with 4-sided all-round heating; the casing has a fully galvanised sheet steel rear panel. Unlike the IF-plus series, which operates with recirculated air, the IN75plus does not require a fan wheel inside the unit.
Control via the ControlCOCKPIT TwinDISPLAY
Two DIN Class A Pt100 sensors in a 4-wire configuration take over each other’s function in the event of a fault, controlled via the ControlCOCKPIT TwinDISPLAY with two TFT colour graphic displays. HeatBALANCE adjusts the heat output distribution from -50 to +50 per cent; programmes are managed and transferred via Ethernet or USB using AtmoCONTROL.
Safety and sterilisation programme
A mechanical temperature limiter of protection class 1 in accordance with DIN 12880 switches off the heating when the temperature reaches approximately 20 °C above the maximum cabinet temperature. Additionally, a temperature selector monitor (Protection Class 3.1) or an adjustable temperature limiter (Protection Class 2) can be selected; AutoSAFETY signals deviations from the setpoint visually and acoustically. A pre-programmed sterilisation cycle (4 hours at 160 °C) sterilises the interior of the cabinet, not the contents.
Selection guide for the right size
With a capacity of 74 litres, the IN75plus sits between the IN55plus and the larger IN110plus, which has a capacity of 108 litres. The IN110plus accommodates a maximum of five trays, one fewer than the IN75plus, which holds six; both come with two wire racks as standard. If you need more trays, the size chart below lists the IN160plus, which has a capacity of 161 litres and accommodates up to eight trays.
Typical applications
With a capacity of 74 litres, the IN75plus is suitable for incubating and temperature-controlling samples in the range from +20 to +80 °C, including in research applications.
- Incubation and temperature control with redundant sensor monitoring and HeatBALANCE
- Internal chamber sterilisation via the permanently installed sterilisation programme
- Use in research
Technical details
| Temperature setting range | +20 to +80 °C |
| Operating temperature range | At least 5 °C above room temperature up to +80 °C |
| Temperature setting accuracy | 0.1 °C |
| Temperature sensor | 2 Pt100 sensors, DIN Class A, in a 4-wire configuration for mutual monitoring and automatic failover in the event of a fault |
| HeatBALANCE function | Adjustment of the heating power distribution between the upper and lower heating groups from -50% to +50% |
| Temperature selector switch/limiter | Temperature selector monitor (TWW), protection class 3.1, or adjustable temperature limiter (TWB), protection class 2, selectable via the display |
| AutoSAFETY | additionally integrated over- and under-temperature monitoring ‘ASF’, automatically tracks the setpoint at a freely selectable interval, alarm if the temperature exceeds or falls below the setpoint, heating shut-off if the temperature is exceeded |
| Sterilisation programme | Permanently set sterilisation programme (4 hours/160 °C) for sterilising the interior; not intended for sterilising the load |
| Internal volume | 74 l |
| Internal dimensions (W x H x D) | 400 x 560 x 330 mm |
| External dimensions of housing (W x H x D) | 585 x 944 x 514 mm (depth plus 56 mm for door handle) |
| Net weight | approx. 66 kg |
| Power supply 230 V | 50/60 Hz, approx. 1,250 W |
| 115 V connection | 50/60 Hz, approx. 900 W |
| Maximum number of trays | 6 |
| Slots in the scope of delivery | 2 |
| Interior | Easy to clean, reinforced with deep-drawn ribbing, with protected, integrated 4-sided all-round heating |
| Control | ControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic displays |
| Permissible ambient temperature | +5 °C to +40 °C |
| Permissible relative humidity | max. 80% non-condensing |
| Maximum installation height | max. 2,000 m above sea level |
| Certifications | CE, VDE GS, UL, EAC |
Other sizes in the series
The IN-plus series with TwinDISPLAY ranges from 32 to 749 litres internal volume, sorted by internal volume:
| Model | Internal volume | Set temperature | Display |
|---|---|---|---|
| IN30plus | 32 l | +20 to +80 °C | TwinDISPLAY |
| IN55plus | 53 l | +20 to +80 °C | TwinDISPLAY |
| IN75plus (this page) | 74 l | +20 to +80 °C | TwinDISPLAY |
| IN110plus | 108 l | +20 to +80 °C | TwinDISPLAY |
| IN160plus | 161 l | +20 to +80 °C | TwinDISPLAY |
| IN260plus | 256 l | +20 to +80 °C | TwinDISPLAY |
| IN450plus | 449 l | +20 to +80 °C | TwinDISPLAY |
| IN750plus | 749 l | +20 to +80 °C | TwinDISPLAY |
The same capacity is also available with SingleDISPLAY and a Pt100 sensor in the IN series: IN75.
Scope of delivery
- 1x Memmert IN75plus incubator
- Factory calibration certificate (calibrated at +37 °C)
- Fully insulated stainless steel door with 2-point locking (compression door seal)
- Inner glass door
- 2x stainless steel wire mesh shelves, electropolished
Regulatory information
This appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Memmert GmbH + Co. KG, is DE 66812464. Information on the return of end-of-life appliances can be found on our Environment and Disposal page.
Individual requirements and procurement service
For the IN75plus, the following items, amongst others, can be ordered ex-works: interior lighting and a power socket, a shatterproof door and a left-hand door hinge. Recommended accessories include a USB User ID stick, additional wire mesh trays, a floor drip tray and AtmoCONTROL software licences. We arrange calibration and IQ/OQ services for qualification and re-qualification. We are happy to advise you personally on any individual requirements.
| Volume: | 74 l |
|---|
