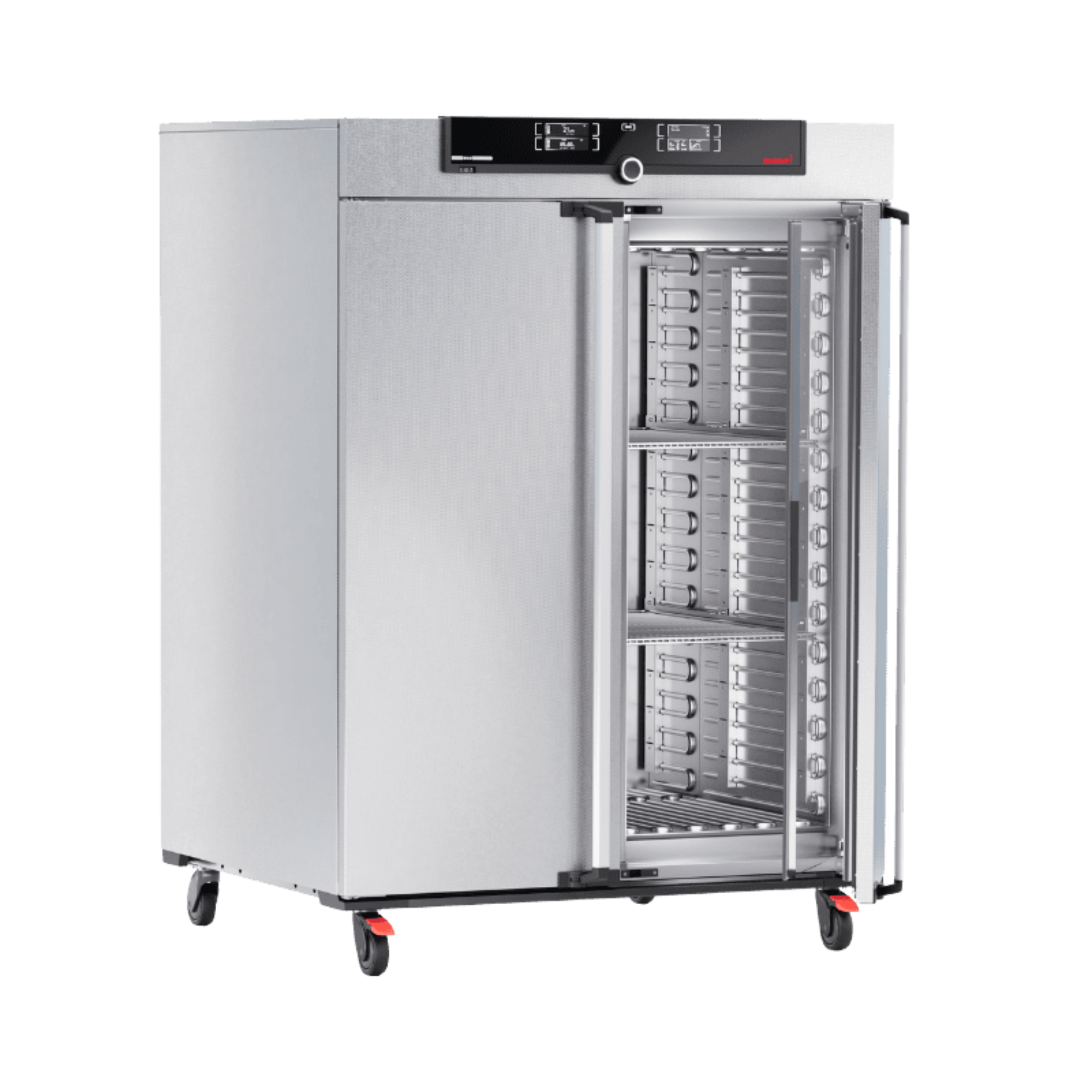

Memmert IPP1060ecoplus Peltier-cooled incubator, 1060 L, 0–70 °C, TwinDISPLAY

Thermodynamic efficiency through advanced Peltier technology

In the demanding fields of microbiology, the stability testing of pharmaceuticals in accordance with ICH guidelines, or the cultivation of insects and cell cultures, absolutely precise and stable temperature control is essential. The Memmert IPP1060ecoplus completely redefines the standards for incubators in the 1,000-litre class. Instead of a conventional, fault-prone compressor cooling system using climate-damaging refrigerants, this high-tech unit operates exclusively with state-of-the-art Peltier elements (based on the heat pump principle). The system cools and heats using exactly the same semiconductor component. The process-related advantage: in continuous operation, the unit consumes up to 90 per cent less energy than comparable compressor incubators. As Peltier elements can be controlled with extreme precision and without delay, the heating, cooling and recovery times following the opening of the door are drastically minimised. Dangerous temperature overshooting, which could irreversibly destroy sensitive samples such as protein crystals or delicate cell cultures, is physically virtually ruled out by this precise control.

TwinDISPLAY: Maximum process reliability and GLP compliance

The ‘plus’ suffix in the model name indicates the integration of the high-end TwinDISPLAY control system. This dual, high-resolution TFT colour display offers users full control over all process-critical parameters. Two independent Pt100 temperature sensors (DIN Class A) continuously monitor each other within the chamber via a 4-wire measurement circuit. In the event of a potential hardware fault, the intact sensor immediately and seamlessly takes over the function of the other. The intelligent SetpointWAIT function also ensures that the programmed process and hold time only begins once the exact target temperature has been physically reached throughout the entire interior. For strictly certified laboratories in accordance with Good Laboratory Practice (GLP) or FDA requirements, the internal data logger records all measured values in a tamper-proof manner for at least ten years. The supplied AtmoCONTROL software enables the convenient creation of complex temperature profiles on a PC and their seamless transfer via USB or Ethernet interface.

Enormous usable volume with whisper-quiet operation

With a fully usable internal volume of 1,060 litres, the IPP1060ecoplus is the ideal large-scale unit for laboratories with extremely high sample throughput or for the simultaneous storage of bulky test batches. Despite its enormous capacity, the Peltier incubator operates almost silently and with virtually no vibration, as there is no heavy compressor to transmit mechanical vibrations to the sample vessels. This is an invaluable analytical advantage for sensitive biological cultures. To ensure that the thermal microclimate inside the chamber is not disrupted during visual sample inspection, this large-volume unit is fitted with double inner glass doors behind the outer doors.

Hygienic design and high-quality materials for sterile environments

Memmert makes no compromises when it comes to durability and hygiene. Both the textured outer casing and the seamless, fully welded interior are made entirely from high-quality, corrosion-resistant stainless steel. In stark contrast to cheap plastic interiors, this stainless steel offers outstanding microbiological safety. It can be thoroughly disinfected using all standard laboratory cleaning agents, does not release any gases and provides absolutely no breeding ground for bacteria or fungi. The Memmert IPP1060ecoplus is therefore the most economical, safest and most environmentally friendly solution for the most demanding incubation processes from 0 °C to +70 °C.

Technical details

• Useful volume: 1060 litres
• Operating temperature range: 0 °C (at least 20 °C below room temperature) to +70 °C
• Temperature control accuracy: 0.1 °C
• Temperature control: 2 x Pt100 sensors (DIN Class A in 4-wire measurement) for mutual monitoring
• Heating/cooling technology: Advanced Peltier Technology (refrigerant-free heat pump principle)
• Air circulation: Forced circulation via Peltier fan (rapid energy transfer)
• Control: TwinDISPLAY (adaptive multifunctional digital PID microprocessor controller with 2 TFT displays)
• Safety: Adjustable electronic over-temperature protection, mechanical temperature limiter, self-diagnostic system
• Timer: Digital countdown timer (1 minute to 99 days)
• Additional function: SetpointWAIT (process time only starts once the setpoint temperature has been reached)
• Data logger: Internal ring buffer for at least 10 years of tamper-proof data
• Interfaces: Ethernet, USB (including AtmoCONTROL software on a USB stick)
• Inner chamber material: Stainless steel (grade 1.4301 / ASTM 304)
• Housing material: Textured stainless steel
• Doors: 2 external stainless steel doors, 2 internal full-glass doors (double-leaf)
• Shelves (racks): Up to 14 shelves possible
• Internal dimensions (W x H x D): 1040 x 1200 x 850 mm
• External dimensions (W x H x D): 1224 x 1720 x 1005 mm
• Weight (net): approx. 248 kg
• Maximum power consumption: approx. 1300 W
• Voltage: 230 V / 115 V, 50/60 Hz

Contents of delivery

• 1 x Memmert Peltier-cooled incubator IPP1060ecoplus (1060 L)
• 2 x stainless steel wire shelves (electropolished)
• 1 x factory calibration certificate (for +10 °C, +25 °C and +40 °C)
• 1 x USB stick with AtmoCONTROL software and operating instructions
• 1 x mains lead

Individual requirements & accessories

The two stainless steel grating panels supplied provide a solid foundation. However, to make full use of the enormous 1,060-litre capacity in your laboratory, we strongly recommend ordering additional electropolished stainless steel grating panels (up to a maximum of 14) or reinforced grating panels (for loads of up to 60 kg). For comprehensive quality management documentation in GMP areas, you can also commission customised IQ/OQ/PQ qualification documents and measurements from us. Our procurement service will be happy to configure the ideal setup for you, including suitable drip trays and individual calibration certificates.
