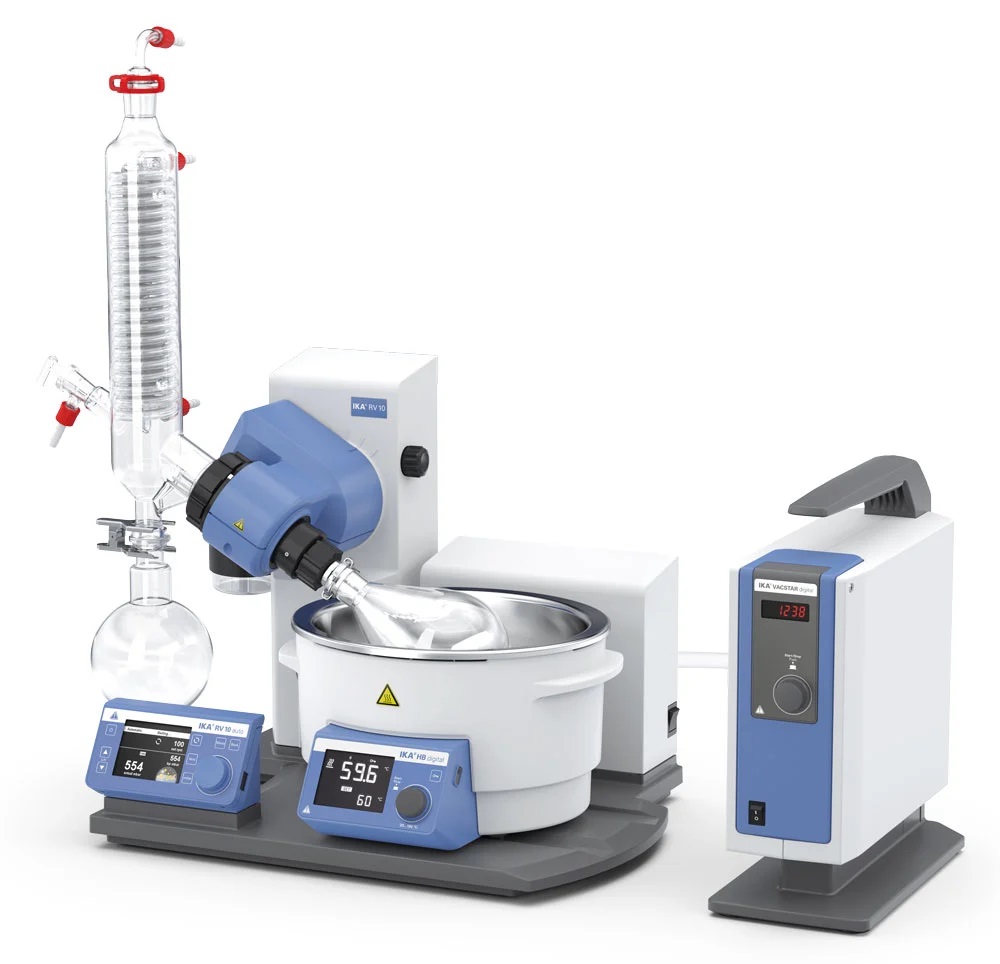

IKA RV 10 auto pro V rotary evaporator, 0010004815

RV 10 auto pro V

The completely redesigned RV 10 auto is the flagship model in IKA’s rotary evaporator product range. Its key features include innovative operation via a brilliant TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all the features required for efficient, safe and economical operation. These include automatic control of the vacuum and the cooling water flow rate. The intuitive operation quickly guides the user to the desired result. Thanks to specially developed glass guides, the cooler utilises its 1600 cm² cooling surface extremely efficiently. The RV 10 auto allows the user to carry out customised procedures via advanced ramp programming. Further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and the timer function for controlling time sequences make day-to-day laboratory work easier. Safety is ensured by the motor-driven lift with a ‘safety-stop’ function. In the event of a power cut, it automatically lifts the evaporating flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable end-position detection to protect against glass breakage, and a lock function ensure user safety. Furthermore, the receiving flasks and the cooler are also available in a coated version. The USB or RS-232 interface allows remote control via the IKA ‘labworldsoft’ software and enables updates via the firmware update tool. The scope of delivery includes vacuum hoses and water hose connections for your in-house cooling water supply. The new IKA Vacstar digital, included in the scope of delivery, is controlled directly by the RV 10 auto drive unit via the supplied data cable.

4-litre heating bath

Automatic boiling point detection

Integrated vacuum controller

Integrated solvent library with 40 pre-stored and expandable solvents

Operation via a brilliant TFT colour graphic display

Universal safety heating bath

Optimised bath volume for rapid heating

Ergonomic carrying handles on the heating bath

Safety temperature circuit

Dry-run protection

Cooler with 1600 cm² with a compact footprint

Coated glass

Intuitive operation via simple menu navigation

Programming of up to ten individual procedures

Soft start

Right-left rotation

Timer function

End-position detection

Piston extraction device for stuck pistons

Digital interfaces: USB and RS-232 interfaces for remote control

Multilingual

Automatic cooling water management

Automatic aeration

Automatic heating bath management

Warranty

By registering online at www.ika.com/register, you can extend the warranty on your equipment free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years following registration (2+3). For peripheral equipment included in the package (vacuum pump and cooler), the additional warranty is one year (2+1).

Contents

RV 10 auto pro FLEX

VACSTAR digital

RV 10.1 Vertical Glass Set

RV 10.70 vapour feed-through tube (NS 29/32)

RV 10.8001 Seal

Vacuum hose (2 x 0.55 m)

Water discharge hose (1 x 1 m)

Water discharge hose (1 x 1 m)

USB cable

Technical specifications

Cooler type Vertical cooler

Cooling surface area 1600 cm²

Speed range 5–300 rpm

Reversible rotation yes

Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 %

Lift Motor

Stroke 140 mm

Heating temperature range Room temp. – 180 °C

Heating power 1350 W

Setpoint temperature control accuracy ±1 K

Max. filling volume 4 l

Integrated vacuum regulator yes

Measurement accuracy: ± 1 mbar

Timer yes

Vacuum pump Vacstar digital

Dimensions (W x H x D) 500 x 430 x 440 mm

Weight 52.34 kg

Permissible ambient temperature range 5–40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 20

RS 232 interface yes

USB interface Yes

Analogue output Yes

Voltage 100–240 V

Frequency 50/60 Hz

Device power consumption 100 W

Standby power consumption 3.3 W

Accessories and spare parts available on request
