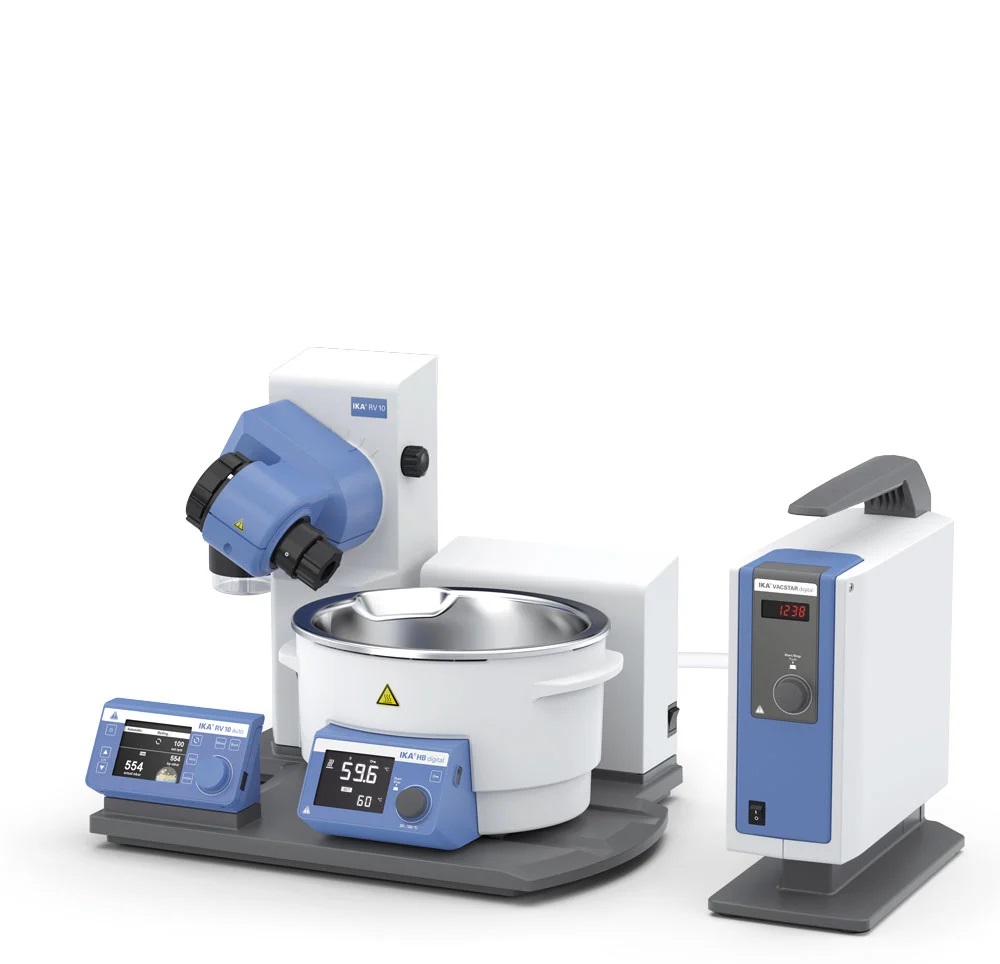

IKA RV 10 auto pro FLEX rotary evaporator, 0010004818

RV 10 auto pro FLEX

The completely redesigned RV 10 auto is the flagship model in IKA’s rotary evaporator product range. Its key features include innovative operation via a brilliant TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all the features required for efficient, safe and economical operation. These include automatic control of the vacuum and the cooling water flow rate. The intuitive operation quickly guides the user to the desired result. The RV 10 auto allows the user to carry out customised procedures via advanced ramp programming. Further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and the timer function for controlling time sequences simplify day-to-day laboratory work. Safety is ensured by the motor-driven lift with a ‘safety-stop’ function. In the event of a power failure, it automatically lifts the evaporating flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable end-position detection to protect against glass breakage, and a lock function ensure user safety. Furthermore, the receiving flasks and the condenser are also available in a coated version. The USB or RS-232 interface allows remote control via the IKA ‘labworldsoft’ software and enables updates via the firmware update tool. The scope of delivery includes vacuum hoses and water hose connections for your in-house cooling water supply. The new IKA Vacstar digital, included in the scope of delivery, is controlled directly by the RV 10 auto drive unit via the supplied data cable.

4-litre heating bath

Automatic boiling point detection

Integrated vacuum controller

Integrated solvent library with 40 pre-stored and expandable solvents

Operation via a brilliant TFT colour graphic display

Universal safety heating bath

Optimised bath volume for rapid heating

Ergonomic carrying handles on the heating bath

Safety temperature circuit

Dry-run protection

Coated and uncoated glassware available as accessories

Intuitive operation via simple menu navigation

Programming of up to ten individual procedures

Soft start

Right-left rotation

Timer function

End-position detection

Piston extraction device for stuck pistons

Digital interfaces: USB and RS-232 interfaces for remote control

Multilingual

Automatic cooling water management

Automatic aeration

Automatic heating bath management

Warranty

By registering online at www.ika.com/register, you can extend the warranty on your equipment free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years following registration (2+3). For peripheral equipment included in the package (vacuum pump and cooler), the additional warranty is one year (2+1).

Contents of delivery

RV 10 auto

HB digital S099

VACSTAR digital

RV 05.10 Ball-joint clamp

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

Vacuum hose (2 x 0.55 m)

Water discharge hose (1 x 1 m)

Water discharge hose (1 x 1 m)

USB cable

Technical specifications

Cooler type: without cooler

Speed range 5–300 rpm

Reversible rotation: yes

Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 %

Lift motor

Stroke: 140 mm

Heating temperature range: room temperature – 180 °C

Heating power 1350 W

Setpoint temperature accuracy ±1 K

Max. capacity 4 l

Integrated vacuum regulator: yes

Measurement accuracy: ±1 mbar

Timer: Yes

Dimensions (W x H x D) 500 x 430 x 440 mm

Weight 18.6 kg

Permissible ambient temperature range 5–40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS 232 interface: yes

USB interface: Yes

Analogue output: Yes

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 100 W

Standby power consumption: 3.3 W

Accessories and spare parts available on request
