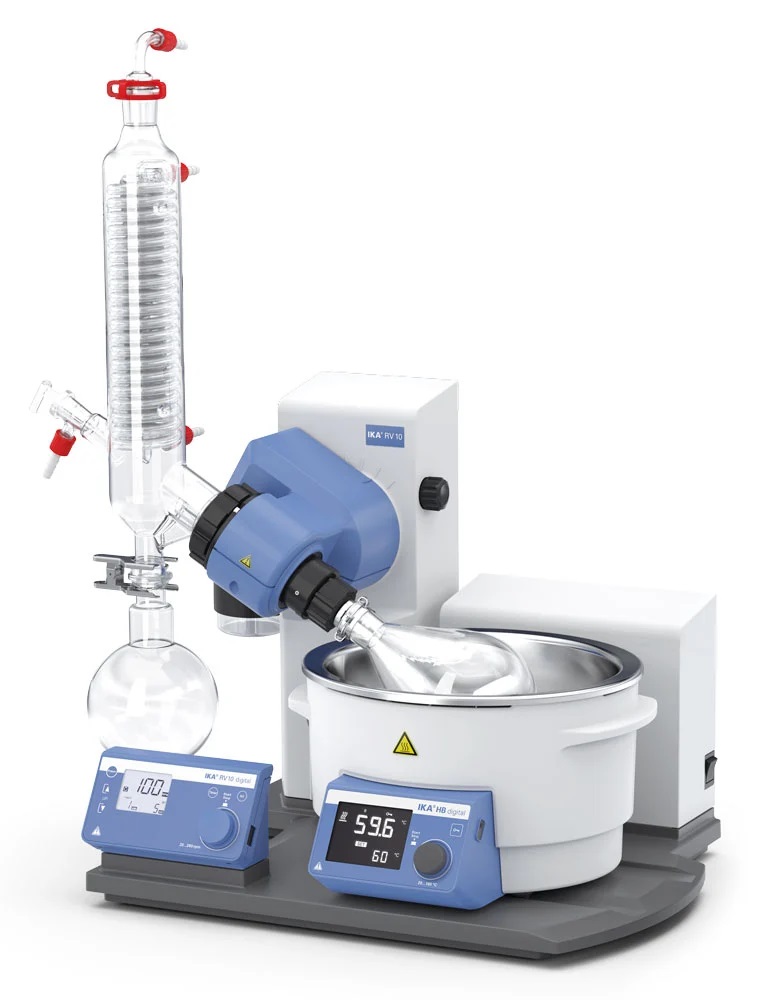

IKA RV 10 Digital V-C Rotary Evaporator, 0010004802

RV 10 digital V-C

The RV 10 digital is the logical evolution of the RV 10 rotary evaporator product range. It features a new universal heating bath, a vertical glass assembly, modern safety features and digital interfaces. The RV 10 digital is a robust and reliable companion for all distillation tasks. Its optimised bath volume enables rapid heating times. Thanks to specially developed glass guides, the condenser utilises its 1,600 cm² cooling surface extremely efficiently. The IKA RV thus delivers Further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and a timer function for controlling time sequences support the user in their day-to-day laboratory work. Safety is ensured by the motorised lift with a ‘safety-stop’ function. In the event of a power cut, it automatically lifts the evaporating flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable limit position detection to protect against glass breakage, and a lockout function ensure user safety. Furthermore, the receiving flasks and the condenser are also available in a coated version. The RS-232 interface allows remote control via IKA’® software ‘labworldsoft’. The heating bath is controlled by the control unit via an infrared interface.

4-litre heating bath

Universal (water/oil) safety heating bath

Vertical glass set as standard

Motorised lift with ‘safety-stop’ function

RS-232 interface

Optimised heating bath volume for rapid heating

Highly efficient cooler with 1600 cm²

Robust design

Ergonomic carrying handles on the heating bath

Soft start

Forward and reverse operation

Timer function

Dry-run protection

Safety temperature circuit

Limit position detection

Coated glass available

Piston extraction device for stuck pistons

Simple and safe operation thanks to an ergonomically designed control unit

Digital interfaces for remote control

Scope of delivery

RV 10 digital drive

HB digital S099

RV 10.10 glass set, vertically coated

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

RV 3.4 Woulff flask

RV 3.1 Support rod

Technical data

Cooler design: vertical

Cooling surface area 1,600 cm²

Motor type: DC

Speed range 5–280 rpm

Reversible rotation: yes

Lift motor

Stroke: 140 mm

Heating temperature range: room temperature – 180 °C

Heating power 1350 W

Setpoint accuracy ±1 K

Maximum capacity 4 l

Timer: yes

Dimensions (W x H x D): 500 x 430 x 440 mm

Weight 32.67 kg

Permissible ambient temperature range 5–40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS-232 interface: yes

Voltage 220–240 V

Frequency: 50/60 Hz

Power consumption 1400 W

Other voltage variants available (220–240 V / 115 V / 100–240 V / 100–120 V / 100–115 V)

Accessories and spare parts available on request
