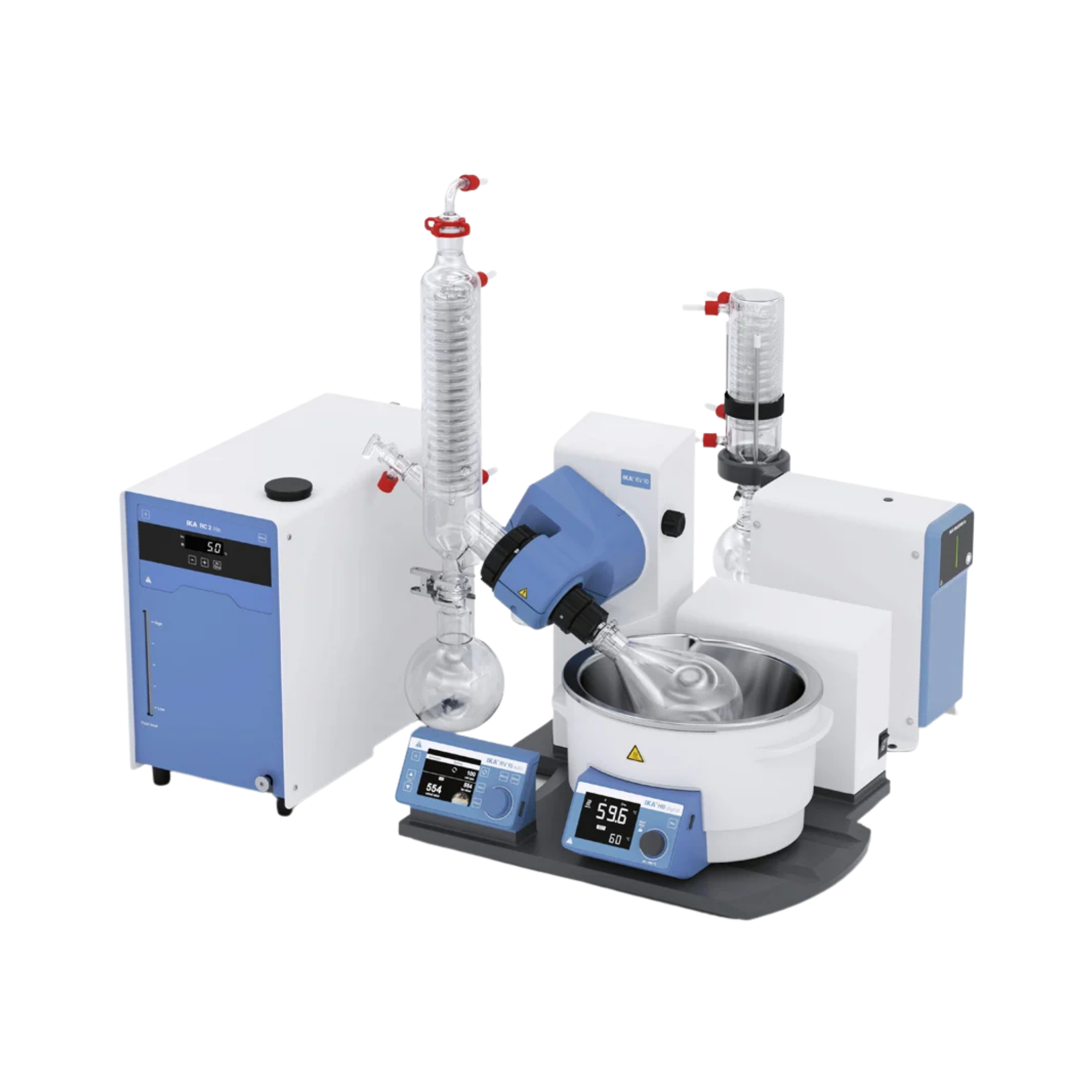

IKA RV 10 auto V Starter Solution, rotary evaporator set including vacuum pump, 0010014909

Distillation on autopilot: The IKA RV 10 auto V Starter Solution

With the IKA RV 10 auto V Starter Solution (MPN 0010014909), you can bring the future of distillation into your laboratory. This high-end package has been developed for users who do not want to waste time manually monitoring boiling points or readjusting vacuum settings. The RV 10 auto is the flagship of the IKA rotary evaporator series and offers a level of automation that sets new standards in its class. The “Starter” package perfectly complements the evaporator with the high-performance VACSTAR digital vacuum pump – a combination that guarantees efficiency, safety and precision.

Intelligence meets process reliability

The standout feature of the RV 10 auto is its ability to automatically detect boiling points. Using intelligent sensors and algorithms, the system independently determines the optimum pressure point for the respective solvent. Whether you need to distil individual samples or separate complex solvent mixtures, the RV 10 auto guides the process safely and quickly to completion without the need for constant intervention. This not only saves valuable working time, but also drastically increases the recovery rate of solvents and helps protect the environment. The integrated solvent library also allows you to easily call up predefined parameters for common substances or save your own profiles.

All-inclusive: the VACSTAR digital vacuum pump

A rotary evaporator is only as good as its vacuum. That is why this set includes the IKA VACSTAR digital vacuum pump. This compact diaphragm pump is perfectly matched to the RV 10 auto. It is controlled directly from the evaporator (via the supplied data cable) and delivers a pumping speed of 22 l/min at a final vacuum of up to 2 mbar. The pump operates oil-free, is chemical-resistant and extremely quiet, making it the ideal partner for use in a laboratory fume cupboard.

Maximum safety for users and samples

Safety is paramount in distillation processes. The RV 10 auto features a comprehensive safety package:

• Motorised lift with safety stop: In the event of a power cut, the evaporator piston automatically retracts from the hot heating bath to prevent the sample from overheating or decomposing.
• Temperature management: The heating bath has an individual safety temperature setting and dry-run protection.
• Ergonomics: The 4-litre heating bath is fitted with ergonomic carrying handles, making filling and emptying safe and convenient. It heats up extremely quickly (up to 180 °C) and is suitable for water and oil.

Intuitive operation and connectivity

Control is via a brilliant TFT graphic display with intuitive menu navigation. Here, you can keep an eye on all parameters – from the bath temperature and speed to the current vacuum reading. The integrated vacuum controller eliminates the need for external measuring devices. For the modern, networked laboratory, the RV 10 auto also offers USB and RS-232 interfaces. This allows the system to be integrated into the labworldsoft laboratory software ® to remotely control processes, run pressure-temperature profiles and document them seamlessly.

Efficient cooling

The set includes the vertical glass assembly (V) with a cooling surface area of 1,500 cm². This highly efficient cooler ensures optimum condensation of solvent vapours. Thanks to its compact design, the unit makes optimum use of the available space within the laboratory fume cupboard.

Technical data

• Unit type: Rotary evaporator (fully automatic)
• Cooler type: Vertical (V), standard coating
• Cooling surface area: 1,500 cm²
• Speed range: 5 – 300 rpm
• Speed control: Digital
• Stroke: Motorised lift (140 mm)
• Heating temperature range: Room temperature to 180 °C
• Heating power: 1,300 W
• Vacuum regulator: Integrated
• Boiling point detection: Automatic
• Solvent library: Yes
• Timer function: Yes
• Interfaces: USB, RS 232
• Dimensions (W x H x D): 500 x 430 x 410 mm
• Weight: approx. 18.6 kg (excluding pump)
• Protection class: IP 20

Contents of delivery

• 1 x IKA RV 10 auto drive
• 1 x HB digital heating bath
• 1 x RV 10.1 glass set (vertical)
• 1 x VACSTAR digital vacuum pump
• 1 x RV 10.5005 vacuum hose set
• 1 x steam feed-through tube
• 1 x Woulff bottle (safety bottle)
• 1 x mains cable & data cable
• 1 x User manual

Customised requirements & accessories

Do you also need a recirculating cooler for resource-efficient cooling without tap water? We recommend the suitable IKA cooler (e.g. RC 2 lite). Please contact our procurement service for a comprehensive quote.
