IKA S 25 EC - T - C - 25 G - ST Dispersing Tool, Ø 25 mm, Temperature Sensor, easy to clean, 0025002595
€1,555.50
% Manufacturer's RRP: €2,074.00 25% below manufacturer's RRP
- Integrated temperature sensor, measuring range 0 to 125 °C
- Operating hours recording with maintenance reminder on the actuator display
- Easy-clean design, ceramic plain bearings, AISI 316L and ceramic
- Stator 25 mm, rotor 20 mm, operating range 0.05 to 2 l
- Final fineness 15 to 50 µm (suspensions), 1 to 10 µm (emulsions)
- Suitable for solvents and abrasive substances, autoclavable
Product information "IKA S 25 EC - T - C - 25 G - ST Dispersing Tool, Ø 25 mm, Temperature Sensor, easy to clean, 0025002595"
IKA cites dispersing applications in biochemistry and pharmaceuticals as typical uses for the S 25 EC - T - C - 25 G - ST (0025002595), such as the emulsification of heat-sensitive pharmaceutical intermediates. The autoclavable tool has a 25 mm stator and a 20 mm rotor, processes volumes of 0.05 to 2 l and incorporates a temperature sensor.
Temperature and operating hours
The integrated sensor measures from 0 to 125 °C and displays the value during operation. The drive keeps track of operating hours; a message appears on the display when maintenance is due. IKA specifies the T 25 easy clean control as the drive. The maximum operating temperature of the unit is 120 °C.
Cleaning according to the ‘easy-clean’ principle
When the clamp is turned and lowered, the shaft and rotor drop out until the rotor has completely left the stator. The shaft tube can then also be rinsed internally. The shaft runs in a ceramic plain bearing; the parts in contact with the product are made of AISI 316L and ceramic.
Gap, fineness and dimensions
The gap is 0.5 mm; at 25,000 rpm, a speed of 26.2 m/s is achieved at the rotor circumference. The final fineness ranges from 15 to 50 µm for suspensions and from 1 to 10 µm for emulsions. The tool has a plunge depth of 45 to 150 mm, is 191 mm long, weighs 0.634 kg and is suitable for solvents and abrasive materials.
Typical applications
- Dispersion in biochemistry and pharmaceuticals, including heat-sensitive intermediates
- Batches of 0.05 to 2 l with temperature measurement
- Emulsions with final particle sizes of 1 to 10 µm
- Samples containing abrasive components
- Work involving solvents
- Sample series with maintenance instructions based on operating hours
Technical details
| Processable volume (H2O) | 0.05 to 2 l |
| Stator diameter | 25 mm |
| Rotor diameter | 20 mm |
| Stator/rotor gap width | 0.5 mm |
| Max. permissible speed | 25,000 rpm |
| Maximum circumferential speed | 26.2 m/s |
| Penetration depth | 45 to 150 mm |
| Installation length | 191 mm |
| Bearing type | Ceramic plain bearing |
| Materials in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Temperature measurement range | 0 to 125 °C |
| Max. operating temperature | 120 °C |
| Sterilisability | all methods except hot air |
| Final particle size of suspensions | 15 to 50 µm |
| Final particle size of emulsions | 1 to 10 µm |
| Weight | 0.634 kg |
Scope of delivery

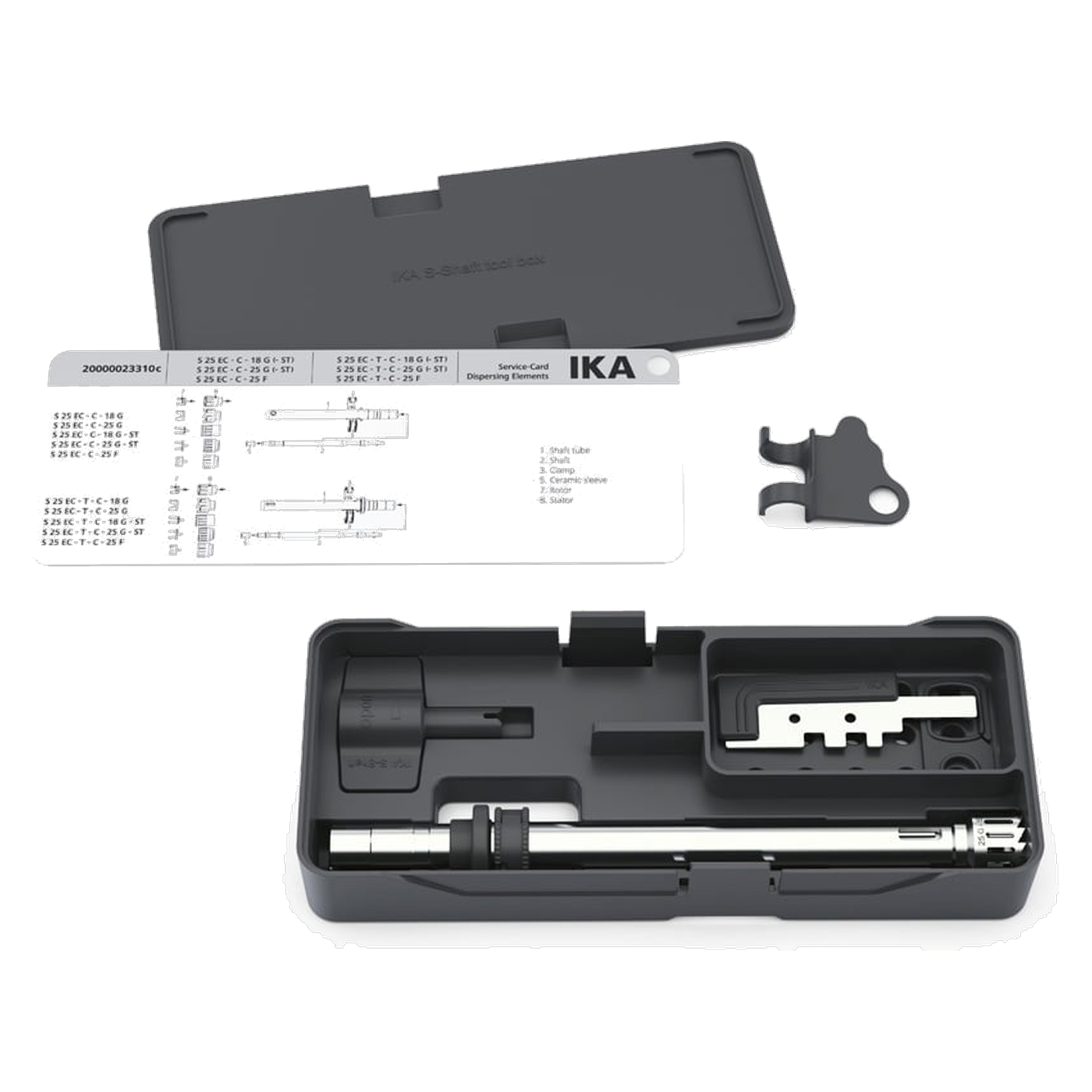

- 1 x IKA S 25 EC - T - C - 25 G - ST dispersing tool (single tool)
- The T 25 easy clean control drive is not included in the Scope of delivery.
With and without a sensor
The S 25 EC - C - 25 G - ST has the same geometry but without a temperature sensor; its operating temperature is 180 °C and it has an immersion depth of 35 to 150 mm. The S 25 EC - T - C - 25 G operates with a sensor, but features a 17 mm rotor and a speed of 22.2 m/s. Those requiring an 18 mm rotor and particle sizes of 1 to 5 µm for emulsions will find this in the S 25 EC - T - C - 25 F.
Individual requirements and procurement service
LT Laborhandel can supply the T 25 easy clean control drive and other tools on request. The procurement service assists with selection.
