Blanket heater
Blanket warmers gently heat towels and blankets for use in medical practices, hospitals and veterinary surgeries – ensuring greater patient comfort during treatments and examinations. LT Laborhandel stocks Memmert blanket warmers from the IFbw series with capacities ranging from 108 to 749 litres, each featuring constant temperature control up to +80 °C. You can find further heating equipment in the Thermostats & Water Baths category. We’d be happy to discuss with you which size best suits your needs.

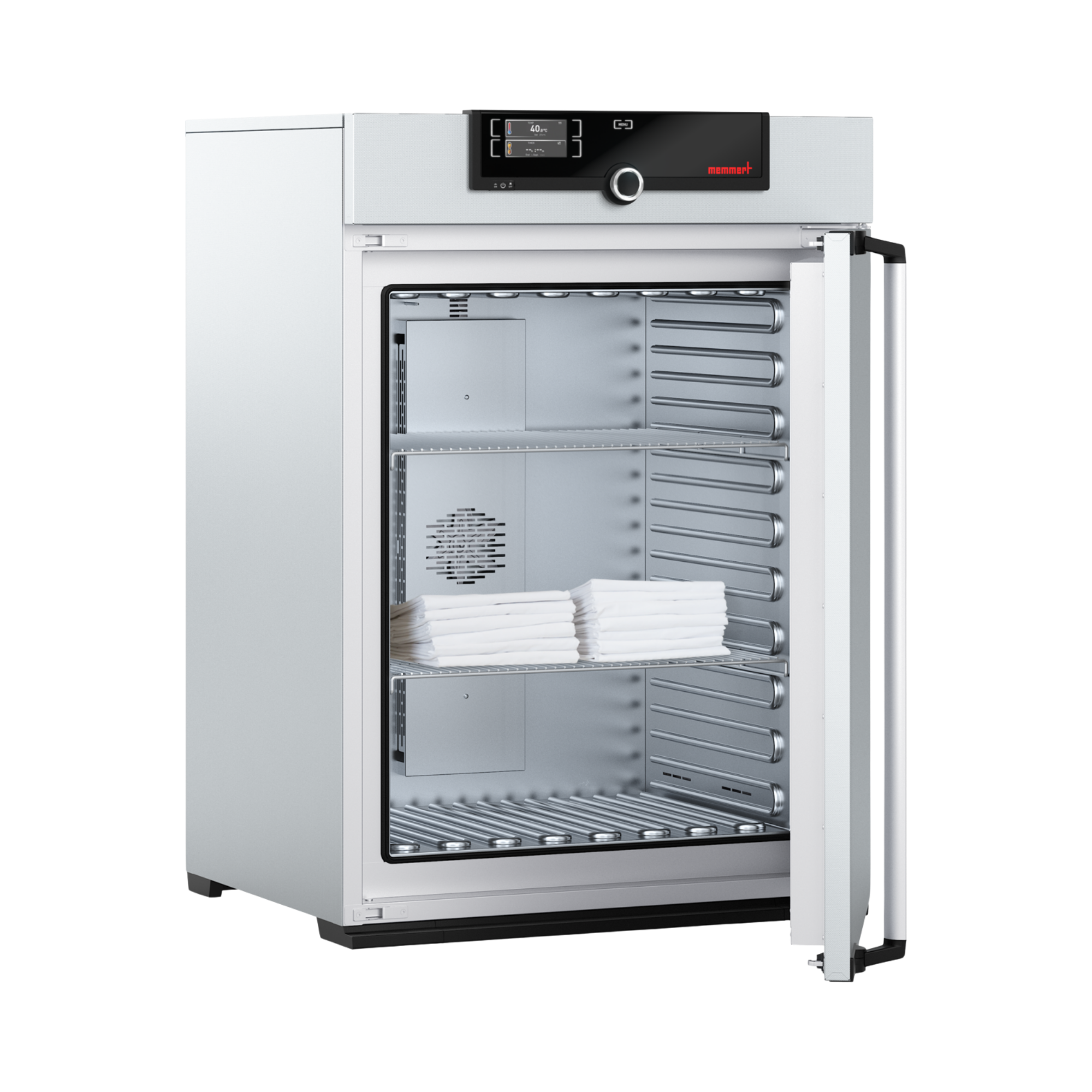

Memmert IF260bw ceiling heater, 256 L, +80 °C, Class I medical device
With an internal capacity of 256 litres, the Memmert IF260bw blanket warmer offers significantly more capacity than the smaller IF110bw model and heats non-sterile towels and blankets evenly to temperatures between +20 and +80 °C. This means that even large quantities of textiles can be kept ready for immediate use without the need for repeated restocking. Spacious interior for higher throughput With internal dimensions of 640 × 800 × 500 mm, the IF260bw offers significantly more space than the smaller model without compromising on heat distribution: Four-sided heating surrounds the entire interior, whilst an electronically controlled, low-noise air circulation system set to a fixed 100 per cent ensures uniform temperatures. The adjustable temperature range extends from +20 to +80 °C, with the operating range being at least 10 °C above the respective room temperature. With external dimensions of 824 × 1183 × 684 mm and a net weight of around 110 kg, the unit is significantly larger than the IF110bw, but can still be used as a freestanding unit. SingleDISPLAY with digital timer An adaptive, multifunctional PID microprocessor controller with a TFT colour graphic display (SingleDISPLAY) handles the control, whilst a DIN Class A Pt100 sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C. A digital timer ranging from 1 minute to 99 days allows heating cycles to be scheduled with precise timing, for example to ensure textiles are preheated and ready at a specific time when required, without the need for manual supervision of the process. Safety in accordance with DIN 12880 The IF260bw monitors the temperature electronically and, in addition, via a mechanical temperature limiter of protection class 1 in accordance with DIN 12880, a standard established in laboratory environments for the safety of heating cabinets. This dual safeguard reliably protects both the appliance itself and the textiles inside it from accidental overheating. Certified safety as a medical device The IF260bw is a Class I medical device and is certified accordingly to VDE, GS, CE and UL standards. This classification is lower than that of the Memmert hot-air sterilisers in the SF and SN series, which are classified as Class IIb medical devices because the latter are used directly for sterilisation. For organisations that prioritise tested, documented equipment safety, the Class I classification is an additional quality feature. Combined with electronic temperature monitoring and the mechanical temperature limiter in accordance with DIN 12880, this results in a multi-stage safety concept for routine practice operation. Flexible operation at 230 V or 115 V The IF260bw is available with a choice of a connected load of approximately 1700 W at 230 V or approximately 900 W at 115 V, allowing the unit to be operated according to the mains supply available at the point of use. The electronic control system automatically adjusts the heating output to maintain the setpoint precisely, regardless of the selected mains voltage. The right size for every requirement The IF260bw sits within Memmert’s IF-bw range of ceiling heaters between the compact IF110bw (108 litres) and the larger models, the IF450bw (449 litres) and the IF750bw (749 litres). All models share the same control technology and operating logic, meaning that switching to a larger or smaller size within the range requires no adjustment. This simplifies planning for facilities anticipating growing or fluctuating demand for pre-warmed textiles in the medium term. Typical applications With an internal capacity of 256 litres and a temperature range up to +80 °C, the IF260bw is suitable for facilities with a higher throughput of textiles requiring heating: Heating large quantities of non-sterile towels and blanketsTime-controlled dispensing of pre-warmed textiles thanks to a digital timer ranging from 1 minute to 99 daysUniform temperature distribution throughout the entire interior thanks to 4-sided all-round heatingFacilities with a regular, predictable demand for warm towels and blanketsThe next size up for facilities that have outgrown the compact IF110bwFlexible use in different locations thanks to optional operation at 230 V or 115 V As all models in the IF-bw series use the same SingleDISPLAY operating logic, staff already familiar with another blanket warmer from the series can operate the IF260bw without additional training, which significantly reduces the training required when switching between models within the series. Technical details Internal volume256 litres Internal dimensions (W×H×D)640 × 800 × 500 mm External dimensions (W×H×D)824 × 1183 × 684 mm Temperature setting range+20 to +80 °C Operating temperature rangeat least 10 °C above room temperature Setting accuracy0.1 °C Sensors1× Pt100 DIN Class A, 4-wire measurement TimerDigital, 1 min to 99 days Heating principle4-sided all-round heating VentilationElectronically controlled, low-noise, 100% ControlSingleDISPLAY, PID microprocessor controller, TFT colour graphic display SafetyElectronic + mechanical temperature limiter, protection class 1 (DIN 12880) Voltage/Power230 V approx. 1700 W / 115 V approx. 900 W Net weight/Gross weightapprox. 110 kg / approx. 161 kg Scope of delivery 1× Memmert IF260bw ceiling heater (basic unit) Regulatory information The IF260bw is a Class I medical device, certified to VDE, GS, CE and UL standards. Manufacturer’s WEEE registration number (Memmert GmbH + Co. KG, Stiftung EAR): DE 66812464. Customised requirements & procurement service Do you require additional accessories such as stainless steel grates, a bespoke calibration or advice on the appropriate size? Our procurement service will be happy to assist you with special requests and spare parts.

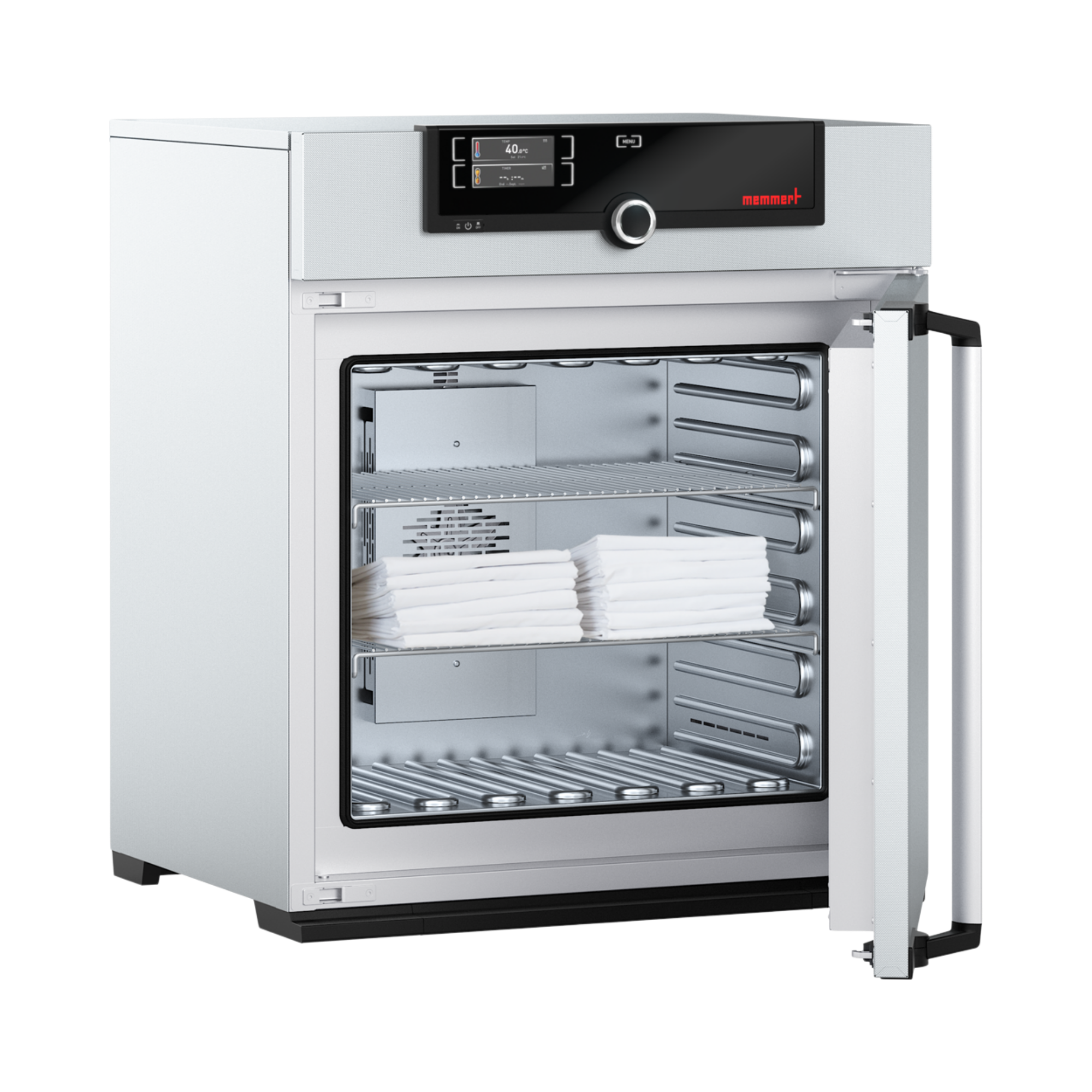

Memmert IF110bw blanket heater, 108 L, +80 °C, Class I medical device
The Memmert IF110bw blanket warmer heats non-sterile cloths and blankets reliably and evenly to temperatures between +20 and +80 °C. With an internal capacity of 108 litres and space for up to 5 trays, the most compact model in the IF-bw series is ideal for facilities where pre-warmed textiles need to be readily available, without any noticeable temperature fluctuations between the individual trays and without the unit taking up excessive floor space. 4-sided all-round heating for even heat distribution Instead of individual heating zones, a 4-sided all-round heating system surrounds the entire interior, whilst an electronically controlled air circulation system set to a fixed 100% further ensures an even distribution of heat. A DIN Class A-quality Pt100 sensor with 4-wire measurement measures the temperature with a setting accuracy of 0.1 °C. The operating range extends from at least 10 °C above room temperature up to a maximum of +80 °C, meaning that even moderate heat settings can be achieved cleanly and reproducibly. Uniform heat distribution is particularly noticeable in smaller internal volumes, such as the 108 litres of the IF110bw, as textiles throughout the entire interior reach the same temperature regardless of the selected shelf position. SingleDISPLAY and data logging via Ethernet An adaptive, multifunctional PID microprocessor controller with a high-resolution TFT colour graphic display (SingleDISPLAY) clearly shows the actual and setpoint temperatures and is easy to operate. Log data from the integrated data logger can be read out and managed via the Ethernet interface. A USB port is available as an option; when used in conjunction with the AtmoCONTROL software, this makes it even easier to document and archive processes, for example to verify that a specific temperature range has been reliably maintained. Safety and Operation For added safety, the IF110bw monitors the temperature electronically and also via a mechanical temperature limiter, which triggers at around 20 °C above the maximum temperature. An integrated self-diagnostic system reports faults at an early stage, ensuring that malfunctions are detected before they affect operation. The stainless-steel interior accommodates up to 5 shelves, each with a load capacity of up to 20 kg; two stainless-steel wire shelves are included as standard. With a net weight of around 76 kg and robust external dimensions of 745 × 864 × 584 mm (plus 56 mm for the door handle), the unit is designed for long-term, stationary use and can be operated reliably even with daily, repeated use. The right size for every need At 108 litres, the IF110bw is the most compact model in Memmert’s IF-bw range of ceiling heaters. If greater capacity is required, the larger models IF260bw (256 litres), IF450bw (449 litres) and IF750bw (749 litres) are also available in the same series, featuring identical control technology and comparable specifications, allowing the appropriate unit size to be flexibly adapted to the actual volume of textiles to be heated. This means that a facility with growing requirements can switch to a larger model within the same product family without having to familiarise itself with a completely different operating system. Certified safety as a medical device The IF110bw is a Class I medical device and is certified accordingly to VDE, GS, CE and UL standards. This classification is lower than that of the Memmert hot-air sterilisers in the SF and SN series, which are classified as Class IIb medical devices because the latter are used directly for sterilisation. For establishments that, in addition to simply heating textiles, also prioritise tested and documented equipment safety, the Class I classification is an additional, verifiable quality feature. Combined with electronic temperature monitoring, the mechanical temperature limiter and the integrated self-diagnostic system, this results in a multi-stage safety concept that is suitable for regular, routine use in everyday practice and institutional settings. Typical areas of application As a blanket warmer with an internal capacity of 108 litres and a temperature range up to +80 °C, the IF110bw is suitable for the following applications: Warming of non-sterile towels and blankets prior to immediate useKeeping several pre-warmed textiles ready for immediate use thanks to up to 5 shelvesUniform temperature control of larger quantities through 4-sided all-round heating and forced circulationDocumented temperature control via the integrated data logger, readable via EthernetSpace-saving addition to rooms with limited floor space thanks to its compact designAn entry-level model in the IF-bw series for facilities with moderate, predictable demand for pre-warmed textiles Technical details Internal capacity108 litres Internal dimensions (W×H×D)560 × 480 × 400 mm External dimensions (W×H×D)745 × 864 × 584 mm (+56 mm door handle) Temperature control range+20 to +80 °C Operating temperature rangeat least 10 °C above room temperature up to +80 °C Setting accuracy0.1 °C Sensors1× Pt100 DIN Class A, 4-wire measurement Heating principle4-sided all-round heating VentilationElectronically controlled air circulation, fixed at 100% ControlSingleDISPLAY, adaptive PID microprocessor controller, TFT colour graphic display SafetyElectronic temperature monitoring, mechanical temperature limiter (approx. 20 °C above maximum), self-diagnostic system InterfacesEthernet (data logger), USB optional (with AtmoCONTROL software) Shelves2× stainless steel wire mesh shelves included, max. 5 shelves, max. 20 kg per shelf Voltage/Power230 V approx. 1400 W / 115 V approx. 900 W, 50/60 Hz Net weight/Gross weightapprox. 76 kg / approx. 101 kg Contents 1× Memmert IF110bw ceiling heater (basic unit) 2× stainless steel grating Regulatory information The IF110bw is a Class I medical device, certified to VDE, GS, CE and UL standards. The manufacturer’s (Memmert GmbH + Co. KG, Stiftung EAR) WEEE registration number is DE 66812464. Customised Requirements & Procurement Service Do you require additional accessories such as further stainless steel grids, custom calibration or advice on the appropriate size? Our procurement service will be happy to assist you with special enquiries and spare parts.

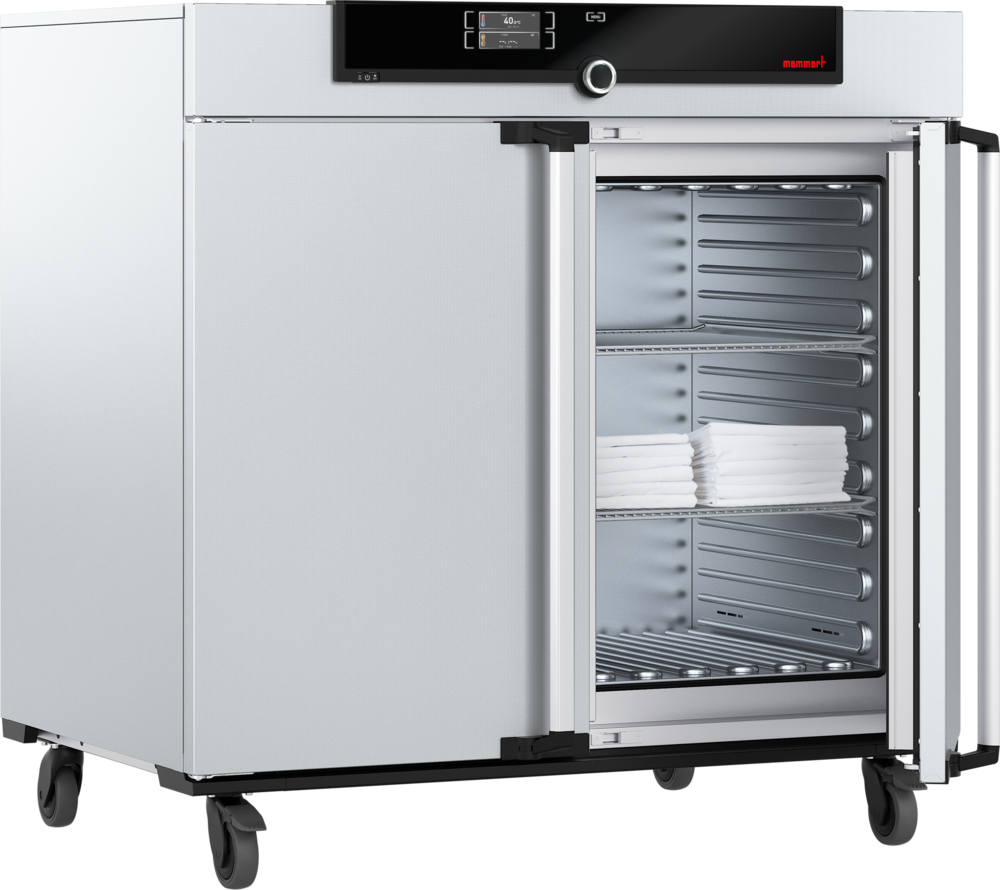

Memmert IF450bw ceiling heater, 449 L, +80 °C, Class I medical device
With an internal capacity of 449 litres, the Memmert IF450bw blanket warmer can heat significantly larger quantities of non-sterile cloths and blankets simultaneously, at temperatures ranging from +20 to +80 °C. Up to 8 trays can be loaded at the same time, making the unit ideal for facilities with a high, continuous demand for pre-warmed textiles, without the need for constant replenishment during operation. Generous internal dimensions for high throughput With internal dimensions of 1040 × 720 × 600 mm, the IF450bw accommodates up to 8 trays with a maximum total load of 300 kg; each tray can hold up to 30 kg. Two stainless steel wire racks are included as standard. An integrated 4-sided all-round heating system, combined with an electronically controlled, low-noise air circulation system set to a fixed 100 per cent, ensures even temperature distribution throughout the entire interior. With external dimensions of 1224 × 1247 × 784 mm (plus 56 mm for the door handle) and a net weight of around 161 kg, the unit is clearly designed as a stationary unit for continuous operation. Precise control, documented calibration An adaptive, multifunctional PID microprocessor controller with a TFT colour graphic display (SingleDISPLAY) controls the unit, whilst a DIN Class A Pt100 sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C. The operating range extends from at least 10 °C, through room temperature, up to +80 °C. A factory calibration certificate at +37 °C is included as standard; the unit is manufactured in the Federal Republic of Germany. This allows the measurement accuracy to be verified ex works, without the need to commission a separate calibration prior to commissioning. Safety and self-diagnosis The IF450bw monitors the temperature electronically and additionally via a mechanical temperature limiter. An integrated self-diagnostic system detects faults at an early stage and reports them immediately on the display, so that maintenance requirements can be identified in good time before ongoing operations are noticeably affected. Certified safety as a medical device The IF450bw is a Class I medical device and is certified accordingly to VDE, GS, CE and UL standards. This classification is lower than that of the Memmert hot-air sterilisers in the SF and SN series, which are classified as Class IIb medical devices because the latter are used directly for sterilisation. For organisations that prioritise tested, documented equipment safety, the Class I classification is an additional mark of quality. The right size for every requirement The IF450bw is positioned within Memmert’s IF-bw ceiling-mounted heater range between the mid-range model IF260bw (256 litres) and the largest model IF750bw (749 litres). All models share the same SingleDISPLAY control technology and operating logic, meaning that a facility with growing requirements can switch to a larger size within the range without any major changes. Cost-effective operation at 230 V or 115 V With a connected load of around 1800 W at 230 V or around 1500 W at 115 V, the IF450bw can be operated depending on the power supply available at the site of use. The electronic control system automatically adjusts the heating output to maintain the setpoint precisely, regardless of the selected mains voltage, even when fully loaded with up to 300 kg of textiles. Ready for dispatch For transport, the IF450bw is designed with packaging dimensions of 1,330 × 1,440 × 1,050 mm; the gross weight, including the carton, is approximately 227 kg. These specifications help in the early planning stages for delivery and installation, for example when door widths, access routes or lift capacities at the destination need to be taken into account in advance. Typical areas of application With an internal capacity of 449 litres and up to 8 trays, the IF450bw is suitable for facilities with a high throughput of textiles requiring heating: Simultaneous heating of large quantities of non-sterile towels and blankets across up to 8 shelvesContinuous supply of pre-heated textiles in facilities with high throughputUniform temperature control throughout the entire interior thanks to 4-sided all-round heatingDocumented initial calibration via the supplied factory calibration certificate at +37 °CSuccessor model for facilities that have outgrown the IF260bw, offering significantly higher capacity per trayCentral textile heating station for multiple treatment or application rooms simultaneously Technical details Internal volume449 litres Internal dimensions (W×H×D)1040 × 720 × 600 mm External dimensions (W×H×D)1224 × 1247 × 784 mm (+56 mm door handle) Temperature setting range+20 to +80 °C Operating temperature rangeat least 10 °C above room temperature up to +80 °C Setting accuracy0.1 °C Sensors1× Pt100 DIN Class A, 4-wire measurement Heating principle4-sided all-round heating, integrated VentilationElectronically controlled, low-noise, 100% ControlSingleDISPLAY, PID microprocessor controller, TFT colour graphic display SafetyElectronic monitoring, mechanical temperature limiter, self-diagnostic system Shelves2× stainless steel wire shelves, up to 8 shelves, max. 300 kg total / 30 kg per shelf Voltage/Power230 V approx. 1800 W / 115 V approx. 1500 W Packaging dimensions1330 × 1440 × 1050 mm Country of originFederal Republic of Germany Net weight/Gross weightapprox. 161 kg / approx. 227 kg (including carton) Contents 1× Memmert IF450bw ceiling heater (basic unit) 2× stainless steel grates 1× factory calibration certificate (calibrated at +37 °C) Regulatory information The IF450bw is a Class I medical device, certified to VDE, GS, CE and UL standards. Manufacturer’s WEEE registration number (Memmert GmbH + Co. KG, Stiftung EAR): DE 66812464. Customised requirements & procurement service Do you require additional accessories such as further stainless steel grating panels, a bespoke calibration or advice on the appropriate size? Our procurement service will be happy to assist you with special enquiries and spare parts.

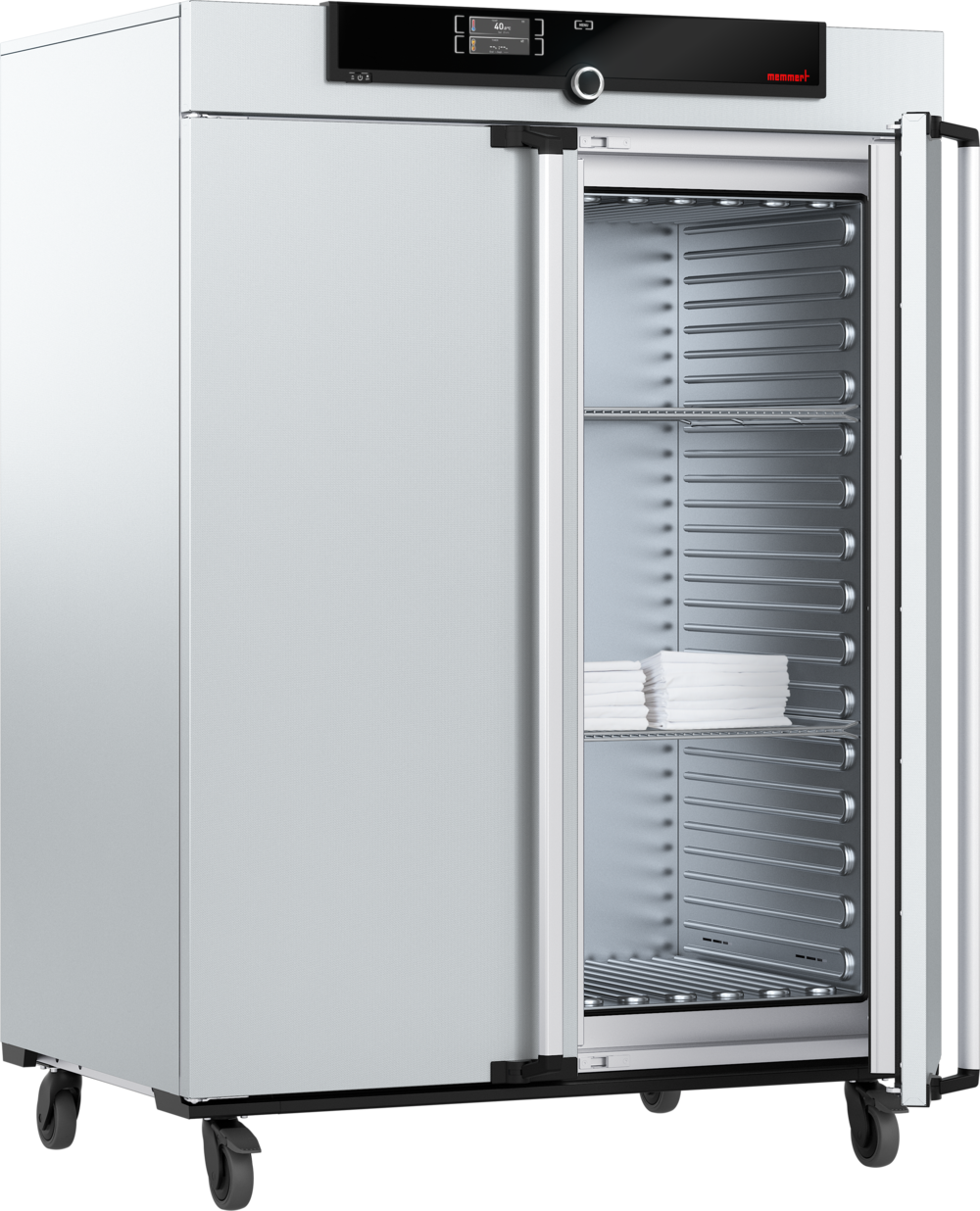

Memmert IF750bw ceiling heater, 749 L, +80 °C, Class I medical device
With an internal capacity of 749 litres, the Memmert IF750bw blanket warmer is the largest and most powerful model in the IF-bw series and reliably and evenly heats non-sterile cloths and blankets to temperatures between +20 and +80 °C. Up to 14 trays can be loaded simultaneously, meaning the unit reliably meets the needs of larger facilities with a high, continuous throughput of pre-warmed textiles, without the need to operate several smaller units in parallel. Maximum capacity for high throughput With internal dimensions of 1040 × 1200 × 600 mm, the IF750bw accommodates up to 14 trays with a maximum total load of 300 kg; each tray can hold up to 30 kg. Two stainless steel wire mesh racks are included as standard. A protected, integrated 4-sided all-round heating system, together with an electronically controlled, low-noise air turbine, ensures even temperature distribution, even when fully loaded. With external dimensions of 1224 × 1720 × 784 mm and a net weight of around 217 kg, the IF750bw is clearly designed as a central floor-standing unit for continuous operation at a fixed location. SingleDISPLAY, digital countdown timer and network connectivity An adaptive, multifunctional PID microprocessor controller with a TFT colour graphic display (SingleDISPLAY) controls the unit, whilst a DIN Class A Pt100 sensor with 4-wire measurement ensures a setting accuracy of 0.1 °C. A digital countdown timer ranging from 1 minute to 99 days allows for precise scheduling of heating cycles. The data from the integrated data logger can be managed via the Ethernet interface; a USB port with the AtmoCONTROL software is available as an option to document processes even more conveniently, for example to verify that a specific temperature range was maintained throughout the entire period. Safety and self-diagnosis The IF750bw monitors the temperature electronically and additionally via a mechanical temperature limiter. An integrated self-diagnostic and fault-finding system reports faults at an early stage, enabling reliable monitoring of operation even during continuous, round-the-clock use and allowing timely intervention before a fault disrupts ongoing operations. Certified safety as a medical device The IF750bw is a Class I medical device and is certified accordingly to VDE, GS, CE and UL standards. This classification is lower than that of the Memmert hot-air sterilisers in the SF and SN series, which are classified as Class IIb medical devices because the latter are used directly for sterilisation. For organisations that prioritise tested, documented equipment safety even with larger units, the Class I classification is an additional mark of quality. Flexible operation at 230 V or 115 V, ready for dispatch With a power consumption of around 2000 W at 230 V or around 1800 W at 115 V, the IF750bw can be operated depending on the power supply available at the site of use. For transport, the unit is designed with packaging dimensions of 1330 × 1910 × 1050 mm and a gross weight of around 288 kg – details that can be used in advance to plan delivery, access routes and the installation site. Largest model in the IF-bw series The IF750bw represents the upper capacity limit of Memmert’s IF-bw ceiling heater range. If the smaller models – the IF110bw (108 litres), IF260bw (256 litres) or IF450bw (449 litres) – no longer meet the actual requirements of a facility, the IF750bw, featuring the same SingleDISPLAY operating logic, offers the largest possible internal capacity within the entire series. Typical applications With an internal capacity of 749 litres and up to 14 shelves, the IF750bw is ideal for facilities with a particularly high demand for pre-warmed textiles: Simultaneous heating of large quantities of non-sterile towels and blankets across up to 14 traysContinuous operation in facilities with high, predictable throughputPrecisely timed heating cycles thanks to a digital countdown timerDocumented temperature control, accessible via Ethernet through the integrated data loggerCentral textile heating station as an alternative to the parallel operation of several smaller blanket warmersSupply to multiple treatment or procedure rooms from a single, central heat source As the IF750bw uses the same SingleDISPLAY operating logic as the smaller models in the IF-bw series, staff who have already been trained on an IF110bw, IF260bw or IF450bw can also operate this unit without the need for additional training. Technical details Internal volume749 litres Internal dimensions (W×H×D)1040 × 1200 × 600 mm External dimensions (W×H×D)1224 × 1720 × 784 mm Temperature range+20 to +80 °C Operating temperature rangeat least 10 °C above room temperature up to +80 °C Setting accuracy0.1 °C Sensors1× Pt100 DIN Class A, 4-wire measurement TimerDigital countdown timer, 1 min to 99 days Heating principle4-sided all-round heating, integrated and protected VentilationElectronically controlled, low-noise air turbine ControlSingleDISPLAY, PID microprocessor controller, TFT colour graphic display SafetyElectronic monitoring, mechanical temperature limiter, self-diagnostic/fault-finding system InterfacesEthernet (data logger management), USB optional (with AtmoCONTROL software) Shelves2× standard stainless steel wire mesh shelves, max. 14 shelves, max. 300 kg total / 30 kg per shelf Voltage/Power230 V approx. 2000 W / 115 V approx. 1800 W Packaging dimensions1330 × 1910 × 1050 mm Net weight/Gross weightapprox. 217 kg / approx. 288 kg Contents 1× Memmert IF750bw ceiling heater (basic unit) 2× stainless steel grating Regulatory information The IF750bw is a Class I medical device, certified to VDE, GS, CE and UL standards. The manufacturer’s (Memmert GmbH + Co. KG, Stiftung EAR) WEEE registration number is DE 66812464. Customised Requirements & Procurement Service Do you require additional accessories such as further stainless steel grates, a bespoke calibration or advice on the appropriate unit size for higher throughput? Our procurement service will be happy to assist you with special enquiries and spare parts.
