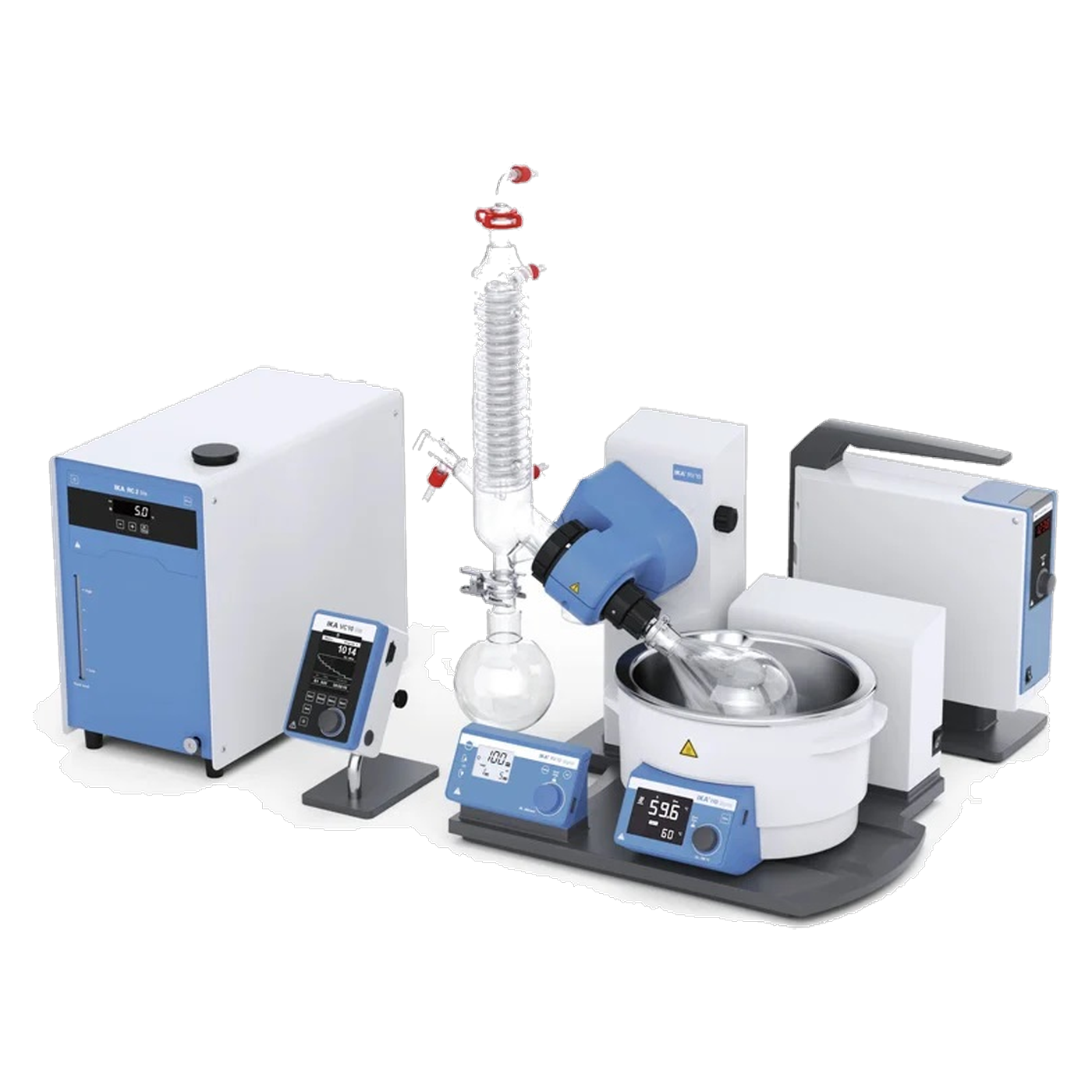

IKA RV 10 digital pro V-C Complete Rotary Evaporator, Complete Set with Heating Bath, Vacuum Pump and Recirculating Chiller, up to 280 rpm, 0010012326
€9,199.50
% Manufacturer's RRP: €12,266.00 25% below manufacturer's RRP
- Complete set: drive unit, HB digital heating bath, VACSTAR digital with VC 10 lite and RC 2 lite recirculating chiller
- Motorised lift with safety-stop function, stroke 140 mm, timer function
- RS-232 interface for remote control via labworldsoft
- Speed range 5 to 280 rpm, heating bath up to 180 °C
- Coated vertical glass set RV 10.10 with 1,500 cm² cooling surface
- 5-year IKA warranty on the drive and heating bath, 3 years on the pump, controller and chiller, in each case subject to registration within 90 days of purchase
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA RV 10 digital pro V-C Complete Rotary Evaporator, Complete Set with Heating Bath, Vacuum Pump and Recirculating Chiller, up to 280 rpm, 0010012326"
The RV 10 digital pro V-C Complete combines a motorised lift and an RS-232 interface for remote control via labworldsoft into a complete set: The drive unit, HB digital heating bath, VACSTAR digital vacuum pump with VC 10 lite vacuum controller and RC 2 lite recirculating chiller are all supplied in a single order. Unlike the auto-line, there is no integrated controller to regulate the vacuum automatically; instead, the separate VC 10 lite takes on this task. Anyone looking for a digitally controlled RV-10 complete set without the top-of-the-range auto-line configuration will find this set to be the manually configurable alternative.
Motorised lift and safety features
The motorised lift, with a stroke of 140 millimetres, automatically raises the evaporating flask out of the heating bath via the safety-stop function in the event of a power cut. Individually adjustable safety temperature circuits, dry-run protection and adjustable end-position detection provide additional protection against glass breakage. A soft start and alternating right-left rotation in interval mode protect sensitive samples, whilst a timer function controls the distillation timings.
Vacuum pump, condenser and glassware set
The VACSTAR digital vacuum pump achieves a minimum vacuum of 2 millibars and is controlled via the supplied VC 10 lite vacuum controller, which accepts setpoints manually or via a programme and also controls the recirculating chiller. The coated RV 10.10 vertical glass set utilises the cooling surface area of 1,500 square centimetres via a specially developed glass guide. The RC 2 lite cools to minus 10 °C at 0.35 bar with a cooling capacity of 400 watts via a stainless steel mesh filter, using the natural refrigerant R290. The heating bath is controlled via an infrared interface from the control unit.
Typical applications
- Distillation processes subject to documentation requirements, where the RS-232 interface is required for remote control via labworldsoft
- Automated flask lifting as a safety feature for unattended runs
- Chemistry, pharmaceuticals and the bioindustry with varying distillation tasks up to a heating bath temperature of 180 °C
- Laboratories looking for a digitally controlled complete set without the top auto-level configuration
Selection guide: an overview of the Complete and Starter sets
Within the digital range, this set differs from the two ‘double’ variants in that it has a single drive unit instead of two. Compared with the ‘auto’ range, it lacks the integrated vacuum controller, but features the RS-232 interface for labworldsoft. Across all series, the main differences lie in the heating bath temperature, speed range and the number of drive units per peripheral.
| Model | Series | Glass set | Peripherals included in the set | Key feature |
|---|---|---|---|---|
| RV 3 V Starter Solution | RV 3 | uncoated | VACSTAR lite, HB eco | Entry-level model in the RV 3 series |
| RV 3 pro V-C Complete | RV 3 | coated | VACSTAR digital, VC 10 lite, HB eco, RC 2 lite | Heating bath up to 99 °C, speed up to 300 rpm |
| RV 8 V Starter Solution | RV 8 | uncoated | VACSTAR lite, HB digital | Entry-level model in the RV 8 series |
| RV 8 pro V-C Complete | RV 8 | coated | VACSTAR digital, VC 10 lite, HB digital, RC 2 lite | Heating bath up to 180 °C, speed up to 300 rpm |
| RV 10 auto V Starter Solution | RV 10 auto | uncoated | VACSTAR lite, RC 2 lite | TFT colour display, integrated vacuum controller |
| RV 10 auto pro V-C Complete | RV 10 auto | coated | VACSTAR digital, RC 2 lite | TFT colour display, integrated vacuum controller |
| RV 10 digital pro V-C Complete (this product) | RV 10 digital | coated | VACSTAR digital, VC 10 lite, HB digital, RC 2 lite | RS-232 interface, motorised lift |
| RV 10 digital pro V double Complete | RV 10 digital | uncoated | 1x VACSTAR digital, 2x VC 10 pro, 1x HB digital, 1x RC 2 GREEN basic | two drive units on a single peripheral |
| RV 10 digital pro V-C double Complete | RV 10 digital | coated | 1x VACSTAR digital, 2x VC 10 pro, 1x HB digital, 1x RC 2 GREEN basic | Two drive units on a single peripheral |
Technical details
| Condenser design | vertical, coated |
|---|---|
| Cooling surface area | 1,500 cm² |
| Motor principle | Direct current |
| Speed range | 5 to 280 rpm |
| Reversible direction of rotation | yes |
| Lift | motorised, stroke 140 mm |
| Heating temperature range | Room temperature to 180 °C |
| Heating power | 1,300 W |
| Setting accuracy for temperature control | 1 K |
| Max. heating bath capacity | 4 l |
| Timer | Yes |
| VACSTAR digital vacuum pump | Minimum vacuum 2 mbar, controlled via VC 10 lite |
| RC 2 lite recirculating chiller | 400 W cooling capacity, down to -10 °C, refrigerant R290 |
| Permissible ambient temperature / humidity | 5 to 40 °C / 80 % |
| IP rating | IP 20 in accordance with DIN EN 60529 |
| Interface | RS-232 |
| Dimensions (W x H x D, drive unit) | 500 x 430 x 440 mm |
| Weight | 20 kg (drive unit) |
| Connected load | 220 to 240 V, 50/60 Hz, 1,400 W power consumption (other voltage options: 115 V / 100 to 240 V / 100 to 120 V / 100 to 115 V) |
Scope of delivery
- RV 10 digital pro drive unit (base unit), ID no. 0010012326
- HB digital heating bath, ID No. 0020016334
- RV 10.10 vertical glass set, coated, ID no. on request
- VC 10 lite vacuum controller, ID no. 0020111998
- VACSTAR digital vacuum pump, ID No. 0020016236
- Stand rod VC 10.400, ID No. on request
- Recirculating chiller RC 2 lite, ID No. 0025006624
- Hose set RV 10.5005, ID No. 0020000552
- Cable, type designation on request
Regulatory information
This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.
Warranty and procurement service
The IKA manufacturer’s warranty applies to the drive unit and the heating bath: 2 years, extended to 5 years upon registration at ika.com/register within 90 days of purchase. For the VACSTAR digital vacuum pump, VC 10 lite vacuum controller and RC 2 lite recirculating chiller, the 2+1 warranty level applies; upon registration, this is 3 years instead of 5. For a second set of glassware or replacement flasks, our procurement service will put together the appropriate set.
