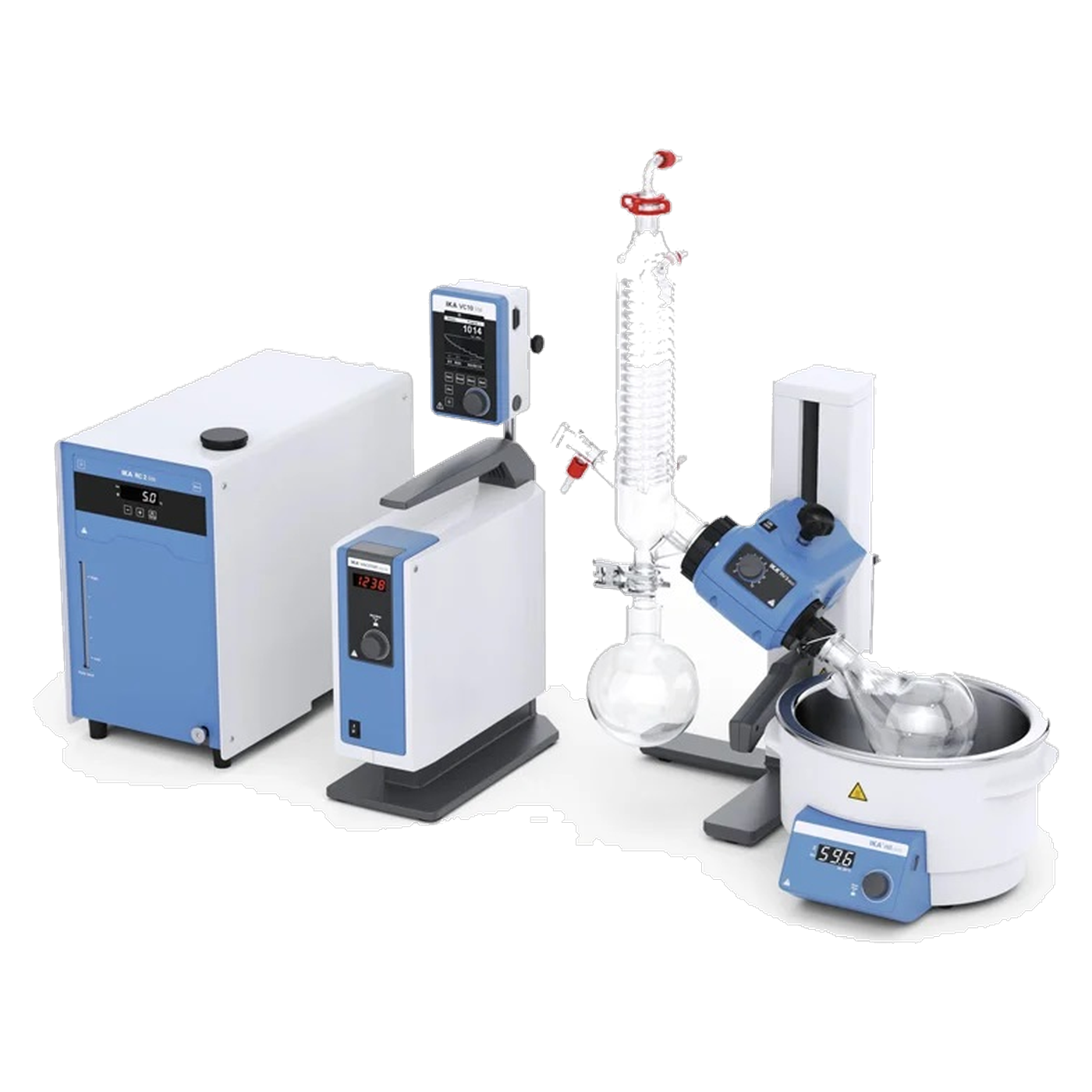

IKA RV 3 pro V-C Complete Rotary Evaporator, Complete Set with Heating Bath, Vacuum Pump and Recirculating Cooler, up to 300 rpm, 0010012324

According to the manufacturer’s specifications, the RV 3 pro V-C Complete is the entry-level model in the IKA range of rotary evaporators and is supplied as a complete set: The drive unit, HB eco heating bath, VACSTAR digital vacuum pump with VC 10 lite vacuum controller and RC 2 lite recirculating cooler are all included in a single order item. The heating bath reaches up to 99 degrees Celsius, which covers the solvents commonly used in everyday laboratory work and is not intended for high-temperature applications. Anyone wishing to set up their first distillation station without having to purchase a pump and cooler separately will find this to be the most compact model in the RV-pro-Complete series.

Manual operation, digitally controlled peripherals

The lift is operated manually, with a stroke of 150 millimetres. The speed ranges from 20 to 300 revolutions per minute, with a tolerance of ±1 rpm below and ±1 per cent above 100 rpm. The VACSTAR digital vacuum pump achieves a minimum vacuum of 2 millibars and is controlled via the supplied VC 10 lite vacuum controller, which accepts setpoints manually or via a programme and also controls the recirculating cooler.

Glass assembly and cooling circuit

The coated RV 10.10 vertical glass assembly utilises a cooling surface area of 1,500 square centimetres via a specially developed glass guide. The RC 2 lite recirculating chiller cools to minus 10 degrees Celsius with a cooling capacity of 400 watts, operates with a pressure and suction pump at 0.35 bar, filters via a stainless steel mesh filter and runs on the natural refrigerant R290.

Typical applications

• First in-house distillation unit in the chemical, pharmaceutical or bio-industry sectors without the need to procure separate pumps and coolers
• Training and education, where a compact, complete set is required
• Routine distillation of common solvents up to a heating bath temperature of 99 degrees Celsius
• Quality assurance and small-scale production runs with limited space requirements

Selection guide: an overview of the Complete and Starter sets

Within the RV-3 series, the RV 3 pro V-C Complete is the version featuring coated glass and VACSTAR digital, whilst the Starter Solution utilises VACSTAR lite and uncoated glass. Across all series, the sets differ primarily in terms of heating bath temperature, speed range and whether one or two drive units are connected to a shared peripheral system.

Technical details

Scope of delivery

• RV 3 per drive unit (base unit), ID No. 0010012324
• HB eco heating bath, 4-litre capacity, ID No. 0020016337
• RV 10.10 vertical glass set, coated, ID No. 0003755400
• VC 10 lite vacuum controller, ID No. 0020111998
• VACSTAR digital vacuum pump, ID No. 0020016236
• Stand pole VC 10.500, ID no. on request
• Circulating cooler RC 2 lite, ID No. 0025006624
• Hose set RV 10.5005, ID No. 0020000552
• PC 1.3 cable, ID No. on request

Warranty and procurement service

The IKA manufacturer’s warranty applies to the drive unit and the heating bath: 2 years, extended to 5 years upon registration at ika.com/register within 90 days of purchase. For the VACSTAR digital vacuum pump, VC 10 lite vacuum controller and RC 2 lite recirculating cooler, the 2+1 warranty level applies; upon registration, this means 3 years instead of 5. For a larger glassware set, a second heating bath or a more powerful pump, LT Laborhandel’s procurement service will put together the right combination of accessories.
