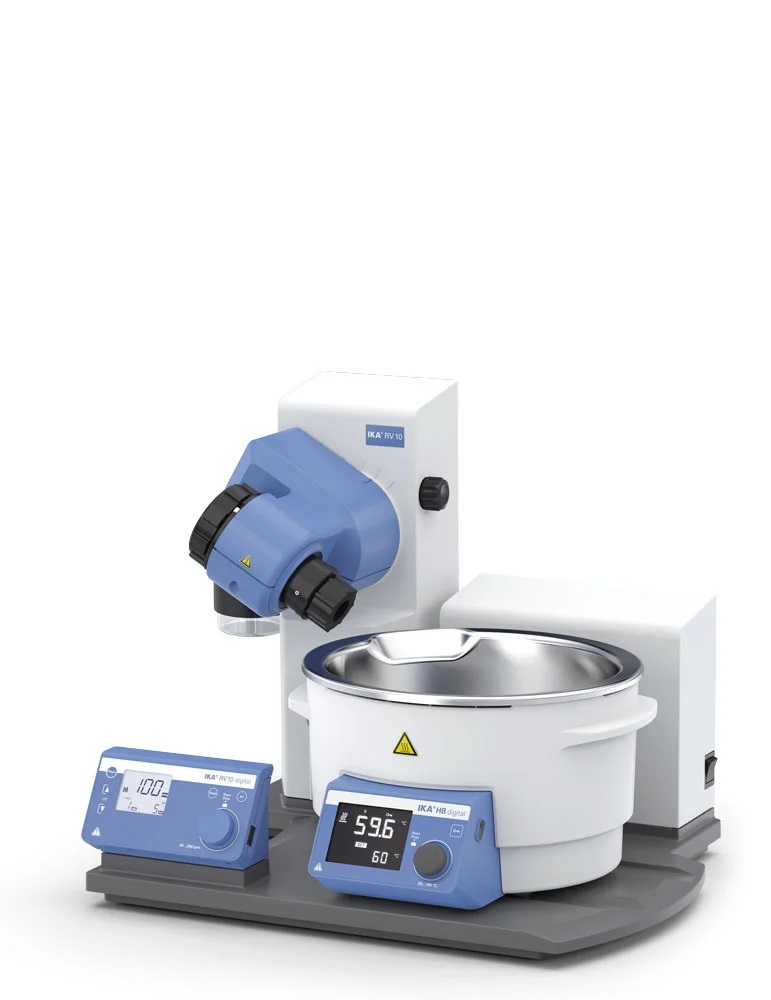

IKA RV 10 digital FLEX rotary evaporator, 0010004805

RV 10 digital FLEX

The RV 10 digital is the logical next step in the evolution of the RV 10 rotary evaporator product range. It includes a universal heating bath, modern safety features and digital interfaces. The RV 10 digital is a robust and reliable companion for all distillation tasks. Its optimised bath volume enables rapid heating times. The RV also offers further innovative features such as soft start, alternating clockwise and anti-clockwise rotation in interval mode, and a timer function for controlling time sequences, all of which support the user in their day-to-day laboratory work. Safety is ensured by the motorised lift with a ‘safety-stop’ function. In the event of a power cut, it automatically lifts the evaporator flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry-run protection, adjustable limit position detection to protect against glass breakage, and a lockout function ensure user safety. Furthermore, the receiving flasks and the condenser are also available in a coated version. The RS-232 interface allows remote control via the labworldsoft software. The heating bath is controlled by the control unit via an infrared interface.

4-litre heating bath

Universal (water/oil) safety heating bath

Motorised lift with ‘safety-stop’ function

RS-232 interface

Optimised bath volume for rapid heating

Ergonomic carrying handles on the heating bath

Soft start

Forward and reverse operation

Timer function

Dry-run protection

Safety temperature circuit

Limit position detection

Coated and uncoated glassware available

Piston release mechanism for stuck pistons

Simple and safe operation thanks to an ergonomically designed control unit

Scope of delivery

RV 10 digital

HB digital S099

RV 05.10 Ball-ground clamp

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

RV 3.4 Woulff flask

RV 3.1 Support rod

Technical data

Cooler type without cooler

Motor type Direct current

Speed range 5–280 rpm

Reversible rotation yes

Lift Motor

Stroke 140 mm

Heating temperature range Room temp. – 180 °C

Heating power 1350 W

Setpoint temperature accuracy ±1 K

Max. capacity 4 l

Timer Yes

Dimensions (W x H x D) 500 x 430 x 440 mm

Weight 18.5 kg

Permissible ambient temperature range 5–40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 20

RS 232 interface yes

Voltage 220–240 V

Frequency 50/60 Hz

Power consumption 1400 W

Other voltage variants available (220–240 V / 115 V / 100–240 V / 100–120 V / 100–115 V)

Accessories and spare parts available on request
