Kern steht seit über 175 Jahren für präzise Wägetechnik und Messtechnik „Made in Germany“. Das Sortiment umfasst Laborwaagen, Analysewaagen, Mikroskope und Prüfgeräte für Labor, Industrie und Bildung. Präzision, Qualität und Zuverlässigkeit machen Kern zur ersten Wahl für professionelle Messlösungen.
KERN OZL 465 Stereo Zoom Microscope
OZL 465 Stereo Zoom Microscope Product family: OZL-46 The flexible and affordable all-rounder with zoom function for schools, training workshops, testing centres and laboratories Description The KERN OZL-46 series is one of a range of stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and affordable price The LED reflected and transmitted light illumination included as standard ensures optimum illumination of your specimen In addition to their excellent optical properties, these models offer the highest level of convenience in this class thanks to their large work surface – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry As standard, this microscope offers a continuously adjustable total magnification range of 7×–45× The column stand offers you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand A wide range of eyepieces, external illumination units and attachment objectives are available as accessories A dust cover, eyecups and a multilingual user manual are included in the scope of delivery Technical specifications Optical system Greenough Tube type Binocular Eyepiece magnification 10× Eyepiece field of view 20 mm Magnification ratio 6.4:1 Zoom [Min] 0.7× Zoom [Max] 4.5× Illumination type Incident light, transmitted light Transmitted light source LED Illumination type (incident light) LED Illuminance (incident light) 3W Focusing mechanism Coarse adjustment Working distance 105 mm Specimen height [Max] 140 mm Stand design Column Dimensions (W×D×H) 300×240×420 mm GTIN/EAN number 4045761207516
KERN OIV 345 Digital Video Microscope (5 MP, 12" display), TOIV 345-B
The KERN OIV 345 is a digital ‘all-in-one’ video microscope that has been specially developed to optimise digital stereomicroscopy in industrial quality assurance, assembly and repair. As an eyepiece-free system, it enables ergonomic viewing of samples directly on the integrated 12-inch HD screen, which significantly reduces eye strain during long working sessions. The axial optics ensure a direct, distortion-free view, making the microscope the ideal solution for training or collaborative viewing within a team. Precision and click-stop zoom A technical highlight of this model is the zoom wheels with integrated ‘click-stop’. This function clicks into place noticeably at defined magnification levels. This not only enables exact repeatability of settings but is also essential for calibrated measurements, as the user can be certain that the software calibration corresponds exactly to the physical zoom level. The zoom range from 0.7x to 4.5x is rendered sharply throughout (parfocality). Connectivity and Documentation The OIV 345 is more than just a viewing device; it is a documentation hub. The integrated 5-megapixel camera (Sony CMOS sensor) delivers brilliant images (1920x1080 HD) at a smooth 60 fps. The system is controlled intuitively via the supplied wireless USB mouse – a PC is not strictly necessary for operation. Images and videos can be saved directly to a USB stick or a microSD card. For advanced analyses or measurement functions, the device can be connected to a PC via USB 2.0 (the ‘S-Viewer’ software is available for download). In addition, the HDMI output allows an external large-screen monitor to be connected for presentations. Technical details Optical system: Axial Magnification (lens): 0.7x – 4.5x Magnification ratio: 6.4:1 Display: 12" LCD (1920x1080 HD) Camera sensor: Sony CMOS, 1/2.8", 5 MP Frame rate: 60 fps Working distance: 100 mm Maximum sample height: 110 mm Illumination: 3 W LED ring light (incident light), dimmable Storage media: USB stick (max. 32 GB), MicroSD Interfaces: HDMI, USB 2.0 (2x), MicroSD Overall dimensions (W x D x H): 320 x 260 x 450 mm Weight: approx. 6 kg Contents KERN OIV 345 video microscope (incl. display & stand) LED ring light (integrated) Wireless USB mouse USB stick (32 GB) Dust cover Mains adaptor Multilingual user manual Customised requirements & procurement service Do you require DAkkS calibration for your audit records or specific attachment lenses to adjust the working distance? We can assist you in integrating this system into your existing measurement environment and offer suitable software training.
KERN DAB 200-2 Halogen Moisture Analyser, 200 g / 0.01 g (0.05 %)
Fast, Accurate, User-friendly: KERN DAB 200-2 Moisture Analyser The KERN DAB 200-2 (MPN DAB 200-2) is the ideal drying balance for the rapid and reliable determination of moisture content in industry, agriculture and routine laboratory work. Whether for food quality control, testing plastic granules prior to injection moulding or analysing biomass – this halogen moisture analyser delivers reproducible results in the shortest possible time. A particular advantage of this model is its unusually large weighing range of 200 g, which also allows the analysis of bulky or heavy samples without any problems. High-performance halogen technology A 400-watt halogen quartz glass lamp. Speed: Compared to infrared emitters, halogen heats up extremely quickly and reaches the target temperature without a long warm-up time. Uniformity: The heat is distributed evenly across the entire sample dish (Ø 90 mm), which prevents localised burning of the sample and guarantees accurate measurement results (readability 0.01 g / 0.05% moisture). Temperature range: The drying temperature can be set in 1 °C increments from 40 °C to 199 °C. Graphic display for a complete overview The backlit graphic LCD makes operation safe and simple, even for untrained staff. You can see all key parameters at a glance whilst the measurement is in progress: Current moisture content in % Current temperature Drying time to date Active drying profile Heating curve display Intelligent drying profiles and memory To ensure the optimal method is used for every material (from delicate coffee powder to robust sewage sludge), the KERN DAB 200-2 offers: Shut-off criteria: Fully automatic (the balance stops when the weight remains constant), time-controlled (e.g. exactly 15 minutes) or manual. Drying programmes: You can store up to 15 complete drying programmes in the internal memory. This allows you to simply select the appropriate programme for routine samples at the touch of a button. Measurement memory: The last 5 measurement results are automatically saved. Easy cleaning and documentation Via the RS-232 interface, drying logs can be sent to a printer or PC in a GLP-compliant format, including date and time. The viewing window on the sample chamber allows for constant visual monitoring. Should anything go wrong during sample preparation, the stainless steel parts in the sample chamber can be easily removed and cleaned. Technical data Model: DAB 200-2 Weighing range (max): 200 g Resolution (weight / moisture): 0.01 g / 0.05 % Reproducibility (2 g sample): 1.5 % Reproducibility (10 g sample): 0.3 % Heating technology: Halogen quartz glass heater (400 W) Temperature range: +40 °C to +199 °C (in 1 °C increments) Display modes: Moisture (%), dry matter (%), ATRO (%), residual weight (g) Programme memory: 15 drying programmes Sample pans: $\varnothing$ 90 mm Interface: RS-232 Display: Graphic LCD, backlit Dimensions (W x D x H): 240 x 365 x 180 mm Weight: approx. 4.8 kg Contents of delivery 1 x KERN DAB 200-2 moisture analyser 50 x aluminium sample dishes ($\varnothing$ 90 mm) 1 x sample collection tongs 1 x mains adaptor/cable 1 x safety hood 1 x operating instructions / application manual Individual requirements & accessories The aluminium sample pans are consumables. Be sure to order a bulk pack (e.g. 80 pieces) straight away to ensure uninterrupted operation. For regular checking of the balance, we recommend a test weight (200 g, Class F1) and a temperature calibration kit from KERN. Please contact our procurement service.
KERN OBN 135 Transmitted-light Microscope
OBN 135 Transmitted-light Microscope Product family: OBN-13 Professionalism and versatility combined in a single microscope – with Köhler illumination for demanding applications Description The KERN OBN series is characterised by its unbeatable, consistently high quality and ergonomic design. The variety of modular components allows the OBN series to offer a high degree of customisation for professional users Powerful and continuously dimmable 3W LED illumination This series features professional Köhler illumination with an adjustable field diaphragm, as well as a centring and height-adjustable 1.25 Abbe condenser with an adjustable aperture diaphragm The very large mechanical cross-table, with ergonomic, coaxial coarse and fine adjustment on both sides, enables quick and precise adjustment and focusing of your specimen A wide range of modular systems is available as accessories, such as a swing-out condenser, various eyepieces, objectives, colour filters, phase-contrast units, a dark-field condenser, a simple polarisation unit, a butterfly tube, and even complete fluorescence units A dust cover, eyecups and a multilingual user manual are included in the scope of delivery Technical Specifications Optical system: Infinity Tubus type: Trinocular Eyepiece magnification: 10× Eyepiece field of view: 20 mm Standard objectives: 4x, 10x, 20x, 40x, 100x Objective quality: Infinity Plan Objective turret screw-in positions: 5 Illumination type: transmitted light Illumination type: LED transmitted light Type of reflected light: none Condenser type: ABBE Condenser aperture 1.25 Condenser mounting: Centrable Focusing mechanism: Coaxial coarse and fine adjustment Minimum fine adjustment 0.002 mm Dimensions (W×D×H) 390×200×395 mm GTIN/EAN number 4045761267787
KERN OPO 185 Polarising Microscope, transmitted and reflected light, infinity
KERN OPO 185: The flexible, high-end polarising microscope for professionals The KERN OPO 185 (MPN OPO 185) is the flagship model of the Professional Line POL. It has been specially developed for demanding analyses of materials with optical anisotropy, such as those encountered in mineralogy, petrography, crystallography and materials testing. This instrument impresses with its enormous flexibility: it combines powerful LED reflected and transmitted light illumination with high-quality infinity optics. Whether transparent thin sections or opaque ores – the OPO 185 delivers razor-sharp, high-contrast images. Maximum power: 5W LED & 5-position objective turret Unlike basic models, the OPO 185 features two extremely bright 5-watt LED illuminators. Reflected light: Ideal for opaque specimens. Transmitted light: For classic transparent specimens. Both units are infinitely dimmable and ensure long-lasting, colour-faithful illumination (Köhler illumination in transmitted light with an adjustable Abbe condenser 0.9/0.13 ‘Swing Out’). The 5-position objective turret is fitted with five specialised, tension-free Infinity Plan objectives (4x, 10x, 20x, 40x, 50x), which cover an enormous magnification range. Fully equipped for polarisation analysis The KERN OPO 185 leaves nothing to be desired when it comes to crystal optical examinations: Bertrand lens: Permanently integrated and focusable for konoscopy (observation of axial images). Compensators: A complete set of sliders (lambda, lambda/4, quartz wedge) is included to determine phase differences. Precision stage: The large specimen stage is mounted on ball bearings, rotates through 360° and features 1° graduations as well as 6' fine graduations with a locking function. Trinocular tube for documentation The Siedentopf tube is trinocular. This means you can observe comfortably with both eyes (30° viewing angle, dioptre adjustment on both sides) whilst simultaneously connecting a microscope camera via the third optical path. This makes the OPO 185 the perfect workstation for laboratories that produce reports or conduct training sessions. Areas of application Geology & Mineralogy: Identification of mineral phases and rock structures. Industry: Analysis of stress cracks in glass or plastics (stress optics). Research: Investigation of crystal growth and textures. Forensics: Identification of fibres and particles. Technical Specifications Model: OPO 185 Optical system: Infinity Tubus: Trinocular (Siedentopf), inclined at 30°, rotatable through 360° Beam split: 100:0 / 0:100 (switchable between eyepieces and camera) Eyepieces: HWF 10x / $\varnothing$ 20 mm (High Eye Point, anti-fungal, 1x with 0.1 mm reticle) Objectives: Plan achromatic (tension-free), infinity (4x, 10x, 20x, 40x, 50x) Objective turret: 5-position, rear-tilted Illumination (transmitted light): 5W LED (Köhler, dimmable) Illumination (reflected light): 5W LED (dimmable) Condenser: Abbe ‘Swing Out’ N.A. 0.9/0.13 (centring and height-adjustable) Stage: Rotates 360°, 1° graduations, 6' fine graduations, lockable Polarisation: Analyser (rotates 360°), polariser, Bertrand lens Compensators: Lambda, Lambda/4, quartz wedge (included) Dimensions (W x D x H): 500 x 200 x 500 mm Weight: approx. 13.5 kg Contents 1 x KERN OPO 185 microscope (trinocular) 5 x objectives (Plan Infinity: 4x, 10x, 20x, 40x, 50x) 2 x eyepieces (HWF 10x/20 mm) 1 x Eyecups & dust cover 1 x polariser/analyser unit 3 x Sliders (Lambda, Lambda/4, quartz wedge) 1 x power supply unit/cable 1 x User manual (Note: A C-mount adapter for cameras is not included as standard and must be selected separately.) Customised requirements & accessories To connect a camera, you will need the appropriate C-mount adapter. We also offer mechanical table attachments for precise sample positioning (X-Y). We can configure your microscopy setup. Please contact our procurement service.
KERN EW 6200-2NM Precision Balance, 6,200 g / 0.01 g, tuning fork principle
KERN EW 6200-2NM: The indestructible classic with tuning fork technology The KERN EW 6200-2NM is more than just a balance – it is synonymous with long-lasting precision. As part of the legendary EW-N series, this model utilises the high-quality tuning fork measuring principle. Unlike scales with force compensation or strain gauges, which are often sensitive to temperature fluctuations or require long warm-up times, the EW 6200-2NM is ready to use straight away. Switch it on and start weighing – no waiting required. With a weighing range of 6,200 g (6.2 kg) and an extremely fine readability of 0.01 g , it bridges the gap between laboratory analysis and robust industrial scales. Why tuning-fork technology? No warm-up time: Whilst other precision balances need to be plugged in for up to 2 hours to reach thermal stability, the EW 6200-2NM delivers stable readings immediately after being switched on. Ideal for mobile use or laboratories where the balance is not in operation 24/7. Robustness: The system is extremely resistant to mechanical stress. The tuning fork system withstands shocks and overloads far better than electromagnetic force-compensation cells. Long-term stability: The calibration remains stable over long periods, minimising maintenance requirements. Features for everyday professional use Capacity indicator: A gradually lighting-up strip on the display shows you how much of the weighing range is still available. This prevents accidental overloading during weighing. Piece counting: Thanks to the high resolution, even very light parts can be counted precisely. The reference count can be selected (10, 30, 50, 100). Percentage calculation: Ideal for recipes. You can define the weight of a container as 100% and read off differences directly as a percentage. Data interface: The standard RS-232 interface allows connection to a PC or printer (GLP logging possible with a compatible KERN printer). Calibration and design The KERN EW 6200-2NM is calibrated externally. This means you use a defined test weight (available separately) to regularly check and adjust the accuracy (CAL programme). The large stainless steel weighing plate (180 x 160 mm) offers sufficient space for beakers or flasks and is easy to clean. A spirit level and levelling screws for precise levelling are supplied as standard. Technical data Model: EW 6200-2NM Weighing range (max): 6,200 g Readability (d): 0.01 g Reproducibility: 0.01 g Linearity: ± 0.03 g Settling time: 3 s Measuring system: Tuning fork Weighing plate: 180 x 160 mm (stainless steel) Calibration: External (Recommended calibration weight: 5 kg, Class E2) Interface: RS-232 Display: LCD, digit height 17 mm Housing dimensions (W x D x H): 182 x 235 x 75 mm Net weight: approx. 2.9 kg Permissible ambient temperature: +10 °C to +30 °C Contents 1 x KERN EW 6200-2NM 1 x mains adaptor 1 x safety cover (over keyboard and housing) 1 x user manual Individual requirements & accessories To ensure the long-term accuracy of this balance, we recommend the appropriate test weight (Class E2 or F1). Do you require a dot matrix printer for recording data or a DAkkS calibration certificate? We offer a complete package. Please contact our procurement service.
KERN DLB 160-3A, moisture analyser, halogen, 160 g / 0.001 g
Thermodynamic Halogen Transmission and Thermogravimetry In analytical materials testing, determining the absolute water or solvent content requires a highly precise integration of thermodynamics and mass metrology. The KERN DLB 160-3A operates according to the process engineering principle of thermogravimetry. Thermal energy is supplied to the matrix via a solid, ring-shaped 400-watt halogen quartz glass emitter. This infrared emitter transfers the radiant energy directly into the molecular structure of the sample with extremely low losses, generating steep, reproducible heating rates up to 160 °C. In contrast to convective drying processes, this system hydrodynamically drives out the volatile phases (moisture) via direct infrared coupling in a fraction of the usual process time, whilst the escaping thermodynamic vectors (vapours) are vented via the housing design. Metrological cybernetics and gravimetric integration The fundamental analytical architecture is the real-time metrological integration of mass loss. Whilst the halogen unit dries the matrix thermodynamically, the integrated high-precision load cell continuously records the decreasing weight with an absolute physical resolution of 0.001 g (1 mg) at a maximum load of 160 g. The system’s cybernetic algorithm correlates this gravimetric drift in real time with the parameters of time and temperature. As soon as the weight loss per unit of time (Δm/Δt) falls below a defined metrological threshold criterion, the system autonomously terminates the thermal emission cycle. The LCD display then shows the absolute moisture content with an analytical precision of 0.01%. System stability and GLP-compliant data logging The reproducibility of thermogravimetric assays requires uncompromising shielding against external disturbances. The structural chassis of the DLB 160-3A is designed to absorb mechanical vibrations from the laboratory bench in order to protect the highly sensitive milligram-scale sensor technology from resonance-induced failures. The system interface integrates all process parameters (heating profiles, stop criteria) into a high-contrast display. For validation in accredited laboratories, the RS-232 data interface transmits the complete drying reports (including initial weight, final weight, percentage moisture content and timestamps) in full to external GLP/GMP-compliant printers or to the Laboratory Information Management System (LIMS). Technical details Thermodynamics & Heating Technology Heating technology: Halogen quartz glass heater (ring-shaped) Heating power: 400 W Thermodynamic operating range: 35 °C to 160 °C Temperature increment (resolution): 1 °C Heating profiles: Standard drying Metrology & Gravimetry Maximum weighing capacity (Max): 160 g Gravimetric readability (d): 0.001 g (1 mg) Reproducibility (10 g sample): 0.05 % Moisture readability (per cent): 0.01% Measuring principle: Strain gauge (SG) Settling time: approx. 3 s System infrastructure & dimensions Sample dish diameter: 90 mm System dimensions (W x D x H): 215 x 345 x 235 mm Machine weight: approx. 4.7 kg Display: High-contrast LCD with digit height of 17 mm Housing material: Chemical-resistant high-performance plastic Safety & Electrical Permissible ambient temperature range: 5 °C to 35 °C Permissible relative humidity: max. 80% (non-condensing) Input voltage: 230 V / 50 Hz Data interface: RS-232 (for printer and PC connection) Contents of delivery 1 x KERN DLB 160-3A moisture analyser 10 x aluminium sample dishes (Ø 90 mm) 1 x power cable for cooling units Important note: Specific glass fibre filters (to prevent splashing with highly liquid matrices) and external test weights (Class F1) for the metrological recalibration of the gravimetric system are physically essential for GLP-compliant operation and are not included in the scope of delivery. Individual requirements & accessories The DLB 160-3A induces a rapid phase transition (evaporation) via infrared radiation. For samples that tend to form a skin, splash or are highly liquid, the fluid must be distributed by capillary action via a round glass fibre filter; otherwise, the thermodynamic surface will become blocked or the quartz glass will be contaminated by eruptions. As the load cell is subject to thermal fluctuations, it is essential to obtain an external F1 calibration weight (e.g. 100 g) in order to carry out calibration prior to critical measurement series. Consumables such as high-purity, disposable aluminium sample dishes are available via our procurement service to prevent cross-contamination.
KERN DBS 60-3 Halogen Moisture Analyser, 60 g / 0.001 g (0.01 %), graphic display
Precision for demanding quality control: The KERN DBS 60-3 halogen moisture analyser The precise determination of moisture content in raw materials, intermediate products and finished goods is an absolutely business-critical factor in virtually every modern production and laboratory environment. Whether in the food industry to determine the shelf life of cereals and baked goods, in plastics processing to prevent air pockets during injection moulding caused by granules that are too moist, or in pharmaceutical quality control – even the slightest deviations in moisture content can severely compromise the quality of the end product and lead to immense financial losses. It is precisely for these highly sensitive and strictly regulated areas of application that KERN has developed the professional halogen moisture analyser DBS 60-3 (MPN DBS 60-3). This intelligent and high-performance measuring instrument replaces the time-consuming, traditional drying method using a conventional drying oven and provides you with highly precise, reproducible moisture readings within a few minutes, right at your laboratory workstation. Powerful and uniform halogen technology At the technological heart of the KERN DBS 60-3 lies an extremely powerful halogen quartz glass emitter with an output of 400 watts. Compared directly with conventional infrared emitters or metallic heating coils, halogen technology offers the decisive advantage of heat generation with virtually no delay. The target temperature is reached in record time, which significantly shortens the overall duration of the drying process. Furthermore, the sophisticated geometry of the emitter within the enclosed sample chamber ensures absolutely homogeneous and uniform heat distribution across the entire surface of the aluminium sample dish. This reliably prevents so-called ‘hotspots’ (localised overheating), which could lead to undesirable burning or charring on the surface of the sample. The drying temperature can be set via the control panel in fine 1 °C increments across an extremely wide temperature range from 50 °C to a maximum of 200 °C, making the instrument ideally suited to a vast spectrum of different materials. Outstanding resolution for tiny sample quantities The performance of the heating system is complemented by a high-precision load cell. The KERN DBS 60-3 offers a weighing range of up to 60 grams, which is more than sufficient for the vast majority of routine applications in moisture analysis. The real highlight of this model, however, lies in its outstanding readability of 0.001 gram (which corresponds exactly to a moisture content of 0.01 per cent). This extremely fine resolution is essential when working with very valuable, expensive or hard-to-obtain samples, where only very small sample weights (for example, 2 to 5 grams) can be used for analysis. Even with these minimal sample quantities, the balance reliably detects fractions of a milligram of evaporated water and uses this to calculate a mathematically precise, reliable moisture profile. Four intelligent drying profiles for maximum flexibility Not every sample can be dried in the same way. A liquid resin behaves completely differently when exposed to heat than a dry powder or a pasty food sample. To take this into account, the KERN DBS 60-3 is equipped with four different, freely selectable heating profiles. Standard drying heats the sample rapidly to the set temperature and maintains it at a constant level. Rapid drying slightly exceeds the target temperature in the first few minutes to maximise the drying process for very moist samples. Gentle drying, on the other hand, increases the heat very slowly and gently – the perfect choice for temperature-sensitive, sugary or high-fat samples that tend to form a skin when exposed to sudden heat. The system is rounded off by step drying, which allows you to programme different temperature plateaus; for example, to first drive off free surface water and then chemically bound crystal water separately. Automation through smart shutdown criteria Another huge advantage in day-to-day laboratory work is the intelligent automation of the drying termination process. You no longer need to stand next to the instrument and monitor the weight loss manually. The DBS 60-3 features an automatic shut-off (weight stop): The instrument terminates the measurement entirely autonomously as soon as the weight loss per unit of time falls below a minimum threshold defined by you (e.g. less than 1 mg in 60 seconds). Alternatively, you can also end the drying process purely on a time-controlled basis (e.g. exactly 15 minutes) or completely manually at the touch of a button. To save you time with recurring routine analyses, the internal programme memory can store up to 10 fully predefined drying processes. A single press of a button is all it takes for the instrument to retrieve the exact temperature, heating profile and shutdown criterion for your specific sample. Ergonomics, readability and GLP-compliant documentation The large, backlit graphic LCD display guides you intuitively through the entire measurement process in multiple languages. You can view all critical parameters in real time at any moment: the current moisture content as a percentage, the remaining weight in grams, the current actual temperature in the heating chamber, and the active drying time elapsed so far. An integrated progress indicator also visualises the status of the measurement. In professionally managed quality management systems (in accordance with GLP/ISO standards), complete traceability is essential. Via the integrated RS-232 data interface, you can easily connect the KERN DBS 60-3 to an optional dot matrix or thermal printer, as well as to a laboratory PC. At the end of each measurement, the system generates a measurement report that complies with standards, containing not only the exact results but also the date, the exact time and the balance’s individual identification number. A temperature calibration kit, available to order separately, can also be used to check the heating chamber regularly, thereby demonstrating consistent conditions for audits. Technical data Weighing range (max): 60 g Weight readability (d): 0.001 g Moisture readability: 0.01 % Reproducibility (2 g sample): 0.15 % Reproducibility (10 g sample): 0.02 % Heating technology: Halogen quartz glass heater (400 watts) Temperature range: 50 °C to 200 °C (selectable in 1 °C increments) Drying modes: Standard, Fast, Gentle, Stages Shut-off criteria: Automatic, Timed, Manual Programme memory: 10 memory slots for complete drying cycles Display: Large graphic LCD, backlit (digit height 15 mm) Sample dishes: Ø 90 mm Interface: RS-232 for PC or printer Dimensions (W×D×H): 204 × 336 × 167 mm Net weight: approx. 4.6 kg Contents 1 x KERN DBS 60-3 halogen moisture analyser 10 x aluminium sample dishes (Ø 90 mm) 1 x protective cover for the keypad 1 x mains lead 1 x Detailed operating instructions / application manual Individual requirements & accessories Please note that the 10 aluminium dishes supplied will be used up quickly. We strongly recommend ordering a bulk pack (e.g. 80 pieces) of the original KERN aluminium sample dishes (Ø 90 mm) at the same time. Do you work with samples that splash heavily, contain grease or are very liquid? If so, optimise your results by using KERN glass fibre round filters. These distribute the liquid evenly and significantly speed up the drying process. Please feel free to contact our procurement service for accessories or a DAkkS calibration certificate.
KERN ABT 100-5NM analytical balance (101 g / 0.01 mg) with ioniser
KERN ABT 100-5NM: 5-digit analytical balance with ioniser The KERN ABT 100-5NM is a professional analytical balance for high-end laboratories, combining maximum precision (0.01 mg readability) with advanced technology. The standout feature of this model is the integrated ioniser for neutralising static charges. Interference-free weighing thanks to the integrated ioniser Every laboratory technician is familiar with the problem: static charge (e.g. from powders or plastic containers) distorts measurement results in the milligram range. The ABT balance’s switchable ioniser neutralises these interfering factors at the touch of a button, ensuring stable, reliable and fast weighing results. Maximum precision and convenience The balance features an internal automatic calibration system (CAL INT), which ensures consistently high accuracy in response to temperature changes or on a timed basis. The high-quality glass draft shield with three sliding doors allows easy access to the weighing chamber. GLP-compliant documentation The balance can be easily connected to a PC or printer via the RS-232 and USB interfaces to record weighing data in accordance with GLP/ISO standards. Invest in precise and interference-free measurement results. Contact our team of experts for a quote on the KERN ABT 100-5NM.
KERN OZL 963 Stereomicroscope Set
OZL 963 Stereomicroscope Set Product family: OZL-9 Pre-configured stereomicroscope set with a simple telescopic arm and 4.5 W LED ring lighting for greater flexibility at your workstation Description Pre-configured sets comprising a stereomicroscope head, a universal stand, a holder, a ring light and a dust cover from our range Simple – practical – affordable This saves you the time-consuming task of configuration and the headache of choosing the right combination of components. The result is a cost-effective and highly flexible solution for your microscopy workstation The KERN OZL-963 is one of a range of stereo zoom microscopes that impress with their ease of use, flexibility, stability and affordable price The LED incident light ring illumination included as standard ensures optimum illumination of your specimen In addition to their excellent optical properties, these models offer the highest level of convenience in this class thanks to their large work surface – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry Objective: 0.7x – 4.5x The universal telescopic arm stand offers you a high degree of flexibility Technical specifications Greenough optical system Tube type: Trinocular Eyepiece magnification: 10× Eyepiece field of view: 20 mm Magnification ratio 6.4:1 Zoom [Min] 0.7× Zoom [Max] 4.5× Illumination type: reflected light Illumination type: LED incident light Illuminance (incident light) 4.5W Focusing mechanism: coarse adjustment Working distance 100 mm Specimen height [Max] 140 mm Stand design: Universal (telescopic arm with plate) Dimensions (W×D×H) 700×255×600 mm GTIN/EAN number 4045761189447
KERN OKM 173 Metallurgical Microscope, reflected light, trinocular, infinite-corrected optics
Geometric Optics of Metallurgical Reflected-Light Microscopy In materials science fractography, metallurgical quality control and the examination of opaque (light-impermeable) semiconductor structures, conventional transmitted-light microscopes fail due to the total physical absorption of photons within the solid. The KERN OKM 173 is designed as a high-precision metallurgical epi-illumination microscope. In this complex optical setup, the objective lens also functions as a condenser. The integrated 30-watt halogen light source emits a continuous, broadband spectrum of photons. This light is precisely directed into the optical axis via a partially transparent beam splitter in the microscope stand, focused onto the sample through the objective lens and reflected by the metallic solid-state surface. The reflected light passes through the objective lens once more and produces, in the trinocular tube, an image of the microscopic grain structures, voids or microcracks that is exceptionally high-contrast and free of artefacts. Physical superiority of the infinity-corrected optical path The metrological heart of the OKM 173 is its infinity-corrected optical system (Infinity Optics). In contrast to finite optical systems with a fixed tube length (e.g. 160 mm), with infinity optics the light rays emerge from the objective as parallel beams. Only a specially calculated tube lens in the microscope head focuses these parallel photons into a real intermediate image. This physical space occupied by the parallel rays between the objective and the tube lens is of essential importance: it allows additional optical components – such as polarising filters, analysers or DIC prisms – to be introduced without causing a shift in the optical focal length, spherical aberrations (aberrations) or microscopic ghost images. Polarisation optics and anisotropy analysis Particularly with reflective metallic surfaces or polished micrographs, unpolarised halogen light often leads to severe flare, which masks the finest phase boundaries in the metal lattice. The OKM 173 is therefore equipped as standard with a high-performance polarisation and analyser unit. The polariser forces the transverse electromagnetic light waves into a defined plane of oscillation. Reflection off the anisotropic crystal structure of the metal sample specifically alters the polarisation state of the light. The downstream analyser physically blocks out interfering specular reflections and makes optical stress-induced birefringence, grain boundaries and heterogeneous alloy phases visible with maximum microscopic contrast. Planachromatic optics and digital image conversion To reproduce the absolutely flat polished surfaces typical of metallurgy without geometric errors, the system is equipped with planachromatic objectives. These highly complex lens systems correct chromatic aberration for two spectral colours and physically flatten the image field so that both the centre and the extreme peripheral areas of the solid-state sample are simultaneously in absolutely sharp focus. The trinocular Siedentopf tube also enables simultaneous binocular visual inspection by the user and the loss-free coupling of the photon flux to a digital microscope camera (C-mount). This is essential for comprehensive digital documentation and software-based metrology in certified laboratories. Technical details Optical system: Infinity-corrected (Infinity Optics) Microscope type: Metallurgical epi-illumination microscope Tubus design: Trinocular (Siedentopf), 30° inclination, 360° rotatable Illumination type: 30 W halogen epi-illumination (continuously dimmable) Optical path: Partially transparent mirror for coaxial illumination Objectives: Planachromatic LWD (Long Working Distance) optics Standard magnifications: 5x, 10x, 20x, 50x (plan objectives) Eyepieces: HWF 10x / Ø 18 mm (with dioptre adjustment on both tubes) Optical contrast enhancement: Includes polariser and analyser unit Mechanical cross-table: Large surface area (approx. 200 x 150 mm) for solid workpieces Focusing: Coaxial coarse and fine adjustment with mechanical stop Camera output: C-mount adapter for digital image capture Power supply: Integrated mains power supply (230 V) Scope of delivery 1 x KERN OKM 173 metallurgical microscope (stand and tube) 4 x Planachromatic LWD objectives (5x, 10x, 20x, 50x) 2 x HWF 10x wide-field eyepieces 1 x polarisation and analyser unit 1 x 30-watt halogen replacement bulb 1 x C-mount camera adapter 1 x dust cover and mains cable 1 x Detailed operating instructions Individual requirements & accessories The trinocular optical path of the OKM 173 is mechanically and optically designed to accommodate a high-resolution digital microscope camera (e.g. KERN ODC series with CMOS sensor). To carry out metrological length or angle measurements on metal structures via the software, such a camera, in conjunction with an object micrometre for calibration, is essential. For analyses requiring extremely high magnification, the system can also be upgraded with a plan-achromatic 100x LWD objective. Please contact our procurement service at any time regarding the optoelectronic configuration and integration into your quality management system.

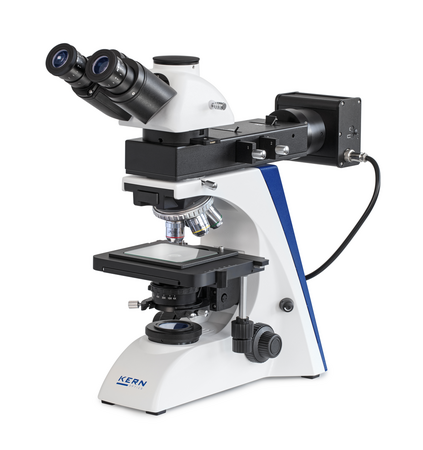

KERN OKO 178 Metallurgical Microscope
OKO 178 Metallurgical Microscope Product family: OKO-1 The fully equipped reflected and transmitted light microscope for a wide range of applications in metallurgy Description This instrument is a professional and versatile metallurgical microscope designed for the inspection of metals and surface analysis The KERN OKO is a combined version featuring LED reflected light and LED transmitted light. A centring and height-adjustable 1.25 Abbe condenser, as well as a field diaphragm for full professional Köhler illumination, are included as standard An open, mechanical cross-table is integrated as standard A simple polarisation unit (analyser and polariser) is included in the scope of delivery A wide range of accessories, such as eyepieces and additional objectives for a greater working distance, is available A dust cover, eyecups and a multilingual user manual are included in the scope of delivery Technical specifications Optical system Infinity Tubus type Trinocular Eyepiece magnification 10× Eyepiece field of view 22 mm Standard objectives 5x, 10x, 20x, 50x Objective lens quality Infinity semi-apochromatic Objective turret positions 5 Illumination type Reflected light, transmitted light Transmitted light source LED Illumination type (incident light) LED Illuminance (incident light) 5W Condenser type ABBE Condenser aperture 1.25 Condenser mounting Centreable Focusing mechanism Coaxial coarse and fine adjustment Minimum fine adjustment 0.002 mm Dimensions (W×D×H) 550×200×460 mm GTIN/EAN number 4045761267831
SAUTER JCT 100 coating thickness gauge, Fe/NFe combination sensor, internal measuring cell
Uncompromising precision in surface technology: the SAUTER JCT 100 coating thickness gauge In modern industrial manufacturing, rigorous quality assurance, professional vehicle assessment and heavy-duty corrosion protection, the accurate and non-destructive measurement of coating thicknesses is an absolutely business-critical factor. Whether it is the thickness of a protective zinc coating on a steel girder, the uniform paint finish on a car body, or the anodised layer on an aluminium profile – even minute deviations from the specified tolerance values can have dramatic consequences. A coating that is too thin will inevitably lead to premature corrosion, material fatigue and costly warranty claims. A coating that is too thick, on the other hand, is prone to flaking, compromises the mechanical fit of components and, in mass production, wastes immense quantities of expensive raw materials (such as powder coating or zinc). To completely eliminate these massive quality and financial risks, KERN & SOHN has developed the JCT 100 digital coating thickness gauge (MPN JCT 100) under its specialist brand SAUTER. This compact, ergonomic and technologically advanced handheld measuring device provides you with absolutely reliable, digital readings within milliseconds and is the perfect solution for any professional user who needs to record high-precision, standards-compliant coating data on a daily basis. Intelligent dual technology: automatic Fe and NFe detection The greatest technological advantage of the SAUTER JCT 100 is its highly advanced, universal combination measuring cell. In industrial practice, one is constantly dealing with completely different base materials. The device therefore masters both relevant physical measurement principles to perfection. On the one hand, it uses the magnetic-inductive method (Fe mode) to measure non-magnetic coatings (such as varnish, paint, plastic, enamel, chrome, copper or zinc) on magnetic base materials such as steel and iron. On the other hand, the electronics switch instantly to the eddy current method (NFe mode) when you need to measure insulating layers (such as paint, anodised aluminium, plastic or ceramics) on non-magnetic metals such as aluminium, brass, copper or non-magnetic stainless steel. The real highlight for the user: the SAUTER JCT 100 detects the respective metallic base material (substrate) completely automatically! You do not need to manually reprogram the device when switching from a steel sheet to an aluminium component. Simply place the device on the component, and the internal microprocessor automatically selects the correct physical measurement mode. This massively speeds up the testing process on mixed assemblies (for example, on modern car bodies made from a combination of steel and aluminium) and categorically rules out critical measurement errors caused by the operator selecting the wrong mode manually. Ergonomics and precision thanks to an internal measuring cell The SAUTER JCT 100 has been deliberately designed as a compact, one-handed measuring device with an internally mounted measuring cell (probe). In the harsh realities of everyday industrial use, this design offers decisive advantages over devices with external cable probes. Firstly, it eliminates the hassle of handling delicate cables that could get caught on sharp edges or break. Secondly, the internal probe enables extremely stable and wobble-free one-handed operation. You can hold on with your free hand whilst, for example, carrying out measurements on a large silo or a bridge pier whilst standing on a ladder. The tip of the probe is also fitted with a special, wear-resistant V-groove. This sophisticated design ensures that you can always position the device perfectly centred and at an exact 90-degree angle, not only on perfectly flat metal sheets but also on heavily curved surfaces, round pipes, shafts or convex body panels. Only a perfectly vertical positioning guarantees physically correct and reproducible coating thickness readings. Comprehensive statistical analyses and alarm functions In professional quality control, a single measurement is often insufficient to assess the uniformity of a coating across a large area. The SAUTER JCT 100 is therefore equipped with a generous internal data memory and powerful statistical functions. During a series of measurements, the device automatically calculates the mean value, the absolute highest measured value (Max), the lowest value (Min) and the standard deviation. This allows you to immediately identify whether a painting robot is operating unevenly in production or whether paint drips have formed. To further optimise the workflow in series testing, the device features a freely programmable limit value function (limit alarm). You define a minimum and maximum film thickness in advance (for example, 80 µm to 120 µm). If a measured value falls outside this strict tolerance range, the device immediately alerts you with a highly visible visual and audible signal. This enables extremely rapid ‘pass/fail’ sorting of components at goods-in, without you having to analytically evaluate every single numerical value on the display. Calibration and GLP/ISO-compliant documentation For companies certified to the strict quality standards of DIN EN ISO 9001, the verifiable accuracy of test equipment is of the utmost importance. The SAUTER JCT 100 can be calibrated quickly and easily by the user at any time. The comprehensive scope of supply includes both zeroing plates (for Fe and NFe) and a set of high-precision calibration foils in various defined thicknesses. This allows you to precisely adjust the device to the expected measurement range and the surface roughness of your specific workpiece using a one-point or two-point calibration. The high-resolution, high-contrast display ensures that you can always read the results perfectly, even in poor lighting conditions in production halls or in bright sunlight on a building site. The SAUTER JCT 100 is therefore not just a measuring device, but an indispensable, cost-effective tool for active quality assurance, for preventing rejects and for the long-term protection of your brand’s reputation. Technical specifications Measurement principles: Magnetic induction (Fe) and eddy current (NFe) Detection: Automatic detection of the base material (Fe/NFe) Measurement range: Typically 0 to 2000 µm (please refer to the data sheet for exact manufacturer’s specifications) Resolution (d): 0.1 µm (in the lower range) / 1 µm (in the upper range) Accuracy: approx. ± (1 to 3 % of the measured value + 1 µm) Measuring cell: Internally mounted (robust, one-handed operation) Contact surface: With V-groove for precise measurement on round parts (tubes, shafts) Statistical functions: Number of measurements, mean, max, min, standard deviation Limit alarm: Visual and audible signal when values exceed or fall below limits Calibration: Zero point and gauge calibration (two-point) Units: Switchable between µm (micrometres) and mil (mils) Power supply: Standard batteries (with auto-off function to conserve power) Contents 1 x SAUTER JCT 100 coating thickness gauge 1 x calibration set (reference plates for Fe and NFe) 1 x set of calibration spacer sheets (various thicknesses) 1 x set of batteries 1 x Sturdy hard-shell carrying case 1 x Detailed operating instructions in German Individual requirements & accessories If you are using this precision instrument as part of a certified ISO 9001 quality management system, we strongly recommend that you also order an official factory calibration certificate (ISO). This certifies the traceability of the measured values to national standards. Should you require a device with a flexible, external cable probe for specialised geometric components (such as deep bores or hard-to-reach interior body cavities), we would be happy to advise you on the sister models from the SAUTER range. Simply contact our expert procurement service for personalised system advice.
KERN DAB 100-3 Halogen Moisture Analyser, 110 g / 0.001 g (0.01 %)
Unrivalled precision in moisture analysis: KERN DAB 100-3 The KERN DAB 100-3 (MPN DAB 100-3) is the high-resolution version of the successful DAB series. It has been developed for laboratories and quality control applications where every tenth of a per cent counts. With an outstanding readability of 0.001 g (corresponding to 0.01% moisture), this halogen moisture analyser delivers accurate and highly reproducible results. Whether for testing plastic granules (residual moisture prior to injection moulding), in the food industry or for analysing building materials – the instrument guarantees maximum reliability with a weighing range of up to 110 g. Rapid halogen drying A powerful 400-watt halogen quartz glass lamp. Speed: Halogen heats up extremely quickly and brings your sample to the desired target temperature without any preheating time. Uniformity: The heat is distributed evenly across the 90 mm sample dish, ensuring uniform evaporation of the moisture. Flexibility: The drying temperature can be precisely adjusted in 1 °C increments from 40 °C to 199 °C . Graphic display for intuitive operation Despite its high precision, the DAB 100-3 is incredibly easy to use. The backlit graphic LCD guides you visually through the entire measurement process. You always have all the critical parameters at a glance: Current moisture content in % Current temperature Drying time to date Active drying programme Live display of the drying curve Automate routine measurements To make your day-to-day laboratory work easier, the instrument offers extensive storage and automation functions: Shut-off criteria: The instrument stops fully automatically when the sample’s weight remains constant over a defined period. Alternatively, a time-controlled or manual shut-off is possible. 15 programme memories: Store up to 15 complete drying profiles (temperature, duration, shutdown criterion) for your most frequently used samples in the internal memory. A single press of a button is all it takes to start the routine measurement. Viewing window: Allows visual inspection of the sample at any time during drying. Technical Specifications Model: DAB 100-3 Weighing range (max): 110 g Resolution (weight / moisture): 0.001 g / 0.01% Reproducibility (2 g sample): 0.15 % Reproducibility (10 g sample): 0.03 Heating technology: Halogen quartz glass heater (400 W) Temperature range: +40 °C to +199 °C (in 1 °C increments) Display modes: Moisture (%), dry matter (%), ATRO (%), residual weight (g) Programme memory: 15 drying programmes Sample dishes: Ø 90 mm Interface: RS-232 (for PC or printer) Dimensions (W x D x H): 240 x 365 x 180 mm Weight: approx. 4.8 kg Contents 1 x KERN DAB 100-3 moisture analyser 50 x aluminium sample dishes (Ø 90 mm) 1 x sample-taking tongs 1 x mains adaptor/cable 1 x safety hood 1 x Operating instructions / Application manual Custom requirements & accessories To make full use of the high accuracy of 0.001 g, we recommend using round glass fibre filters (as a suction pad for liquid/paste-like samples or as a splash guard). For complete GLP documentation, you can connect the device to a KERN matrix printer via the RS-232 interface. Make sure you also stock up on sufficient spare aluminium trays straight away. Please contact our procurement service.
Sauter Leeb HK-DB hardness tester for metals, portable hardness tester
The Sauter Leeb HK-DB hardness tester (MPN HK-DB) is a highly sophisticated mechatronic, metrologically precise and fully portable system solution for the non-destructive hardness testing of metallic materials. Based on the physical principle of the dynamic rebound method (according to Dietmar Leeb), this compact instrument enables highly reproducible hardness measurements to be carried out directly on site on solid components, heavy machinery parts or during incoming goods inspection. For demanding metallurgical tests in the foundry industry, mechanical engineering, steel construction and automotive quality control, this digital hardness testing system provides the metrological basis for monitoring material quality in a way that is gentle on the material, process-reliable and compliant with standards. The Leeb rebound principle for precise materials analysis The technical foundation of the HK-DB is based on the precise measurement of the transient velocity of a spring-driven impact body. A standardised carbide impact body is propelled by spring force against the surface of the test specimen. Upon impact, the body undergoes elastic deformation and rebounds. The flight velocities immediately before and after impact are measured inductively. The microprocessor control system generates the Leeb hardness value (HL) from the ratio of these two velocities. This dynamic measurement method is ideally suited to a wide range of metallic alloys such as steel, stainless steel, cast iron, aluminium, brass, bronze and copper. Universal scale conversion and smart data interfaces An outstanding metrological feature of the Sauter HK-DB is the automatic, error-free real-time conversion of the primary Leeb hardness value into all internationally recognised hardness scales. Users can view the measurement results directly on the high-contrast digital LCD display in Rockwell (HRC and HRB), Vickers (HV), Brinell (HB) or Shore (HS). To support seamless quality management in accordance with ISO 9001, the instrument features an integrated measurement data memory. Via the integrated USB interface, the transient test data can be reliably transferred to a higher-level B2B merchandise management system or documentation software. Robust design for harsh industrial environments The mechatronic system architecture of the HK-DB is consistently designed for maximum service life in continuous industrial use. The ergonomically shaped housing reliably protects the sensitive control electronics from mechanical vibrations, transient impacts and dusty environmental conditions in the production area. The external impact body of type D (impact device D), supplied as standard, guarantees a consistently constant impact energy thanks to its precise mechanical guidance. For laboratory managers and those responsible for audits, Sauter offers, with this system, a reliable, validatable test medium for reproducible material testing. Technical details Measurement system & sensors Test method: Leeb dynamic rebound method Impact device / sensor: Type D (standard impact device with carbide test tip) Measurement accuracy: ±1 per cent at HL=800 (high reproducibility) Displayable hardness scales: HL (Leeb), HRC (Rockwell C), HRB (Rockwell B), HV (Vickers), HB (Brinell), HS (Shore) Measuring range: Scalable across all common metal hardnesses, depending on the material Electronics, geometry & interfaces Display type: Large, backlit digital LCD display Data storage: Internal memory for transient measurement series and individual values Digital interface: USB data output for connection to a PC Dimensions (W x D x H): 150 x 80 x 30 mm Power supply: Battery-powered (for maximum portability) Net weight: approx. 0.45 kg (compact and lightweight for mobile test cycles) Material compatibility Testable materials: steel, tool steel, stainless steel, grey cast iron, ductile cast iron, cast aluminium, brass, bronze, forged copper alloys Test specimen requirements: Minimum weight of 5 kg (for solid components) or, for thinner specimens, attachment to a stable base using coupling paste Scope of supply 1 x Sauter Leeb HK-DB hardness tester (main unit, MPN: HK-DB) 1 x External impact device, Type D 1 x Hardness comparison plate (Leeb test block for internal functional testing) 1 x Robust transport and storage case 1 x USB connection cable 1 x Detailed operating instructions / calibration guide Customised requirements & accessories To ensure the Sauter HK-DB is optimally integrated into your specific testing processes, we offer a comprehensive range of compatible system peripherals: Hardness comparison blocks: DAkkS-certified calibration blocks in various hardness ranges for audit-compliant verification of your measuring equipment in accordance with quality management guidelines. Specialised impact devices: Optional impact bodies for tight geometries, internal pipe walls or rough surface structures (e.g. types DC, D+15, G, C). Consumables & peripherals: High-viscosity coupling paste for stabilising thin-walled or lightweight test specimens (under 2 kg) during the impact pulse, in order to suppress distorting natural frequencies. Make use of our technical procurement service to design your metallurgical test stations to suit your specific requirements.
KERN IP-rated FFN 6K1IPN bench scale, stainless steel, IP65, weighing range 6 kg
The KERN IP-rated FFN 6K1IPN bench scale is a highly robust, metrological system solution for demanding weighing processes in harsh industrial environments, food processing and the catering industry. Designed as a compact stainless-steel scale, this measuring instrument meets the most stringent hygiene requirements and is ideally suited to the demands of so-called washdown areas. Wherever liquids, powders, moisture or dust in professional B2B settings threaten the operation of conventional electronics, this bench scale guarantees gentle, efficient and reliable operation during internal checks, piece-by-piece inspections or precise portioning. Uncompromising IP65 protection and hygienic stainless steel design The mechanical structure of the FFN 6K1IPN is thoroughly optimised for direct contact with foodstuffs and aggressive environmental media. The housing and weighing pan are made of high-quality, stainless steel, which offers excellent corrosion resistance and can be easily disinfected using standardised laboratory and industrial cleaning agents. Thanks to its certified IP65 protection rating, the entire system is dust-tight and protected against water splashes from all directions. Integrated silicone seals reliably protect the sensitive load cell and internal electronics from moisture ingress, which drastically extends the service life of the device during daily cleaning cycles. Ergonomic mobility and HACCP-compliant data management For flexible use at different workstations, the bench scale features a sophisticated mechatronic system architecture, supported as standard by an internal rechargeable battery. Mains-independent operation allows laboratory and production staff maximum freedom of movement without the hindrance of cables. The smooth, non-porous surfaces and the design, which prevents the build-up of dirt in corners, actively support compliance with strict HACCP quality management systems. A large, backlit LCD display with a digit height of 25 mm guarantees error-free readability of measurement results, even under difficult lighting conditions or from greater distances. Fast stabilisation times and practical versatility The scale’s metrological performance is impressive, with an extremely short stabilisation time of just around 2 seconds. This rapid transient signal processing significantly speeds up sequential filling and checking processes in multi-user operation. The integrated software features include a practical tare function for subtracting container weights, as well as a dynamic weighing function (animal weighing programme), which delivers reliable readings by averaging values even with restless samples or vibrations in the workplace. A stable, non-slip base is permanently ensured by large, height-adjustable rubber feet and an integrated spirit level. Technical details Metrology & Weighing Specifications Weighing system: Strain gauge (SG) Maximum weighing range (Max): 6 kg Resolution (d): 1 g Reproducibility: 1 g Linearity: +/- 1 g Settling time / stabilisation time: approx. 2 seconds Adjustment: External adjustment programme (calibration weight optional) Design, materials & geometry Housing material: Stainless steel Weighing plate material: Stainless steel Weighing plate dimensions (W x D): approx. 230 x 190 mm Overall dimensions (W x D x H): approx. 230 x 300 x 130 mm Net weight: approx. 4.0 kg Protection class according to DIN EN 60529: IP 65 (dust- and splash-proof) Functions, electronics & power supply Display: LCD display, backlit, digit height 25 mm Application modes: Standard weighing, tare function, data hold function, animal weighing programme (dynamic weighing) Quality assurance: HACCP compliance supported Primary power supply: Internal rechargeable battery (operating time up to 50 hours without backlighting) Secondary power supply: Mains adaptor 230V / 50Hz (included) Auto-off function: Adjustable to conserve battery life Contents of the package 1 x KERN IP-rated FFN 6K1IPN benchtop balance base unit (MPN: FFN 6K1IPN) 1 x stainless steel weighing plate 1 x Internal rechargeable battery (pre-installed) 1 x universal mains adaptor / charger 1 x User manual Important note: This model from the FFN-N series is not suitable for legal metrology and is primarily designed for in-house checks, recipes and logistics processes. For applications requiring legal metrology, we would be happy to select the appropriate KERN FFN-M variant for you. Customised requirements & accessories To regularly verify the metrological chain of your KERN FFN 6K1IPN as part of your internal quality management system, we stock certified KERN test weights (e.g. OIML accuracy class M1) in our range. To provide protection against extreme levels of contamination or to safeguard the keypad matrix, we also offer bespoke protective covers as consumables. Should you require a traceable DAkkS calibration certificate for your documentation, this can be requested directly via our service when placing your initial order. Please make use of our technical procurement service to ensure the optimal configuration of your industrial workstations.
KERN DAB 100-3IR Infrared Moisture Analyser, 110 g / 0.001 g (0.01 %)
Precision meets gentle drying: KERN DAB 100-3IR moisture analyser The KERN DAB 100-3IR (MPN DAB 100-3IR) is the specialist solution for laboratories that demand the highest standards of accuracy whilst analysing temperature-sensitive samples. With outstanding readability of 0.001 g (corresponding to 0.01% moisture) and a weighing range of up to 110 g, it meets the most demanding quality control requirements. Its key feature, however, is its heating system: a 400-watt infrared heater that dries the sample particularly gently. Why use infrared technology for high-precision measurements? With a resolution of 0.001 g, even the slightest burning of the sample dramatically distorts the measurement result. Infrared heat penetrates the sample more evenly than conventional halogen light. No burning: Dark, light-absorbing samples dry thoroughly without charring on the surface. No crust formation: With sugary or pasty substances (e.g. in food analysis), IR prevents the formation of a crust that would block the escape of residual moisture. Temperature range: The drying temperature can be precisely adjusted in 1 °C increments from 40 °C to 199 °C. Visual monitoring thanks to the graphic display Operating the DAB 100-3IR is intuitive and safe. The backlit graphic LCD guides you through the measurement process and displays all key parameters in real time: Current moisture content in % Current temperature Drying time to date Active drying programme Live display of the drying curve Efficiency through automation Save time in your day-to-day laboratory work with intelligent automation features: Shut-off criteria: The balance automatically detects when the weight remains constant and terminates the measurement. Time-controlled or manual stops can also be selected. 15 programme memories: Save complete drying profiles (temperature, stop criteria) for your 15 most common samples. A single press of a button is all it takes to start. GLP documentation: Via the RS-232 interface, reports can be sent to a printer or PC in accordance with standards (including date and time). Technical Specifications Model: DAB 100-3IR Weighing range (max): 110 g Resolution (weight / moisture): 0.001 g / 0.01 % Reproducibility (2 g sample): 0.15 % Reproducibility (10 g sample): 0.03 % Heating technology: Infrared heater (400 W) Temperature range: +40 °C to +199 °C (in 1 °C increments) Display modes: Moisture (%), dry matter (%), ATRO (%), residual weight (g) Programme memory: 15 drying programmes Sample dishes: Ø 90 mm Interface: RS-232 Dimensions (W x D x H): 240 x 365 x 180 mm Weight: approx. 4.8 kg Contents 1 x KERN DAB 100-3IR infrared moisture analyser 50 x aluminium sample dishes (Ø 90 mm) 1 x sample retrieval tongs 1 x mains adaptor/cable 1 x safety hood 1 x Operating instructions / Application manual Customised requirements & accessories To realise the full potential when analysing liquid or paste-like samples, we recommend round glass fibre filters. These increase the surface area of the sample and significantly speed up infrared drying without compromising the accuracy of 0.001 g. Why not stock up on a bulk pack of aluminium sample dishes at the same time? Please contact our procurement service.
KERN ODC 241 Microscope Camera
ODC 241 microscope camera Product family: ODC-24 Tablet with integrated camera for optimal observation and digital documentation of the sample Description A 2-in-1 solution for digital microscopy, serving as a universal system for all trinocular microscopes with a C-mount adapter. The ODC 241 microscope tablet camera consists of a large Android tablet combined with a 5 MP camera The KERN ODC 241 tablet camera has been specially developed for simple and direct observation of the specimen on the screen. Ideally suited for school pupils and students in training or for demonstration purposes in the laboratory In addition to live streaming of the image to the Android tablet, the integrated 5-MP camera also allows images and videos to be captured for documentation purposes. Simple measurements, such as distance, area and angle measurements, as well as a manual counting function, are also available Automatic white balance and automatic contrast adjustment can be carried out quickly and easily, enabling efficient work The integrated interfaces provide a wide range of additional functions, such as - data storage on a USB stick or SD card - Connection of a USB mouse - Transmission of the live image to an external screen via HDMI - Transfer of stored data to external receivers via Wi-Fi The package includes the tablet camera with pre-installed software and the mains adaptor Not compatible with the following microscopes: OZM-5, OLM 170 Technical specifications Display type: LCD touchscreen Display size: 9.7" Display resolution: 2048x1536 MCU details: Quad-core Cortex-A17; 1.8 GHz Camera – Sensor type: Sony CMOS Camera – Colour depth: Colour Camera – Sensor size: 1/2.8" Camera – Resolution: 5 MP Interfaces: Wi-Fi, USB 2.0, HDMI, microSD card slot Camera – Exposure method: Rolling shutter Camera – Mounting types: C-mount Supported operating systems: Android Camera – Software used: integrated Dimensions (W×D×H) 238×182×51 mm Product family: ODC-24
KERN PNJ 3000-2M Precision Balance, tuning fork measurement system, internal calibration, suitable for verification
The KERN PNJ 3000-2M precision balance represents a high-end metrological system solution for high-precision weighing applications in laboratories, industrial quality control and in legally regulated, calibration-required environments. Based on the innovative tuning-fork principle, this measuring instrument combines outstanding thermal stability with mechanical robustness and extremely short settling times. Wherever reliable mass measurements up to a maximum weighing range of 3,200 grams are required in a professional B2B environment, this laboratory balance guarantees gentle handling of materials, efficient operation and process reliability of the highest standard. Innovative tuning fork measuring system and thermodynamic stability The metrological foundation of the PNJ 3000-2M is its highly advanced tuning fork measurement system (Tuning Fork Technology). In direct comparison to conventional strain gauges or electromagnetic force-compensating load cells, this system operates using an oscillating quartz tuning fork. By coupling the change in mechanical frequency to the applied load, a transient, digital measurement value is generated, operating with virtually no wear. The system is characterised by excellent resistance to fluctuations in ambient temperature, achieves a remarkable settling time of just around 3 seconds, and saves valuable waiting time during sequential measurement series in the demanding day-to-day laboratory environment. Automatic internal calibration for seamless GLP compliance A key functional feature of the balance is the integrated, automatic internal adjustment (indicated by the ‘J’ in the model designation). The system continuously monitors the thermodynamic conditions and, upon detecting a temperature change or at predefined time intervals, initiates a fully automatic calibration using an internal calibration weight. Alternatively, this adjustment process can be triggered manually at any time at the touch of a button. For quality management personnel, this ensures seamless GLP/GMP compliance, as the balance independently safeguards its metrological chain and reliably eliminates measurement drifts. Verifiable system architecture and ergonomic design The PNJ 3000-2M has a type approval for verification in accordance with European accuracy class II. With a verification value of 0.1 gram and a readability of 0.01 gram, it meets all legal requirements for use in pharmacies (compounding balance), in the precious metals trade or for official analyses. The balance is fitted with a generous, square weighing pan made of stainless steel (190 x 190 mm), which allows for easy and residue-free cleaning. A large, high-contrast LCD display guides the user intuitively through the menu structure and, via an integrated capacity indicator (bar graph), constantly displays the remaining weighing range to prevent mechanical overload whilst protecting the equipment. Technical details Metrology & Weighing Specifications Weighing system: Innovative tuning fork principle Maximum weighing range (Max): 3200 g (3.2 kg) Readability (d): 0.01 g Verification value (e): 0.1 g Minimum load (Min): 0.5 g Reproducibility: 0.01 g Linearity: +/- 0.02 g Settling time / stabilisation time: approx. 3 seconds Construction, materials & geometry Weighing plate material: Stainless steel Weighing plate dimensions (W x D): 190 x 190 mm (square) Housing material: Robust, impact-resistant plastic composite Overall dimensions (W x D x H): approx. 196 x 293 x 89 mm Net weight: approx. 3.5 kg Functions, electronics & interfaces Calibration: Internal, fully automatic (time- and temperature-controlled) Verification approval: Verifiable to accuracy class II (verification optional ex works) Application modes: Piece counting, percentage determination, tolerance weighing (checkweighing), recipe mode Interfaces: RS-232 and USB interfaces for GLP-compliant connection to a PC or printer Display: Large LCD display with a digit height of 16.5 mm and capacity bar Contents of delivery 1 x KERN PNJ 3000-2M precision balance base unit (MPN: PNJ 3000-2M) 1 x stainless steel weighing pan 1 x universal mains adaptor (Euro/UK/US) 1 x protective cover for the housing and keypad 1 x User manual Important note for applications subject to legal metrology requirements: Initial calibration must be specified as an optional accessory at the time of the initial order. Subsequent calibration after delivery is not permitted by law. Customised requirements & accessories To optimally adapt the functionality of the KERN PNJ 3000-2M to your laboratory processes, we offer a comprehensive range of original accessories. For the direct, legally compliant printing of weighing data and calibration reports in accordance with GLP guidelines, we recommend connecting a KERN thermal or Nadelprinz statistical printer (e.g. YKB-01N). To protect against environmental influences at draughty workstations, our range includes bespoke safety hoods and under-counter weighing fixtures. For applications that are not strictly subject to verification, the balance can also be supplied with a traceable DAkkS calibration certificate. Please use our technical procurement service to configure your standards-compliant weighing station.
KERN PNJ 600-3M Precision Balance
PNJ 600-3M Precision Balance Product family: PNJ The new standard in the laboratory with its robust tuning-fork weighing system Description Internal automatic calibration ensures high accuracy and makes the balance location-independent; ideal for applications subject to legal metrology requirements High-quality tuning-fork weighing system for rapid display of the weight value, precise dosing and high mechanical robustness Capacity display: A rising bar graph indicates the remaining weighing range Precise counting: Automatic reference optimisation gradually improves the average value of the piece weight Compact dimensions, advantageous where space is limited Large, impact-resistant stainless steel weighing plate Large glass draft shield with 3 sliding doors for convenient access to the sample as standard; weighing chamber W×D×H 172×171×160 mm Safety hood included Technical data Weighing range [Max] 620 g Readability [d] 0.001 g Calibration value [e] 0.01 g Units g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol Conformity assessment available ex works Minimum weight [Min] 0.02 g Linearity ± 0.004 g Reproducibility 0.001 g Settling time 3 s USP minimum sample weight (k=2, U=0.1%) 2 g Interfaces RS-232 as standard Calibration options Calibration with internal weight (automatic) Ambient temperature range 5 °C – 40 °C Weighing surface dimensions (Ø) 140 mm Draft shield material Glass Housing material Plastic Housing dimensions (W×D×H) 196×293×266 mm Weighing plate material Stainless steel Net weight approx. 4.2 kg Scale type Single-range scale GTIN/EAN number 4045761179882
KERN EHA 500-2 School Scale 500 g / 0.01 g
A compact all-rounder for the classroom and laboratory The Kern EHA 500-2 is a precise school balance specially developed for use in science lessons (biology, chemistry, physics) as well as for standard applications in laboratories and production. With a weighing range of up to 500 g and a fine readability of 0.01 g, it delivers accurate results for experiments and quality control. Its particularly slim and space-saving design makes it the ideal choice for workstations with limited space. Durability meets hygiene A key feature of this model is the large, shock-resistant weighing pan made of stainless steel. It is not only durable but also particularly lightweight and easy to clean hygienically – a crucial advantage in day-to-day school operations. The ABS plastic housing is robustly constructed, and the ergonomically optimised keypad with a high-contrast LCD display ensures intuitive operation that is easy for pupils to understand. Precision and flexibility To ensure accurate measurement results, the balance is fitted as standard with a spirit level and adjustable levelling screws, enabling precise levelling. The integrated CAL calibration programme also allows for quick checking and adjustment of accuracy using external test weights. Thanks to its optional battery operation, the EHA 500-2 can also be used flexibly on the move, without the need for a mains socket. Technical Details Weighing range [Max]: 500 g Resolution [d]: 0.01 g Linearity: ± 0.03 g Reproducibility: 0.03 g Weighing plate: stainless steel, Ø 105 mm Display: LCD, high-contrast Dimensions (W x D x H): 225 x 160 x 50 mm Power supply: Mains adaptor (included) or battery (optional) Units: g, gn, dwt, ct, oz Settling time: 3 s Calibration: External (calibration weight not included) Net weight: approx. 0.5 kg Contents Kern EHA 500-2 school balance Universal mains adaptor (with adaptors for EU, CH, UK, US) User manual Please note: Batteries and test weights are not included. Individual requirements & procurement service Do you need suitable test weights (recommended: 200 g / 500 g, Class F2) for regular adjustment or DAkkS calibration? We can fully equip your teaching resources room. Contact our procurement service for a bespoke quote, including for larger quantities.
KERN CPE 15K-3 Compact Counting Scale, 15 kg / 0.5 g, 3 displays
Counting instead of weighing: the KERN CPE 15K-3 for stock-taking and warehousing The KERN CPE 15K-3 is a professional compact counting balance, specially developed for fast and error-free use in order picking, stocktaking or production. Where items used to be laboriously counted by hand (e.g. screws, electronic components or plastic parts), the CPE delivers the exact result in a fraction of a second. With a weighing range of 15 kg and a readability of 0.5 g, it perfectly covers the most important range of items in a small parts warehouse. The 3-display concept: everything at a glance The biggest advantage of a genuine counting balance over a standard balance with a counting function is the three separate displays. You can keep an eye on all the relevant values at all times without having to press any buttons: Total weight: How much does the entire weighing pan weigh? Reference weight: How much does a single item weigh (unit weight)? Total number of items: How many items are on the scale? The large, backlit LCD displays are easy to read even in dark warehouses. Efficiency through memory and target function PLU memory: Do you frequently count the same items? The KERN CPE has 100 item memory slots (PLU) for reference weights and tare deductions. Simply call up the item at the touch of a button – this saves a huge amount of time. Fill-to-Target (target counting function): Do you need to pack parcels containing exactly 1,000 screws? Programme in the target quantity. An audible and visual signal alerts you as soon as the target value is reached. This prevents overfilling or underfilling. High mobility: Thanks to the integrated rechargeable battery (optional/standard depending on configuration – please check) and the compact design, you can take the scale straight to the shelf location. Robust and practical The large stainless steel weighing plate (315 x 215 mm) is hard-wearing, easy to clean and offers enough space for counting trays or cardboard boxes. A dirt-repellent protective cover shields the keypad and housing from dust and scratches in harsh industrial environments. The counting resolution of 30,000 counts ensures that even very light parts weighing from 0.5 g are reliably measured. Areas of application Warehousing & Logistics: Stocktaking, incoming goods inspection, order picking. Production: Counting assembly kits or small parts. Quality assurance: Checking packaging contents for completeness (shortage checks). Technical Specifications Model: CPE 15K-3 Weighing range (max): 15 kg Readability (d): 0.5 g Minimum item weight (standard): 5 g Minimum part weight (laboratory): 0.5 g Counting resolution: 30,000 counts Displays: 3 x LCD, backlit (digit height 20 mm) Memory (PLU): 100 items (for reference weights) Weighing plate: 315 x 215 mm (stainless steel) Functions: Piece counting, fill-to-target (audible/visual), taring, totalisation Housing material: plastic Dimensions (W x D x H): 315 x 350 x 125 mm Weight: approx. 3.2 kg Contents 1 x KERN CPE 15K-3 counting balance 1 x stainless steel weighing plate 1 x mains adapter 1 x safety cover 1 x user manual Individual requirements & accessories Do you require the internal battery pack for mobile use without a mains socket (up to 50 hours’ runtime)? Or a DAkkS calibration certificate to integrate the balance into your ISO quality management system? We can configure the balance to your specifications. Please contact our procurement service.
KERN OBL 127 Transmitted Light Microscope
OBL 127 Transmitted-light Microscope Product family: OBL-12 The versatile laboratory aid with infinity optics and fixed, pre-centred Köhler illumination Description The OBL series is characterised by its infinity optics and is therefore ideally suited to demanding transmitted light applications. The robust and ergonomic stand ensures safe and comfortable working Powerful and continuously dimmable 3W LED illumination The fixed pre-centred and focusable 1.25 Abbe condenser with aperture and field diaphragm enables simplified Köhler illumination without the centre being displaced The large mechanical cross-table and its specimen holder can accommodate up to two specimens simultaneously and focus quickly and easily via coaxial coarse and fine adjustment mechanisms on both sides A wide range of eyepieces, objectives and colour filters, as well as a dark-field condenser, a simple polarisation unit, various phase-contrast kits and even HBO and LED fluorescence units are available as accessories A dust cover, eyecups and a multilingual user manual are included in the scope of delivery Technical Specifications Optical system: Infinity Tube type: Binocular Eyepiece magnification 10× Eyepiece field of view 20 mm Standard objectives: 4x, 10x, 40x, 100x Objective quality: Infinity E-Plan Objective turret screw-in positions: 4 Illumination type: transmitted light Illumination type: LED transmitted light Type of reflected light: none Condenser type: ABBE Condenser aperture 1.25 Condenser mounting: fixed Focusing mechanism: Coaxial coarse and fine adjustment Minimum fine adjustment 0.002 mm Dimensions (W×D×H) 395×200×380 mm GTIN/EAN number 4045761267756
KERN PCB 1000-2 Compact Laboratory Balance
oT-Line PCB 1000-2 Compact Laboratory Balance Product family: PCB The industry standard for laboratories, ideal for the wide range of possibilities offered by Industry 4.0 applications Description Compatible with school-specific software solutions such as Vernier ® or LabQuest ®. Thanks to the KERN School Protocol, weighing data can be transferred via the USB data interface to a PC, laptop, etc. for evaluation and visualisation as part of technical experiments Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adaptors, such as RS-232, USB, Bluetooth, Wi-Fi or Ethernet. The outstanding advantage here is that the KUP interface adaptors simply plug in, meaning that retrofitting interfaces is straightforward without having to open the balance housing or carry out complicated installation work. The interface adapters enable convenient transfer of weighing data to networks, PCs, smartphones, tablets, laptops, printers, etc. Furthermore, control commands and data inputs can also be sent to the balance via the connected devices. Tip: with the KERN KUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the balance KERN Communication Protocol (KCP): The KCP allows the scale to be queried and controlled remotely via external control devices or computers Uniform, simplified operating philosophy PRE-TARE function for manually subtracting a known container weight, useful for checking fill levels The recipe function allows the various components of a mixture to be weighed. The total weight of all components can be displayed for verification Weighing with a tolerance range (checkweighing): A visual signal assists with portioning, dosing or sorting Freely programmable weighing unit, e.g. display directly in thread length g/m, paper weight g/m², or similar A special anti-shock system between the weighing plate and the load cell reduces vibrations during weighing, thereby ensuring faster and more reliable weighing results Safety guard included Technical data Weighing range [Max] 1200 g Resolution [d] 0.01 g Units: kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa, m Linearity ± 0.03 g Reproducibility 0.01 g Settling time 3 s USP minimum weighing capacity (k=2, U=0.1%) 20 g Interfaces RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB device (optional), KUP, Wi-Fi (optional) Calibration options: Calibration with external weight Recommended calibration weight 200 g (F1); 1 kg (F1) Ambient temperature range -10 °C – 40 °C Dimensions of weighing surface (W×D) 130×130 mm Housing material: Plastic Housing dimensions (W×D×H) 163×245×65 mm Weighing plate material: stainless steel Net weight approx. 1.2 kg Scale type: single-range scale GTIN/EAN number 4045761243170
